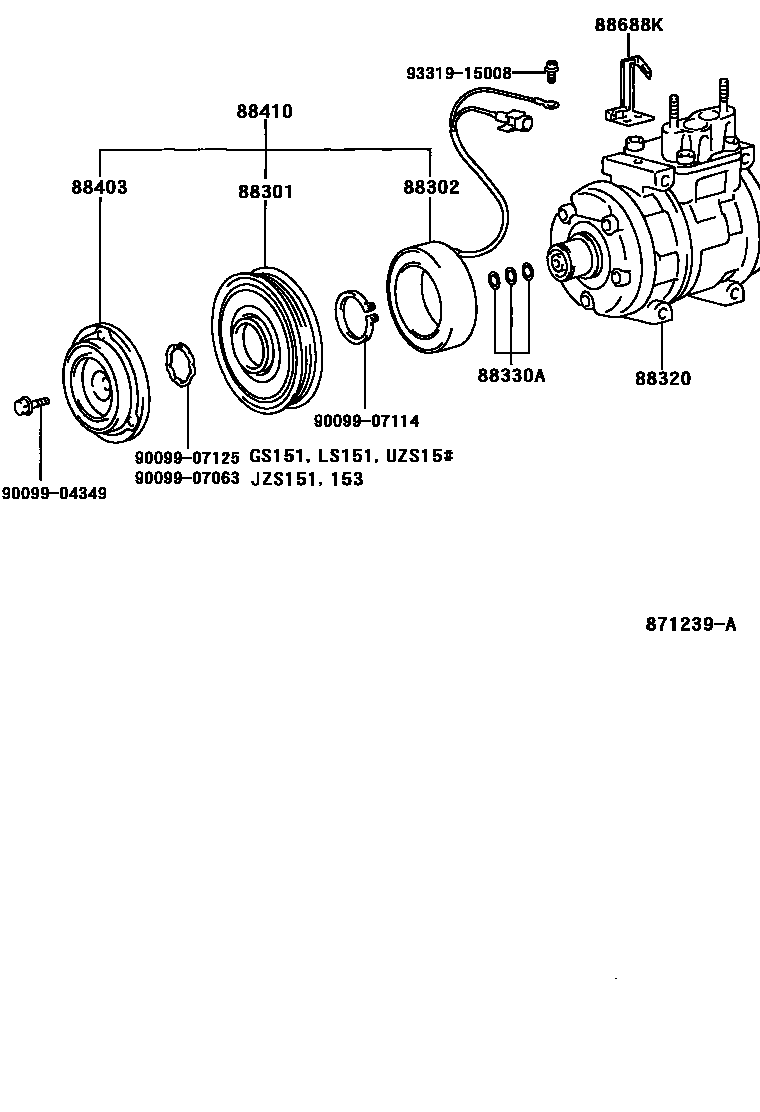

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1�-� ������� & ���������� 0002 1����, ������ & �������-� 0003 1���� 0004 1����, ������ & �������-� 0005 1���� & ������

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-12150iGS151..LPGTE199512-200102

main88412-12160iGS151..HTWC199508

main88412-2A030iJZS151,153199609-200009

main88412-30380iUZS151,157199508-199707

main88412-30430iLS151199508-199909

sub88412-2A060

main88412-30440iUZS155199511-199707

main88412-3A010iJZS151,153199508-199609

main88412-3A020iJZS155,157;UZS151,157..5FC199508-200009

main88412-3A040iUZS155199707-199909

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22280iGS151..HTWC199508-199708

main88411-22310iGS151,JZS15#,LS151..LPGTE,TDE,TWC199508-199708

sub88411-2A030

main88411-26060iUZS15#199707-199909

main88411-2A030iJZS151,153199609-199708

main88411-3A030iUZS151,157199508-199707

main88411-50030iUZS155199511-199707

88320COMPRESSOR ASSY, COOLER

main88320-30700iJZS155,157199508-200009

main88320-3A080iJZS151,153199508-199609

main88320-3A100iGS151..HTWC199508

sub88320-26H91

main88320-3A110iGS151..LPGTE199512-200102

sub88320-35H92

main88320-3A120iLS151199508-199909

sub88320-35H92

main88320-3A130iUZS15#199508-199707

main88320-3A160iJZS151,153199609-200009

sub88320-3A161

main88320-3A161iJZS15#200009

main88320-3A200iUZS15#199707-199909

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iGS151,JZS15#,LS151,UZS15#199508

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iJZS15#,UZS15#199508-199707

main88403-30290iGS151,LS151199508-199707

main88403-3A020iJZS151,153199508-199609

88410CLUTCH ASSY, MAGNET

main88410-22480iLS151199508-199909

main88410-30770iJZS15#199609-200009

main88410-34040iGS151..LPGTE199512-200102

main88410-3A120iGS151..HTWC199508

main88410-3A130iUZS151,157199508-199707

main88410-3A150iJZS155,157199508-200009

main88410-3A170iJZS151,153199508-199609

sub88410-3A110

main88410-3A190iUZS155199511-199707

main88410-3A230iUZS155199707-199909

main88410-3A240iUZS151,157199707-199909

88688KBRACKET, COOLER COMPRESSOR

main88688-2A120iGS151..HTWC199612

main88688-37320iLS151199612-199909

main88688-3A380iUZS155199511-199909

main88688-3A560iGS151..LPGTE199612-200102

main88688-3A570iUZS151,157199612-199707

9009904349

main90099-04349

9009907063

main90099-07063

9009907114

main90099-07114

9009907125

main90099-07125

9331915008

main93319-15008

12 parts on this diagram · 5 diagrams in section
