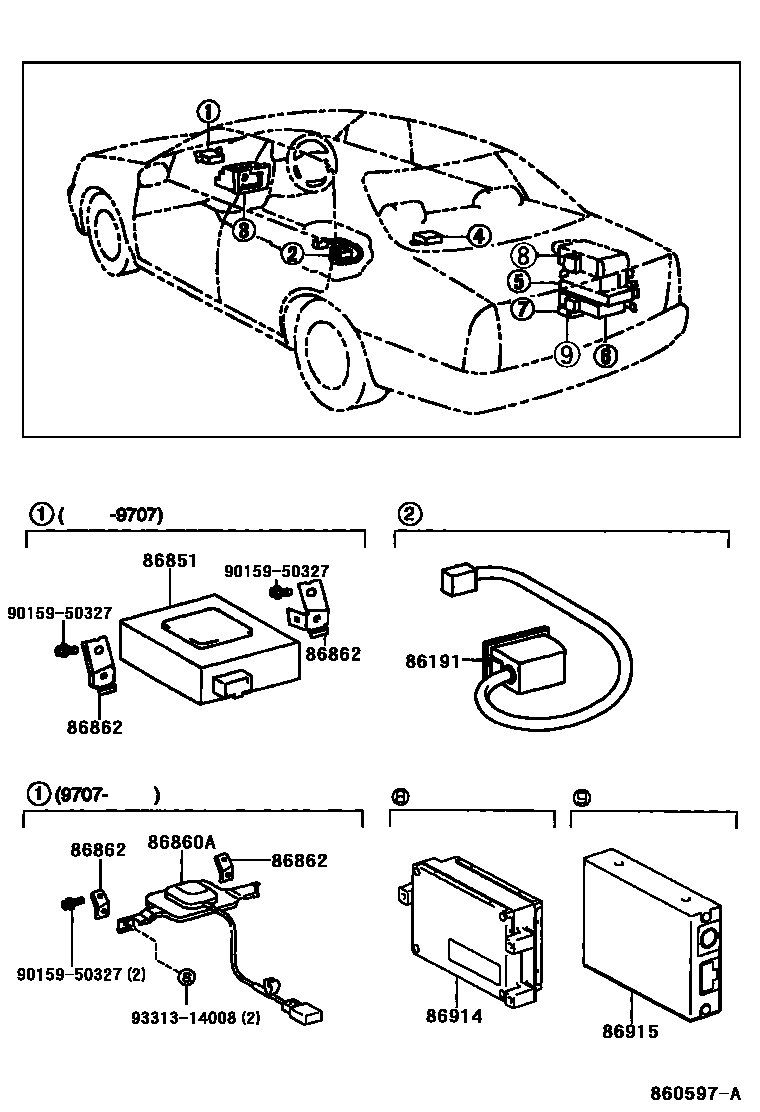

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1

86191TERMINAL, VIDEO(VIDEO ADAPTER)

main86191-30050iJZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT199707

main86191-50030iJZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT199508-199707

86851RECEIVER, NAVIGATION

main86851-30020iJZS155,UZS15#..A,C,E,F199508-199707

main86851-30080iJZS151,155..ROYT;JZS151,155,LS151..SED..(ROY,ROYG)199508-199707

main86851-30090iJZS15#,LS151..HT..(ROY,ROYG)199508-199604

main86851-30091iJZS15#,LS151..HT..(ROY,ROYG)199604-199707

86860AANTENNA, NAVIGATION

main86861-30040iJZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT199707

86862BRACKET, NAVIGATION ANTENNA

main86862-30010×2iJZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT199508

86914RECEIVER, RADIO BEACON

main86914-30010iJZS151,153,155,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT199604

86915TRANSCEIVER, OPTICAL BEACON

main86915-30010iJZS151,153,155,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT199604

9015950327

main90159-50327

9331314008

main93313-14008

8 parts on this diagram · 3 diagrams in section
