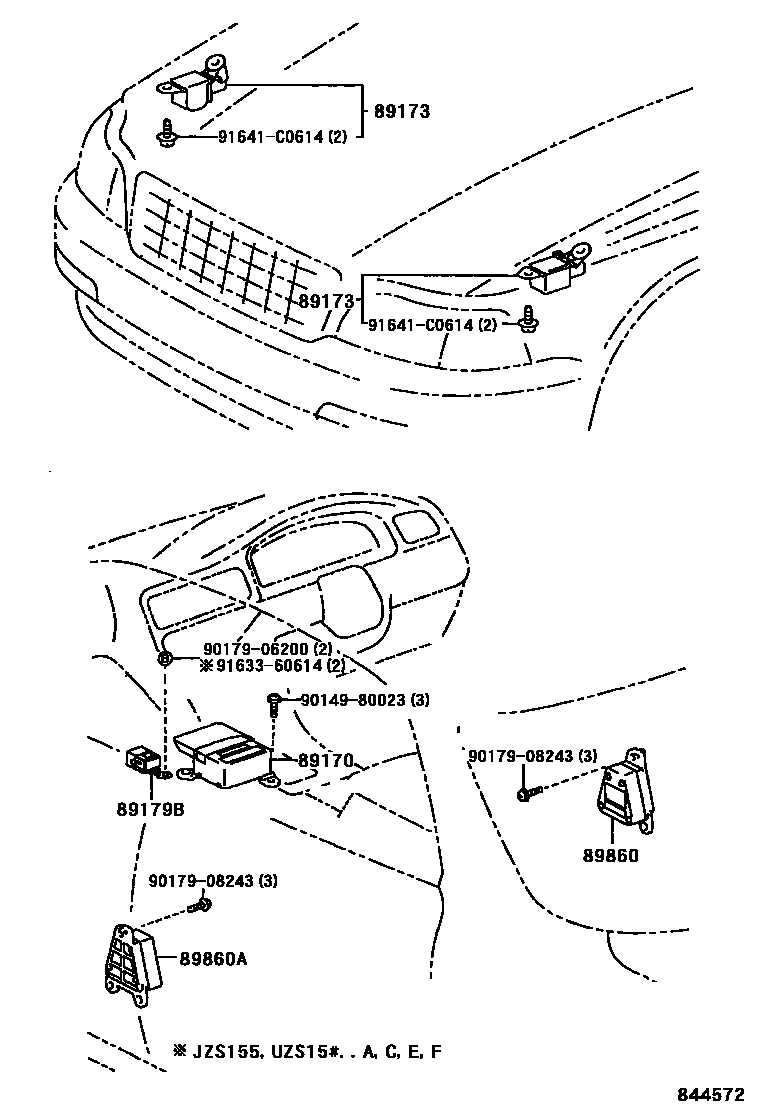

AIR BAG

0001 1 0002 1

89170SENSOR ASSY, AIRBAG

main89170-30100iGS151..LPGTE199512-199707

main89170-30110iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)199508-199707

main89170-30130iJZS155,UZS15#..A,C,E,F199508-199707

main89170-30180iJZS155,UZS15#..A,C,E,F199707-199909

main89170-30190iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)199707-199909

main89170-30200iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)199707-199909

main89170-30240iGS151..LPGTE199707-199909

main89170-30250iGS151..SPDLX..HTWC199707-199909

main89170-30300iGS151,JZS15#..HTWC,TWC199909

main89170-30310iGS151,JZS15#..HTWC,TWC199909

main89170-30320iGS151..LPGTE199909-200102

89173SENSOR, AIRBAG, FRONT

main89173-39075iJZS155,UZS15#..A,C,E,F199707-199909

main89173-39085iJZS155,UZS15#..A,C,E,F199707-199909

main89173-39095iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199707-200108

main89173-39105iGS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199707-200108

main89173-39155iLS151199707-199909

89179BSENSOR, COLLISION DETECTION

main89179-30010iGS151,JZS15#,LS151,UZS15#199508-199707

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-30010iGS151,JZS15#,LS151,UZS15#..HT199707-199909

main89860-30020iGS151,JZS151,153,155,LS151..SED199707-199909

main89860-30070iGS151,JZS15#..HTWC,TWC199909

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-30010iGS151,JZS15#,LS151,UZS15#..HT199707-199909

main89830-30020iGS151,JZS151,153,155,LS151..SED199707-199909

main89830-30070iGS151,JZS15#..HTWC,TWC199909

9014980023

main90149-80023

9017906200

main90179-06200

9017908243

main90179-08243

9163360614

main91633-60614

91641C0614

main91641-C0614

10 parts on this diagram · 2 diagrams in section
