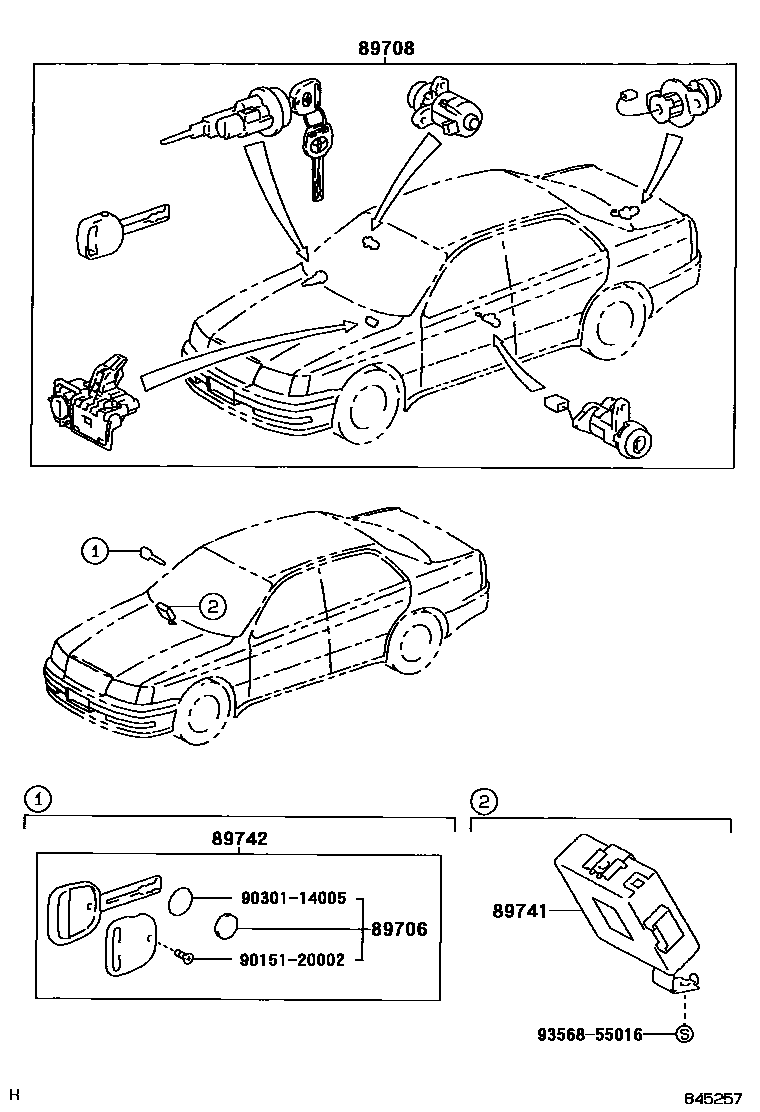

WIRELESS DOOR LOCK

89706BATTERY SET, TRANSMITTER

main89706-50010iGS151,JZS151,153..ROYEX199704-199903

sub89745-48020

sub90151-20002

sub90301-14005

main89706-50010iGS151,JZS151,153..ROYEX199904-199909

sub89745-48020

sub90151-20002

sub90301-14005

main89706-50010iJZS151,153..ROY,ROYT;GS151,JZS155,157,LS151,UZS15#..(A,C,E,F,ROY,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)199508-200108

sub89745-48020

sub90151-20002

sub90301-14005

89708CYLINDER SET, WIRELESS DOOR LOCK

main89708-30160iJZS155,UZS15#..A,C,E,F199508-199909

main89708-30170iGS151,JZS151,153..ROYEX199704-199903

main89708-30170iGS151,JZS151,153..ROYEX199904-199909

main89708-30170iJZS15#,LS151..HT..(ROY,ROYG,ROYT)199508-199909

main89708-30180iJZS151,153..SED..ROY;GS151,JZS155,LS151..SED..(ROY,ROYG,SALEX)..(HTWC,TDE,TWC)199512-200108

89741RECEIVER, DOOR CONTROL

main89741-30160iJZS155,UZS15#..A,C,E,F199508

main89741-30170iGS151,JZS151,153..ROYEX199704-199903

main89741-30170iGS151,JZS151,153..ROYEX199904-199909

main89741-30170iJZS151,153..ROY,ROYT;GS151,JZS155,157,LS151..(ROY,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)199508

main89741-30170iGS151..ROYEX199810

89742TRANSMITTER, DOOR CONTROL

main89742-30210iJZS155,UZS15#..A,C,E,F199508

main89742-30220iGS151,JZS151,153..ROYEX199704-199903

main89742-30220iGS151,JZS151,153..ROYEX199904-199909

main89742-30220iJZS151,153..ROY,ROYT;GS151,JZS155,157,LS151..(ROY,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)199508

main89742-30220iGS151..ROYEX199810

9015120002

main90151-20002

9030114005

main90301-14005

9356855016

main93568-55016

7 parts on this diagram · 1 diagram in section
