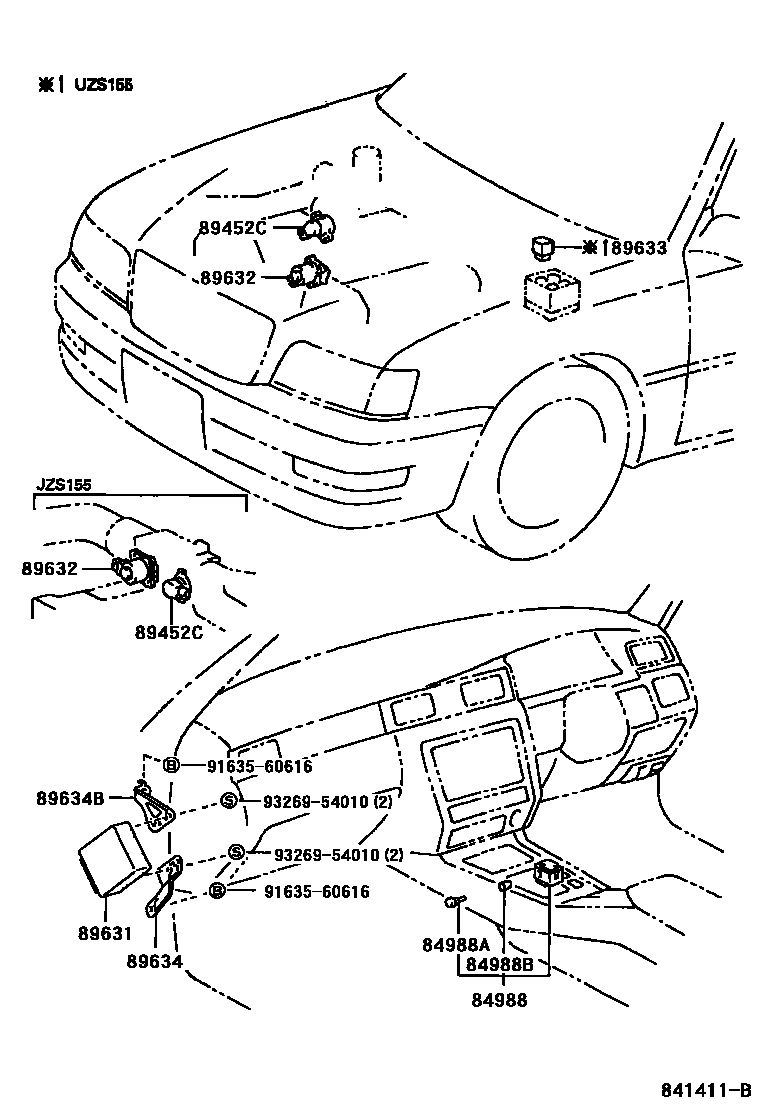

TRACTION CONTROL

84988SWITCH, TRACTION CONTROL

main84988-22010iJZS151,155,LS151,UZS151,157199508-199707

main84988-30060iJZS155..A,E199707

84988ABULB, TRACTION CONTROL SWITCH

main84999-10310iJZS151,155,LS151,UZS151,157199508-199911

main90010-01039iJZS151,155199911

84988BCAP, TRACTION CONTROL SWICH BULB

main84998-10740iJZS151,155,LS151,UZS151,157199508-199911

89452CSENSOR, THROTTLE POSITION

main89452-22090iJZS151,155199508-199707

main89452-50020iUZS15#199508-199707

89631COMPUTER, TRACTION CONTROL

main89630-30090iJZS155,UZS15#..A,C,E,F199508-199707

main89631-50020iJZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX199508-199707

89632MOTOR, TRACTION THROTTLE VALVE

main89632-22020iJZS151199508-199610

main89632-22040iJZS151199610

main89632-50020iJZS155,UZS15#199508-199707

89633RELAY, TRACTION CONTROL

main89633-24010iUZS155199511-199707

89634BRACKET, TRACTION CONTROL COMPUTER

main89634-30100iJZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX199508-199707

89634BBRACKET, TRACTION CONTROL COMPUTER, NO.2

main89634-30120iJZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX199508-199707

9163560616

main91635-60616

9326954010

main93269-54010

11 parts on this diagram · 1 diagram in section
