ELECTRONIC CONTROLED DIESEL (ECD)

85915BRELAY, MAIN (FOR DIESEL TURBO)

main90987-02012iLS151199508

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-60030iLS151199508

sub89421-60040

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-35010iLS151199508

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-12010iLS151199508

89452BSENSOR, THROTTLE POSITION

main89452-28090iLS151199508

sub89452-22090

89454SENSOR, FUEL TEMPERATURE

main89454-60010iLS151199508

89661ACOMPUTER, ENGINE CONTROL

main89661-30890iLS151199508

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-30200iLS151199508-199707

main89667-30220iLS151199707

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-30170iLS151199508

89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-30130iLS151199508-199707

main89669-30140iLS151199707

9015960303

main90159-60303

9043012221

main90430-12221

9151160610

main91511-60610

9331915010

main93319-15010

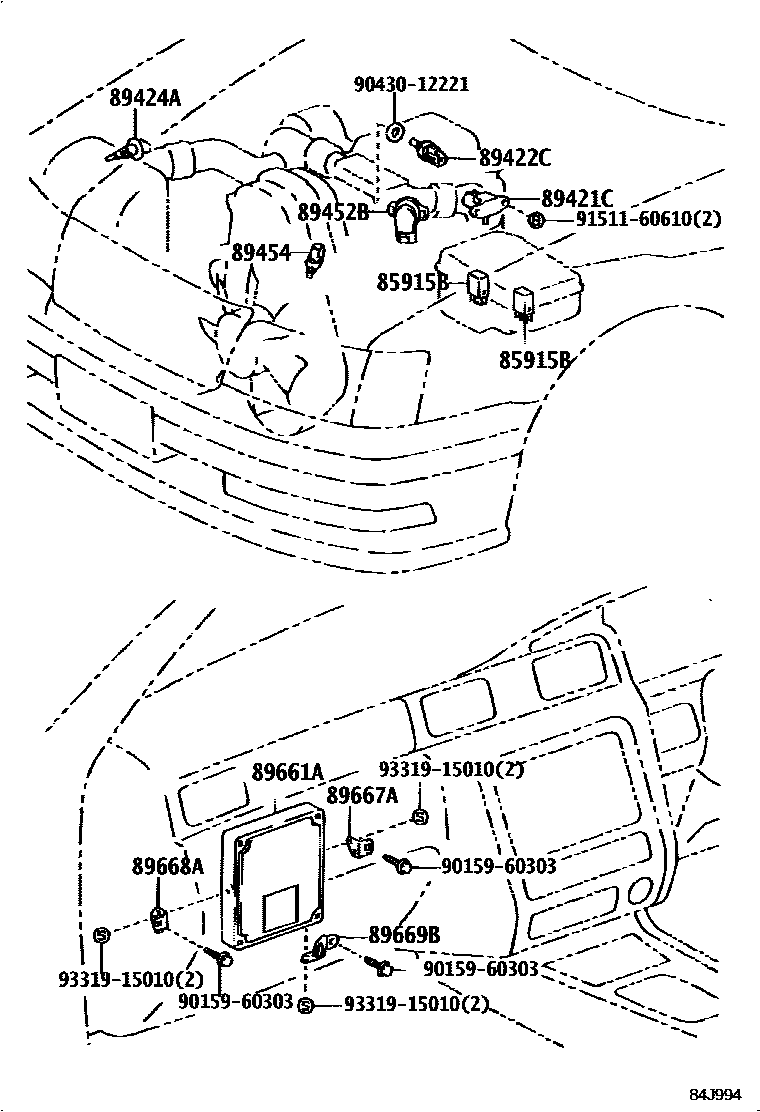

14 parts on this diagram · 1 diagram in section
