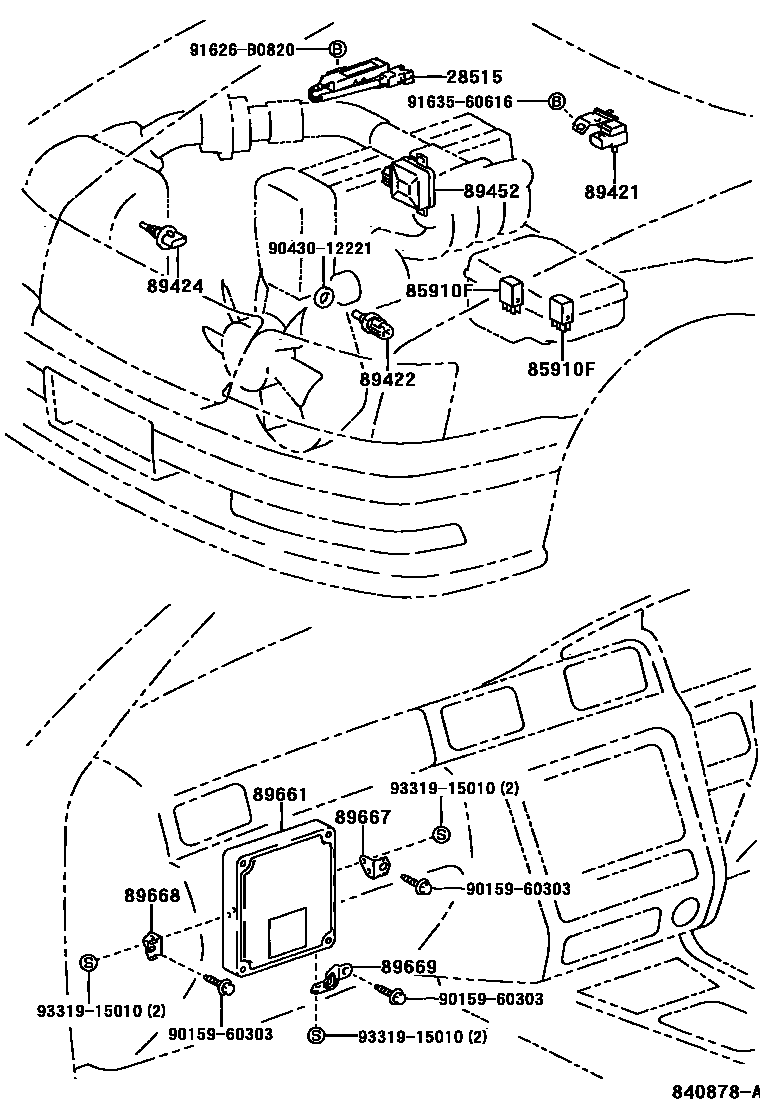

ELECTRONIC FUEL INJECTION SYSTEM
28515RESISTOR, SOLENOID
85910FRELAY, COMPUTER (FOR EFI)
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
2JZGE *(W)
89661COMPUTER, ENGINE CONTROL
2JZGE *(W)
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
2JZGE *(W)
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
9015960303
main90159-60303
9043012221
main90430-12221
91626B0820
main91626-B0820
9163560616
main91635-60616
9331915010
main93319-15010
15 parts on this diagram · 3 diagrams in section
