WIRING & CLAMP

0001 1����� ��� 0002 1����� ��� 0003 1����� ��� 0004 1����� ��� 0005 1������-� ��� 0006 1������-� ��� 0007 1��� ��� 0008 1����� ��� 0009 1����� ��� 0010 1��� ��� 0011 1�-�, ��� ��� 0012 1�-�, ��� ��� 0013 1�-� ��� 0014 1�-� ��� 0015 1����� & ������ 0016 1����� & ������ 0017 1����� & ������ 0018 1����� & ������ 0019 1�-�������� 0020 1�-�������� 0021 1����-�� 0022 1���� 0023 1���� 0024 1���� 0025 1����

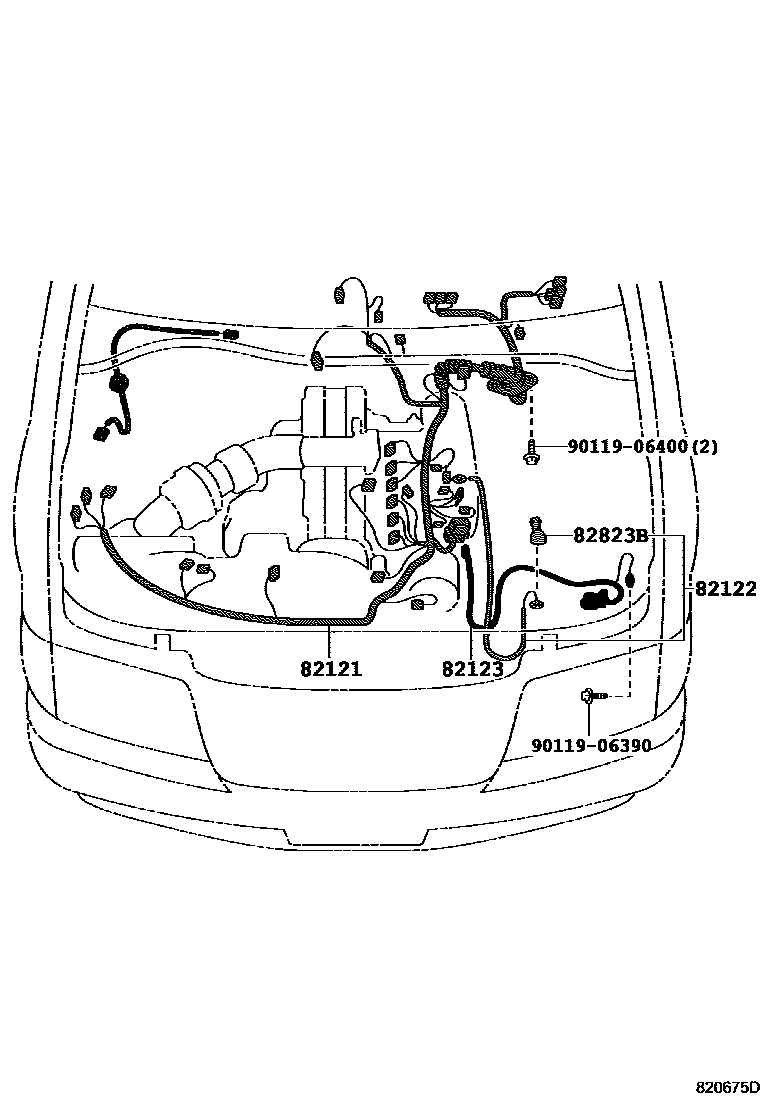

82121WIRE, ENGINE

main82121-3A120iUZS151,157199508-199707

main82121-3A121iUZS151,157199707-199909

main82121-3A130iUZS155199511-199707

main82121-3A131iUZS155199707-199909

main82121-3A140iJZS155..A,E199508-199707

main82121-3A150iJZS155..A,E199508-199707

main82121-3A151iJZS155..A,E199707-199909

main82121-3A160iJZS155..ROY,ROYG,ROYT199508-199707

main82121-3A170iJZS155..ROY,ROYG,ROYT199508-199707

main82121-3A171iJZS155..ROY,ROYG199707

main82121-3A180iJZS151199508-199609

main82121-3A181iJZS151199609-199707

main82121-3A182iJZS151199707-199909

main82121-3A183iJZS151199909-200006

main82121-3A184iJZS151200006

main82121-3A190iJZS151199508-199609

main82121-3A191iJZS151199609-199707

main82121-3A192iJZS151199707-199909

main82121-3A193iJZS151..SED199908-200006

main82121-3A194iJZS151200006

main82121-3A200iJZS153199512-199609

main82121-3A201iJZS153199609-199707

main82121-3A202iJZS153199707-199909

main82121-3A203iJZS153199909

main82121-3A210iLS151199508-199609

main82121-3A211iLS151199609-199707

main82121-3A212iLS151199707-199909

main82121-3A220iGS151199508-199510

main82121-3A221iGS151..4FC..HTWC199510-199707

main82121-3A222iGS151..4FC..HTWC199707-199808

main82121-3A223iGS151..4FC..HTWC199808-199909

main82121-3A224iGS151..HTWC199909

main82121-3A230iGS151..5F199512-199707

main82121-3A231iGS151..5F199707-199808

main82121-3A232iGS151..5F199808-199909

main82121-3A240iGS151..LPGTE199512-199801

main82121-3A241iGS151..LPGTE199801-199810

main82121-3A242iGS151..LPGTE199810-199909

main82121-3A243iGS151..LPGTE199909-200102

main82121-3A330iJZS155..ROYT199707-199909

main82121-3A400iJZS157199808-199909

main82121-3A400iJZS153..HT..ROY199711-199808

2JZGE *(W)

82122WIRE, ENGINE, NO.2

main82122-30480iJZS155..A,E199508-199707

main82122-30490iUZS151,157199508-199707

main82122-30491iUZS151,157199707-199909

main82122-30500iUZS155199511-199707

main82122-30501iUZS155199707-199909

main82122-30510iJZS153..SED..ROY;JZS155,157..ROY,ROYG,ROYT199508

main82122-30510iJZS155..ROY,ROYG,ROYT199508-199707

main82122-30520iJZS15#..ROY,ROYEX,ROYG,ROYT,SALEX199508-199707

main82122-30530iLS151199508-199909

main82122-30540iGS151..HTWC199508-199808

main82122-30541iGS151..HTWC199808

main82122-30550iGS151..LPGTE199512-200102

main82122-30560iGS151..HTWC199508-199707

main82122-30570iJZS155..A,E199707-199909

82123WIRE, ENGINE, NO.3

main82123-30210iJZS155,UZS151,157..A,C,E,F199508-199909

main82123-30230iUZS155199511-199909

main82123-30250iLS151199508-199909

main82123-30260iJZS153,157199512

main82123-30270iGS151,JZS151,155..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(LPGTE,TWC)199508-199808

main82123-30290iGS151..HTWC199808

82823CAP, TERMINAL, NO.1

main82823-22050iGS151,LS151199508

main82823-24030iJZS15#..ROY,ROYEX,ROYG,ROYT,SALEX199508

82823BCAP, TERMINAL, NO.3

main82823-30090iJZS15#..ROY,ROYEX,ROYG,ROYT,SALEX199707-199909

main82823-30100iLS151199707-199909

main82823-30110iGS151;JZS155..A,E199508-200102

main82823-30120iGS151..HTWC199808-199909

9011906390

main90119-06390

9011906400

main90119-06400

7 parts on this diagram · 25 diagrams in section
