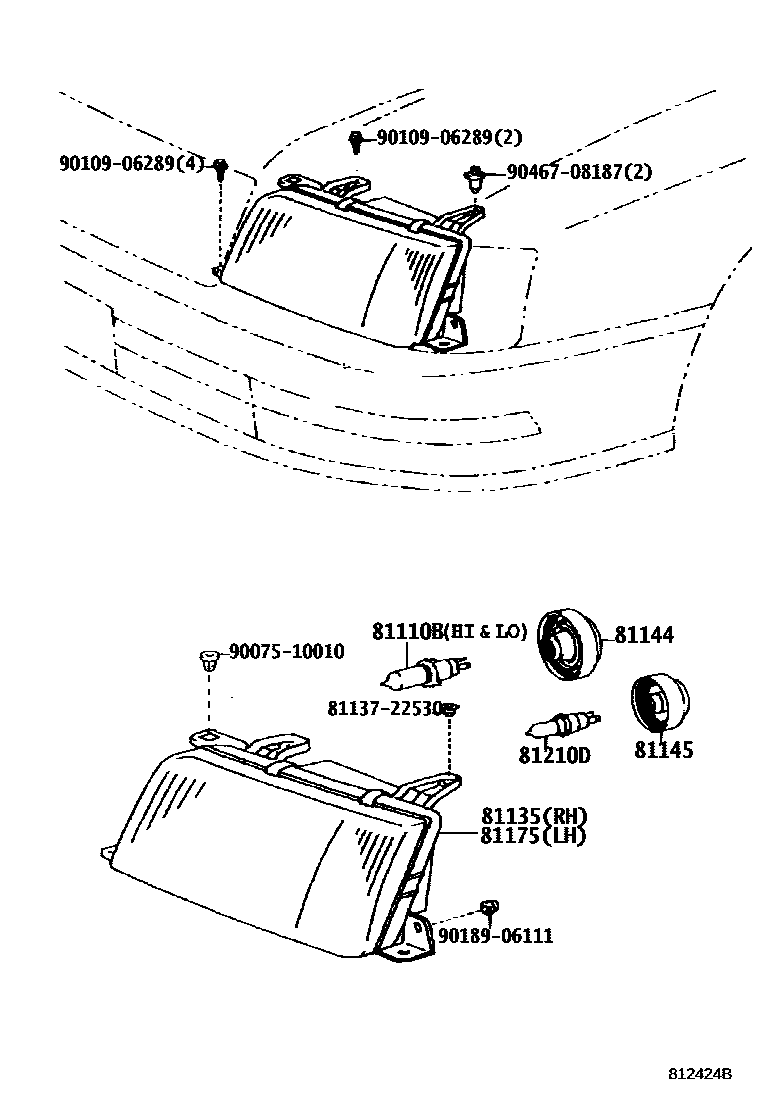

HEADLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81040iGS151,JZS15#,LS151..HT..(E,ROY,ROYEX,ROYG)199707-199909

sub90981-13047

main90981-20001iJZS151,155,UZS15#..A,C,F,ROYT199707-199909

main90981-20001iGS151..ROYEX199810

main90981-20001iJZS151,155,157..HT..ROY199904-199909

main90981-22004iGS151,JZS15#,LS151,UZS15#199508-199707

sub90981-13055

81135UNIT ASSY, HEADLAMP, RH

main81130-30680iJZS155,UZS15#..A,C,E,F199508-199707

main81130-30720iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199707

main81130-30730iGS151,JZS15#,LS151..SED199512-199707

main81130-3A420iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG)199707-199909

main81130-3A430iGS151..ROYEX199810

main81130-3A430iJZS151,155..ROYT199707-199909

main81130-3A430iJZS151,155,157..HT..ROY199904-199909

main81130-3A440iJZS155..E199707-199909

main81130-3A460iJZS155,UZS15#..A,C,F199707-199909

main81130-3A470iGS151,JZS151,153,155,LS151..SED199707-200108

81144COVER, HEADLAMP, NO.1

main81135-30870iJZS151,155..ROYT199707-199909

main81135-30870iJZS151,155,157..HT..ROY199904-199909

main81135-30870iGS151..ROYEX199810

main90075-65002iGS151,JZS15#,LS151,UZS15#199508-200108

81145COVER, HEADLAMP, NO.2

main81135-3A430iGS151..ROYEX199810

main81135-3A430iJZS151,155..ROYT199707-199909

main81135-3A430iJZS151,155,157..HT..ROY199904-199909

main90075-65003iGS151,JZS15#,LS151,UZS15#199508-200108

81175UNIT ASSY, HEADLAMP, LH

main81170-3A160iJZS155,UZS15#..A,C,E,F199508-199707

main81170-3A170iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199707

main81170-3A380iGS151,JZS15#,LS151..SED199512-199707

main81170-3A540iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG)199707-199909

main81170-3A550iJZS151,155..ROYT199707-199909

main81170-3A550iJZS151,155,157..HT..ROY199904-199909

main81170-3A550iGS151..ROYEX199810

main81170-3A560iJZS155..E199707-199909

main81170-3A570iJZS155,UZS15#..A,C,F199707-199909

main81170-3A590iGS151,JZS151,153,155,LS151..SED199707

81210DBULB, FOG LAMP

main90981-13027iGS151,JZS151,153,155,LS151..SED199707

main90981-13070iGS151,JZS15#,LS151,UZS15#199508-199707

sub90981-13039

8113722530PROTECTOR, HEADLAMP, NO.2 RH

main81137-22530

9007510010

main90075-10010

9010906289

main90109-06289

9018906111

main90189-06111

9046708187

main90467-08187

11 parts on this diagram · 7 diagrams in section
