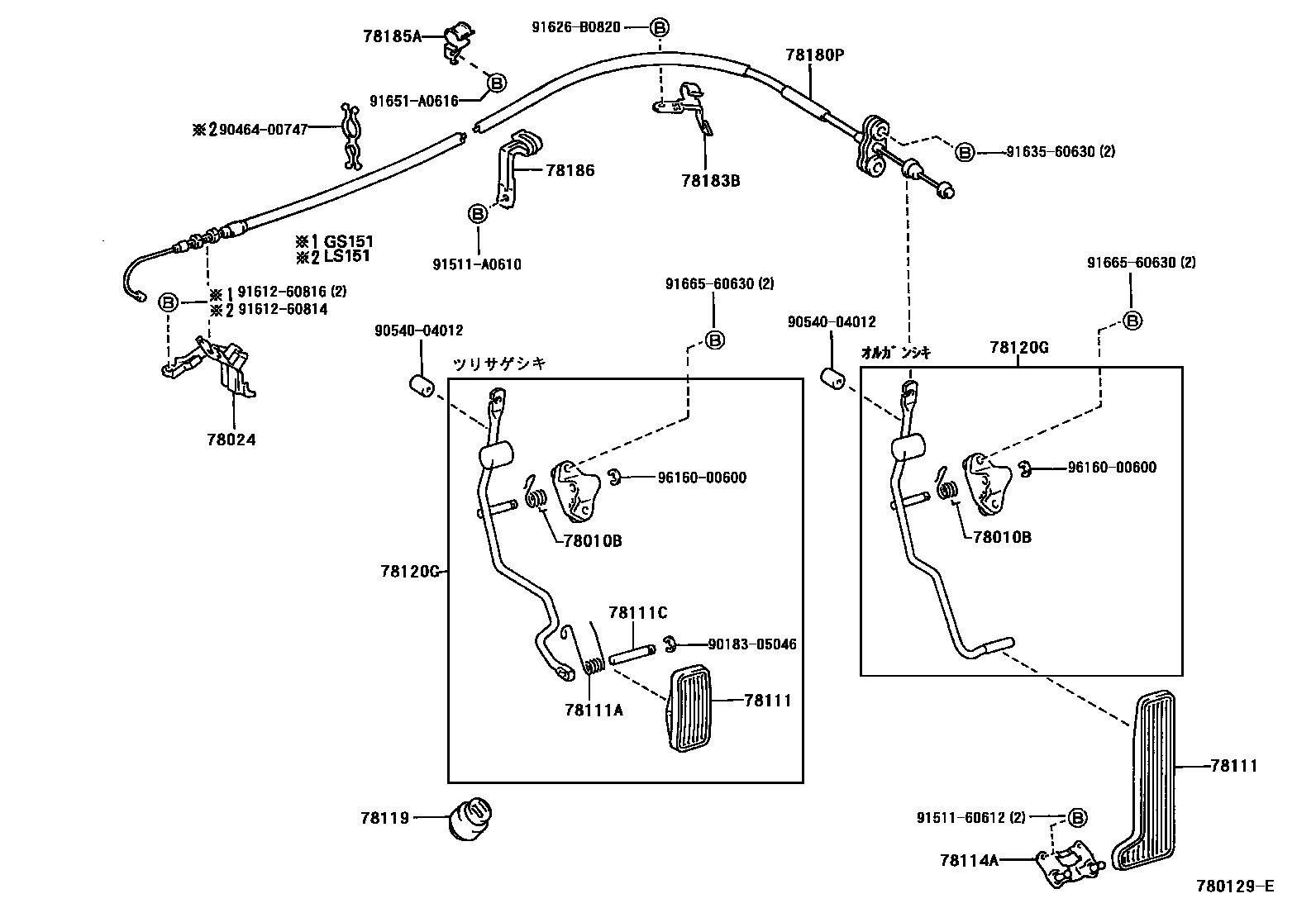

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78010BSPRING, TORSION (FOR ACCELERATOR LINK)

main90508-18103iJZS155,UZS15#..A,C,E,F199508-199909

main90508-20026iJZS155..ROYT199508-199707

main90508-20026iGS151..HTWC199808

main90508-26054iJZS157;JZS153..SED..ROY199707-199808

main90508-26054iGS151,JZS155..5F,5FC199508-199707

main90508-26054iJZS153..HT;JZS153..SALEX;GS151,JZS151,LS151..4FC199508-199808

main90508-26054iJZS155..ROY,ROYG,ROYT199508

main90959-03104iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199511-199808

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-22080iGS151..LPGTE199512-200102

main78024-26020iLS151199508-199909

main78024-30100iGS151..HTWC199508-199610

sub78024-30101

main78024-30101iGS151..HTWC199610-199808

main78024-50020iUZS15#199707-199909

78111PEDAL, ACCELERATOR

main78111-22010iGS151,JZS15#,LS151..(4FC,5F)..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)199508-199609

main78111-22020iGS151,JZS15#,LS151,UZS15#199609

main78111-30080iGS151,JZS15#,LS151..4FC..(ROY,ROYEX,ROYG,ROYT)199508-199512

sub78111-30081

main78111-30081iGS151,JZS15#,LS151..(4FC,5F)..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)199512-199707

main78111-30100iJZS155,UZS15#..A,C,E,F199508-199609

main78111-30110iJZS155,UZS15#..A,C,E,F199508-199909

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23108iJZS153..HT;JZS153..SALEX;GS151,JZS151,155,LS151,UZS15#..4FC,5F199508

78111CPIN (FOR ACCELERATOR PEDAL)

main90241-05022iJZS157;JZS153..SED..ROY;JZS155,UZS15#..A,C,E,F,ROYT199609

main90249-05001iJZS155..ROYT199508-199609

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-30050iGS151,JZS15#,LS151..(4FC,5F)..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)199508-199707

main78114-30060iJZS155,UZS15#..A,C,E,F199508-199909

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-30070iJZS155,UZS15#..A,C,E,F199508-199909

main78119-30080iJZS153..HT;JZS153..SALEX;GS151,JZS151,155,LS151..(4FC,5F)..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)199508

main78119-30080iJZS157;JZS155..ROYT;JZS153..SED..ROY199707

78120GROD ASSY, ACCELERATOR PEDAL

main78120-30810iGS151,LS151..4FC199508-199808

main78120-30820iGS151..5F199512-199808

main78120-30830iJZS155..ROY,ROYG,ROYT199508-199510

sub78120-30831

main78120-30831iJZS155..ROY,ROYG,ROYT199510-199609

sub78120-30832

main78120-30832iJZS155,157..ROY,ROYG199609-199707

main78120-30832iJZS155..ROYT199609-199909

main78120-30832iJZS153..HT..ROY199711-199808

2JZGE *(W)

main78120-30850iGS151,JZS151,153,LS151199508-199609

sub78120-30851

main78120-30851iJZS153..HT;JZS153..SALEX;GS151,JZS151,LS151..LPGTE,TDE,TWC199609-199808

main78120-30851iJZS153..SED..ROY199707

main78120-30880iJZS155..ROY,ROYG199508-199707

main78120-3A010iJZS155,UZS15#..A,C,E,F199508-199909

main78120-3A030iJZS155,UZS15#..A,C,E,F199508-199609

sub78120-3A031

main78120-3A031iUZS151,157199707-199909

main78120-3A031iJZS155,UZS15#..4FC..(A,C,E,F)199609-199909

main78120-3A040iJZS155..ROY,ROYG,ROYT199508-199510

sub78120-3A041

main78120-3A041iJZS155..ROY,ROYG,ROYT199510-199609

sub78120-3A042

main78120-3A042iJZS155..ROY,ROYG,ROYT199609-199707

main78120-3A150iGS151..HTWC199808

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-3A310iUZS15#199508-199707

main78180-3A480iJZS155,157..ROY,ROYG,ROYT199508

main78180-3A480iJZS153..HT..ROY199711-199808

2JZGE *(W)

main78180-3A490iGS151..LPGTE199512-200102

main78180-3A500iLS151199508-199909

main78180-3A520iJZS155..ROY,ROYG,ROYT199508-199707

main78180-3A520iJZS151,153199508-199609

main78180-3A530iGS151..HTWC199508-199808

main78180-3A540iJZS155..A,E199508-199909

main78180-3A570iJZS151,153199609-199707

main78180-3A580iUZS151,157199707-199909

main78180-3A630iJZS151,153199707

main78180-3A640iUZS155199707-199909

main78180-3A660iGS151..HTWC199808

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-22080iJZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX199508-199707

main78183-30100iUZS15#199508-199909

main78183-30100iJZS155..A,E199508-199707

main78183-30110iJZS155..A,E199508-199909

main78183-30130iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199901

main78183-30170iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199901

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78185-22080iGS151..HTWC199808

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12320iUZS15#199707-199806

sub78186-12480

main78186-22110iGS151..SPDLX..HTWC199512-199707

main78186-22110iGS151,LS151..LPGTE,TDE199508-200102

main78186-30120iJZS15#..ROY,ROYEX,ROYG,ROYT199508-199808

main78186-30140iGS151..HTWC199808

main78186-50010iUZS15#199806-199909

9018305046

main90183-05046

9046400747

main90464-00747

9054004012

main90540-04012

9151160612

main91511-60612

91511A0610

main91511-A0610

9161260814

main91612-60814

9161260816

main91612-60816

91626B0820

main91626-B0820

9163560630

main91635-60630

91651A0616

main91651-A0616

9166560630

main91665-60630

9616000600

main96160-00600

24 parts on this diagram · 4 diagrams in section
