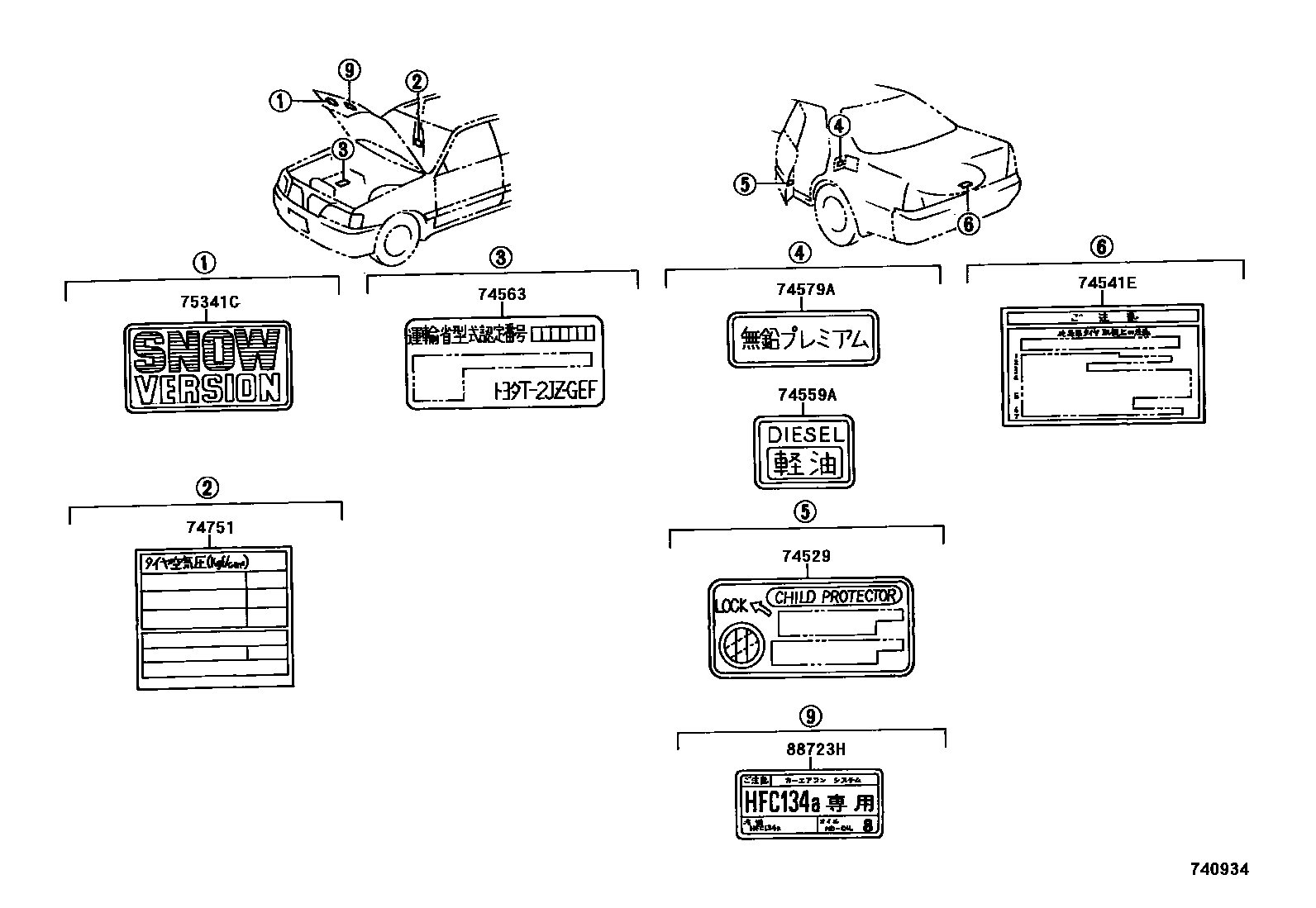

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

74529PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION

main69339-12010iGS151..LPGTE199508-200102

74541EPLATE, COMPACT SPARE TIRE CAUTION

main42668-30010iGS151,JZS15#..HTWC,TWC200001

main42668-40010iGS151,JZS15#,LS151,UZS15#199508-200001

74559APLATE, FUEL CAUTION

main74559-14030iLS151199508

74563PLATE, EMISSION CONTROL DEVICE IDENTIFICATION

main74563-30350iJZS155199508-199808

main74563-30360iGS151..SALEX..WIB199512-199808

main74563-30380iGS151..LPGTE199512-199808

main74563-30390iJZS153..SED199710-199808

main74563-30400iJZS155199808-199902

main74563-30410iGS151..SED..HTWC199808-199902

main74563-30420iGS151..LPGTE199808-199902

main74563-30430iJZS151,153..SED199808-199902

main74563-30440iJZS157199808-199902

74579ALABEL, UNLEADED FUEL INFORMATION

main74579-24010iJZS15#,UZS15#199508

74751LABEL, TIRE PRESSURE INFORMATION

main42661-30301iJZS151,155..ROYT199508-199707

main42661-30330iGS151,JZS151,155,LS151..HT..(ROY,ROYEX,ROYG)199508-199610

main42661-30331iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG)199610-199808

sub42661-30332

main42661-30332iJZS15#,LS151..HT..(ROY,ROYEX,ROYG)199808-199909

main42661-30350iJZS155,UZS15#..A,C,E,F199508-199608

main42661-30351iJZS155,UZS15#..A,C,E,F199608-199909

main42661-30370iJZS15#..SED199512-199806

sub42661-30371

main42661-30371iGS151,JZS151,153,155,LS151..SED..(HTWC,TDE,TWC)..WIB199806-200001

main42661-30372iGS151,JZS15#..(HTWC,TWC)..WIB200001

main42661-30380iGS151,LS151..SED199512-200001

main42661-30381iGS151..NOB;GS151..LPGTE..WIB200001

main42661-30400iJZS151,155..ROYT199707-199909

main42661-30500iGS151..ROYEX199808-199909

75341CPLATE, HOOD NAME

main75341-20060iJZS153..SALEX;JZS153,UZS151,157..HT..4FC;GS151,JZS151,155,LS151,UZS155199508

main75341-20060iJZS153..SED..ROY;JZS157,UZS151,157199707

88723HLABEL, COOLER SERVICE CAUTION

main88723-50140iGS151,JZS15#,LS151,UZS15#199508

8 parts on this diagram · 2 diagrams in section
