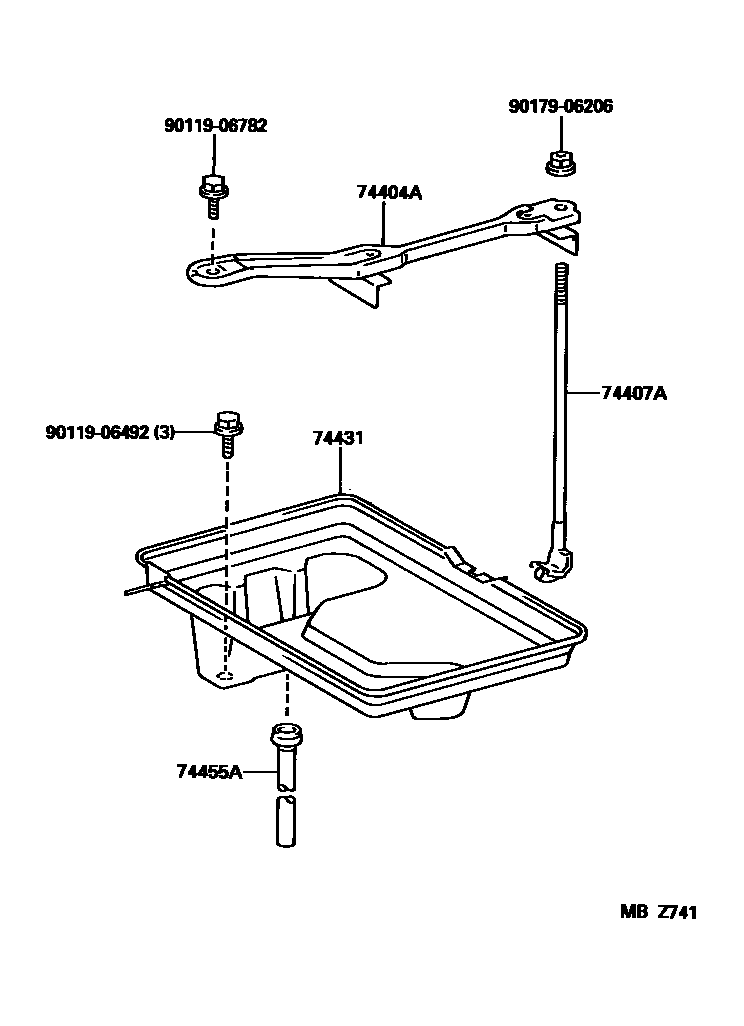

BATTERY CARRIER

0001 1 0002 1

74404ACLAMP SUB-ASSY, BATTERY

main74404-30250iGS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main74404-30260iLS151199508-199909

main74404-30270iJZS155,UZS15#..A,C,E,F199508-199909

74407ABOLT SUB-ASSY, BATTERY CLAMP

main74407-22060iGS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main74407-22070iLS151199508-199909

74431TRAY, BATTERY

main74431-30120iGS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199705

sub74431-30121

main74431-30121iGS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199705

main74431-30130iLS151199508-199705

sub74431-30131

main74431-30131iLS151199705-199909

74455AHOSE, BATTERY DRAIN

main74455-30020iGS151,JZS15#,LS151,UZS15#199508

9011906492

main90119-06492

9011906782

main90119-06782

9017906206

main90179-06206

7 parts on this diagram · 2 diagrams in section
