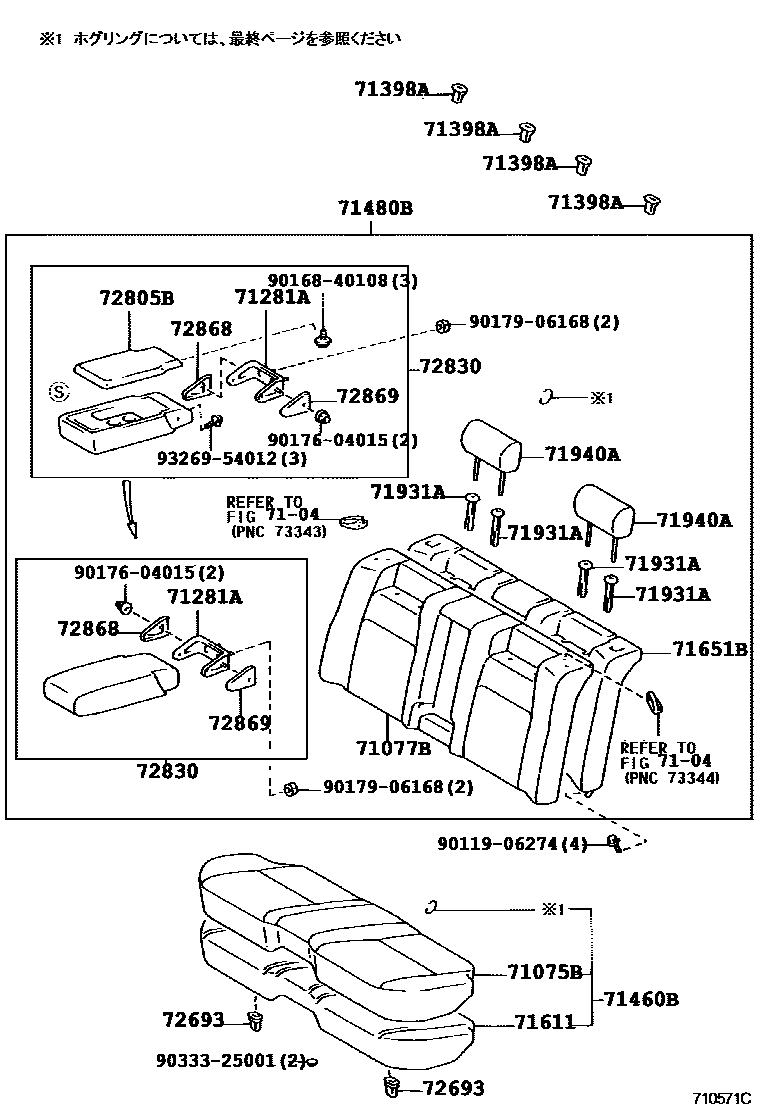

REAR SEAT & SEAT TRACK

0001 1���� ����� ���-� 0002 1���� ����� ���-� 0003 1�� ���-�-� 0004 1�������

7104

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-3A050-B2iGS151,JZS151,153,LS151..ROYEX199508-199707

main71075-3A050-B2iGS151,JZS151,153..ROYEX199704-199707

main71075-3A050-B2iGS151,JZS151,153,LS151..ROYEX199508-199707

main71075-3A050-E2iGS151,JZS151,153,LS151..ROYEX199508-199707

main71075-3A050-E2iJZS15#,LS151..HT..(ROY,ROYT)199508-199707

main71075-3A060-B0iJZS151,155..ROYT199508-199707

main71075-3A070-B0iGS151,JZS151,153,LS151..ROYEX199508-199707

sub71075-3A070

main71075-3A070-B1iGS151,JZS151,153,LS151..ROYEX199707-199909

sub71075-3A070

main71075-3A070-E0iGS151,JZS151,153,LS151..ROYEX199508-199707

sub71075-3A070

main71075-3A070-E1iGS151,JZS151,153,LS151..ROYEX199707-199909

sub71075-3A070

main71075-3A090-B0iJZS155,UZS157..A,E,F199508-199707

main71075-3A090-E0iJZS155,UZS157..A,E,F199508-199707

main71075-3A130-B4iGS151..LPGTE..NOB199512-199707

main71075-3A130-B4iGS151..LPGTE..NOB199512-199707

main71075-3A130-B4iGS151..LPGTE..NOB199512-199707

main71075-3A130-E4iGS151..SALEX199512-199707

main71075-3A130-E4iGS151..SALEX199512-199707

main71075-3A130-E4iGS151..SALEX199512-199707

main71075-3A140-B3iGS151..LPGTE..NOB;GS151,JZS151,153..SALEX199512-199707

sub71075-3A140

main71075-3A140-B3iGS151..LPGTE..NOB199512-199707

sub71075-3A140

main71075-3A140-B4iGS151..LPGTE..NOB;GS151,JZS151,153..SALEX199707-200108

sub71075-3A140

main71075-3A140-E3iGS151..LPGTE..NOB199512-199707

sub71075-3A140

main71075-3A140-E3iGS151,JZS151,153..SALEX199512-199707

sub71075-3A140

main71075-3A140-E4iGS151..LPGTE..NOB;GS151,JZS151,153..SALEX199707-200108

sub71075-3A140

main71075-3A150-B0iGS151,LS151..SPDLX199512-199707

sub71075-3A150

main71075-3A150-B1iGS151,LS151..SPDLX199707-200108

sub71075-3A150

main71075-3A150-E0iGS151,LS151..SPDLX199512-199707

sub71075-3A150

main71075-3A150-E1iGS151,LS151..SPDLX199707-200108

sub71075-3A150

main71075-3A200-B1iJZS155,UZS157..A,E,F199707-199909

main71075-3A200-E0iJZS155,UZS157..A,E,F199707-199909

main71075-3A230-B0iGS151,JZS151,153..ROYEX199804-199903

main71075-3A230-B0iGS151,JZS15#,LS151..HT..(ROY,ROYEX)199707-199909

main71075-3A230-E0iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYT)199707-199909

main71075-3A240-B0iGS151..ROYEX199810

main71075-3A240-B0iJZS151,155..ROYT199707-199909

main71075-3A280-B0iGS151..ROY,SALEX;GS151..LPGTE..NOB199707-200108

main71075-3A280-E0iGS151..ROY,SALEX;GS151..LPGTE..NOB199707-200108

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-3F130-B2iGS151,JZS151,153,LS151..ROYEX199508-199707

main71077-3F130-B2iGS151,JZS151,153,LS151..ROYEX199508-199707

main71077-3F130-B2iGS151,JZS151,153..ROYEX199704-199707

main71077-3F130-E2iGS151,JZS151,153,LS151..ROYEX199508-199707

main71077-3F130-E2iGS151,JZS151,153,LS151..ROYEX199508-199707

main71077-3F140-B0iJZS151,155..ROYT199508-199707

main71077-3F150-B0iGS151,JZS151,153,LS151..ROYEX199508-199707

sub71077-3F150

main71077-3F150-B1iGS151,JZS151,153,LS151..ROYEX199707-199909

sub71077-3F150

main71077-3F150-E0iGS151,JZS151,153,LS151..ROYEX199508-199707

sub71077-3F150

main71077-3F150-E1iGS151,JZS151,153,LS151..ROYEX199707-199909

sub71077-3F150

main71077-3F170-B0iJZS155,UZS157..A,E,F199508-199707

main71077-3F170-E0iJZS155,UZS157..A,E,F199508-199707

main71077-3F200-B4iGS151..SALEX199512-199707

main71077-3F200-B4iGS151..SALEX199512-199707

main71077-3F200-B4iGS151..SALEX199512-199707

main71077-3F200-E4iGS151..SALEX199512-199707

main71077-3F200-E4iGS151..LPGTE..NOB199512-199707

main71077-3F200-E4iGS151..LPGTE..NOB199512-199707

main71077-3F210-B3iGS151,JZS151,153..SALEX199512-199707

sub71077-3F210

main71077-3F210-B3iGS151,JZS151,153..SALEX199512-199707

sub71077-3F210

main71077-3F210-B4iGS151..LPGTE..NOB;GS151,JZS151,153..SALEX199707-200108

sub71077-3F210

main71077-3F210-E3iGS151,JZS151,153..SALEX199512-199707

sub71077-3F210

main71077-3F210-E3iGS151..LPGTE..NOB199512-199707

sub71077-3F210

main71077-3F210-E4iGS151..LPGTE..NOB;GS151,JZS151,153..SALEX199707-200108

sub71077-3F210

main71077-3F220-B0iGS151,LS151..SPDLX199512-199707

main71077-3F220-B1iGS151,LS151..SPDLX199707-200108

main71077-3F220-E0iGS151,LS151..SPDLX199512-199707

main71077-3F220-E1iGS151,LS151..SPDLX199707-200108

main71077-3F280-B1iJZS155,UZS157..A,E,F199707-199909

main71077-3F280-E0iJZS155,UZS157..A,E,F199707-199909

main71077-3F310-B0iGS151,JZS15#,LS151..HT..(ROY,ROYEX)199707-199909

main71077-3F310-B0iGS151,JZS151,153..ROYEX199804-199903

main71077-3F310-E0iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYT)199707-199909

main71077-3F320-B0iJZS151,155..ROYT199707-199909

main71077-3F320-B0iGS151..ROYEX199810

main71077-3F360-B0iGS151..ROY,SALEX;GS151..LPGTE..NOB199707-200108

main71077-3F360-E0iGS151..ROY,SALEX;GS151..LPGTE..NOB199707-200108

71281AHINGE, REAR SEAT CENTER ARMREST

main71281-30030iGS151,JZS15#,LS151,UZS15#199508

71398AHOLDER, REAR SEATBACK

main71398-24010iJZS155,UZS157..A,E,F199508-199909

main71398-30010iGS151,JZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYT)199508

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-3A180-B2iGS151,JZS151,153..ROYEX199704-199707

main71460-3A180-B2iGS151,JZS151,153,LS151..ROYEX199508-199707

main71460-3A180-B2iGS151,JZS151,153,LS151..ROYEX199508-199707

main71460-3A180-E2iJZS15#,LS151..HT..(ROY,ROYT)199508-199707

main71460-3A180-E2iGS151,JZS151,153,LS151..ROYEX199508-199707

main71460-3A310-B0iJZS151,155..ROYT199508-199707

main71460-3A320-B0iGS151,JZS151,153,LS151..ROYEX199508-199707

sub71460-3A320

main71460-3A320-B1iGS151,JZS151,153,LS151..ROYEX199707-199909

sub71460-3A320

main71460-3A320-E0iGS151,JZS151,153,LS151..ROYEX199508-199707

sub71460-3A320

main71460-3A320-E1iGS151,JZS151,153,LS151..ROYEX199707-199909

sub71460-3A320

main71460-3A350-B0iJZS155,UZS157..A,E,F199508-199601

***,DK.BLUE GRAY,TRIM1#

main71460-3A350-E0iJZS155,UZS157..A,E,F199508-199601

***,ANTELOPE,TRIM4#

main71460-3A351-B0iJZS155,UZS157..A,E,F199601-199707

main71460-3A351-E0iJZS155,UZS157..A,E,F199601-199707

main71460-3A380-B3iGS151..LPGTE..NOB199512-199707

sub71460-3A380

main71460-3A380-B3iGS151..LPGTE..NOB199512-199707

sub71460-3A380

main71460-3A380-B4iGS151..LPGTE..NOB;GS151,JZS151,153..SALEX199707-200108

sub71460-3A380

main71460-3A380-E3iGS151..LPGTE..NOB199512-199707

sub71460-3A380

main71460-3A380-E3iGS151,JZS151,153..SALEX199512-199707

sub71460-3A380

main71460-3A380-E4iGS151..LPGTE..NOB;GS151,JZS151,153..SALEX199707-200108

sub71460-3A380

main71460-3A390-B0iGS151,LS151..SPDLX199512-199707

sub71460-3A390

main71460-3A390-B1iGS151,LS151..SPDLX199707-200108

sub71460-3A390

main71460-3A390-E0iGS151,LS151..SPDLX199512-199707

sub71460-3A390

main71460-3A390-E1iGS151,LS151..SPDLX199707-200108

sub71460-3A390

main71460-3A400-B4iGS151..SALEX199512-199707

main71460-3A400-B4iGS151..LPGTE..WIB199512-199707

main71460-3A400-B4iGS151..LPGTE..WIB199512-199707

main71460-3A400-E4iGS151..LPGTE..WIB199512-199707

main71460-3A400-E4iGS151..LPGTE..NOB199512-199707

main71460-3A400-E4iGS151..LPGTE..NOB199512-199707

main71460-3A460-B1iJZS155,UZS157..A,E,F199707-199909

main71460-3A460-E0iJZS155,UZS157..A,E,F199707-199909

main71460-3A490-B0iGS151,JZS151,153..ROYEX199804-199903

main71460-3A490-B0iGS151,JZS15#,LS151..HT..(ROY,ROYEX)199707-199909

main71460-3A490-E0iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYT)199707-199909

main71460-3A500-B0iJZS151,155..ROYT199707-199909

main71460-3A500-B0iGS151..ROYEX199810

main71460-3A530-B0iGS151..ROY,SALEX;GS151..LPGTE..NOB199707-200108

main71460-3A530-E0iGS151..ROY,SALEX;GS151..LPGTE..NOB199707-200108

main71560-30830-B0iJZS151,LS151..HT..ROY199508-199707

main71560-30830-E0iJZS151,LS151..HT..ROY199508-199707

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-3F330-B2iGS151,JZS151,153..ROYEX199704-199707

main71480-3F330-B2iGS151,JZS151,153,LS151..ROYEX199508-199707

main71480-3F330-B2iGS151,JZS151,153,LS151..ROYEX199508-199707

main71480-3F330-E2iGS151,JZS151,153,LS151..ROYEX199508-199707

main71480-3F330-E2iGS151,JZS151,153,LS151..ROYEX199508-199707

main71480-3F340-B0iJZS151,155..ROYT199508-199707

main71480-3F350-B0iGS151,JZS151,153,LS151..ROYEX199508-199707

main71480-3F350-E0iGS151,JZS151,153,LS151..ROYEX199508-199707

main71480-3F360-E0iJZS151,155..ROYT199508-199707

main71480-3F390-B0iJZS155,UZS157..A,E,F199508-199707

main71480-3F390-E0iJZS155,UZS157..A,E,F199508-199707

main71480-3F430-B2iGS151,JZS151,153..SALEX199512-199707

main71480-3F430-E2iGS151,JZS151,153..SALEX199512-199707

main71480-3F440-B0iGS151,LS151..SPDLX199512-199707

main71480-3F440-B1iGS151,LS151..SPDLX199707-200108

main71480-3F440-E0iGS151,LS151..SPDLX199512-199707

main71480-3F440-E1iGS151,LS151..SPDLX199707-200108

main71480-3F450-B4iGS151..LPGTE..NOB199512-199707

main71480-3F450-B4iGS151..LPGTE..NOB199512-199707

main71480-3F450-B4iGS151..SALEX199512-199707

main71480-3F450-E4iGS151..LPGTE..NOB199512-199707

main71480-3F450-E4iGS151..LPGTE..NOB199512-199707

main71480-3F450-E4iGS151..LPGTE..NOB199512-199707

main71480-3F460-B1iGS151..LPGTE..NOB199512-199707

main71480-3F460-E1iGS151..LPGTE..NOB199512-199707

main71480-3F510-B1iJZS155,UZS157..A,E,F199707-199909

main71480-3F510-E0iJZS155,UZS157..A,E,F199707-199909

main71480-3F540-B0iGS151,JZS151,153..ROYEX199804-199903

main71480-3F540-B0iGS151,JZS15#,LS151..HT..(ROY,ROYEX)199707-199909

main71480-3F540-E0iGS151,JZS15#,LS151..HT..(ROY,ROYEX)199707-199909

main71480-3F550-B0iGS151..ROYEX199810

main71480-3F550-B0iJZS151,155..ROYT199707-199909

main71480-3F560-B0iGS151,JZS151,153,LS151..ROYEX199707-199909

main71480-3F560-E0iGS151,JZS151,153,LS151..ROYEX199707-199909

main71480-3F570-E0iJZS151,155..ROYT199707-199909

main71480-3F600-B0iGS151,JZS151,153..SALEX199707-200108

main71480-3F600-E0iGS151,JZS151,153..SALEX199707-200108

main71480-3F610-B0iGS151..ROY,SALEX;GS151..LPGTE..NOB199707-200108

main71480-3F610-E0iGS151..ROY,SALEX;GS151..LPGTE..NOB199707-200108

main71480-3F620-B0iGS151..LPGTE..NOB199707-200102

main71480-3F620-E0iGS151..LPGTE..NOB199707-200102

71611PAD, REAR SEAT CUSHION

main71503-30020iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYT)199508-199909

main71503-30050iGS151..SED;JZS151,153,LS151..SALEX,SPDLX199512

main71611-30690iJZS155,UZS157..A,E,F199508-199909

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71507-30130iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYT)199508-199909

main71507-30140iGS151..SED;JZS151,153,LS151..SALEX,SPDLX199512

main71651-30800iJZS155,UZS157..A,E,F199508-199909

71931ASUPPORT, REAR SEAT HEADREST

main71930-12070-B0iJZS151,155..ROYT199808-199909

sub71930-12070

sub71930-10070

main71930-12070-B2iJZS155,UZS15#..A,C,E,F199508-199609

sub71930-12070

sub71930-10070

main71930-12070-E0iGS151,JZS157,UZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(A,E,ROY,ROYEX,ROYT)199508-200108

sub71930-12070

sub71930-10070

main71930-12070-E0iJZS157199808-199909

sub71930-12070

sub71930-10070

main71930-12070-E0iJZS155..E199707-199909

sub71930-12070

sub71930-10070

main71930-12070-E0iJZS155..E199707-199909

sub71930-12070

sub71930-10070

main71930-12070-E0iJZS155..E199707-199909

sub71930-12070

sub71930-10070

main71930-12070-P6iJZS151,155,LS151..HT..ROY199707-199909

sub71930-12070

sub71930-10070

main71930-12070-P6iJZS155,UZS15#..A,C,E,F199508-199609

sub71930-12070

sub71930-10070

main71930-12070-P6iJZS155,UZS15#..A,C,E,F199508-200108

sub71930-12070

sub71930-10070

main71930-12070-P6iJZS155,UZS157..A,F199707-199909

sub71930-12070

sub71930-10070

main71930-12070-P6iJZS155,UZS157..A,F199707-199909

sub71930-12070

sub71930-10070

main71930-12070-P6iJZS157199808-199909

sub71930-12070

sub71930-10070

main71930-12070-P7iJZS151,155..ROYT199508-199808

sub71930-12070

sub71930-10070

main71931-12040-B0iJZS151,155..ROYT199808-199909

sub71931-12040

sub71931-10020

main71931-12040-B2iJZS155,UZS15#..A,C,E,F199508-199609

sub71931-12040

sub71931-10020

main71931-12040-E0iJZS155..E199707-199909

sub71931-12040

sub71931-10020

main71931-12040-E0iJZS155,UZS157..A,F199707-199909

sub71931-12040

sub71931-10020

main71931-12040-E0iJZS155,UZS157..A,F199707-199909

sub71931-12040

sub71931-10020

main71931-12040-E0iJZS157199808-199909

sub71931-12040

sub71931-10020

main71931-12040-E0iGS151,JZS15#,LS151,UZS15#199508-200108

sub71931-12040

sub71931-10020

main71931-12040-P6iJZS155,UZS157..A,F199707-199909

sub71931-12040

sub71931-10020

main71931-12040-P6iJZS155,UZS157..A,F199707-199909

sub71931-12040

sub71931-10020

main71931-12040-P6iJZS155,UZS157..A,F199707-199909

sub71931-12040

sub71931-10020

main71931-12040-P6iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX199508-200108

sub71931-12040

sub71931-10020

main71931-12040-P6iJZS157199808-199909

sub71931-12040

sub71931-10020

main71931-12040-P6iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX199508-199609

sub71931-12040

sub71931-10020

main71931-12040-P7iJZS151,155..ROYT199508-199808

sub71931-12040

sub71931-10020

71940AHEADREST ASSY, REAR SEAT

main71940-30500-B0iGS151..LPGTE..NOB;GS151,JZS151,153,LS151..ROYEX199508-199707

main71940-30500-B0iGS151,JZS15#,LS151..ROY,ROYG199508-199707

BLUE GRAY,TRIM1#

main71940-30500-B0iGS151..SALEX199512-199707

main71940-30500-B0iGS151,JZS151,153..ROYEX199704-199707

main71940-30500-E0iGS151..SALEX199512-199707

main71940-30500-E0iGS151,JZS15#,LS151..ROY,ROYG199508-199707

QUARTZ,TRIM4#

main71940-30500-E0iGS151,JZS15#,LS151..ROY,ROYG199508-199707

main71940-30620-B0iJZS151,155..ROYT199609-199707

main71940-30620-B0iJZS151,155..ROYT199508-199707

DK. BLUE GRAY,TRIM1#

main71940-30630-B0iGS151,JZS151,153,LS151..ROYEX,SALEX199508-199707

BLUE GRAY,TRIM1#

main71940-30630-B0iGS151..LPGTE..NOB199512-199707

main71940-30630-E0iGS151,JZS151,153,LS151..ROYEX,SALEX199508-199707

QUARTZ,TRIM4#

main71940-30630-E0iGS151..LPGTE..NOB199512-199707

main71940-30640-E0iJZS151,155..ROYT199609-199707

main71940-30640-E0iJZS151,155..ROYT199508-199707

QUARTZ,TRIM4#

main71940-30650-B0iGS151,LS151..SPDLX199512-200108

BLUE GRAY,TRIM1#

main71940-30650-E0iGS151,LS151..SPDLX199512-200108

QUARTZ,TRIM4#

main71940-30680-B0iUZS151,155199611-199707

main71940-30690-B0iJZS155,UZS15#..A,C,E,F199508-199707

BLUE GRAY,TRIM1#

main71940-30690-E0iJZS155,UZS15#..A,C,E,F199508-199707

QUARTZ,TRIM4#

main71940-30700-B0iJZS155,UZS157..A,E,F199707-199909

BLUE GRAY,TRIM1#

main71940-30700-B0iJZS155,UZS151,155..C,E199707-199909

main71940-30700-E0iJZS155,UZS151,155..C,E199707-199909

main71940-30700-E0iJZS155,UZS151,155..C,E199707-199909

QUARTZ,TRIM4#

main71940-30710-B0iGS151..ROYEX199810

main71940-30710-B0iJZS151,155..ROYT199707-199909

main71940-30720-B0iGS151..LPGTE..NOB;GS151,JZS151,153,LS151..ROYEX,SALEX199707-200108

main71940-30720-E0iGS151..LPGTE..NOB;GS151,JZS151,153,LS151..ROYEX,SALEX199707-200108

main71940-30730-B0iJZS157199808-199909

BLUE GRAY,TRIM1#

main71940-30730-B0iGS151,JZS151,153..ROYEX199804-199903

main71940-30730-B0iJZS157199808-199909

main71940-30730-B0iGS151..LPGTE..NOB;GS151..ROY,ROYEX,SALEX;JZS151,153,155,LS151..HT..(ROY,ROYEX)199707-200108

main71940-30730-B0iGS151..LPGTE..NOB;GS151..ROY,ROYEX,SALEX;JZS151,153,155,LS151..HT..(ROY,ROYEX)199707-200108

main71940-30730-E0iJZS157199808-199909

main71940-30730-E0iJZS157199808-199909

QUARTZ,TRIM4#

main71940-30730-E0iGS151..LPGTE..NOB;GS151..ROY,ROYEX,SALEX;JZS151,153,155,LS151..HT..(ROY,ROYEX)199707-200108

main71940-30730-E0iJZS153..SED..ROY;JZS151,155,LS151..ROY,ROYG199707-200108

main71940-30740-B0iJZS155,UZS15#..A,C,F199707-199909

main71940-30740-E0iUZS157199810-199903

main71940-30750-E0iJZS151,155..ROYT199707-199909

QUARTZ,TRIM4#

main71950-30030-B0iGS151..ROYEX199810

sub71940-30710

main71950-30030-B0iJZS151,155..ROYT199707-199909

sub71940-30710

72693HOOK, REAR SEAT CUSHION LOCK

main72693-14050iJZS155,UZS151,155..C,ROYG;JZS151,155,LS151..SED..ROY199508-199707

main72693-14050iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYT)199508-199601

main72693-14050iGS151,JZS15#,LS151,UZS157..HT..(A,E,F,ROY,ROYEX,ROYT)199601-199909

main72693-14050iJZS157199808-199909

main72693-30030iJZS155,UZS157..A,E,F199508-199601

main72693-30040iGS151..SED;JZS151,153,LS151..SALEX,SPDLX199512

72805BDOOR SUB-ASSY, REAR SEAT CENTER ARMREST

main71805-30080-B0iGS151,JZS151,153..ROYEX199704-199707

sub71805-30061

main72805-30070-B0iJZS151,155,LS151..HT..ROY199508-199707

main72805-30070-B0iJZS151,155,LS151..HT..ROY199508-199707

main72805-30070-E0iJZS155..ROYG;JZS151,155,LS151..SED..ROY199508-199707

main72805-30070-E0iJZS151,155,LS151..HT..ROY199508-199707

main72805-30080-B0iGS151..LPGTE..NOB;GS151,JZS151,153,LS151..ROYEX199508-199707

main72805-30080-B0iGS151..LPGTE..NOB;GS151,JZS151,153,LS151..ROYEX199508-199707

main72805-30080-B0iGS151..SALEX199512-199707

main72805-30080-E0iGS151..SALEX199512-199707

main72805-30080-E0iGS151,JZS153..ROY;JZS151,155,LS151..HT..ROY199508-199707

main72805-30080-E0iGS151..LPGTE..NOB;GS151,JZS151,153,LS151..ROYEX199508-199707

main72805-30090-B0iGS151,JZS151,153..SALEX199512-200108

main72805-30090-E0iGS151,JZS151,153..SALEX199512-200108

main72805-30110-B0iUZS151,155199508-199707

main72805-30110-B0iJZS155..E199508-199707

main72805-30110-E0iUZS151,155199508-199707

main72805-30110-E0iJZS155..E199508-199707

main72805-30120-B0iJZS155,UZS157..A,E,F199508-199707

main72805-30120-E0iJZS155,UZS157..A,E,F199508-199707

main72805-30130-B0iUZS151,155199611-199707

main72805-30140-B0iJZS155,UZS151,155..C,E199707-199909

main72805-30140-E0iJZS155,UZS151,155..C,E199707-199909

main72805-30150-B0iJZS155,UZS157..A,E,F199707-199909

main72805-30150-E0iJZS155,UZS157..A,E,F199707-199909

main72805-30160-B0iJZS155,UZS15#..A,C,F199707-199909

main72805-30160-E0iUZS157199810-199903

main72805-30170-B0iJZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG199707-200108

main72805-30170-E0iJZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG199707-200108

main72805-30180-B0iGS151..LPGTE199707-200102

main72805-30180-B0iGS151,JZS151,153..ROYEX199804-199903

main72805-30180-B0iJZS151,153,155,LS151..HT..(ROY,ROYEX);GS151,JZS157..(ROY,ROYEX,SALEX)..(HTWC,TWC)199707-200108

main72805-30180-E0iJZS151,153,155,LS151..HT..(ROY,ROYEX);GS151,JZS157..(ROY,ROYEX,SALEX)..(HTWC,TWC)199707-200108

main72805-30180-E0iGS151..LPGTE199707-200102

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-30690-B0iJZS151,155..ROYT199508-199707

main72830-30700-B0iGS151,JZS151,153,LS151..ROYEX199508-199909

main72830-30700-B0iGS151..LPGTE..NOB199512-200102

main72830-30700-E0iGS151..LPGTE..NOB199512-200102

main72830-30700-E0iGS151,JZS151,153,LS151..ROYEX199508-199909

main72830-30710-B0iJZS151,155,LS151..SED..ROY199512-199707

main72830-30710-B0iJZS155..SED..ROYG199512-199707

main72830-30710-E0iJZS151,155,LS151..SED..ROY199512-199707

main72830-30710-E0iJZS155..SED..ROYG199512-199707

main72830-30740-B0iJZS155..HT..ROYG;JZS151,155,LS151..SED..ROY199508-199707

main72830-30740-B0iJZS151,155,LS151..HT..ROY199508-199707

main72830-30740-E0iJZS151,155,LS151..HT..ROY199508-199707

main72830-30740-E0iJZS151,155,LS151..HT..ROY199508-199707

main72830-30760-B0iGS151..LPGTE..NOB;GS151,JZS151,153,LS151..ROYEX199508-199707

main72830-30760-B0iGS151..LPGTE..NOB;GS151,JZS151,153,LS151..ROYEX199508-199707

main72830-30760-B0iGS151,JZS151,153..ROYEX199704-199707

main72830-30760-B0iGS151..SALEX199512-199707

main72830-30760-E0iGS151,JZS153..ROY;JZS151,155,LS151..HT..ROY199508-199707

main72830-30760-E0iGS151,JZS153..ROY;JZS151,155,LS151..HT..ROY199508-199707

main72830-30760-E0iGS151..SALEX199512-199707

main72830-30770-B0iGS151,JZS151,153..SALEX199512-199707

main72830-30770-E0iGS151,JZS151,153..SALEX199512-199707

main72830-30780-B0iGS151,LS151..SPDLX199512-200108

main72830-30780-E0iGS151,LS151..SPDLX199512-200108

main72830-3A190-B0iUZS151,155199508-199707

main72830-3A190-E0iUZS151,155199508-199707

main72830-3A200-B0iUZS151,155199508-199707

main72830-3A200-B0iJZS155..E199508-199707

main72830-3A200-E0iUZS151,155199508-199707

main72830-3A200-E0iJZS155..E199508-199707

main72830-3A210-B0iJZS155,UZS157..A,E,F199508-199707

main72830-3A210-E0iJZS155,UZS157..A,E,F199508-199707

main72830-3A220-E0iJZS151,155..ROYT199508-199707

main72830-3A230-B0iUZS151,155199611-199707

main72830-3A240-B0iJZS155,UZS151,155..C,E199707-199909

main72830-3A240-E0iJZS155,UZS151,155..C,E199707-199909

main72830-3A250-B0iJZS155,UZS157..A,E,F199707-199909

main72830-3A250-E0iJZS155,UZS157..A,E,F199707-199909

main72830-3A260-B0iJZS155,UZS15#..A,C,F199707-199909

main72830-3A260-E0iUZS157199810-199903

main72830-3A270-B0iJZS151,153,155,LS151..SED..(ROY,ROYG)199707-200108

main72830-3A270-E0iJZS151,153,155,LS151..SED..(ROY,ROYG)199707-200108

main72830-3A280-B0iJZS155..SED..ROY;JZS151,157,LS151..ROY;JZS155..HT..(ROY,ROYG)199707-200108

main72830-3A280-E0iJZS155..SED..ROY;JZS151,157,LS151..ROY;JZS155..HT..(ROY,ROYG)199707-200108

main72830-3A290-B0iGS151,JZS151,153..ROYEX199804-199903

main72830-3A290-B0iGS151..LPGTE..NOB;GS151..ROY,ROYEX,SALEX;JZS15#,LS151..HT..(ROY,ROYEX)199707-200108

main72830-3A290-E0iGS151..LPGTE..NOB;GS151..ROY,ROYEX,SALEX;JZS15#,LS151..HT..(ROY,ROYEX)199707-200108

main72830-3A300-B0iJZS151,155..ROYT199707-199909

main72830-3A300-B0iGS151..ROYEX199810

main72830-3A310-B0iUZS151,155199707-199909

main72830-3A310-E0iUZS151,155199707-199909

main72830-3A320-E0iJZS151,155..ROYT199707-199909

main72830-3A370-B0iGS151,JZS151,153..SALEX199707-200108

main72830-3A370-E0iGS151,JZS151,153..SALEX199707-200108

72868COVER, CENTER ARMREST HINGE, RH

main72868-30010-B0iJZS155..E199508-199707

main72868-30010-B0iUZS151,155199508-199707

BLUE GRAY,TRIM1#

main72868-30010-E0iUZS151,155199508-199707

QUARTZ,TRIM4#

main72868-30010-E0iUZS151,155199508-199707

main72868-30040-B0iJZS151,155..ROYT199508-199909

DK.BLUE GRAY,TRIM1#

main72868-30040-B1iGS151,JZS157,UZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(A,E,ROY,ROYEX)199508-200108

BLUE GRAY,TRIM1#

main72868-30040-E0iGS151,JZS157,UZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(A,E,ROY,ROYEX,ROYT)199508-200108

QUARTZ,TRIM4#

main72868-30050-B0iJZS151,155,LS151..HT..ROY199508-199707

main72868-30050-B0iJZS155..ROYG;JZS151,155,LS151..SED..ROY199508-199707

BLUE GRAY,TRIM1#

main72868-30050-E0iJZS155..ROYG;JZS151,155,LS151..SED..ROY199508-199707

QUARTZ,TRIM4#

main72868-30050-E0iJZS155..ROYG;JZS151,155,LS151..SED..ROY199508-199707

main72868-30070-B0iUZS151,155199611-199707

main72868-30080-B0iJZS155,UZS151,155..C,E199707-199909

main72868-30080-E0iJZS155,UZS151,155..C,E199707-199909

main72868-30090-B0iJZS155,UZS15#..A,C,F199707-199909

main72868-30090-E0iUZS157199810-199903

main72868-30100-B0iJZS153..SED..ROY;JZS151,155,LS151..ROY,ROYG199707-200108

main72868-30100-B0iJZS157199808-199909

main72868-30100-E0iJZS157199808-199909

main72868-30100-E0iJZS153..SED..ROY;JZS151,155,LS151..ROY,ROYG199707-200108

72869COVER, CENTER ARMREST HINGE, LH

main72869-30010-B1iUZS151,155199508-199707

main72869-30010-B1iJZS155..E199508-199707

BLUE GRAY,TRIM1#

main72869-30010-E0iUZS151,155199508-199707

main72869-30010-E0iUZS151,155199508-199707

QUARTZ,TRIM4#

main72869-30020-B0iJZS151,155..ROYT199508-199909

DK.BLUE GRAY,TRIM1#

main72869-30020-B1iGS151,JZS157,UZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(A,E,ROY,ROYEX)199508-200108

BLUE GRAY,TRIM1#

main72869-30020-E0iGS151,JZS157,UZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(A,E,ROY,ROYEX,ROYT)199508-200108

QUARTZ,TRIM4#

main72869-30030-B0iJZS151,155,LS151..HT..ROY199508-199707

main72869-30030-B0iJZS155..ROYG;JZS151,155,LS151..SED..ROY199508-199707

BLUE GRAY,TRIM1#

main72869-30030-E0iJZS151,155,LS151..HT..ROY199508-199707

main72869-30030-E0iJZS155..ROYG;JZS151,155,LS151..SED..ROY199508-199707

QUARTZ,TRIM4#

main72869-30050-B0iUZS151,155199611-199707

main72869-30060-B0iJZS155,UZS151,155..C,E199707-199909

main72869-30060-E0iJZS155,UZS151,155..C,E199707-199909

main72869-30070-B0iJZS155,UZS15#..A,C,F199707-199909

main72869-30070-E0iUZS157199810-199903

main72869-30080-B0iJZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG199707-200108

main72869-30080-E0iJZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG199707-200108

9011906274

main90119-06274

9016840108

main90168-40108

9017604015

main90176-04015

9017906168

main90179-06168

9033325001

main90333-25001

9326954012

main93269-54012

22 parts on this diagram · 4 diagrams in section
