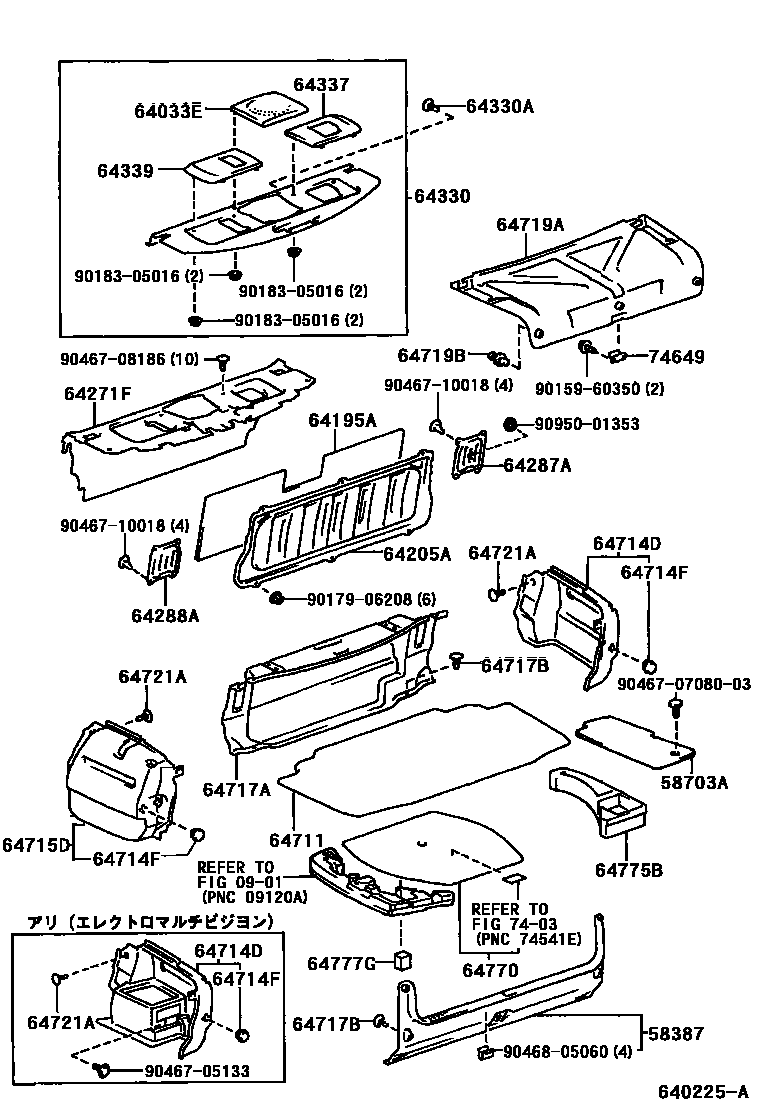

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

0901

58387PLATE, REAR FLOOR FINISH

main58387-30080-C0iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

BLACK,TRIM1#,4#

main58387-30090-C0iJZS155,UZS15#..A,C,E,F199508-199909

BLACK,TRIM1#,4#

main58387-30100-C0iGS151,JZS151,153,155,LS151..SED199512-200108

BLACK,TRIM1#,4#

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-30130iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

main58703-30140iJZS15#,LS151..HT..(ROY,ROYG,ROYT)199508-199909

main58703-30150iGS151,JZS151,153,155,LS151..SED199512

main58703-30160iJZS151,153,155,LS151..SED..(ROY,ROYG)199512

main58703-30170iJZS155,UZS15#..A,C,E,F199508-199909

64033EGRILLE SUB-ASSY, REAR SPEAKER

main64033-30060-B0iJZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG199508

BLUE GRAY,TRIM1#

sub64033-30060

main64033-30060-B1iJZS151,155..ROYT199508

DK. BLUE GRAY,TRIM1#

sub64033-30060

main64033-30060-E0iJZS15#,LS151,UZS15#..A,C,E,F,ROY,ROYG,ROYT199508

QUARTZ,TRIM4#

sub64033-30060

64195AINSULATOR, ROOM PARTITION PANEL

main64195-30010iJZS155,UZS15#..A,C,E,F199508

64205ACOVER SUB-ASSY, ROOM PARTITION

main64205-30050iUZS151,155199508-199909

main64275-22020iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main64275-30030iJZS155,UZS157..A,E,F199508-199909

64271FTRIM, ROOM PARTITION

main64271-30180iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

main64271-30190iJZS155,UZS15#..A,C,E,F199508-199909

main64271-30200iGS151,JZS151,153,155,LS151..SED199512-200108

64287ACOVER, ROOM PARTITION, NO.4 RH

main64287-30010iJZS155,UZS15#..A,C,E,F199508

64288ACOVER, ROOM PARTITION, NO.4 LH

main64288-30010iJZS155,UZS15#..A,C,E,F199508

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-3A220-B2iJZS151,155,LS151..HT..(ROY,ROYG)199508-199909

main64330-3A220-B3iJZS151,155..ROYT199508-199909

main64330-3A220-E1iJZS151,155,LS151..HT..(ROY,ROYG,ROYT)199508-199909

main64330-3A230-B2iJZS15#,LS151..HT..ROY199508-199909

main64330-3A230-B3iJZS151,155..ROYT199508-199909

main64330-3A230-E1iJZS15#,LS151..HT..(ROY,ROYT)199508-199909

main64330-3A240-B2iGS151,JZS151,LS151..HT..(ROY,ROYEX)199508-199909

main64330-3A240-B3iJZS151,155..ROYT199508-199909

main64330-3A240-E1iJZS155..ROYT;GS151,JZS151,LS151..HT199508-199909

main64330-3A250-B2iGS151,JZS151,153,157,LS151..HT..(ROY,ROYEX)199508-199909

BLUE GRAY,TRIM1#

main64330-3A250-B3iJZS151,155..ROYT199508-199909

SHADOW GRAY,TRIM1#

main64330-3A250-E1iJZS155..ROYT;GS151,JZS151,153,157,LS151..HT199508-199909

QUARTZ,TRIM4#

main64330-3A260-B0iJZS155,UZS15#..A,C,E,F199508-199909

main64330-3A260-E0iJZS155,UZS15#..A,C,E,F199508-199909

main64330-3A270-B0iJZS155,UZS157..4FC..(E,F)199508-199909

main64330-3A270-B0iUZS157199707-199909

main64330-3A270-E0iJZS155,UZS157..4FC..(E,F)199508-199909

main64330-3A270-E0iUZS157199707-199909

main64330-3A280-B0iJZS155,UZS157..E,F199508-199909

main64330-3A280-E0iJZS155,UZS157..E,F199508-199909

main64330-3A290-B0iJZS155,UZS157..E,F199508-199909

BLUE GRAY,TRIM1#

main64330-3A290-E0iJZS155,UZS157..E,F199508-199909

QUARTZ,TRIM4#

main64330-3A300-B1iJZS151,LS151..SED..ROY199512-200108

BLUE GRAY,TRIM1#

main64330-3A300-B1iJZS151,LS151..SED..ROY199512-200108

main64330-3A300-E1iJZS151,LS151..SED..ROY199512-200108

QUARTZ,TRIM4#

main64330-3A300-E1iJZS155..SED199512-200108

main64330-3A310-B0iGS151..LPGTE199609-200102

sub64330-3A310

main64330-3A310-E0iGS151..LPGTE199609-200102

sub64330-3A310

main64330-3A320-B1iGS151,JZS151,LS151..SED..(HTWC,TDE,TWC)199512-200108

main64330-3A320-E1iGS151,JZS151,LS151..SED..(HTWC,TDE,TWC)199512-200108

main64330-3A330-B1iGS151,JZS153..SED;JZS151,LS151..SALEX,SPDLX199512-200108

BLUE GRAY,TRIM1#

main64330-3A330-E1iGS151,JZS153..SED;JZS151,LS151..SALEX,SPDLX199512-200108

QUARTZ,TRIM4#

main64330-3A340-B0iJZS153..SED..ROY199707-200108

main64330-3A340-E0iJZS153..SED..ROY199707-200108

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-05020-01iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199707-200108

BLACK,TRIM1#,4#

sub90467-05020

sub90467-05027

main90467-05020-22iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199707

GRAPHITE,TRIM1#,4#

sub90467-05020

sub90467-05027

main90467-06049-22iJZS155,UZS15#..A,C,E,F199508-199909

BLACK,TRIM1#,4#

sub90467-06049

64337GARNISH, PACKAGE TRAY TRIM, RH

main64337-30150-B0iGS151,JZS151,155,LS151,UZS15#..(A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX)..(HTWC,TDE,TWC)199508

BLUE GRAY,TRIM1#

main64337-30150-B1iJZS151,155..ROYT199508

DK.BLUE GRAY,TRIM1#

main64337-30150-E0iGS151,JZS151,155,LS151,UZS15#..HTWC,TDE,TWC199508

QUARTZ,TRIM4#

64339GARNISH, PACKAGE TRAY TRIM, LH

main64339-30080-B0iGS151,JZS151,155,LS151,UZS15#..(A,C,E,F,ROY,ROYEX,ROYG,SALEX,SPDLX)..(HTWC,TDE,TWC)199508

BLUE GRAY,TRIM1#

main64339-30080-B1iJZS151,155..ROYT199508

DK.BLUE GRAY,TRIM1#

main64339-30080-E0iGS151,JZS151,155,LS151,UZS15#..HTWC,TDE,TWC199508

QUARTZ,TRIM4#

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-30420-C0iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

BLACK,TRIM1#,4#

main64711-30430-C0iJZS15#,LS151..HT..(ROY,ROYG,ROYT)199508-199909

main64711-30440-C0iJZS155,UZS15#..A,C,E,F199508-199909

BLACK,TRIM1#,4#

main64711-30450-C0iUZS151,157199707-199909

main64711-30450-C0iJZS155,UZS15#..4FC..(A,C,E,F)199508-199909

main64711-30460-C0iGS151,JZS151,153,155,LS151..SED..(HTWC,TDE,TWC)199512-200108

BLACK,TRIM1#,4#

main64711-30470-C0iJZS151,153,155,LS151..SED..(ROY,ROYG)199512-200108

main64711-30490-C0iGS151..LPGTE199512-200102

BLACK,TRIM1#,4#

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64071-30050-C0iJZS15#,LS151..HT..(ROY,ROYG,ROYT)199508-199909

main64071-30060-C0iJZS155,UZS15#..A,C,E,F199508-199601

sub64071-30061

main64071-30061-C0iJZS155,UZS15#..A,C,E,F199601-199909

main64071-30070-C0iJZS151,153,155,LS151..SED..(ROY,ROYG)199512-199909

main64071-30080-C0iJZS15#,LS151..HT..(ROY,ROYG,ROYT)199508-199909

main64071-30090-C0iJZS151,153,155,LS151..SED..(ROY,ROYG)199512-200108

main64714-30260-C0iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

BLACK,TRIM1#,4#

main64714-30280-C0iJZS155,UZS15#..A,C,E,F199508-199909

BLACK,TRIM1#,4#

main64714-30300-C0iGS151,JZS151,153,155,LS151..SED199512-200108

BLACK,TRIM1#,4#

64714FPLUG, HOLE(FOR LUGGAGE COMPARTMENT SIDE COVER)

main90950-01846iGS151,JZS15#,LS151,UZS15#199508-200108

64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH

main64715-30210-C0iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

BLACK,TRIM1#,4#

main64715-30220-C0iJZS155,UZS15#..A,C,E,F199508-199909

BLACK,TRIM1#,4#

main64715-30230-C0iGS151,JZS151,153,155,LS151..SED..(HTWC,TDE,TWC)199512-200108

BLACK,TRIM1#,4#

main64715-30240-C0iGS151..LPGTE199512-200102

BLACK,TRIM1#,4#

sub64715-30230

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-30270-C0iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

BLACK,TRIM1#,4#

main64717-30280-C0iJZS155,UZS15#..A,C,E,F199508-199909

BLACK,TRIM1#,4#

main64717-30290-C0iGS151,JZS151,153,155,LS151..SED..(HTWC,TDE,TWC)199512-200108

BLACK,TRIM1#,4#

main64717-30300iGS151..LPGTE199512-200102

64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)

main90467-05125-C0iJZS155,UZS15#..A,C,E,F199508-199909

BLACK,TRIM1#,4#

sub90467-05125

main90467-08186iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-200108

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-30090-C0iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

BLACK,TRIM1#,4#

main64719-30100-C0iJZS155,UZS15#..A,C,E,F199508-199909

BLACK,TRIM1#,4#

main64719-30110-C0iGS151,JZS151,153,155,LS151..SED199512-200108

BLACK,TRIM1#,4#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-05125-C0iJZS155,UZS15#..A,C,E,F199508-199909

BLACK,TRIM1#,4#

sub90467-05125

main90467-08186iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-200108

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-05125-C0iJZS155,UZS15#..A,C,E,F199508

BLACK,TRIM1#,4#

sub90467-05125

64770COVER ASSY, SPARE WHEEL

main64770-30080iJZS155,UZS151,157..A,C,E,F199508-199909

main64770-30090iJZS155,UZS151,157..A,C,E,F199508-199909

main64770-30110iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)199508-199912

sub64770-30111

main64770-30111iGS151,JZS15#..HTWC,TWC199912

main64770-30120iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199508

main64770-30120iGS151,LS151..(HTWC,TDE)..NOB199512

main64770-30130iGS151,LS151..(HTWC,TDE)..NOB199512

main64770-30140iGS151..LPGTE199512-200102

64775BGUARD, SPARE WHEEL

main64775-30030iJZS155,UZS15#..A,C,E,F199508-199909

64777GCUSHION, SPARE WHEEL

main64777-24020iUZS155199511

main64777-24040iJZS155,UZS151,157..A,C,E,F199508-199710

main64777-30040iJZS155,UZS151,157..A,C,E,F199710

7403

74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST

main74649-30010iGS151,JZS15#,LS151,UZS15#199508-200108

9015960350

main90159-60350

9017906208

main90179-06208

9018305016

main90183-05016

9046705133

main90467-05133

904670708003

main90467-0708003

9046708186

main90467-08186

9046710018

main90467-10018

9046805060

main90468-05060

9095001353

main90950-01353
