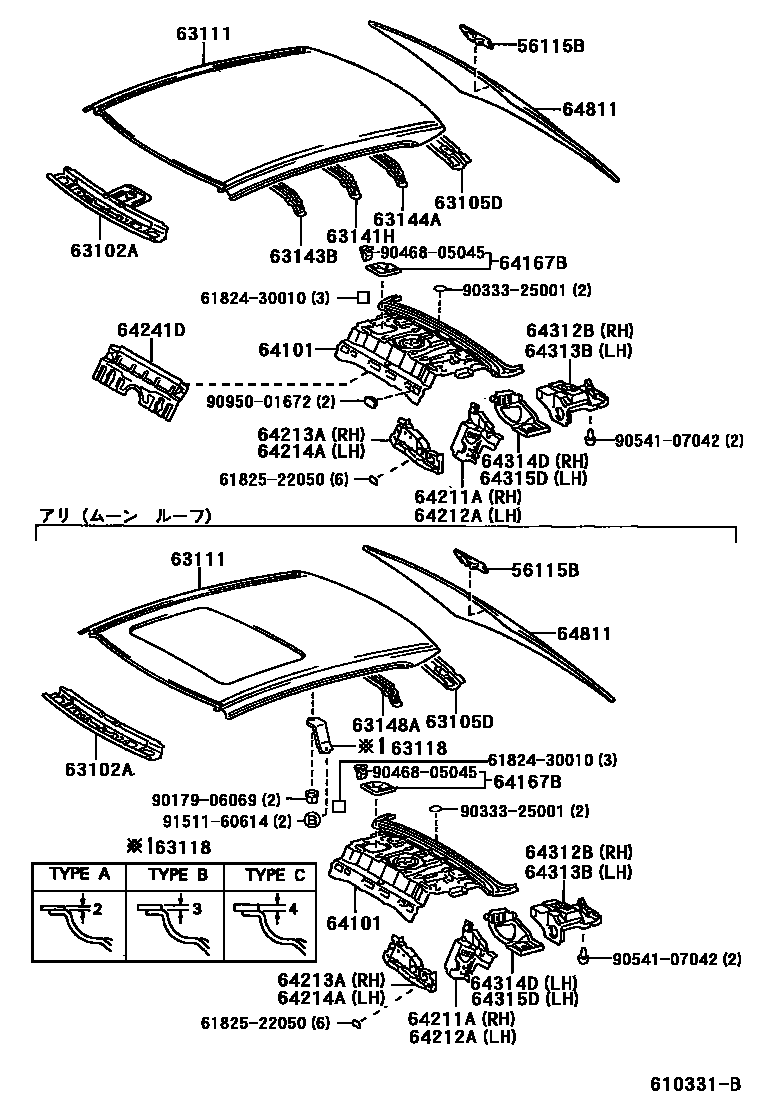

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30040iGS151,JZS15#,LS151,UZS15#199508

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-30090iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

main63102-30100iJZS151,153,155,LS151..HT..(ROY,ROYG,ROYT)199508-199909

main63102-30100iJZS157199808-199909

main63102-30110iJZS155,UZS151,157..A,C,E,F199508-199909

main63102-30120iJZS155,UZS151,157..A,C,F199508-199909

main63102-30130iGS151,JZS151,153,155,LS151..SED199512

main63102-30140iUZS155199511-199909

main63102-30150iUZS155199511-199909

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-30020iJZS155,UZS15#..A,C,E,F199508

main63105-30060iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508

63111PANEL, ROOF

main63111-30320iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

main63111-30340iJZS155,UZS15#..A,C,E,F199508-199909

main63111-30360iGS151,JZS151,153,155,LS151..SED199512-199909

sub63111-30361

main63111-30361iGS151,JZS15#199909

main63111-30902iJZS151,153,155,LS151..HT..(ROY,ROYG,ROYT)199508-199909

main63111-30902iJZS157199808-199909

main63111-30903iJZS155,UZS15#..A,C,F199508-199909

63118SUPPORT, ROOF PANEL, RH

main63118-30020iJZS15#,LS151..HT..(ROY,ROYG,ROYT)199508

main63118-30030iJZS155,UZS15#..A,C,F199508

main63118-30040iJZS15#,LS151..HT..(ROY,ROYG,ROYT)199508

sub63118-30020

main63118-30050iJZS15#,LS151..HT..(ROY,ROYG,ROYT)199508

sub63118-30020

main63118-30060iJZS155,UZS15#..A,C,F199508

sub63118-30030

main63118-30070iJZS155,UZS15#..A,C,F199508

sub63118-30030

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-30130iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

main63141-30140iJZS155,UZS15#..A,C,E,F199508-199909

main63141-30150iGS151,JZS151,153,155,LS151..SED199512

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-30170iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

main63143-30180iJZS155,UZS15#..A,C,E,F199508-199909

main63143-30190iGS151,JZS151,153,155,LS151..SED199512-199909

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-30060iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

main63144-30070iJZS155,UZS15#..A,C,E,F199508-199909

main63144-30100iGS151,JZS15#199909

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-30040iJZS15#,LS151..HT..(ROY,ROYG,ROYT)199508

main63148-30050iJZS155,UZS15#..A,C,F199508

64101PANEL SUB-ASSY, UPPER BACK

main64101-30430iJZS155,UZS157..A,E,F199508-199909

main64101-30440iJZS155,UZS157..E,F199508-199909

main64101-30450iJZS155,UZS157..E,F199508-199909

sub64101-30440

main64101-30460iJZS155..E199508-199909

main64101-30600iUZS157199707-199909

main64101-30902iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

main64101-30906iJZS155..SED199512-200108

main64101-30907iGS151,JZS151,LS151..SED..(HTWC,TDE,TWC)199512-200108

main64101-30909iGS151,JZS153..SED;JZS151,LS151..SALEX,SPDLX199512-200108

main64101-30911iJZS153..SED..ROY199707-200108

64167BCOVER, UPPER BACK PANEL HOLE, NO.3

main64167-30050iGS151,JZS15#,LS151,UZS157..HT..(E,F,ROY,ROYEX,ROYT)199508

64211ASTRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-30901iGS151,JZS15#..HTWC,TWC199508-200101

main64211-30902iJZS155,UZS15#..A,C,E,F199508-199909

64212ASTRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-30901iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-200101

main64212-30902iJZS155,UZS15#..A,C,E,F199508-199909

64213AEXTENSION, PACKAGE TRAY STRAINER, RH

main64213-30040iJZS151,155,LS151..HT..ROY199508-199909

main64213-30040iJZS151,155,LS151..HT..ROY199508-199909

main64213-30050iJZS155..SED..ROYG;GS151,JZS15#,LS151..ROY,ROYEX,ROYT,SALEX,SPDLX199508-200101

main64213-30900iJZS151,155,LS151..SED..(ROY,ROYG)199512-199707

main64213-30901iJZS155,UZS15#..A,C,E,F199508-199909

64214AEXTENSION, PACKAGE TRAY STRAINER, LH

main64214-30040iJZS151,155,LS151..HT..ROY199508-199909

main64214-30050iGS151,JZS15#..HTWC,TWC199508-200101

main64214-30900iJZS151,155,LS151..SED..(ROY,ROYG)199512-199707

main64214-30901iJZS155,UZS15#..A,C,E,F199508-199909

64241DPANEL, ROOM PARTITION

main64241-30020iJZS151,155,LS151..HT..ROY199508-199909

main64241-30030iGS151,JZS153;JZS151,155,LS151..ROYEX,ROYT,SALEX,SPDLX199508-199707

main64241-30040iJZS151,153,155,LS151..SED..(ROY,ROYG)199512

64312BBRACKET, PACKAGE TRAY, RH

main64312-30150iJZS155,UZS15#..A,C,E,F199508-199909

main64312-30903iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

main64312-30904iGS151,JZS151,153,155,LS151..SED199512-200101

64313BBRACKET, PACKAGE TRAY, LH

main64313-30150iJZS155,UZS15#..A,C,E,F199508-199909

main64313-30903iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

main64313-30904iGS151,JZS151,153,155,LS151..SED199512-200101

64314DEXTENSION, PACKAGE TRAY BRACKET, RH

main64314-30010iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-200101

64315DEXTENSION, PACKAGE TRAY BRACKET, LH

main64315-30020iGS151,JZS15#199508-200101

64811GLASS, BACK WINDOW

main64801-30580iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199609

main64801-30600iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG)199508-199609

main64801-30610iJZS15#,LS151..HT..(ROY,ROYG,ROYT)199508-199609

main64801-30620iJZS15#,LS151..HT..(ROY,ROYG)199508-199609

main64801-30690iJZS155,UZS15#..A,C,E,F199508-199609

main64801-3A150iJZS155,UZS15#..A,C,E,F199508-199609

main64801-3A160iJZS155,UZS15#..A,C,E,F199508-199609

main64801-3A170iJZS155,UZS15#..A,C,E,F199508-199609

main64801-3A180iJZS151,155,LS151..SED..(ROY,ROYG)199512-199609

main64801-3A190iJZS151,155,LS151..SED..(ROY,ROYG)199512-199609

main64801-3A200iGS151,JZS15#,LS151..SED..(ROY,ROYG,SALEX)199512-199609

main64801-3A210iGS151,LS151..SPDLX199512-199703

sub64801-3A211

main64801-3A211iGS151,LS151..SPDLX199703-200108

main64801-3A250iJZS151,155..ROYT199508-199609

sub64801-3A300

main64801-3A260iJZS151,155..ROYT199508-199609

sub64801-3A280

main64801-3A270iJZS151,155..ROYT199609-199611

main64801-3A280iJZS15#,LS151..HT..(ROY,ROYG,ROYT)199609-199611

main64801-3A290iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199609-199611

main64801-3A300iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199609-199611

main64801-3A310iJZS155..E199609-199612

main64801-3A320iJZS155,UZS15#..A,C,F199609-199612

main64801-3A330iJZS155,UZS15#..A,C,F199609-199612

main64801-3A340iJZS155,UZS15#..A,C,F199609-199612

main64801-3A350iGS151,JZS15#,LS151..SED..(ROY,ROYG,SALEX)199609-199703

sub64801-3A351

main64801-3A351iGS151,JZS151,153,155,LS151..SED..(ROY,ROYG,SALEX)199703-200108

main64801-3A360iGS151,JZS15#,LS151..SED..(ROY,ROYG,SALEX)199609-199703

sub64801-3A361

main64801-3A361iGS151,JZS151,153,155,LS151..SED..(ROY,ROYG,SALEX)199703-200108

main64801-3A370iJZS151,155,LS151..SED..(ROY,ROYG)199609-199703

sub64801-3A371

main64801-3A371iJZS151,155,LS151..SED..(ROY,ROYG)199703-200108

main64801-3A371iJZS153..SED..ROY199707-200108

main64801-3A380iJZS151,155,LS151..SED..(ROY,ROYG)199609-199703

sub64801-3A381

main64801-3A381iJZS153..SED..ROY199707-200108

main64801-3A381iJZS151,155,LS151..SED..(ROY,ROYG)199703-200108

main64801-3A420iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199611-199909

main64801-3A430iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199611-199909

main64801-3A440iJZS157;JZS151,155..ROYT199611-199909

main64801-3A450iJZS157199808-199909

main64801-3A450iJZS151,153,155,LS151..HT..(ROY,ROYG,ROYT)199611-199909

main64801-3A460iJZS155,UZS15#..A,C,E,F199612-199909

main64801-3A470iJZS155,UZS15#..A,C,E,F199612-199909

main64801-3A480iJZS155,UZS15#..4FC..(A,C,E,F)199612-199909

main64801-3A480iJZS155,UZS151,157..C,E,F199707-199909

main64801-3A490iJZS155,UZS151,157..C,E,F199707-199909

main64801-3A490iJZS155,UZS15#..4FC..(A,C,E,F)199612-199909

6182430010PLATE, NOISE CONTROL, NO.1

main61824-30010

6182522050PLATE, QUARTER INNER PANEL, LOWER FRONT RH

main61825-22050

9017906069

main90179-06069

9033325001

main90333-25001

9046805045

main90468-05045

9054107042

main90541-07042

9095001672

main90950-01672

9151160614

main91511-60614

29 parts on this diagram · 6 diagrams in section
