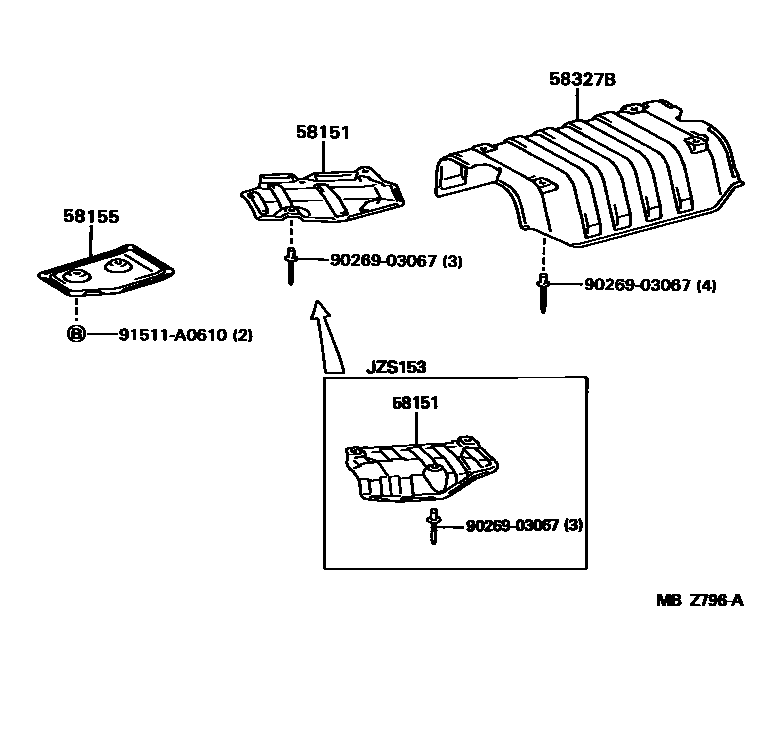

FLOOR INSULATOR

0001 1 0002 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-22070iJZS153,157¥2,460199512

main58151-30050iJZS155,UZS151,157..A,C,E,F¥7,500199508-199909

main58151-30060iUZS155¥7,500199511-199909

main58151-30070iGS151,JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥7,500199508

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-22080iGS151,JZS155..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TWC)¥1,550199808

main58155-22090iJZS155..ROY,ROYG,ROYT¥1,410199508-199808

sub58155-22080¥1,550

main58155-30020iJZS155,UZS151,157..A,C,E,F¥1,800199508

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-30010iJZS155,UZS15#..A,C,E,F¥5,300199508-199909

main58327-30020iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥3,190199508

main58328-30010iJZS155,UZS15#..A,C,E,F¥5,300199508-199909

9026903067

main90269-03067¥60

91511A0610

main91511-A0610¥120

5 parts on this diagram · 2 diagrams in section
