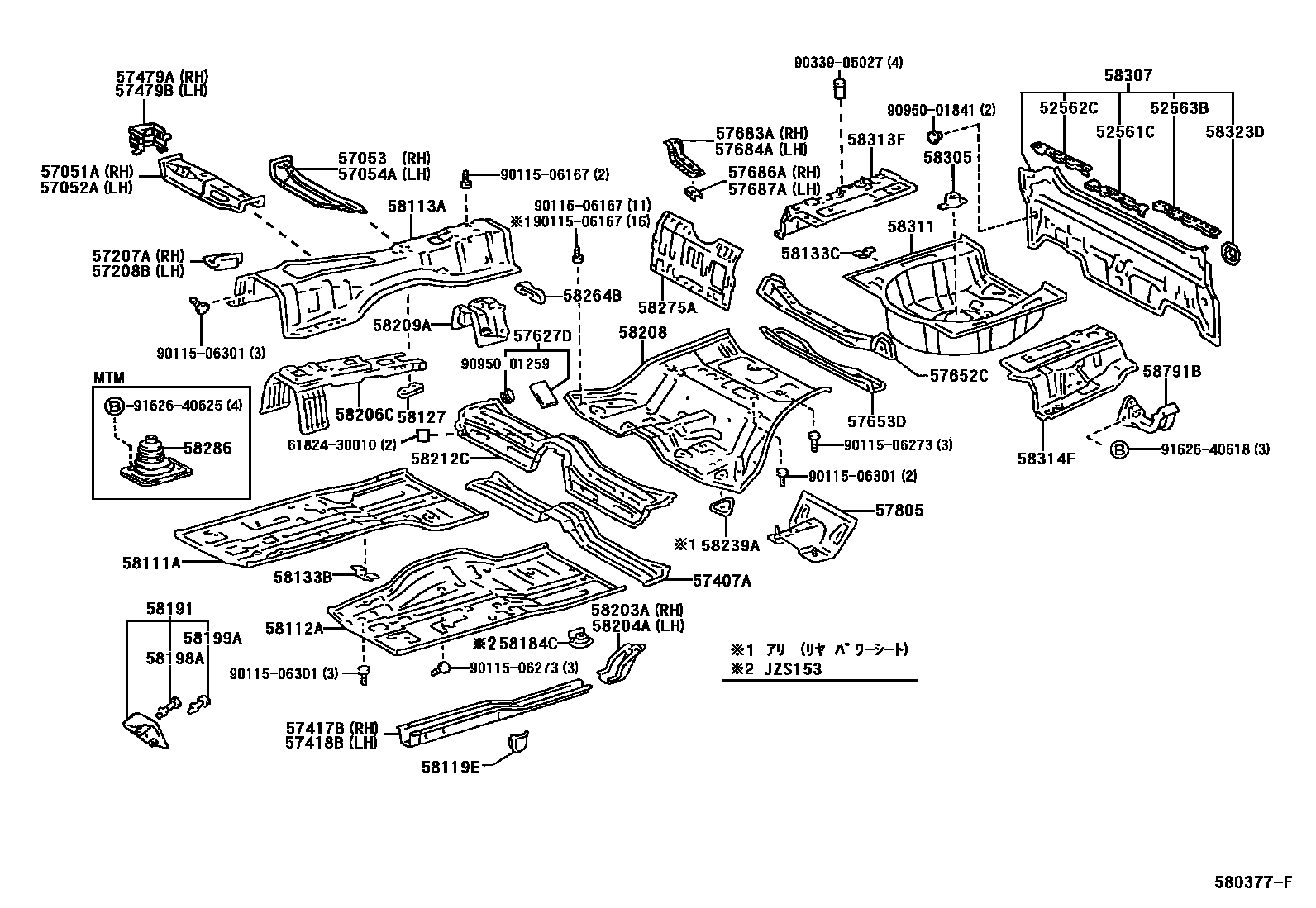

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1

52561CRETAINER, REAR BUMPER, UPPER CENTER

main52561-30160iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥1,600199508

52562CRETAINER, REAR BUMPER, UPPER RH

main52562-30090iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥1,600199508

52563BRETAINER, REAR BUMPER, UPPER LH

main52563-30040iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥1,600199508

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-30010iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥6,600199508

main57051-30020iJZS153¥6,300199512-199703

sub57051-30021¥6,400

main57051-30021iJZS153,157¥6,400199703

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-30010iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥6,600199508

main57052-30020iJZS153¥6,300199512-199703

sub57052-30021¥6,400

main57052-30021iJZS153,157¥6,400199703

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-22030iGS151,JZS151,155¥6,600199909

main57053-22040iJZS153¥6,600199909

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-22030iGS151,JZS151,155¥6,600199909

main57054-22040iJZS153¥6,600199909

57207ABRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH

main57207-22050iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥1,410199508

main57207-22060iJZS153,157¥2,070199512

57208BBRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH

main57208-22050iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥1,420199508

main57208-22060iJZS153,157¥6,300199512

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-30080iJZS155,UZS15#..A,C,E,F¥6,600199508-199909

main57461-30080iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥6,600199508

57417BREINFORCEMENT, FRONT FLOOR UNDER

main57417-30040iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥9,800199508

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-30010iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥9,800199508

57479AREINFORCEMENT, FRONT FLOOR NO.2 CROSSMEMBER, LH

main57479-30030iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥2,110199707

main57479-30040iJZS155,UZS15#..A,C,E,F¥1,130199707-199909

57479BREINFORCEMENT, FRONT FLOOR NO.2 CROSSMEMBER, RH

main57479-30030iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥2,110199707

main57479-30040iJZS155,UZS15#..A,C,E,F¥1,130199707-199909

57627DCOVER, REAR FLOOR SIDE MEMBER

main57627-30010iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥110199508

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-22900iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC)¥4,940199508

main57652-30901iJZS155,UZS15#..A,C,E,F¥4,940199508-199909

main57652-30902iGS151..LPGTE¥7,800199512-200102

57653DMEMBER, REAR FLOOR CROSS, NO.2

main57653-22901iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥13,200199508

main57653-30900iJZS155,UZS15#..A,C,E,F¥7,800199508-199909

57683ABRACKET, FUEL TANK MOUNTING, NO.1

main57683-30040iGS151..LPGTE¥2,320199512-200102

57684ABRACKET, FUEL TANK MOUNTING, NO.2

main57684-30050iGS151..LPGTE¥2,320199512-200102

57686ABRACKET, FUEL TANK MOUNTING, REAR RH

main57686-30040iGS151..LPGTE¥360199512-200102

57687ABRACKET, FUEL TANK MOUNTING, REAR LH

main57686-30040iGS151..LPGTE¥360199512-200102

57805REINFORCEMENT SUB-ASSY, BELT ANCHOR

main57805-30020iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥10,600199508

58111APAN, FRONT FLOOR, RH

main58111-30350iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥27,800199508-199708

sub58111-30351¥27,700

main58111-30351iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥27,700199708

main58111-30360iJZS153¥27,800199512-199708

sub58111-30361¥27,700

main58111-30361iJZS153,157¥27,700199708

main58111-30900iJZS155..A,E¥27,900199508-199704

sub58111-30905¥27,700

main58111-30901iUZS155¥27,800199511-199704

sub58111-30906¥27,700

main58111-30902iUZS151,157¥27,800199508-199704

sub58111-30907¥27,700

main58111-30905iJZS155..A,E¥27,700199704-199909

main58111-30906iUZS155¥27,700199704-199909

main58111-30907iUZS151,157¥27,700199704-199909

58112APANEL, FRONT FLOOR, LH

main58112-30030iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥27,700199508

main58112-30040iJZS153,157¥18,600199512

main58112-30900iJZS155..A,E¥27,900199508-199704

sub58112-30905¥27,700

main58112-30901iUZS155¥27,800199511-199704

sub58112-30906¥27,700

main58112-30902iUZS151,157¥27,800199508-199704

sub58112-30907¥27,700

main58112-30905iJZS155..A,E¥27,700199704-199909

main58112-30906iUZS155¥27,700199704-199909

main58112-30907iUZS151,157¥27,700199704-199909

58113APANEL, FRONT FLOOR, CENTER

main58014-30021iUZS155¥51,900199511-199704

sub58014-30022¥52,000

main58014-30022iUZS155¥52,000199704-199909

main58014-30040iJZS155,UZS151,157..A,C,E,F¥51,700199508-199609

sub58014-30041¥51,900

sub90950-06001¥170

main58014-30041iJZS155,UZS151,157..A,C,E,F¥51,900199609-199704

sub58014-30042¥52,000

main58014-30042iJZS155,UZS151,157..A,C,E,F¥52,000199704-199909

main58113-30060iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥27,700199508-199707

sub58113-30120¥27,700

sub90333-25003¥70

main58113-30070iJZS153,157¥32,500199512

main58113-30120iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥27,700199707

58119ECOVER, FRONT FLOOR SIDE, FRONT

main58119-30020iGS151,JZS151,155,LS151,UZS155..C,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥300199508

58127PATCH, FRONT FLOOR PANEL

main58127-30020iJZS153,157¥1,020199512

main58127-30030iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥470199508

58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3

main58133-22040iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥240199508

58133CBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58133-22040iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥240199508

58184CBRACKET, FRONT SEAT MOUNTING, INNER LH

main58184-22050iJZS153,157¥1,440199512

58191FOOTREST, FRONT FLOOR

main58191-22070iGS151..5F¥2,350199512-199909

main58191-22080iGS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)¥2,770199508

58198ACLIP, FOOTREST, NO.1

main58198-22080iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥460199508

58199ACLIP, FOOTREST, NO.2

main58199-22020iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥180199508

58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

main58203-30040iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥2,410199508

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58204-30050iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥2,620199508

58206CCOVER SUB-ASSY, TRANSMISSION, REAR

main58206-30020iGS151,JZS151,155,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)¥10,300199508-199707

main58206-30030iJZS153¥8,100199512-199707

main58206-30040iGS151..5F¥10,500199512-199707

main58206-30060iGS151,JZS151,LS151..4FC¥10,600199707

main58206-30080iJZS155..ROY,ROYG,ROYT¥10,600199707

main58206-30090iJZS153,157¥7,600199707

main58206-30100iGS151..5F¥10,800199707-199909

58208PAN, CENTER FLOOR

main58211-30200iJZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG¥27,700199508

main58211-30240iGS151,JZS157..HTWC,TWC;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYT)¥27,700199508

main58211-30250iGS151..LPGTE¥27,700199512-200102

main58211-30900iJZS155,UZS15#..A,C,E,F¥27,800199508-199909

main58211-30901iJZS155,UZS157..A,E,F¥27,800199508-199909

58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT

main58209-30020iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥4,270199508

main58209-30030iJZS153,157¥6,600199512

main58209-50010iJZS155,UZS15#..A,C,E,F¥3,940199508-199909

58212CPAN, CENTER FLOOR, FRONT

main58202-30081iJZS155..E¥18,500199508-199909

main58202-30100iJZS155,UZS157..A,E,F¥18,500199508-199909

main58202-30110iJZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG¥18,600199508

main58212-30080iGS151,JZS157;JZS151,153,LS151..SALEX,SPDLX;JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYT)¥18,600199508

58239APLATE, BELT ANCHOR NUT

main58239-50020iJZS153..SED..ROY;JZS151,155,157,LS151..ROY,ROYG¥940199508

58264BBRACKET, PARKING BRAKE CABLE GUIDE

main58264-22060iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥1,340199508

58275ARETAINER, REAR SEATBACK TO CENTER FLOOR

main58275-30010iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥4,710199508

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-30030iGS151..5F¥2,410199512

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥350199508

main58351-50010iJZS155,UZS15#..A,C,E,F¥1,020199508-199909

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-30670iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)¥19,800199508-199909

main58307-30680iJZS155,UZS15#..A,C,E,F¥18,600199508-199909

main58307-30690iGS151,JZS151,153,155,LS151..SED¥19,800199512

58311PAN, REAR FLOOR

main58311-22140iJZS151,LS151..SALEX,SPDLX;GS151,JZS153,157..HTWC,TWC;JZS151,155,LS151..HT..(ROY,ROYEX,ROYT)¥27,800199508

main58311-24020iJZS155,UZS157..E,F¥27,800199508-199903

sub58311-24021¥27,800

main58311-24021iJZS155,UZS157..E,F¥27,800199903-199909

main58311-30240iJZS155,UZS15#..A,C,E,F¥27,800199508-199903

sub58311-30241¥27,800

main58311-30241iJZS155,UZS157..E,F¥27,800199903-199909

main58311-30260iGS151..HTWC;JZS151,LS151..SALEX,SPDLX;JZS151,155,LS151..HT..(ROY,ROYEX,ROYT)¥27,800199508

main58311-30270iGS151..LPGTE¥27,800199512-200102

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main57603-30900iUZS151¥5,100199508-199511

sub57603-30901¥5,200

sub90119-12247¥260

main57603-30901iJZS155,UZS157..A,E,F¥5,200199508-199909

main58305-30170iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)¥7,900199508-199909

main58305-30190iGS151,JZS151,153,155,LS151..SED¥7,900199512

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main57604-30900iJZS155,UZS15#..A,C,E,F¥5,200199508-199909

main58306-30160iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)¥7,200199508-199704

sub58306-30161¥7,200

main58306-30161iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)¥7,200199704-199909

main58306-30180iGS151,JZS151,153,155,LS151..SED¥7,200199512

58323DREINFORCEMENT, REAR BUMPER ARM SUPPORT

main58323-30020iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥1,960199508

58791BCARRIER, JACK

main58791-30020iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT¥3,090199508-199512

sub58791-30021¥3,100

main58791-30021iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX¥3,100199512

6182430010PLATE, NOISE CONTROL, NO.1

main61824-30010¥680

9011506167

main90115-06167¥70

9011506273

main90115-06273¥70

9011506301

main90115-06301¥60

9033905027

main90339-05027¥120

9095001259

main90950-01259¥120

9095001841

main90950-01841¥110

9162640618

main91626-40618¥90

9162640625

main91626-40625¥100

59 parts on this diagram · 4 diagrams in section
