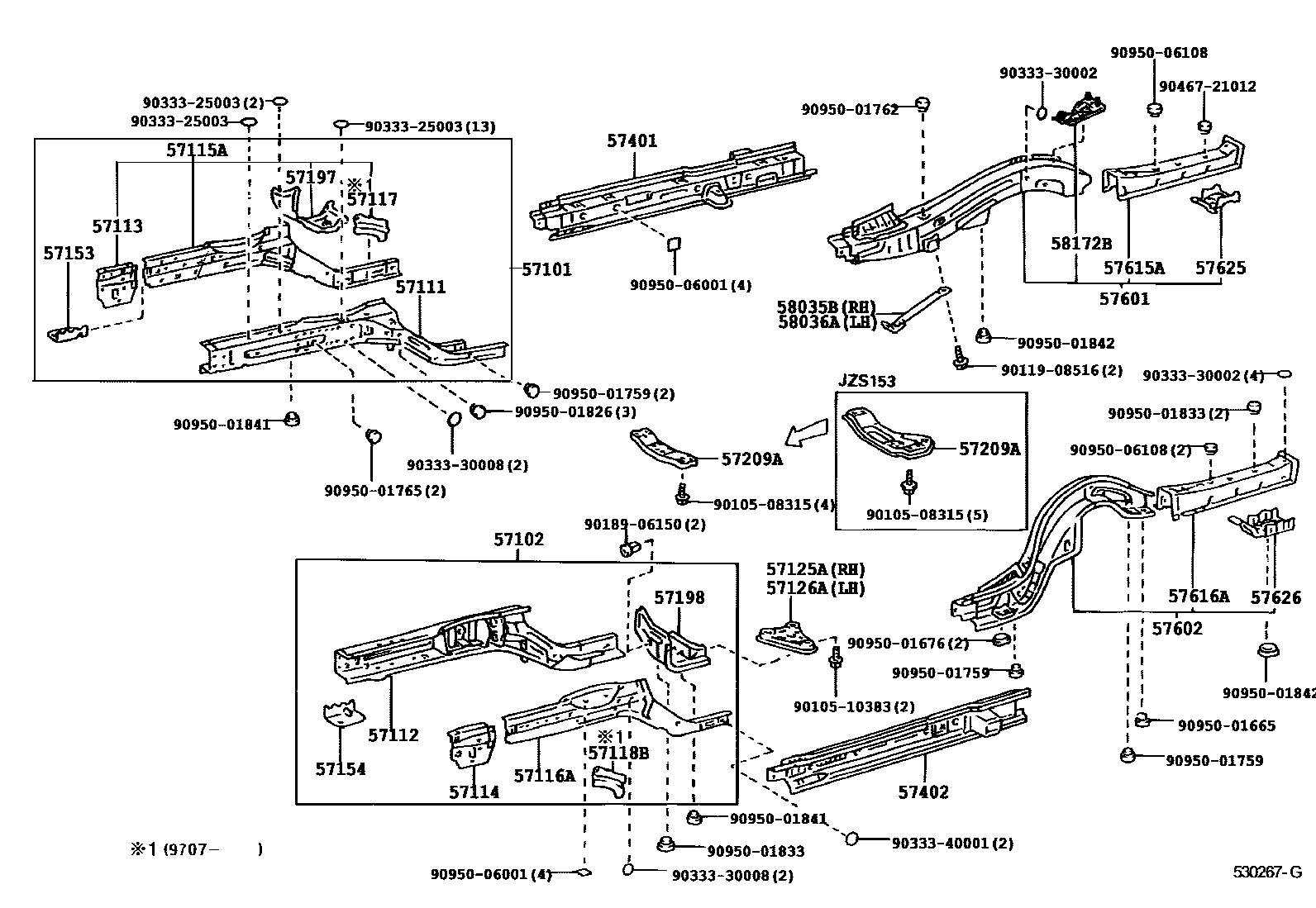

FLOOR SIDE MEMBER

0001 1 0002 1

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-30030iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199707

sub57101-30031

main57101-30031iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199707

sub57101-30071

main57101-30040iJZS153199512-199707

sub57101-30041

main57101-30041iJZS153,157199707

sub57101-30110

main57101-30050iJZS155,UZS151,157..A,C,E,F199508-199707

main57101-30060iUZS155199511-199707

main57101-30080iJZS155,UZS151,157..A,C,E,F199707-199909

main57101-30090iUZS155199707-199909

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-30030iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199707

sub57102-30031

main57102-30031iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199707-200108

main57102-30040iJZS153199512-199707

sub57102-30041

main57102-30041iJZS153,157199707-200108

main57102-30050iJZS155,UZS151,157..A,C,E,F199508-199707

main57102-30060iUZS155199511-199707

main57102-30070iJZS155,UZS151,157..A,C,E,F199707-199909

main57102-30080iUZS155199707-199909

57111MEMBER, FRONT SIDE, RH

main57111-30010iJZS155,UZS15#..A,C,E,F199508-199703

sub57111-30011

sub44753-30110

sub57153-30011

main57111-30011iJZS155,UZS15#..A,C,E,F199703-199909

main57111-30900iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199704

sub57111-30902

main57111-30901iJZS153199512-199704

sub57111-30903

main57111-30904iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199704

main57111-30905iJZS153,157199704

57112MEMBER, FRONT SIDE, LH

main57112-30010iJZS155,UZS15#..A,C,E,F199508-199703

sub57112-30011

sub57154-30011

main57112-30011iJZS155,UZS15#..A,C,E,F199703-199909

main57112-30900iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199704

sub57112-30902

main57112-30901iJZS153199512-199704

sub57112-30903

main57112-30904iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199704-200108

main57112-30905iJZS153,157199704-200108

57113EXTENSION, FRONT SIDE MEMBER, RH

main57016-30010iJZS155,UZS15#..A,C,E,F199508-199909

main57113-22080iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

57114EXTENSION, FRONT SIDE MEMBER, LH

main57017-30010iJZS155,UZS15#..A,C,E,F199508-199909

main57114-22080iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-200108

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-30010iJZS155,UZS15#..A,C,E,F199707-199909

main57115-30900iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

sub57115-30903

main57115-30901iJZS155,UZS151,157..A,C,E,F199508-199707

main57115-30902iUZS155199511-199707

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-22140iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199707-200108

main57116-30010iJZS155,UZS15#..A,C,E,F199707-199909

main57116-30900iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199707

main57116-30901iJZS155,UZS151,157..A,C,E,F199508-199707

main57116-30902iUZS155199511-199707

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-22070iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199707

57118BPLATE, FRONT SIDE MEMBER, NO.2 LH

main57118-22050iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199707-200108

57125APLATE, STRUT BAR BRACKET, RH

main57125-22050iJZS153,157199512

main57125-22070iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

57126APLATE, STRUT BAR BRACKET, LH

main57126-22030iJZS153,157199512

main57126-22050iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57153-30010iJZS155,UZS15#..A,C,E,F199508-199703

sub57153-30011

sub44753-30110

sub57111-30011

main57153-30011iJZS155,UZS15#..A,C,E,F199703-199909

main57153-30020iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199707

57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

main57154-30010iJZS155,UZS15#..A,C,E,F199508-199703

sub57154-30011

sub57112-30011

main57154-30011iJZS155,UZS15#..A,C,E,F199703-199909

main57154-30020iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199707-200108

57197BOX, TORQUE, FRONT RH

main57197-30011iJZS155,UZS15#..A,C,E,F199508-199909

main57197-30021iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-200108

57198BOX, TORQUE, FRONT LH

main57198-30011iJZS155,UZS15#..A,C,E,F199508-199909

main57198-30021iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-200108

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57209-22180iJZS153,157199512

main57209-30020iUZS155199511-199909

main57255-22300iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main57255-30050iJZS155,UZS151,157..4FC..(A,C,E,F)199508-199909

main57255-30090iUZS151,157199707-199909

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-30040iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199707

main57401-30050iJZS155,UZS15#..A,C,E,F199508-199707

main57401-30060iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199707-199909

main57401-30061iGS151,JZS15#199909

main57401-30070iJZS155,UZS15#..A,C,E,F199707-199909

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-30030iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199707

main57402-30040iJZS155,UZS15#..A,C,E,F199508-199707

main57402-30050iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199707-199909

main57402-30051iGS151,JZS15#199909

main57402-30060iJZS155,UZS15#..A,C,E,F199707-199909

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-30900iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

sub57601-30914

sub57615-22130

sub57625-22070

main57601-30901iUZS151,155199508-199909

sub57611-30901

main57601-30902iJZS155,UZS157..A,E,F199508-199909

sub57611-30901

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-30900iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

sub57602-30925

sub57616-30020

sub57626-30020

main57602-30902iJZS155,UZS15#..A,C,E,F199508-199707

sub57602-30903

main57602-30903iJZS155..A,E199707-199909

sub57602-30904

main57602-30904iUZS15#199707-199909

sub57612-30901

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-22130iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main57615-30900iJZS155,UZS15#..A,C,E,F199508-199909

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-22100iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199704

main57616-30020iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199704

main57616-30902iJZS155,UZS15#..A,C,E,F199508-199909

57625REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH

main57625-22070iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

57626REINFORCEMENT, REAR FLOOR SIDE MEMBER, LH

main57626-30020iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

58035BBRACE SUB-ASSY, REAR FLOOR PANEL, RH

main58035-30030iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

58036ABRACE SUB-ASSY, REAR FLOOR PANEL, LH

main58036-30030iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

58172BBRACKET, COMPUTER MOUNTING, NO.3

main58172-30010iJZS155..ROY,ROYG,ROYT199707

main58172-30030iJZS155,UZS15#..A,C,E,F199707

9010508315

main90105-08315

9010510383

main90105-10383

9011908516

main90119-08516

9018906150

main90189-06150

9033325003

main90333-25003

9033330002

main90333-30002

9033330008

main90333-30008

9033340001

main90333-40001

9046721012

main90467-21012

9095001665

main90950-01665

9095001676

main90950-01676

9095001759

main90950-01759

9095001762

main90950-01762

9095001765

main90950-01765

9095001826

main90950-01826

9095001833

main90950-01833

9095001841

main90950-01841

9095001842

main90950-01842

9095006001

main90950-06001

9095006108

main90950-06108

48 parts on this diagram · 2 diagrams in section
