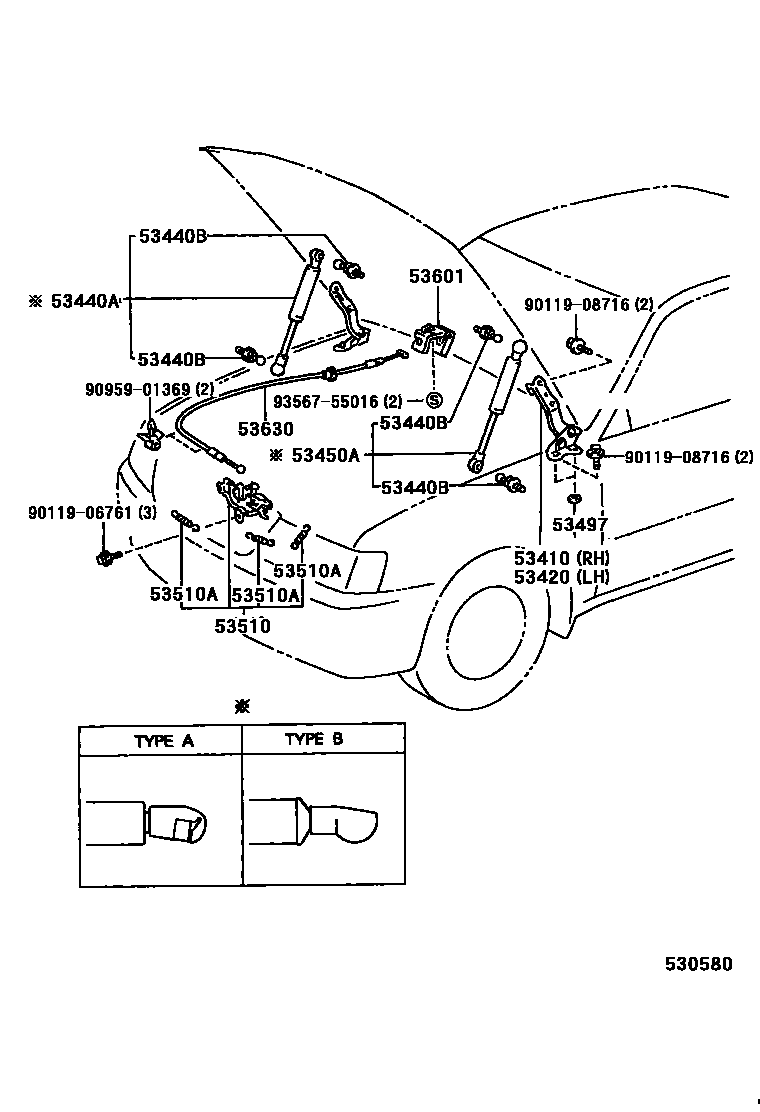

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-30110iGS151,JZS15#,LS151,UZS15#199508-200108

53420HINGE ASSY, HOOD, LH

main53420-30110iGS151,JZS15#,LS151,UZS15#199508-200108

53440ASUPPORT ASSY, HOOD, RH

main53440-09030iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-200108

sub53440-09060

main53440-09040iJZS155,UZS15#..A,C,E,F199508-199909

sub53440-0W030

sub68961-20051

main53440-39135iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-200108

main53440-39145iJZS155,UZS15#..A,C,E,F199508-199909

53440BBOLT, HOOD SUPPORT, NO.1

main68961-24030iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-200108

sub68961-20051

main68961-50010iJZS155,UZS15#..A,C,E,F199508-199909

sub68961-20051

53450ASUPPORT ASSY, HOOD, LH

main53440-09030iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-200108

sub53440-09060

main53440-39135iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-200108

main53450-09030iJZS155,UZS15#..A,C,E,F199508-199909

sub53450-0W020

sub68961-20051

main53450-39135iJZS155,UZS15#..A,C,E,F199508-199909

53497PAD, HOOD HINGE, NO.1

main53497-12050iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199707-200108

main53497-20070iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199707-200108

53510LOCK ASSY, HOOD

main53510-30260iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

main53510-30270iGS151,JZS151,153,155,LS151..SED199512-200108

main53510-50040iJZS155,UZS15#..A,C,E,F199508-199909

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09050iJZS155,UZS15#..A,C,E,F199508-199909

main90506-09052iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-200108

main90506-18061iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-200108

main90506-18068iJZS155,UZS15#..A,C,E,F199508-199909

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-20060-B1iJZS155,UZS15#..A,C,E,F199508-199909

BLUE GRAY,TRIM1#

sub53601-20060

main53601-20060-B2iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199808

DK.BLUE GRAY,TRIM1#

sub53601-20060

main53601-20060-E1iJZS155,UZS15#..A,C,E,F199508-199808

QUARTZ,TRIM4#

sub53601-20060

main53601-20060-E3iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199808

ANTELOPE,TRIM4#

sub53601-20060

main53601-20060-E4iJZS155,UZS15#..A,C,E,F199808-199909

ORCHID,TRIM4#

sub53601-20060

main53601-20060-E5iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199808-200108

ORCHID BROWN,TRIM4#

sub53601-20060

main53601-20060-P0iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199808-200108

SHADOW GRAY,TRIM1#

sub53601-20060

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-30220iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-200108

main53630-30230iJZS155,UZS15#..A,C,E,F199508-199909

9011906761

main90119-06761

9011908716

main90119-08716

9095901369

main90959-01369

9356755016

main93567-55016

14 parts on this diagram · 2 diagrams in section
