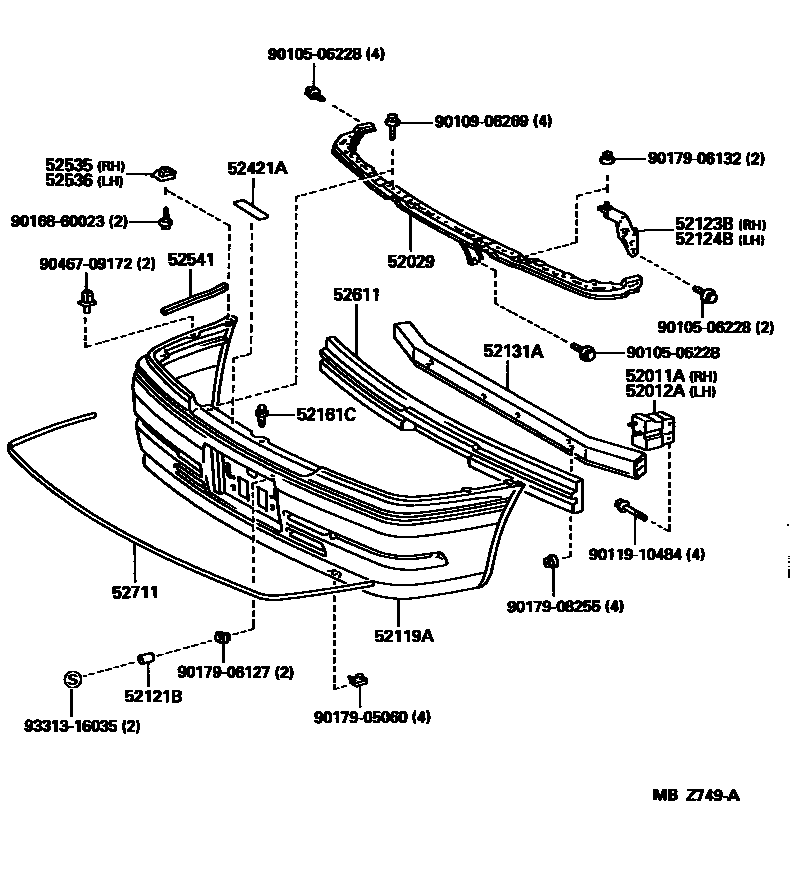

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-30220iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB199508-199707

main52011-30230iGS151,LS151..NOB199512

main52011-30240iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB199707

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-30190iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB199508-199707

main52012-30240iGS151,LS151..NOB199512

main52012-30250iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB199707

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-30090iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

main52029-30110iGS151,JZS151,153,155,LS151..SED..WIB199512

main52029-30120iGS151,LS151..NOB199512

main52132-30130iJZS155,UZS15#..A,C,E,F199508-199909

52119ACOVER, FRONT BUMPER

main52119-30160-A0iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199707

SUPER WHITE 2,040

sub52119-30943

sub52119-3B901

main52119-30160-A1iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199707

SU.WHITE PM,051

sub52119-30943

sub52119-3B901

main52119-30160-A2iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199707

SU.WHITE PM,2BK

sub52119-30943

sub52119-3B901

main52119-30160-B0iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199707

DK.GRAY ME.,1A8

sub52119-30943

sub52119-3B901

main52119-30160-B1iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199707

SILVER ME,199

sub52119-30943

sub52119-3B901

main52119-30160-B2iGS151,JZS151,153..ROYEX199704-199707

sub52119-30943

sub52119-3B901

main52119-30160-C0iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199707

BLACK,202

sub52119-30943

sub52119-3B901

main52119-30160-H0iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199707

DK.TURQUOISE.MC,25V

sub52119-30943

sub52119-3B901

main52119-30160-H1iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199707

LT.TURQUOISE ME.,757

sub52119-30943

sub52119-3B901

main52119-30160-J0iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199707

DK.BLUE MC.,8L4

sub52119-30943

sub52119-3B901

main52119-30250-B1iJZS155,UZS15#..A,C,E,F199508-199707

YELLOW SILVER ME.,051

sub52119-30945

main52119-30250-B2iJZS155,UZS15#..A,C,E,F199508-199707

DK.BL.GRAY ME,8L1

sub52119-30945

main52119-30250-B3iJZS155,UZS15#..A,C,E,F199508-199707

GRAY MM,199

sub52119-30945

main52119-30250-C0iJZS155,UZS15#..A,C,E,F199508-199707

BLACK,202

sub52119-30945

main52119-30250-F0iJZS155,UZS15#..A,C,E,F199609-199707

GREENISH GRAY,6P7

sub52119-30945

main52119-30250-K0iJZS155,UZS15#..A,C,E,F199508-199707

DK. GRAY M.M.,6N9

sub52119-30945

main52119-30290-A0iGS151,JZS151,153,155,LS151..SED..WIB199512-200108

SUPER WHITE 2,040

sub52119-30931

main52119-30290-A2iJZS151,153..SED..ROY;GS151,JZS155,LS151..SED..WIB199609-200108

SU.WHITE PM,051

sub52119-30931

main52119-30290-A3iGS151,JZS15#..WIB199909-200108

WHITE PEARL CS.,062

sub52119-30931

main52119-30290-B0iGS151,JZS15#..WIB199512-200108

SILVER ME,199

sub52119-30931

main52119-30290-B1iGS151,JZS151,153,155,LS151..SED..WIB199707-200108

DK.GRAY ME.,1A8

sub52119-30931

main52119-30290-B2iGS151,JZS15#..WIB199909-200108

SILVER ME.,1C0

sub52119-30931

main52119-30290-C0iGS151,JZS151,153,155,LS151..SED..WIB199512-200108

BLACK,202

sub52119-30931

main52119-30290-H0iGS151,JZS15#,LS151..SED..WIB199512-199707

DK.TURQUOISE.MC,742

sub52119-30931

main52119-30290-J0iGS151,JZS151,153,155,LS151..SED..WIB199512-200108

DK.BLUE.MC.,8L4

sub52119-30931

main52119-30290-J1iGS151,JZS15#..WIB199909-200108

GRAYISH BLUE ME.,8N6

sub52119-30931

main52119-30300-A0iGS151,LS151..NOB199512-200108

SUPER WHITE 2,040

sub52119-30971

main52119-30300-A1iGS151..SALEX..NOB199609-199909

SU.WHITE PM,051

sub52119-30971

main52119-30300-A2iGS151..SALEX..NOB199909-200108

WHITE PEARL CS.,062

sub52119-30971

main52119-30300-B0iGS151,LS151..NOB199512-199909

SILVER ME,199

sub52119-30971

main52119-30300-B1iGS151,LS151..NOB199707-199909

DK.GRAY ME.,1A8

sub52119-30971

main52119-30300-B2iGS151..NOB199909-200108

SILVER ME.,1C0

sub52119-30971

main52119-30300-C0iGS151,LS151..NOB199512-200108

BLACK,202

sub52119-30971

main52119-30300-H0iGS151,LS151..NOB199512-199707

DK.TURQUOISE.MC,742

sub52119-30971

main52119-30300-J0iGS151,LS151..NOB199512-200108

DK.BLUE MC.,8L4

sub52119-30971

main52119-30300-J1iGS151..NOB199909-200108

GRAYISH BLUE ME.,8N6

sub52119-30971

main52119-30350-A0iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG)199707-199909

SUPER WHITE 2,040

sub52119-30933

main52119-30350-A1iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199707-199909

SU.WHITE PM,051

sub52119-30933

main52119-30350-A2iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199707-199909

SU.WHITE PM,2BK

sub52119-30933

main52119-30350-A2iGS151,JZS153..ROYEX;JZS151,155,157..HT..(ROY,ROYEX)199904-199909

sub52119-30933

main52119-30350-B0iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199707-199909

DK.GRAY ME.,1A8

sub52119-30933

main52119-30350-B1iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199707-199909

SILVER ME,199

sub52119-30933

main52119-30350-B2iGS151,JZS153..ROYEX;JZS151,155,157..HT..(ROY,ROYEX)199904-199909

sub52119-30933

main52119-30350-B2iGS151,JZS151,153..ROYEX199804-199903

sub52119-30933

main52119-30350-C0iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG)199707-199909

BLACK,202

sub52119-30933

main52119-30350-G0iJZS151,155..ROYT199707-199808

LT.OLIVE ME.,6Q3

sub52119-30933

main52119-30350-G1iGS151..ROYEX199810

sub52119-30933

main52119-30350-G1iJZS151..ROYT199801-199808

sub52119-30933

main52119-30350-G1iJZS151,155..ROYT199808-199909

DK. GRAY M.M.,6N9

sub52119-30933

main52119-30350-G2iGS151..ROYEX199810

sub52119-30933

main52119-30350-G2iGS151,JZS153..ROYEX;JZS151,155,157..HT..(ROY,ROYEX)199904-199909

sub52119-30933

main52119-30350-J0iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199707-199909

DK.BLUE MC.,8L4

sub52119-30933

main52119-30350-J1iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199707-199909

DK.BLUE MC.,2EA

sub52119-30933

main52119-30350-J1iGS151,JZS153..ROYEX;JZS151,155,157..HT..(ROY,ROYEX)199904-199909

sub52119-30933

main52119-30360-B0iJZS155,UZS15#..A,C,E,F199707-199909

YELLOW SILVER ME.,051

sub52119-30946

main52119-30360-B1iJZS155,UZS15#..A,C,E,F199707-199909

DK.BL.GRAY ME,8L4

sub52119-30946

main52119-30360-B2iJZS155,UZS15#..A,C,E,F199707-199909

GRAY MM,199

sub52119-30946

main52119-30360-C0iJZS155,UZS15#..A,C,E,F199707-199909

BLACK,202

sub52119-30946

main52119-30360-D0iUZS157199810-199903

sub52119-30946

main52119-30360-E0iJZS155,UZS15#..A,C,E,F199707-199808

GRAYISH BROWN M.M.,3N0

sub52119-30946

main52119-30360-K0iJZS155,UZS15#..A,C,E,F199707-199909

DK. GRAY M.M.,6N9

sub52119-30946

52121BBRACKET, FRONT LICENCE PLATE MOUNTING

main90560-11020iGS151,JZS15#,LS151,UZS15#199508

52123BPLATE, FRONT BUMPER REINFORCEMENT, RH

main52123-30080iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

main52123-30090iJZS155,UZS15#..A,C,E,F199508-199909

main52123-30100iGS151,JZS151,153,155,LS151..SED199512

52124BPLATE, FRONT BUMPER REINFORCEMENT, LH

main52123-30090iJZS155,UZS15#..A,C,E,F199508-199909

main52124-30070iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

main52124-30080iGS151,JZS151,153,155,LS151..SED199512

52131AREINFORCEMENT, FRONT BUMPER

main52021-30150iJZS155,UZS15#..A,C,E,F199508-199707

main52131-30140iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB199508-199707

main52131-30160iGS151,LS151..NOB199512-199707

main52131-30170iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..WIB199707

main52131-30180iJZS155,UZS15#..A,C,E,F199707-199909

52161CPIECE, FRONT BUMPER

main52161-16010iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

52421APAD, FRONT BUMPER

main52421-30090iGS151,JZS15#,LS151,UZS15#199508-199710

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-30150iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

52536RETAINER, FRONT BUMPER SIDE, LH

main52535-30150iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

52541PROTECTOR, FRONT BUMPER

main52541-30050iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main52541-30060iJZS155,UZS15#..A,C,E,F199508-199909

52611ABSORBER, FRONT BUMPER ENERGY

main52611-30160iGS151,JZS15#,LS151..SED..WIB199512-199707

main52611-30170iLS151..HT..ROY;GS151,JZS15#..HT..(ROY,ROYEX,ROYG,ROYT)199508-199707

main52611-30180iJZS155,UZS15#..A,C,E,F199508-199707

main52611-30190iLS151..HT..ROY;GS151,JZS15#..HT..(ROY,ROYEX,ROYG,ROYT)199707-199909

main52611-30200iJZS155,UZS15#..A,C,E,F199707-199909

main52611-30210iGS151,JZS151,153,155,LS151..SED..WIB199707

52711MOULDING, FRONT BUMPER

main52711-30160iGS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT)199508-199909

sub52751-30100

main52711-30170iJZS155,UZS15#..A,C,E,F199508-199909

sub52751-30160

main52711-30180iGS151,JZS151,153,155,LS151..SED..WIB199512

main52711-30190iGS151,LS151..NOB199512

sub52711-30180

9010506228

main90105-06228

9010906269

main90109-06269

9011910484

main90119-10484

9016860023

main90168-60023

9017905060

main90179-05060

9017906127

main90179-06127

9017906132

main90179-06132

9017908255

main90179-08255

9046709172

main90467-09172

9331316035

main93313-16035

25 parts on this diagram · 9 diagrams in section
