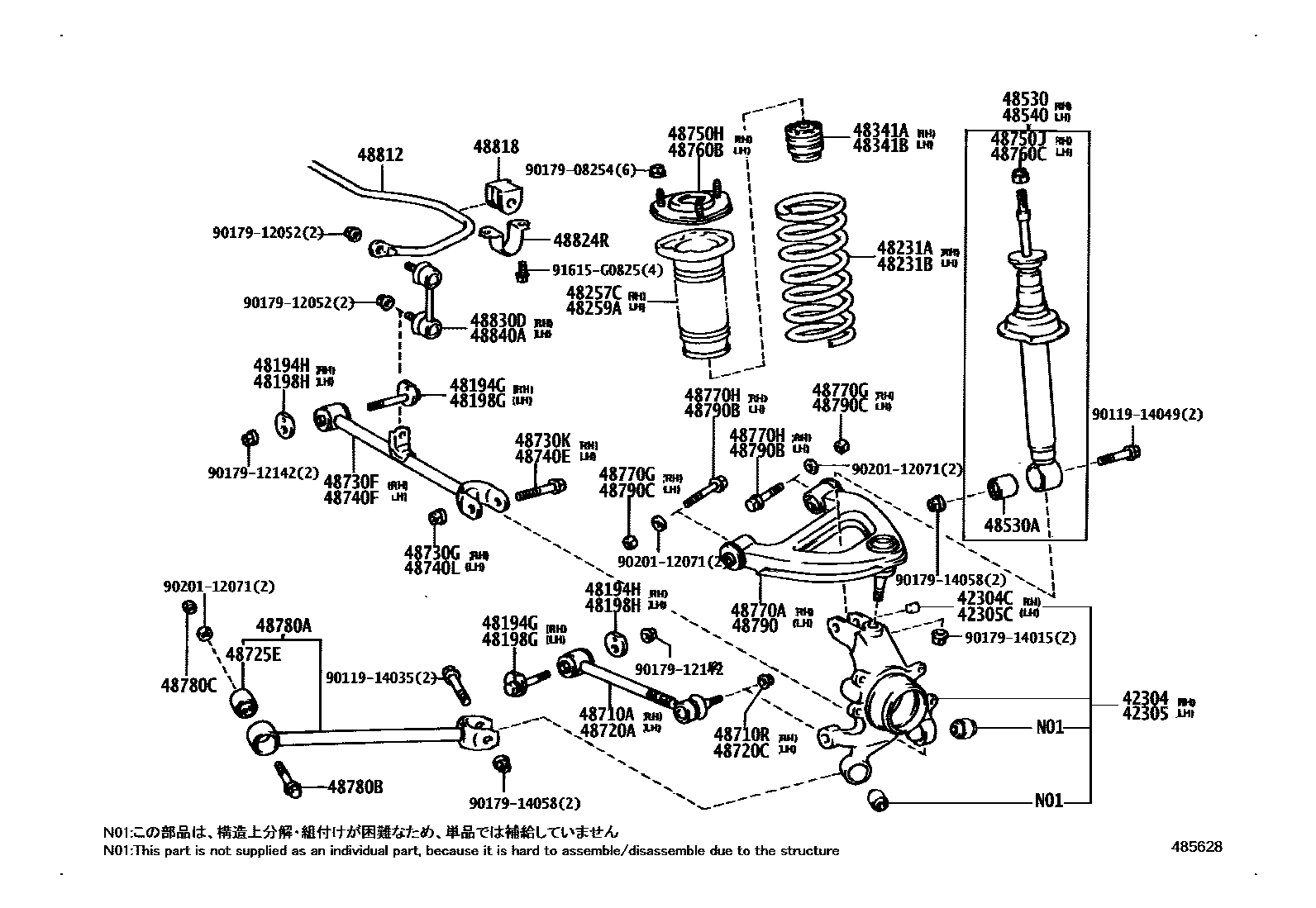

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-30010iJZS155,UZS151,157..A,C,E,F199508-199909

main42304-30040iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main42304-30050iGS151..ROY,SPDLX199512-199909

main42313-24030iUZS155199511-199909

42304CSPACER (FOR REAR AXLE CARRIER)

main90560-14009iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-30010iJZS155,UZS151,157..A,C,E,F199508-199909

main42305-30040iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main42305-30050iGS151..ROY,SPDLX199512-199909

main42314-24030iUZS155199511-199909

42305CSPACER(FOR REAR AXLE CARRIER LH)

main90560-14009iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199512

48194GCAM, REAR SUSPENSION CAMBER ADJUST, NO.1 RH

main48190-22030iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

48194HCAM, REAR SUSPENSION CAMBER ADJUST, NO.2 RH

main48198-22020iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

48198GCAM, REAR SUSPENSION CAMBER ADJUST, NO.1 LH

main48190-22030iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

48198HCAM, CAMBER ADJUST, NO.2

main48198-22020iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

48231ASPRING, COIL, REAR RH

main48231-30770iJZS155..ROY,ROYG199508-199611

sub48231-30771

main48231-30771iJZS155..ROY,ROYG199611-200108

main48231-30780iJZS151..ROY,ROYEX,SALEX199508-199608

main48231-30790iJZS153199512-199707

sub48231-30791

main48231-30791iJZS153,157199707-200108

main48231-30800iJZS155,UZS157..A,E,F199508-199707

main48231-30811iGS151..LPGTE199612-199705

sub48231-30812

main48231-30812iGS151..LPGTE199705-200102

main48231-30820iGS151..SPDLX..HTWC199512-199609

sub48231-30870

main48231-30830iLS151199508-199909

main48231-30840iGS151..LPGTE199512-199909

sub48231-30830

main48231-30860iJZS151,155..ROYT199508-199612

main48231-30870iGS151..ROYEX,SALEX199508-199612

sub48231-3A050

main48231-3A040iUZS157199609-199707

main48231-3A050iGS151..ROYEX,SALEX199609-199909

main48231-3A060iGS151,JZS151..HTWC,TWC199612-200108

main48231-3A110iUZS157199707-199909

main48231-3A120iJZS155..A,E199707-199909

48231BSPRING, COIL, REAR LH

main48231-30770iJZS155..ROY,ROYG199508-199611

sub48231-30771

main48231-30771iJZS155..ROY,ROYG199611-200108

main48231-30780iJZS151..ROY,ROYEX,SALEX199508-199608

main48231-30790iJZS153199512-199707

sub48231-30791

main48231-30791iJZS153,157199707-200108

main48231-30800iJZS155,UZS157..A,E,F199508-199707

main48231-30811iGS151..LPGTE199612-199705

sub48231-30812

main48231-30812iGS151..LPGTE199705-200102

main48231-30820iGS151..SPDLX..HTWC;JZS151..ROY,ROYEX,SALEX199512-199609

sub48231-30870

main48231-30830iLS151199508-199909

main48231-30840iJZS151,155..ROYT199512-199909

sub48231-30830

main48231-30860iJZS151,155..ROYT199508-199612

main48231-30870iGS151..ROYEX,SALEX199508-199612

sub48231-3A050

main48231-3A040iUZS157199609-199707

main48231-3A050iGS151..ROYEX,SALEX199609-199909

main48231-3A060iGS151..ROYEX,SALEX199612-200108

main48231-3A110iUZS157199707-199909

main48231-3A120iJZS155..A,E199707-199909

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-22070iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main48257-30050iJZS155,UZS157..A,E,F199508-199909

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-22070iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main48257-30050iJZS155,UZS157..A,E,F199508-199909

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-30060iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-30060iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-39285iGS151,JZS151,155..(ROY,ROYEX,ROYG,SALEX,SPDLX)..(HTWC,TWC)199508-200108

sub48530-39296

main48530-39295iJZS151,155..ROYT;GS151,LS151..LPGTE,TDE199508-199707

sub48530-39296

main48530-39296iJZS151,155..ROYT;GS151,LS151..LPGTE,TDE199707-200102

main48530-39305iJZS153,157199512-200108

sub48530-39296

main48530-39315iJZS155..A,E199508-199909

sub48530-80179

main48530-39425iUZS157199609-199909

sub48530-80183

48530ABUSH(FOR REAR SHOCK ABSORBER)

main48537-30010iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-39285iGS151,JZS151,155..(ROY,ROYEX,ROYG,SALEX,SPDLX)..(HTWC,TWC)199508

sub48530-39296

main48530-39295iJZS151,155..ROYT;GS151,LS151..LPGTE,TDE199508-199707

sub48530-39296

main48530-39296iJZS151,155..ROYT;GS151,LS151..LPGTE,TDE199707-200102

main48530-39305iJZS153,157199512

sub48530-39296

main48530-39315iJZS155..A,E199609-199909

sub48530-80179

main48530-39315iJZS155,UZS157..A,E,F199508-199609

sub48530-80179

main48530-39425iUZS157199609-199909

sub48530-80183

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-30140iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main48710-30140iGS151..ROYEX199810

main48710-30140iJZS151,155,157..HT..ROY199904-199909

main48710-30150iUZS151199508-199609

main48710-30151iUZS151199609-199707

main48710-30160iJZS155,UZS157..A,E,F199508-199909

sub48720-30140

main48710-30180iUZS151199707-199909

48710RNUT(FOR REAR SUSPENSION ARM NO.1 RH)

main90179-12027iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

48720ARM ASSY, LOWER CONTROL, RH

main48720-30131iUZS155199511

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-30140iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,SALEX,SPDLX199508-199707

main48710-30160iJZS155,UZS157..A,E,F199508-199909

sub48720-30140

main48710-30170iGS151..ROYEX199810

main48710-30170iJZS151,155..ROYT199707-199909

main48710-30170iJZS151,155,157..HT..ROY199904-199909

main48720-30140iUZS151199508-199609

main48720-30141iUZS151199609-199707

main48720-30150iJZS155,UZS151,157..A,C,F199707-199909

48720CNUT(FOR REAR SUSPENSION ARM NO.1 LH)

main90179-12027iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

48725EBUSH, REAR STRUT ROD

main48725-24070iJZS155,UZS157..A,E,F199508-199909

main48725-30111iUZS151199508-199707

main48725-30160iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-200008

main48725-30180iUZS151199707-199909

main48725-30320iGS151..LPGTE200008-200102

48730ARM ASSY, LOWER CONTROL, LH

main48730-30051iUZS155199511

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-30060iJZS155,UZS151,157..A,C,E,F199508-199909

main48730-30070iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

48730GNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH)

main90179-12121iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)

main90119-12260iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)

main90119-12260iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-30070iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main48740-30070iJZS155,UZS151,157..A,C,E,F199508-199909

48740LNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH)

main90179-12121iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48071-30010iJZS155,UZS157..A,E,F199508-199909

main48755-30040iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90177-12002iGS151,JZS15#200003

main94187-11200iGS151,JZS15#,LS151,UZS157199508-200003

sub90177-12002

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48071-30010iJZS155,UZS157..A,E,F199508-199909

main48755-30040iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90177-12002iGS151,JZS15#200003

main94187-11200iGS151,JZS15#,LS151,UZS157199508-200003

sub90177-12002

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-30010iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main48770-30020iJZS155,UZS15#..A,C,E,F199508-199909

sub48770-24050

48770GNUT, NO.2(FOR REAR UPPER CONTROL ARM RH)

main90170-12042iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90179-14054iJZS155,UZS151,157..A,C,E,F199508-199909

48770HBOLT(FOR REAR UPPER CONTROL ARM RH)

main90105-12290iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

48780AROD ASSY, STRUT, REAR

main48780-30010iUZS151199508-199707

main48780-30020iJZS155,UZS157..A,E,F199508-199909

main48780-30030iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-200008

main48780-30050iUZS151199707-199909

main48780-30060iGS151..LPGTE200008-200102

48780BBOLT(FOR STRUT ROD)

main90105-12289iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199707

main90105-12289iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199707

BODY SIDE

main90105-14065iJZS155,UZS151,157..A,C,E,F199707-199909

main90105-14065iJZS155,UZS151,157..A,C,E,F199508-199707

BODY SIDE

48780CNUT(FOR STRUT ROD)

main90170-12042iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-30010iGS151..ROY,SPDLX199512-199707

main48790-30010iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main48790-30020iJZS155,UZS15#..A,C,E,F199508-199909

sub48790-24050

48790BBOLT(FOR REAR UPPER CONTROL ARM LH)

main90105-12290iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

48790CNUT, NO.2(FOR REAR UPPER CONTROL ARM LH)

main90170-12042iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90179-14054iJZS155,UZS151,157..A,C,E,F199508-199909

48812BAR, STABILIZER, REAR

main48812-30290iJZS155,UZS151,157..A,C,E,F199508-199909

main48812-30300iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main48812-30310iUZS155199511-199909

48818BUSH, STABILIZER, REAR

main48818-30070iJZS155,UZS151,157..A,C,E,F199508-199909

main48818-30080iUZS155199511-199909

main48818-30090iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

48824RBRACKET, STABILIZER(FOR REAR)

main48824-14060iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main48824-30090iJZS155,UZS15#..A,C,E,F199508-199909

48830DLINK ASSY, REAR STABILIZER, RH

main48830-14050iUZS155199511-199909

main48830-22040iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT199508-199509

sub48830-22041

main48830-22041iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199509

main48830-30060iJZS155,UZS151,157..A,C,E,F199508-199909

48840ALINK ASSY, REAR STABILIZER, LH

main48830-22040iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT199508-199509

sub48830-22041

main48830-22041iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199509

main48830-30060iJZS155,UZS151,157..A,C,E,F199508-199909

main48840-14030iUZS155199511-199909

9011914035

main90119-14035

9011914049

main90119-14049

9017908254

main90179-08254

9017912052

main90179-12052

9017912142

main90179-12142

9017914015

main90179-14015

9017914058

main90179-14058

9020112071

main90201-12071

91615G0825

main91615-G0825
