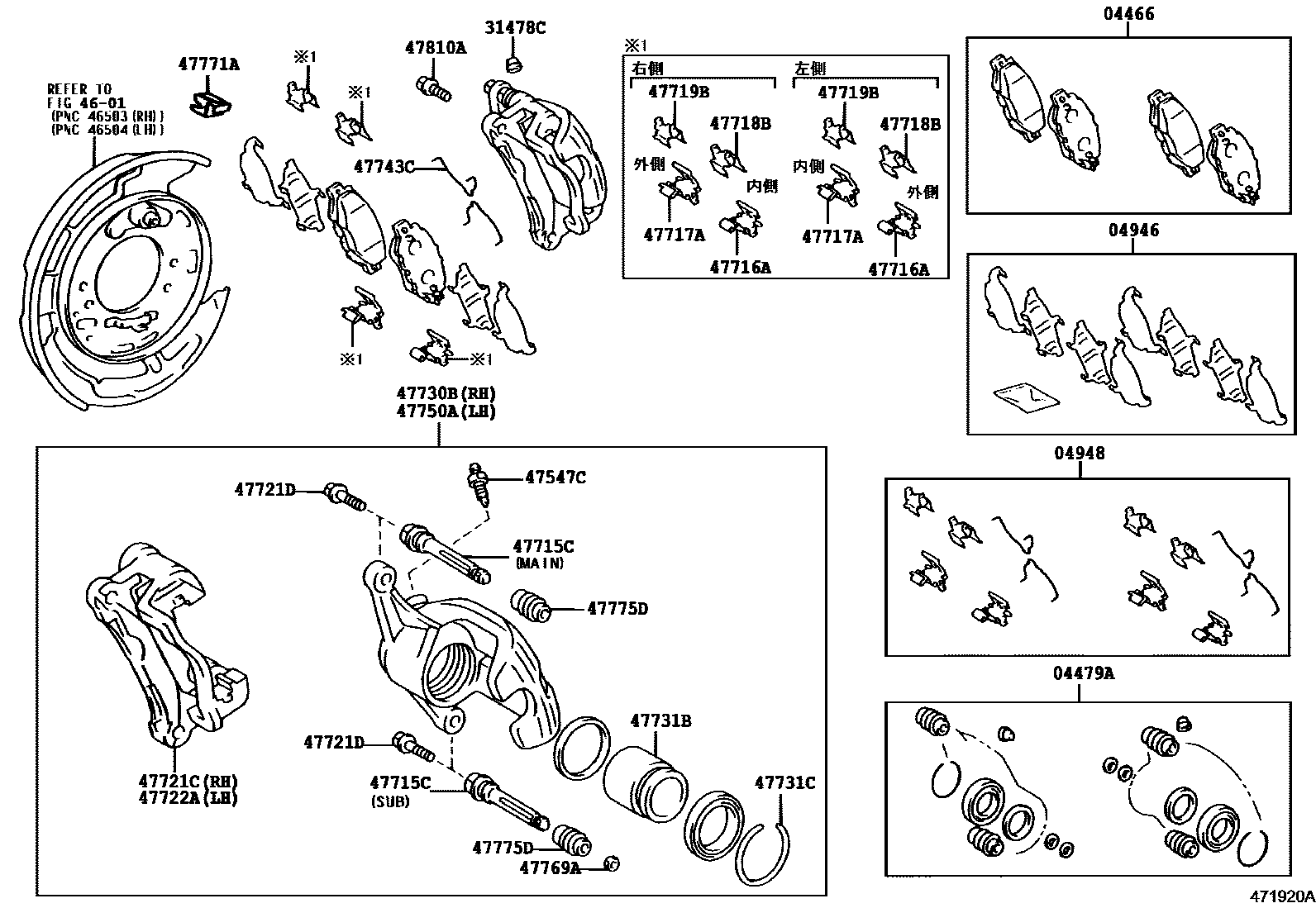

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-22060iGS151,LS151..(HTWC,TDE)..NOB199512-199605

main04466-22160iGS151,LS151..(HTWC,TDE)..NOB199605-199808

main04466-22170iGS151..HTWC..NOB199808

main04466-30030iJZS155,UZS151,157..A,C,E,F199807-199909

main04466-30080iGS151..LPGTE199512-200102

main04466-30100iUZS155199511-199909

main04466-30140iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199807

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-22081iGS151,LS151..NOB;GS151..LPGTE..WIB199512-199808

main04479-22130iGS151..HTWC..NOB199808

main04479-30170iJZS155,UZS15#..A,C,E,F199508-199909

main04479-30180iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199508

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-22010iLS151..NOB;GS151..LPGTE199808-200102

sub04946-22011

main04946-22071iGS151..HTWC..NOB199808

sub04946-22072

main04946-24010iGS151,JZS15#,LS151,UZS151,157..(HTWC,TDE,TWC)..WIB199609

main04946-30060iGS151,JZS15#,LS151,UZS155..(C,ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199508-199609

04948FITTING KIT, DISC BRAKE, REAR

main04948-22050iLS151..NOB;GS151..LPGTE199808-200102

main04948-22070iGS151..HTWC..NOB199808

main04948-30040iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199508

main04948-30050iJZS155,UZS15#..A,C,E,F199508-199909

main04948-30060iGS151,LS151..NOB;GS151..LPGTE..WIB199512-199608

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iGS151,JZS15#,LS151,UZS15#199508

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030×2iGS151,JZS15#,LS151,UZS15#..(HTWC,TDE,TWC)..WIB199508

main47547-35020×2iGS151,LS151..NOB;GS151..LPGTE..WIB199512

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-22070×2iGS151,JZS15#,LS151,UZS15#..(HTWC,TDE,TWC)..WIB199508

main47715-22080×2iGS151,JZS15#,LS151,UZS15#..(HTWC,TDE,TWC)..WIB199508

main47715-22110×2iGS151..HTWC..NOB199808

main47715-22120×2iGS151..HTWC..NOB199808

main47715-30050×4iLS151..NOB;GS151..LPGTE199808-200102

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-22040×2iGS151,LS151..NOB;GS151..LPGTE..WIB199608-199808

main47716-30180×2iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199508

main47716-30200×2iJZS155,UZS15#..A,C,E,F199508-199909

main47716-30230×2iGS151,LS151..NOB;GS151..LPGTE..WIB199512-199608

main47717-22050×2iGS151..HTWC..NOB199808

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47716-22060×2iGS151..HTWC..NOB199808

main47716-30190×2iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199508

main47716-30210×2iJZS155,UZS15#..A,C,E,F199508-199909

main47717-22030×2iGS151,LS151..NOB;GS151..LPGTE..WIB199608-199808

main47717-30120×2iGS151,LS151..NOB;GS151..LPGTE..WIB199512-199608

47718BPLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE)

main47717-30090×2iGS151,JZS15#,LS151,UZS15#..(HTWC,TDE,TWC)..WIB199508

main47718-22040×2iGS151..HTWC..NOB199808

main47718-30020×2iGS151,LS151..NOB;GS151..LPGTE..WIB199512-199608

main47719-22020×2iLS151..NOB;GS151..LPGTE199808-200102

47719BPLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE)

main47717-30100×2iGS151,JZS15#,LS151,UZS15#..(HTWC,TDE,TWC)..WIB199508

main47718-22020×2iGS151,LS151..NOB;GS151..LPGTE..WIB199608-199808

main47719-22040×2iGS151..HTWC..NOB199808

main47719-30020×2iGS151,LS151..NOB;GS151..LPGTE..WIB199512-199608

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-22190iLS151..NOB;GS151..LPGTE199808-200102

main47721-22230iGS151..HTWC..NOB199808

main47721-24050iJZS155,UZS151,157..A,C,E,F199508-199909

main47721-24060iUZS155199511-199909

main47721-30170iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199508

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08164×4iGS151,JZS15#,LS151,UZS15#..(HTWC,TDE,TWC)..WIB199508

main90105-08304×4iGS151,LS151..NOB;GS151..LPGTE..WIB199512

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-22230iGS151..HTWC..NOB199808

main47722-22150iGS151,LS151..NOB;GS151..LPGTE..WIB199512-199808

main47722-24050iJZS155,UZS151,157..A,C,E,F199508-199909

main47722-24060iUZS155199511-199909

main47722-30090iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199508

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-22300iLS151..NOB;GS151..LPGTE199808-200102

main47730-22350iGS151..HTWC..NOB199808

main47730-30350iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199508-199609

main47730-30351iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199609

main47730-30370iJZS155,UZS151,157..A,C,E,F199508-199909

main47730-30380iUZS155199511-199909

47731BPISTON, REAR DISC BRAKE

main47731-22060×2iLS151..NOB;GS151..LPGTE199808-200102

main47731-22080×2iGS151..HTWC..NOB199808

main47731-30120×2iJZS157199808-199909

main47731-30150×2iJZS155,UZS15#..A,C,E,F199508-199909

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-47010×2iLS151..NOB;GS151..LPGTE199808-200102

main90520-52006×2iGS151,JZS15#,LS151,UZS15#..(HTWC,TDE,TWC)..WIB199508

47743CSPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47743-22070×4iGS151,LS151..NOB;GS151..LPGTE..WIB199512

main47743-30040×4iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199508

main47743-50020×4iJZS155,UZS15#..A,C,E,F199508-199909

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-22300iLS151..NOB;GS151..LPGTE199808-200102

main47750-22350iGS151..HTWC..NOB199808

main47750-30350iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199508-199609

main47750-30351iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199609

main47750-30370iJZS155,UZS151,157..A,C,E,F199508-199909

main47750-30380iUZS155199511-199909

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-22050×2iGS151,LS151..NOB;GS151..LPGTE..WIB199512-199808

main47769-50010×2iGS151,JZS15#,LS151,UZS15#..(HTWC,TDE,TWC)..WIB199508

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-22070×2iGS151..HTWC..NOB199808

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-22050×4iGS151,LS151..NOB;GS151..LPGTE..WIB199707-199808

main47775-22070×4iGS151..HTWC..NOB199808

main47775-30070×4iGS151,JZS15#,LS151,UZS15#..(HTWC,TDE,TWC)..WIB199508

sub47775-50010

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174×4iJZS155,UZS15#..A,C,E,F199508-199909

main90119-10206×4iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

24 parts on this diagram · 2 diagrams in section
