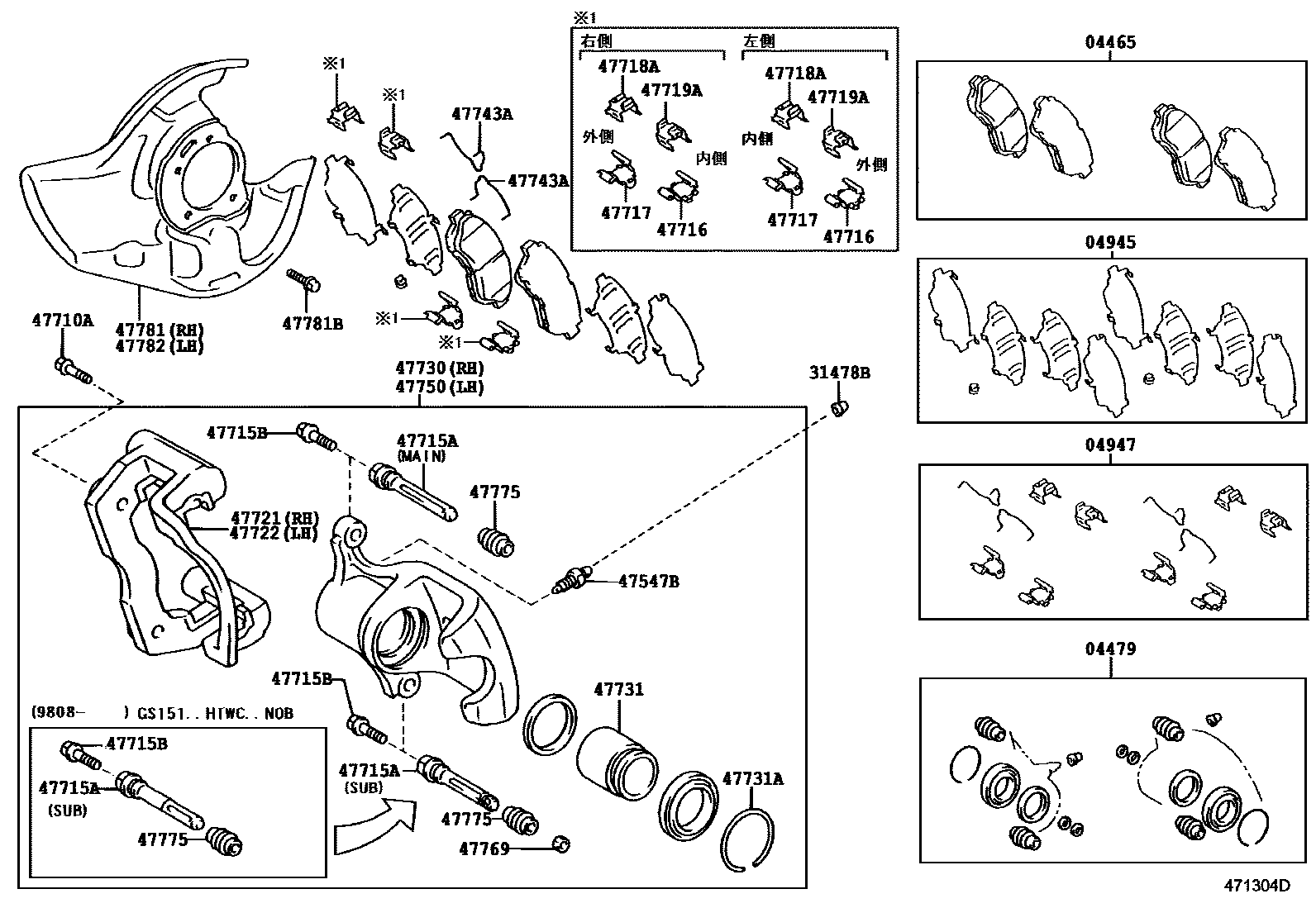

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-22300iGS151..HTWC..NOB199808

main04465-30080iGS151,JZS15#,LS151,UZS151,157..(HTWC,TDE,TWC)..WIB199508

main04465-30230iUZS155199511-199901

sub04465-30231

main04465-30231iUZS155199901-199909

sub04465-22311

main04465-30240iGS151,LS151..(HTWC,TDE)..NOB199512-199909

main04465-30250iGS151..LPGTE199512-200102

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-22140iGS151..HTWC..NOB199808

main04479-30150iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199508-200101

sub04479-30151

main04479-30151iGS151,JZS15#..(HTWC,TWC)..WIB200101

sub04478-53020

main04479-30160iGS151,LS151..NOB;GS151..LPGTE..WIB199512-200102

main04479-30190iJZS155,UZS15#..A,C,E,F199508-199909

sub04479-30191

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-14010iUZS155199511-199902

main04945-22010iLS151..NOB;GS151..LPGTE199512-200102

sub04945-22011

main04945-22140iGS151..HTWC..NOB199808-200108

main04945-30150iUZS155199903-199909

main04945-33020iGS151,JZS15#,LS151,UZS151,157..(HTWC,TDE,TWC)..WIB199508-200108

04947FITTING KIT, DISC BRAKE, FRONT

main04947-22021iGS151,LS151..NOB;GS151..LPGTE..WIB199608-200102

main04947-22060iGS151..HTWC..NOB199808

main04947-30080iJZS155,UZS151,157..A,C,E,F199508-199909

main04947-30090iUZS155199511-199909

main04947-30100iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199508

main04947-30110iGS151,LS151..NOB;GS151..LPGTE..WIB199512-199608

sub04947-22021

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGS151,JZS15#,LS151,UZS15#199508

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iGS151,JZS15#,LS151,UZS15#..(HTWC,TDE,TWC)..WIB199508

main47547-35020iGS151,LS151..NOB;GS151..LPGTE..WIB199512

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12228iGS151,JZS15#,LS151,UZS15#199508

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070iGS151,JZS15#,LS151,UZS15#..(HTWC,TDE,TWC)..WIB199508

main47715-22080iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199508

main47715-22130iGS151..HTWC..NOB199812

main47715-30060iJZS155,UZS15#..A,C,E,F199508-199909

main47715-30080iLS151..NOB;GS151..LPGTE199512-200102

main47715-60010iGS151..HTWC..NOB199808

main47715-60020iGS151..HTWC..NOB199808-199811

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iGS151,JZS15#,LS151,UZS15#..(HTWC,TDE,TWC)..WIB199508

main90105-08304iGS151,LS151..NOB;GS151..LPGTE..WIB199512

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-22030iLS151..NOB;GS151..LPGTE199608-200102

main47716-24010iUZS155199511-199909

main47716-30160iGS151,JZS15#,LS151,UZS151,157..(HTWC,TDE,TWC)..WIB199508

main47716-30220iGS151,LS151..NOB;GS151..LPGTE..WIB199512-199608

sub47716-22030

main47717-22040iGS151..HTWC..NOB199808

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-22050iGS151..HTWC..NOB199808

main47716-24020iUZS155199511-199909

main47716-30170iGS151,JZS15#,LS151,UZS151,157..(HTWC,TDE,TWC)..WIB199508

main47717-22020iLS151..NOB;GS151..LPGTE199608-200102

main47717-30110iGS151,LS151..NOB;GS151..LPGTE..WIB199512-199608

sub47717-22020

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-30050iGS151,JZS15#,LS151,UZS151,157..(HTWC,TDE,TWC)..WIB199508

main47717-30070iUZS155199511-199909

main47718-22010iGS151,LS151..NOB;GS151..LPGTE..WIB199608-200102

main47718-30010iGS151,LS151..NOB;GS151..LPGTE..WIB199512-199608

sub47718-22010

main47719-22030iGS151..HTWC..NOB199808

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-30060iGS151,JZS15#,LS151,UZS151,157..(HTWC,TDE,TWC)..WIB199508

main47717-30080iUZS155199511-199909

main47718-22030iGS151..HTWC..NOB199808

main47719-22010iLS151..NOB;GS151..LPGTE199608-200102

main47719-30010iGS151,LS151..NOB;GS151..LPGTE..WIB199512-199608

sub47719-22010

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-22150iGS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199508

main47721-22160iLS151..NOB;GS151..LPGTE199512-200102

main47721-22210iGS151..HTWC..NOB199808

main47721-30140iJZS155,UZS151,157..A,C,E,F199508-199909

main47721-30180iUZS155199511-199909

main47721-50010iJZS153,157199512

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-22110iGS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199508

main47722-22120iGS151,LS151..NOB;GS151..LPGTE..WIB199512-200102

main47722-22170iGS151..HTWC..NOB199808

main47722-30060iJZS155,UZS151,157..A,C,E,F199508-199909

main47722-30100iUZS155199511-199909

main47722-50010iJZS153,157199512

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-22330iGS151..HTWC..NOB199808

main47730-30330iGS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199508

main47730-30340iGS151,LS151..NOB;GS151..LPGTE..WIB199512-200102

main47730-30360iJZS153,157199512

main47730-30390iJZS155,UZS151,157..A,C,E,F199508-199903

sub47730-30490

main47730-30400iUZS155199511-199909

main47730-30490iJZS155,UZS151,157..A,C,E,F199903-199909

47731PISTON, FRONT DISC BRAKE

main47731-22090iGS151..HTWC..NOB199808

main47731-30110iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199508

main47731-30130iLS151..NOB;GS151..LPGTE199512-200102

main47731-30140iJZS155,UZS15#..A,C,E,F199508-199909

main47731-30170iJZS155,UZS151,157..A,C,E,F199903-199909

sub47731-30140

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-52006iJZS155,UZS15#..A,C,E,F199508-199909

main90520-70002iLS151..NOB;GS151..LPGTE199512-200102

main90520-86005iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199508

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-22050iGS151,LS151..NOB;GS151..LPGTE..WIB199512

main47743-30020iJZS155,UZS15#..A,C,E,F199508-199909

main47743-50010iGS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199508

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-22330iGS151..HTWC..NOB199808

main47750-30330iGS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199508

main47750-30340iGS151,LS151..NOB;GS151..LPGTE..WIB199512-200102

main47750-30360iJZS153,157199512

main47750-30390iJZS155,UZS151,157..A,C,E,F199508-199903

sub47750-30490

main47750-30400iUZS155199511-199909

main47750-30490iJZS155,UZS151,157..A,C,E,F199903-199909

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-22040iGS151,LS151..NOB;GS151..LPGTE..WIB199512-200102

main47769-50010iGS151,JZS15#,LS151,UZS15#..(HTWC,TDE,TWC)..WIB199508

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-22040iGS151,LS151..NOB;GS151..LPGTE..WIB199512-200102

main47775-30040iGS151..HTWC..NOB199808

main47775-30070iGS151,JZS15#,LS151,UZS15#..(HTWC,TDE,TWC)..WIB199508

sub47775-50010

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-22161iGS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199508-200009

sub47781-22162

main47781-22162iGS151,JZS151,155..(HTWC,TWC)..WIB200009

main47781-22171iGS151,LS151..NOB;GS151..LPGTE..WIB199512-199808

sub47781-22172

main47781-22172iGS151,LS151..NOB;GS151..LPGTE..WIB199808-200011

sub47781-22173

main47781-22173iGS151..NOB;GS151..LPGTE..WIB200011

main47781-22180iJZS153,157199512

main47781-30160iJZS155,UZS151,157..A,C,E,F199508-199909

main47781-30180iUZS155199511-199909

47781BBOLT(FOR DUST COVER SETTING)

main90119-06227iGS151,JZS15#,LS151,UZS15#199508-199609

main90148-60028iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199601-199609

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-22161iGS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC)..WIB199508-200009

sub47782-22162

main47782-22162iGS151,JZS151,155..(HTWC,TWC)..WIB200009

main47782-22171iGS151,LS151..NOB;GS151..LPGTE..WIB199512-199808

sub47782-22172

main47782-22172iGS151,LS151..NOB;GS151..LPGTE..WIB199808-200011

sub47782-22173

main47782-22173iGS151..NOB;GS151..LPGTE..WIB200011

main47782-22180iJZS153,157199512

main47782-30160iJZS155,UZS151,157..A,C,E,F199508-199909

main47782-30180iUZS155199511-199909
