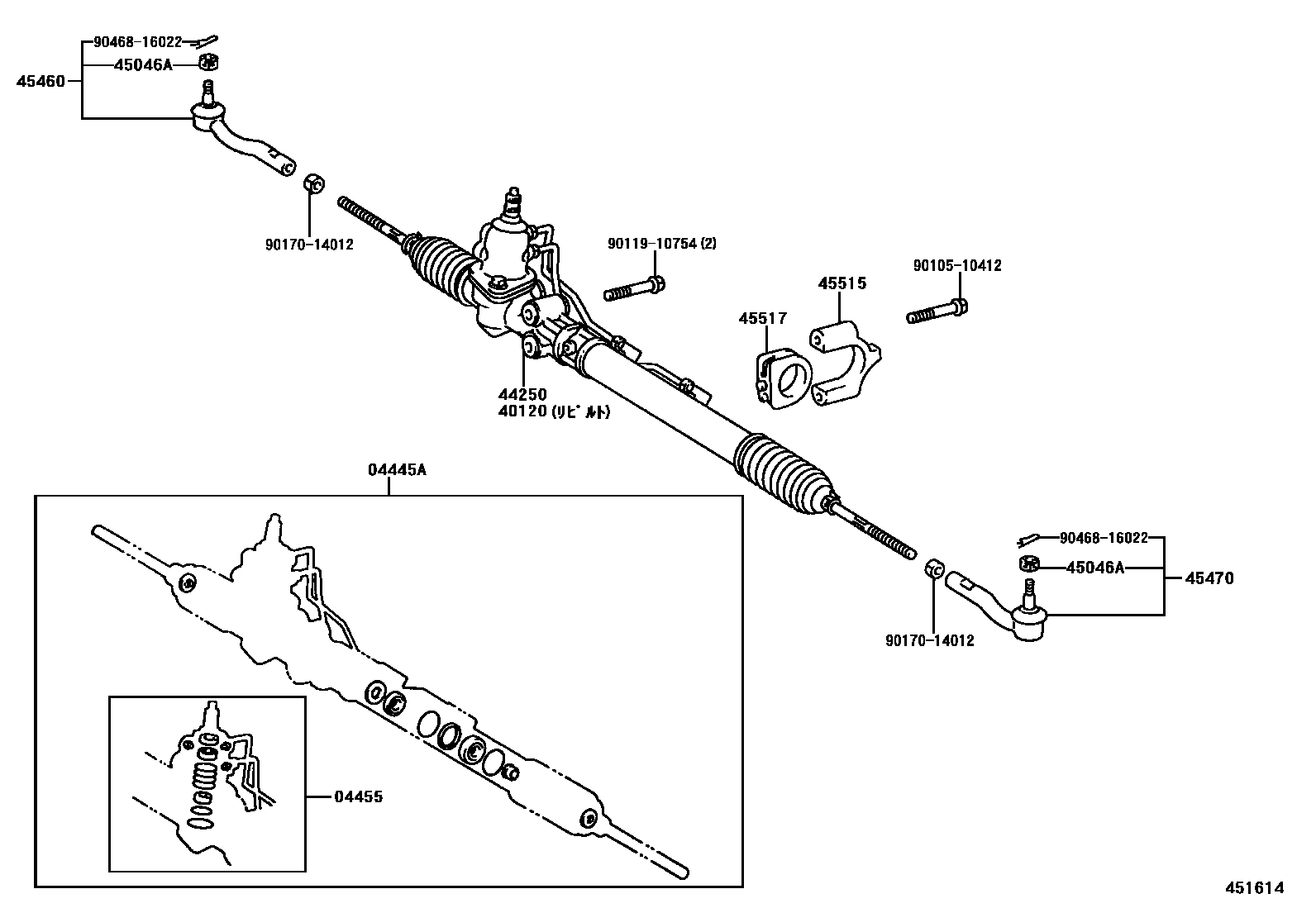

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-30170iUZS155199511-199909

sub04445-30240

main04445-30180iJZS155,UZS151,157..A,C,E,F199508-199909

main04445-30190iJZS155..ROY,ROYG,ROYT199508-200010

main04445-30200iGS151,JZS151,LS151199508-200010

main04445-30220iJZS153,157199512-200010

main04445-30310iJZS153,155200010

main04445-51011iGS151,JZS151200010

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04445-30220iJZS153,157199512-200010

main04455-30040iJZS155,UZS155..C,ROY,ROYG,ROYT199508-200010

main04455-30050iJZS155,UZS151,157..A,C,E,F199508-199909

main04455-30060iGS151,JZS151,LS151199508-200010

main04455-30130iJZS153,155200010

main04455-51010iGS151,JZS151200010

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-30090iJZS155..ROY,ROYG,ROYT199508-199707

main40120-30100iGS151,JZS151,LS151199508

main40120-30110iJZS153199512-199707

main40120-30130iUZS155199511-199909

main40120-30141iJZS155..ROY,ROYG,ROYT199707

main40120-30151iJZS153,157199707

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-30090iJZS155..ROY,ROYG,ROYT199508-199707

main44250-30100iGS151,JZS151,LS151199508

main44250-30110iJZS153199512-199707

main44250-30120iJZS155,UZS151,157..A,C,E,F199508-199909

main44250-30130iUZS155199511-199909

main44250-30141iJZS155..ROY,ROYG,ROYT199707

main44250-30151iJZS153,157199707

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002×2iGS151,JZS15#,LS151,UZS15#199508

45460ROD ASSY, TIE, RH

main45460-39395iJZS155,UZS15#..A,C,E,F199508-199909

main45460-39445iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199908

main45460-39455iJZS153,157199512

main45460-59035iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199908

45470ROD ASSY, TIE, LH

main45470-39145iJZS155,UZS15#..A,C,E,F199508-199909

main45470-39155iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199908

main45470-39165iJZS153,157199512

main45470-59035iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199908

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-22120iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main45515-22130iJZS153,157199512

main45515-30040iUZS155199511-199909

main45515-30070iJZS155,UZS151,157..A,C,E,F199508-199909

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-22080iJZS153,157199512

main45517-30010iUZS155199511-199909

main45517-30020iGS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main45517-30040×2iJZS155,UZS151,157..A,C,E,F199508-199909

9010510412

main90105-10412

9011910754

main90119-10754

9017014012

main90170-14012

9046816022

main90468-16022

13 parts on this diagram · 10 diagrams in section
