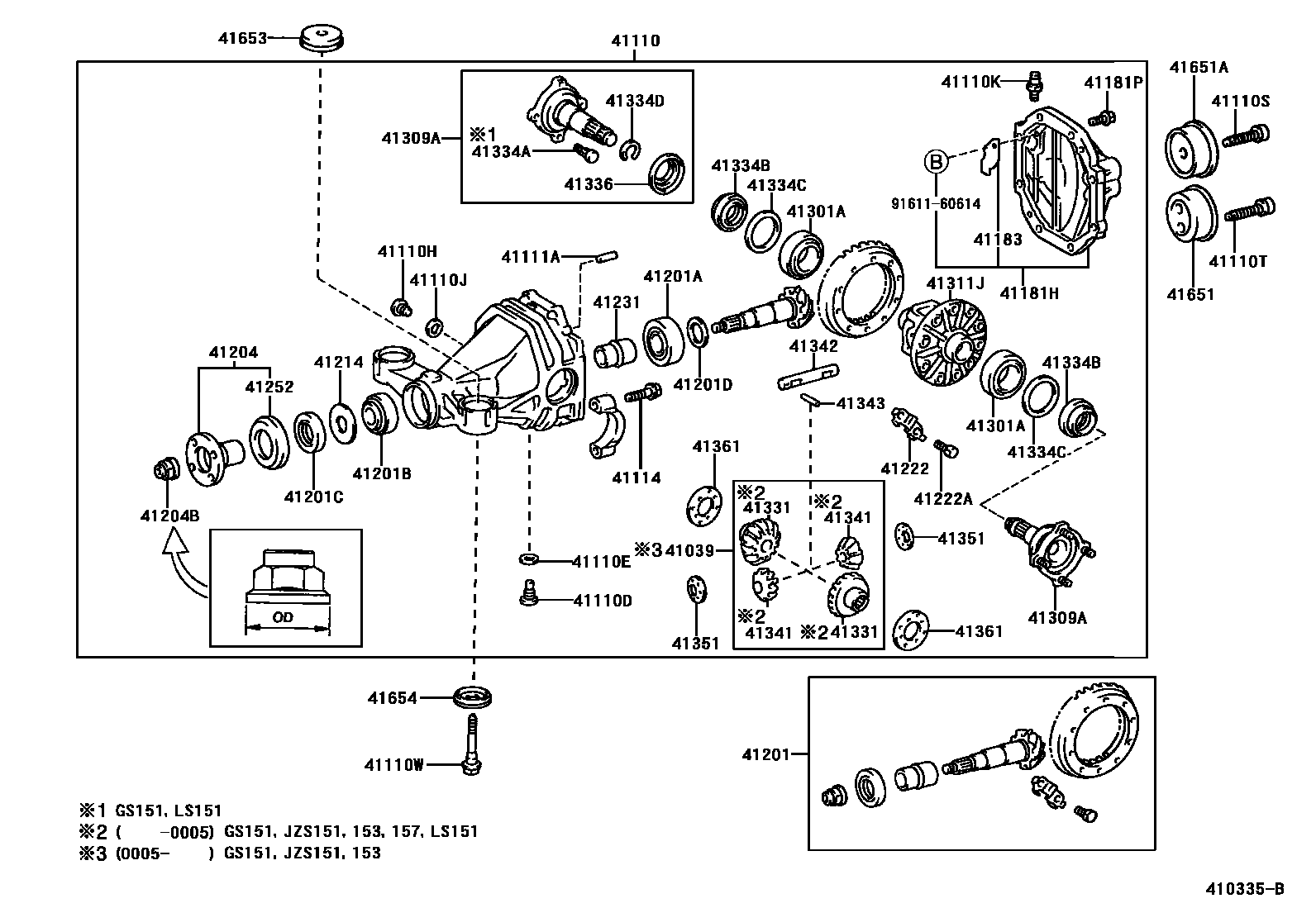

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1������ ����� ���������� 0005 1������ ����� ����������

41039GEAR KIT, DIFFERENTIAL, REAR

main41039-34030iGS151,JZS151,153200005

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-22720iJZS155..ROY,ROYG,ROYT199508-199707

sub41110-22721

sub41653-30060

sub41654-30040

sub90109-12081

main41110-22780iJZS151199508-199609

sub41110-30720

main41110-24130iJZS155..A,E199508-199608

sub41110-24131

main41110-24131iJZS155..A,E199608-199707

sub41110-24132

sub12157-10010

sub90341-18032

main41110-24140iUZS155199511-199707

sub41110-24141

sub12157-10010

sub90341-18032

main41110-24160iUZS151,157199508-199608

sub41110-24161

main41110-24161iUZS151,157199608-199707

sub41110-24162

main41110-30710iGS151..5F;GS151..LPGTE199512-199808

sub41110-30711

main41110-30720iJZS151199609-199707

sub41110-30721

sub90110-10016

main41110-30721iJZS151199707-199907

sub41110-30722

sub41653-30060

sub41654-30040

sub90109-12081

main41110-30740iLS151199508-199909

sub41110-30741

sub41653-30060

sub41654-30040

sub90109-12081

main41110-30750iLS151199508-199808

sub41110-30751

sub41653-30060

sub41654-30040

sub90109-12081

main41110-30760iGS151..4FC..HTWC199508-199808

sub41110-30761

main41110-30770iJZS151199508-199707

sub41110-30771

sub90110-10016

main41110-30771iJZS151199707-199808

main41110-30780iJZS155..ROY,ROYG,ROYT199508-199707

sub41110-30781

main41110-30790iGS151..5F199512-199808

sub41110-30791

main41110-30800iGS151..4FC..HTWC199508-199808

sub41110-30801

main41110-30810iJZS153199512-199707

sub41110-30811

sub90110-10016

main41110-30811iJZS153,157199707-199907

sub41110-30812

sub41653-30060

sub41654-30040

sub90109-12081

main41110-30820iUZS151,157199707-199909

sub41110-30821

main41110-30830iJZS155..ROYT199707-199909

main41110-30860iJZS155..ROY,ROYG199707-200005

sub41110-30861

main41110-30861iJZS155200005

sub41110-30862

sub41653-30060

sub41653-51011

sub41654-30040

sub90109-12081

main41110-30890iJZS155..A,E199707-199909

sub41110-30891

sub12157-10010

sub90341-18032

main41110-3A030iUZS155199707-199909

sub41110-3A031

sub12157-10010

sub90341-18032

main41110-3A060iGS151..5F;GS151..LPGTE199808-200102

sub41110-3A061

sub41653-30060

sub41654-30040

sub90109-12081

main41110-3A070iGS151..4FC..HTWC199808

sub41110-3A071

sub41653-51011

sub41654-30040

sub90109-12081

main41110-3A080iGS151..5F199808-199909

sub41110-3A081

sub41653-30060

sub41654-30040

sub90109-12081

main41110-3A080iGS151..LPGTE199909-200102

sub41110-3A081

sub41653-30060

sub41654-30040

sub90109-12081

main41110-3A090iGS151..4FC..HTWC199808

sub41110-3A091

sub41653-30060

sub41654-30040

sub90109-12081

main41110-3A100iJZS153,157199907

sub41110-3A101

sub41653-51011

sub41654-30040

sub90109-12081

main41110-3A110iJZS151199907

sub41110-53121

sub41653-30060

sub41653-51011

sub41654-30040

sub90109-12081

41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)

main90341-18035iGS151,JZS15#,LS151,UZS15#199508

41110EGASKET (FOR REAR DIFFERENTIAL DRAIN PLUG)

main12157-10010iGS151,JZS15#,LS151,UZS15#199508

41110HPLUG (FOR REAR DIFFERENTIAL FILLER)

main90341-18032iGS151,JZS15#,LS151,UZS15#199508

41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)

main12157-10010iGS151,JZS15#,LS151,UZS15#199508

41110KPLUG, BREATHER (FOR REAR DIFFERENTIAL)

main90930-03031iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

41110SBOLT, NO.2 (FOR REAR DIFFERENTIAL CARRIER SET)

main90110-14003iJZS155,UZS15#..A,C,E,F199508-199909

sub90110-14007

main90110-14004iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

sub90110-14006

41110TBOLT, NO.3 (FOR REAR DIFFERENTIAL CARRIER SET)

main90110-14003iJZS155,UZS15#..A,C,E,F199508-199909

sub90110-14007

main90110-14004iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

sub90110-14006

41110WBOLT, NO.4 (FOR REAR DIFFERENTIAL CARRIER SET)

main90105-12232iJZS155,UZS15#..A,C,E,F199508-199909

main90901-05011iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

41111APIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER)

main90250-08120iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90250-10017iJZS155,UZS15#..A,C,E,F199508-199909

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-12164iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

41181HCOVER, REAR DIFFERENTIAL CARRIER

main41108-14030iJZS155,UZS15#..A,C,E,F199604-199909

main41108-53020iJZS155200005

sub41108-53021

main41181-22060iGS151,JZS151,153,157,LS151199508

sub41108-53010

main41181-22070iJZS155..ROY,ROYG,ROYT199508-200005

sub41108-53020

main41181-24020iJZS155,UZS15#..A,C,E,F199508-199604

sub41108-14030

41181PBOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING)

main90105-10117iGS151,JZS15#,LS151,UZS15#199508

sub90105-10417

41183DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL

main41183-14010iJZS155,UZS15#..A,C,E,F199604-199909

sub41183-50010

main41183-53020iJZS155200005

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-19535iJZS155..ROY,ROYG,ROYT199508-199707

sub41201-19805

main41201-19645iUZS151,157199707-199909

sub41201-80445

main41201-39876iGS151..4FC..HTWC199508-199607

sub41201-80015

main41201-80004iGS151..5F;GS151,JZS151,153,157..LPGTE,TWC199508

main41201-80015iGS151..4FC..HTWC199607

main41201-80027iJZS155,UZS155..A,C,E199508-199909

sub41201-59175

main41201-80029iUZS151,157199508-199707

sub41201-59156

sub90366-45035

main41201-80052iJZS155..ROY,ROYG199508-199707

sub41201-59265

main41201-80054iLS151199508-199909

main41201-80125iJZS155..ROYT199707-199909

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-35023iGS151,JZS151,153,LS151199508-199808

main90366-35028iJZS155..ROY,ROYG,ROYT199508-199609

sub90366-35087

main90366-35087iJZS155..ROY,ROYG,ROYT199609

main90366-35104iGS151,JZS151,153,157,LS151199808

sub90366-35117

main90366-45016iJZS155,UZS15#..A,C,E,F199508-199909

sub90366-45032

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-30022iGS151,JZS151,153,LS151199508-199808

sub90366-30078

main90366-30025iJZS155..ROY,ROYG,ROYT199508-199907

sub90366-30067

main90366-30067iJZS155..ROY,ROYG,ROYT199907

main90366-30078iGS151,JZS151,153,157,LS151199808

main90366-34010iJZS155,UZS15#..A,C,E,F199508-199909

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-38010iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508-199808

main90311-38070iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199808

main90311-44005iJZS155,UZS15#..A,C,E,F199508-199909

41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)

main90201-35497iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90201-35498iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90201-35499iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90201-35500iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90201-35501iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90201-35502iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90201-35503iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90201-35504iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90201-35505iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90201-35506iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90201-35507iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90201-35508iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90201-35509iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90201-35510iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90201-35511iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90201-35512iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90201-35513iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90201-35514iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90201-35515iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90201-35516iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90201-35517iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90201-35518iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main90201-70001iJZS155,UZS15#..A,C,E,F199508-199909

sub90201-70002

main90201-70002iJZS155,UZS15#..A,C,E,F199508-199909

main90201-70003iJZS155,UZS15#..A,C,E,F199508-199909

sub90201-70004

main90201-70004iJZS155,UZS15#..A,C,E,F199508-199909

main90201-70005iJZS155,UZS15#..A,C,E,F199508-199909

sub90201-70006

main90201-70006iJZS155,UZS15#..A,C,E,F199508-199909

main90201-70007iJZS155,UZS15#..A,C,E,F199508-199909

sub90201-70008

main90201-70008iJZS155,UZS15#..A,C,E,F199508-199909

main90201-70009iJZS155,UZS15#..A,C,E,F199508-199909

sub90201-70010

main90201-70010iJZS155,UZS15#..A,C,E,F199508-199909

main90201-70011iJZS155,UZS15#..A,C,E,F199508-199909

sub90201-70012

main90201-70012iJZS155,UZS15#..A,C,E,F199508-199909

main90201-70013iJZS155,UZS15#..A,C,E,F199508-199909

sub90201-70014

main90201-70014iJZS155,UZS15#..A,C,E,F199508-199909

main90201-70015iJZS155,UZS15#..A,C,E,F199508-199909

sub90201-70016

main90201-70016iJZS155,UZS15#..A,C,E,F199508-199909

main90201-70017iJZS155,UZS15#..A,C,E,F199508-199909

sub90201-70018

main90201-70018iJZS155,UZS15#..A,C,E,F199508-199909

main90201-70019iJZS155,UZS15#..A,C,E,F199508-199909

sub90201-70020

main90201-70020iJZS155,UZS15#..A,C,E,F199508-199909

main90201-70021iJZS155,UZS15#..A,C,E,F199508-199909

sub90201-70022

main90201-70022iJZS155,UZS15#..A,C,E,F199508-199909

main90201-70023iJZS155,UZS15#..A,C,E,F199508-199909

sub90201-70024

main90201-70024iJZS155,UZS15#..A,C,E,F199508-199909

main90201-70025iJZS155,UZS15#..A,C,E,F199508-199909

sub90201-70026

main90201-70026iJZS155,UZS15#..A,C,E,F199508-199909

main90201-70027iJZS155,UZS15#..A,C,E,F199508-199909

sub90201-70028

main90201-70028iJZS155,UZS15#..A,C,E,F199508-199909

main90201-70029iJZS155,UZS15#..A,C,E,F199508-199909

sub90201-70030

main90201-70030iJZS155,UZS15#..A,C,E,F199508-199909

main90201-70031iJZS155,UZS15#..A,C,E,F199508-199909

sub90201-70032

main90201-70032iJZS155,UZS15#..A,C,E,F199508-199909

main90201-70033iJZS155,UZS15#..A,C,E,F199508-199909

sub90201-70034

main90201-70034iJZS155,UZS15#..A,C,E,F199508-199909

main90201-70035iJZS155,UZS15#..A,C,E,F199508-199909

sub90201-70036

main90201-70036iJZS155,UZS15#..A,C,E,F199508-199909

main90201-70037iJZS155,UZS15#..A,C,E,F199508-199909

sub90201-70038

main90201-70038iJZS155,UZS15#..A,C,E,F199508-199909

main90201-70039iJZS155,UZS15#..A,C,E,F199508-199909

sub90201-70040

main90201-70040iJZS155,UZS15#..A,C,E,F199508-199909

main90201-70041iJZS155,UZS15#..A,C,E,F199508-199909

sub90201-70042

main90201-70042iJZS155,UZS15#..A,C,E,F199508-199909

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-20030iGS151,JZS153199508-199808

main41204-24020iJZS155,UZS15#..4FC..(A,C,E,F)199508-199909

main41204-30040iUZS151,157199707-199909

main41204-35041iJZS155..ROY,ROYG,ROYT199508

main41204-35050iJZS151,LS151199508-199808

41204BNUT (FOR REAR DRIVE PINION)

main90179-18019iGS151,JZS151,153,157,LS151199508

sub90179-18020

main90179-18020iGS151,JZS151,153,157,LS151199508

main90179-20018iJZS155..ROY,ROYG,ROYT199508

main90179-26005iJZS155,UZS15#..A,C,E,F199508-199909

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-26010iJZS155..ROY,ROYG,ROYT199508

main41214-30021iGS151,JZS151,153,157,LS151199508-199901

main41214-35020iGS151,JZS151,153,157,LS151199901

main41214-50010iJZS155,UZS15#..A,C,E,F199508-199909

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-22010iJZS155..ROY,ROYG,ROYT199508

main41222-35020iJZS155..ROY,ROYG,ROYT199508-199707

main41222-35030iGS151,JZS151,153,157,LS151199508

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-11353iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iGS151,JZS151,153,157,LS151199508

main41231-24010iJZS155..ROY,ROYG,ROYT199508

main41231-50010iJZS155,UZS15#..A,C,E,F199508-199909

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-24010iJZS155,UZS15#..A,C,E,F199508-199909

main41252-30010iGS151,JZS151,153,157,LS151199508

main41252-35020iJZS155..ROY,ROYG,ROYT199508

41301CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-14100iUZS155199707

main41301-24030iJZS155,UZS151,157..A,C,E,F199508-199608

sub41301-24031

main41301-24031iJZS155,UZS151,157..A,C,E,F199608

sub41301-50H00

sub41301-50H01

sub41301-50H02

main41301-24040iUZS155199511-199707

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-50001iJZS155..ROY,ROYG,ROYT199508

main90366-50033iJZS155,UZS15#..A,C,E,F199508-199909

main90368-50006iGS151,JZS151,153,157,LS151199508

41309ASHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR

main41309-22050iJZS155..ROY,ROYG,ROYT199508-199707

main41309-22070iJZS151,153199508-199707

sub41309-22071

sub90110-10016

main41309-22071iJZS151,153,157199707-199907

main41309-22080iJZS155..ROY,ROYG,ROYT199508-199909

main41309-24020iJZS155,UZS151,157..A,C,E,F199508-199909

main41309-24030iUZS155199511-199707

main41309-30010iGS151,LS151199508

main41309-30030iJZS155..ROY,ROYG199707

main41309-30050iJZS155,UZS155..A,C,E199707-199909

main41309-51010iJZS151,153,157199907

41311JCASE, REAR DIFFERENTIAL

main41311-22060iGS151,JZS151,153,LS151199508-199609

main41311-22080iJZS155..ROY,ROYG,ROYT199508

main41311-28030iJZS151199609

41331GEAR, REAR DIFFERENTIAL SIDE

main41305-30010iLS151199508-199909

main41305-30010iJZS151;GS151..5F199508-199808

main41305-30010iGS151..4FC..HTWC199508-199909

main41331-14040iGS151,JZS151,153,157,LS151199508-200005

sub41331-14041

main41331-22060iJZS155..ROY,ROYG,ROYT199508

main41331-24020iJZS155..ROY,ROYG,ROYT199508-199707

main41331-24030iJZS155,UZS151,157..A,C,E,F199508-199608

sub41331-24031

main41331-24031iJZS155,UZS151,157..A,C,E,F199608-199909

41334ABOLT, SERRATION (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90114-10028iGS151,LS151199508

41334BSEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90311-38011iGS151,JZS151,153,LS151199508-199808

main90311-38071iGS151,JZS151,153,157,LS151199808

main90311-43001iJZS155..ROY,ROYG,ROYT199508

sub90311-43009

main90311-47008iJZS155,UZS15#..A,C,E,F199508-199909

41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90201-52001iJZS155..ROY,ROYG,ROYT199508

main90201-52003iJZS155..ROY,ROYG,ROYT199508

main90201-52005iJZS155..ROY,ROYG,ROYT199508

main90201-52007iJZS155..ROY,ROYG,ROYT199508

main90201-52009iJZS155..ROY,ROYG,ROYT199508

main90201-52011iJZS155..ROY,ROYG,ROYT199508

main90201-52013iJZS155..ROY,ROYG,ROYT199508

main90201-52015iJZS155..ROY,ROYG,ROYT199508

main90201-52017iJZS155..ROY,ROYG,ROYT199508

main90201-52019iJZS155..ROY,ROYG,ROYT199508

main90201-52021iJZS155..ROY,ROYG,ROYT199508

main90201-52023iJZS155..ROY,ROYG,ROYT199508

main90201-52025iJZS155..ROY,ROYG,ROYT199508

main90201-52027iJZS155..ROY,ROYG,ROYT199508

main90201-52029iJZS155..ROY,ROYG,ROYT199508

main90201-52031iJZS155..ROY,ROYG,ROYT199508

main90201-63001iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63002iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63003iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63004iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63005iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63006iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63007iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63008iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63009iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63010iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63011iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63012iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63013iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63014iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63015iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63016iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63017iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63018iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63019iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63020iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63021iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63022iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63023iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63024iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63025iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63026iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63027iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63028iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63029iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63030iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63031iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63032iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63033iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63034iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63035iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63036iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63037iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63038iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63039iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63040iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63041iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63042iJZS155,UZS15#..A,C,E,F199508-199909

main90201-63043iJZS155,UZS15#..A,C,E,F199508-199909

main90201-65007iGS151,JZS151,153,157,LS151199508

main90201-65009iGS151,JZS151,153,157,LS151199508

main90201-65011iGS151,JZS151,153,157,LS151199508

main90201-65013iGS151,JZS151,153,157,LS151199508

main90201-65015iGS151,JZS151,153,157,LS151199508

main90201-65017iGS151,JZS151,153,157,LS151199508

main90201-65019iGS151,JZS151,153,157,LS151199508

main90201-65021iGS151,JZS151,153,157,LS151199508

main90201-65023iGS151,JZS151,153,157,LS151199508

main90201-65025iGS151,JZS151,153,157,LS151199508

main90201-65027iGS151,JZS151,153,157,LS151199508

main90201-65029iGS151,JZS151,153,157,LS151199508

main90564-46014iJZS155..ROY,ROYG,ROYT199508

main90564-46015iJZS155..ROY,ROYG,ROYT199508

main90564-46016iJZS155..ROY,ROYG,ROYT199508

main90564-46017iJZS155..ROY,ROYG,ROYT199508

main90564-46018iJZS155..ROY,ROYG,ROYT199508

main90564-46019iJZS155..ROY,ROYG,ROYT199508

main90564-46020iJZS155..ROY,ROYG,ROYT199508

main90564-46021iJZS155..ROY,ROYG,ROYT199508

main90564-46022iJZS155..ROY,ROYG,ROYT199508

main90564-46023iJZS155..ROY,ROYG,ROYT199508

main90564-46024iJZS155..ROY,ROYG,ROYT199508

main90564-46025iJZS155..ROY,ROYG,ROYT199508

main90564-46026iJZS155..ROY,ROYG,ROYT199508

main90564-46027iJZS155..ROY,ROYG,ROYT199508

main90564-46028iJZS155..ROY,ROYG,ROYT199508

main90564-46029iJZS155..ROY,ROYG,ROYT199508

main90564-46030iJZS155..ROY,ROYG,ROYT199508

main90564-46031iJZS155..ROY,ROYG,ROYT199508

main90564-46032iJZS155..ROY,ROYG,ROYT199508

main90564-46033iJZS155..ROY,ROYG,ROYT199508

main90564-46034iJZS155..ROY,ROYG,ROYT199508

main90564-46035iJZS155..ROY,ROYG,ROYT199508

main90564-46036iJZS155..ROY,ROYG,ROYT199508

main90564-46037iJZS155..ROY,ROYG,ROYT199508

main90564-46038iJZS155..ROY,ROYG,ROYT199508

main90564-46039iJZS155..ROY,ROYG,ROYT199508

main90564-46040iJZS155..ROY,ROYG,ROYT199508

main90564-46041iJZS155..ROY,ROYG,ROYT199508

main90564-46042iJZS155..ROY,ROYG,ROYT199508

main90564-46043iJZS155..ROY,ROYG,ROYT199508

main90564-50001iJZS155..ROY,ROYG,ROYT199508-199707

main90564-50002iJZS155..ROY,ROYG,ROYT199508-199707

main90564-50003iJZS155..ROY,ROYG,ROYT199508-199707

main90564-50004iJZS155..ROY,ROYG,ROYT199508-199707

main90564-50005iJZS155..ROY,ROYG,ROYT199508-199707

main90564-65001iGS151,JZS151,153,157,LS151199508

main90564-65002iGS151,JZS151,153,157,LS151199508

main90564-65003iGS151,JZS151,153,157,LS151199508

main90564-65004iGS151,JZS151,153,157,LS151199508

main90564-65005iGS151,JZS151,153,157,LS151199508

main90564-65006iGS151,JZS151,153,157,LS151199508

main90564-65007iGS151,JZS151,153,157,LS151199508

main90564-65008iGS151,JZS151,153,157,LS151199508

main90564-65009iGS151,JZS151,153,157,LS151199508

main90564-65010iGS151,JZS151,153,157,LS151199508

main90564-65011iGS151,JZS151,153,157,LS151199508

main90564-65012iGS151,JZS151,153,157,LS151199508

main90564-65013iGS151,JZS151,153,157,LS151199508

main90564-65014iGS151,JZS151,153,157,LS151199508

main90564-65015iGS151,JZS151,153,157,LS151199508

main90564-65016iGS151,JZS151,153,157,LS151199508

main90564-65017iGS151,JZS151,153,157,LS151199508

main90564-65018iGS151,JZS151,153,157,LS151199508

main90564-65019iGS151,JZS151,153,157,LS151199508

main90564-65020iGS151,JZS151,153,157,LS151199508

main90564-65021iGS151,JZS151,153,157,LS151199508

main90564-65022iGS151,JZS151,153,157,LS151199508

41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main90521-29002iGS151,JZS151,153,157,LS151199508

main90521-34003iJZS155,UZS15#199508

41336COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)

main41336-22010iGS151,JZS151,153,157,LS151199508

main41336-24010iJZS155..ROY,ROYG,ROYT199508

main41336-24020iJZS155,UZS15#..A,C,E,F199508-199909

41341PINION, REAR DIFFERENTIAL

main41341-24010iJZS155,UZS151,157..A,C,E,F199508-199909

main41341-30020iGS151,JZS151,153,157199508-200005

sub41341-30050

main41341-30040iJZS155..ROY,ROYG,ROYT199508

main41341-35010iJZS155..ROY,ROYG,ROYT199508-199707

sub41341-14041

41342SHAFT, REAR DIFFERENTIAL PINION

main41342-22020iGS151,JZS151,153,157,LS151199508-200005

sub41342-22021

main41342-22021iGS151,JZS151,153200005

main41342-22030iJZS155..ROY,ROYG,ROYT199508

main41342-50010iJZS155,UZS151,157..A,C,E,F199508-199909

41343PIN, REAR DIFFERENTIAL PINION SHAFT

main90250-06058iGS151,JZS15#,LS151,UZS151,157199508

main90250-06085iLS151199508-199909

main90250-06085iGS151..4FC..HTWC199508-199909

main90250-06085iJZS151;GS151..5F199508-199808

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-24010iJZS155,UZS151,157..A,C,E,F199508-199909

main41351-30052iJZS155..ROY,ROYG,ROYT199508

main41351-30060iJZS155..ROY,ROYG,ROYT199508-199707

main41351-30060iGS151,JZS151,153,LS151199508-199907

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-30040iGS151,JZS151,153,157,LS151199508

main41361-30050iGS151,JZS151,153,157,LS151199508

main41361-30060iGS151,JZS151,153,157,LS151199508

main41361-30070iGS151,JZS151,153,157,LS151199508

main41361-30080iGS151,JZS151,153,157,LS151199508

main41361-30090iGS151,JZS151,153,157,LS151199508

main41361-30100iGS151,JZS151,153,157,LS151199508

main41361-30110iJZS151;GS151..5F199508-199909

sub41361-30111

main41361-30110iLS151199508-199808

sub41361-30111

main41361-30110iGS151..LPGTE199909-200102

sub41361-30111

main41361-30110iGS151..4FC..HTWC199508

sub41361-30111

main41361-40021iJZS155,UZS151,157199508

main41361-40100iJZS155,UZS151,157..A,C,E,F199704-199909

main41361-40110iJZS155,UZS151,157..A,C,E,F199704-199909

main41361-40120iJZS155,UZS151,157..A,C,E,F199704-199909

main41361-40130iJZS155,UZS151,157..A,C,E,F199704-199909

main41361-40140iJZS155,UZS151,157..A,C,E,F199704-199909

main41361-40150iJZS155,UZS151,157..A,C,E,F199704-199909

main41362-40021iJZS155,UZS151,157199508

main41363-40021iJZS155,UZS151,157199508

41651CUSHION, REAR DIFFERENTIAL MOUNT, NO.1

main41651-30020iJZS155,UZS15#..A,C,E,F199508-199909

main41651-30060iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

41651ACUSHION, REAR DIFFERENTIAL MOUNT, NO.2

main41651-30032iJZS155,UZS151,157..A,C,E,F199508-199909

main41651-30041iUZS155199511-199909

main41651-30070iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

41653STOPPER, REAR DIFFERENTIAL MOUNT, UPPER

main41653-22010iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main41653-30011iJZS155,UZS151,157..A,C,E,F199508-199909

main41653-30030iUZS155199511-199909

41654STOPPER, REAR DIFFERENTIAL MOUNT, LOWER

main41654-22010iGS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX199508

main41654-30010iJZS155,UZS15#..A,C,E,F199508-199909

9161160614

main91611-60614

47 parts on this diagram · 5 diagrams in section
