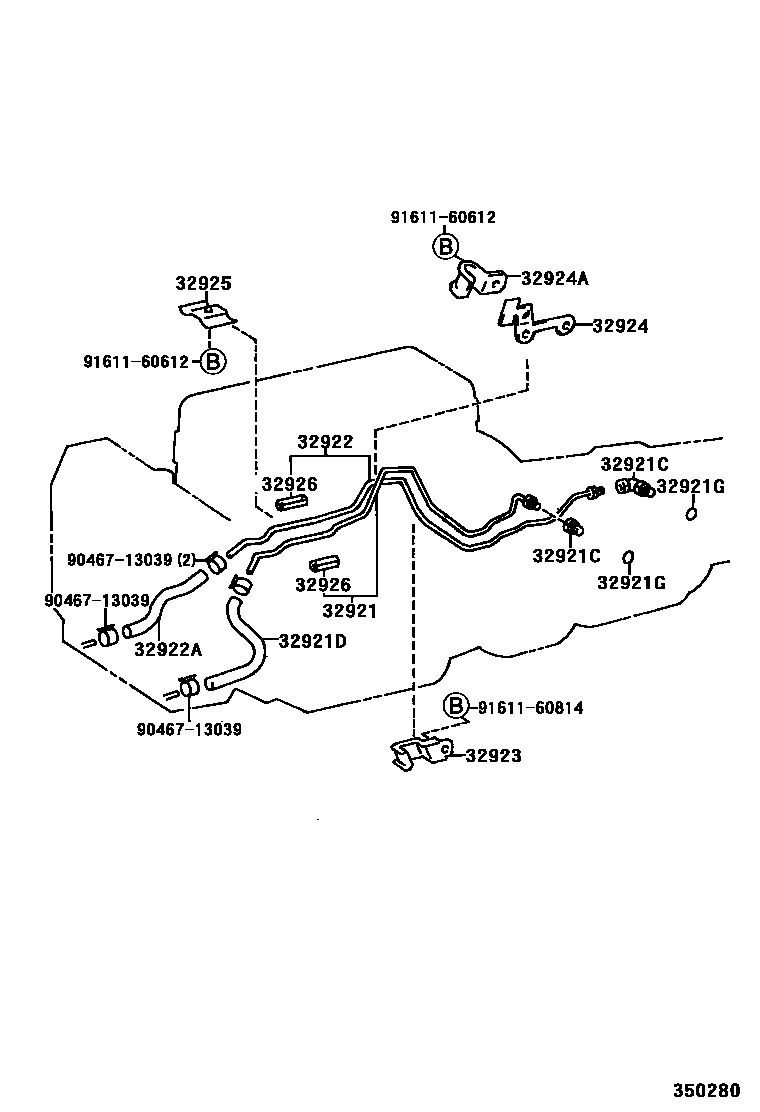

OIL COOLER & TUBE (ATM)

0001 1A42DL 0002 1A42DL 0003 1A43D 0004 1A43D 0005 1A340E 0006 1A340H 0007 1A340E 0008 1A340E,A350E,A650E 0009 1A341E 0010 1A341E,A341H 0012 1A650E

32921TUBE, OIL COOLER INLET, NO.1

main32921-22650iGS151..4FC..HTWC199508-199808

main32921-22780iGS151..4FC..HTWC199808

main32921-30590iUZS15#199508-199909

main32921-30600iJZS155..A,E199508-199909

main32921-30610iJZS155..ROY,ROYG,ROYT199508

main32921-30620iLS151199508-199909

main32921-30630iGS151..LPGTE199512-199808

sub32921-30631

main32921-30631iGS151..LPGTE199808-200102

main32921-30640iJZS151199508-199608

main32921-30650iJZS153199512-199608

main32921-30660iJZS151199608

main32921-30670iJZS153,157199608

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iGS151..4FC..HTWC199508-199610

main90404-14021iGS151..4FC..HTWC199610-199808

main90404-16021iGS151..LPGTE199512-199808

main90404-16029iJZS151,155,LS151,UZS15#199508

main90407-14003iGS151..4FC..HTWC199508-199808

main90407-16009iJZS15#,LS151,UZS15#199508

main90407-16010iGS151..LPGTE199512-199808

main90407-16012iJZS153,157199512

32921DHOSE(FOR OIL COOLER INLET)

main90445-15020iLS151199601-199909

main90445-15047iGS151..LPGTE199512-200102

main90445-15048iGS151..4FC..HTWC199508

main90445-17077iUZS15#199508-199909

main90445-17096iLS151199508-199601

main90445-17100iJZS155..A,E199508-199909

main90445-17110iJZS15#..ROY,ROYEX,ROYG,ROYT,SALEX199508

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iGS151..4FC199508

main90301-11006iJZS15#,LS151,UZS15#199508

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-22650iGS151..4FC..HTWC199508-199808

main32922-30590iUZS15#199508-199909

main32922-30600iJZS155..A,E199508-199909

main32922-30610iJZS155..ROY,ROYG,ROYT199508

main32922-30620iLS151199508-199602

sub32922-30621

main32922-30621iLS151199602-199909

main32922-30630iGS151..LPGTE199512-199808

sub32922-30631

main32922-30631iGS151..LPGTE199808-200102

main32922-30640iJZS151199508-199608

main32922-30650iJZS153199512-199608

main32922-30660iJZS151199608

main32922-30670iJZS153,157199608

main32922-30710iGS151..4FC..HTWC199808

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-35011iJZS155..ROY,ROYG,ROYT199508

main90445-15014iGS151..LPGTE199512-200102

main90445-15020iGS151..4FC..HTWC199508

main90445-15057iLS151199601-199909

sub32941-22310

main90445-17097iUZS15#199508-199909

main90445-17124iJZS151,153,157199508

main90445-17134iLS151;JZS155..A,E199508-199909

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-22080iGS151..4FC..HTWC199808

main32923-30080iGS151..4FC..HTWC199508-199808

main32923-30210iLS151199508

main32924-22090iJZS15#..ROY,ROYEX,ROYG,ROYT,SALEX199508

main32924-30190iJZS155..A,E199508

32924CLAMP, OIL COOLER TUBE, NO.2

main32923-30190iJZS155..A,E199508-199908

main32923-30200iJZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX199508-199608

main32923-30220iJZS155..A,E199908-199909

main32923-50030iUZS151,157199707-199909

main32923-50030iUZS15#..4FC199508-199909

main32924-22100iJZS151199508-199608

main32924-22120iGS151..4FC199508-199808

main32924-22130iJZS153199512-199603

sub32924-22131

main32924-22131iJZS153199603-199608

main32924-22150iGS151..4FC199808

main32924-30210iLS151199508-199909

main32924-30220iJZS153,157199608

main32924-50020iUZS151,157199707-199909

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main32929-22050iLS151199508-199909

main32929-30090iGS151..4FC..HTWC199508-199808

main32929-30120iGS151..LPGTE199512-199808

main32929-50020iUZS15#..4FC199508-199909

main32929-50020iUZS151,157199707-199909

main90462-12074iUZS151,157199707-199909

main90949-01B25iGS151..4FC199808

32925CLAMP, OIL COOLER TUBE, NO.3

main32924-50020iUZS15#..4FC199508-199909

main90462-12047iGS151..LPGTE199512-199808

main90462-12085iGS151..4FC..HTWC199508-199808

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-22010iGS151..4FC..HTWC199508-199808

main32926-30020iUZS15#199508-199909

main32926-30020iJZS15#199707

main32926-30020iGS151..4FC199808

main32926-30030iGS151..4FC..HTWC199808-200102

main32926-30030iJZS15#199508

main32926-30060iJZS15#199508

9046713039

main90467-13039

9161160612

main91611-60612

9161160814

main91611-60814

14 parts on this diagram · 11 diagrams in section
