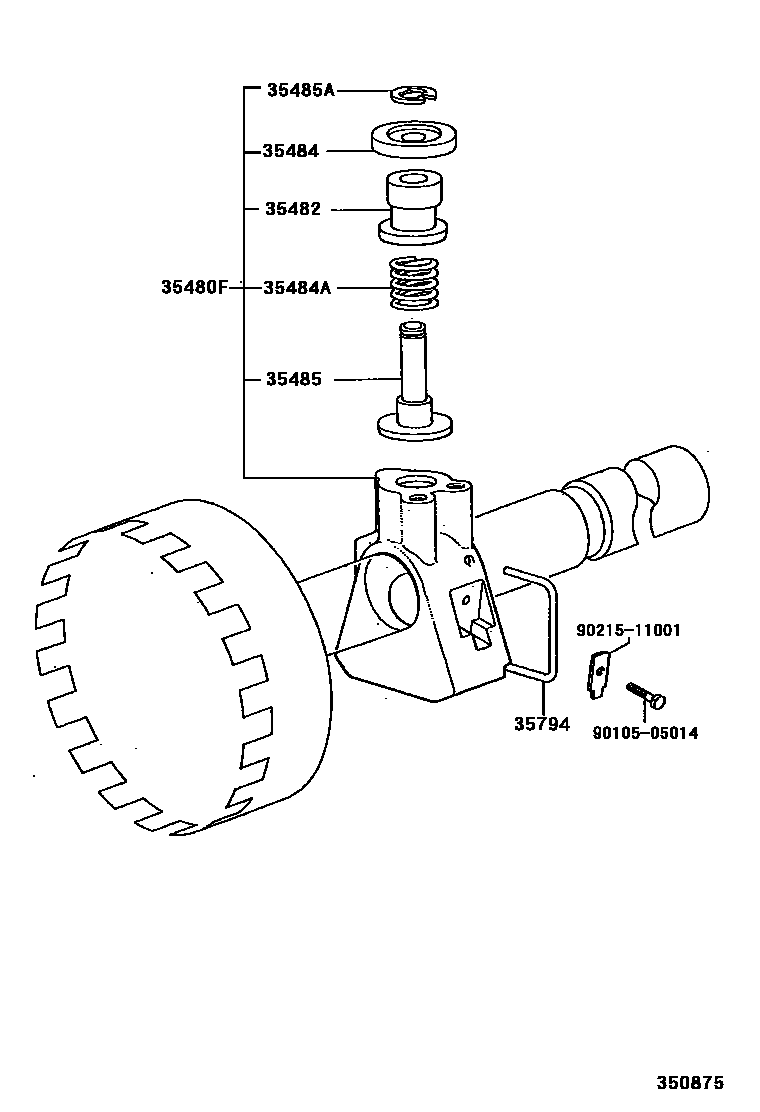

REAR OIL PUMP & GOVERNOR (ATM)

35480FBODY ASSY, GOVERNOR

main35480-30060iGS151..LPGTE199512-200102

main35480-30070iGS151..4FC..HTWC199508-199707

35482VALVE, GOVERNOR

main35482-22010iGS151..4FC199508-200102

35484WEIGHT, GOVERNOR, OUTER

main35484-22010iGS151..4FC199508-200102

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09673iGS151..LPGTE199508-200102

35485SHAFT, GOVERNOR VALVE

main35485-22010iGS151..4FC199508-200102

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iGS151..4FC199508-200102

35794RING, GOVERNOR RETAINING

main35794-22010iGS151..4FC199508-200102

9010505014

main90105-05014

9021511001

main90215-11001

9 parts on this diagram · 1 diagram in section
