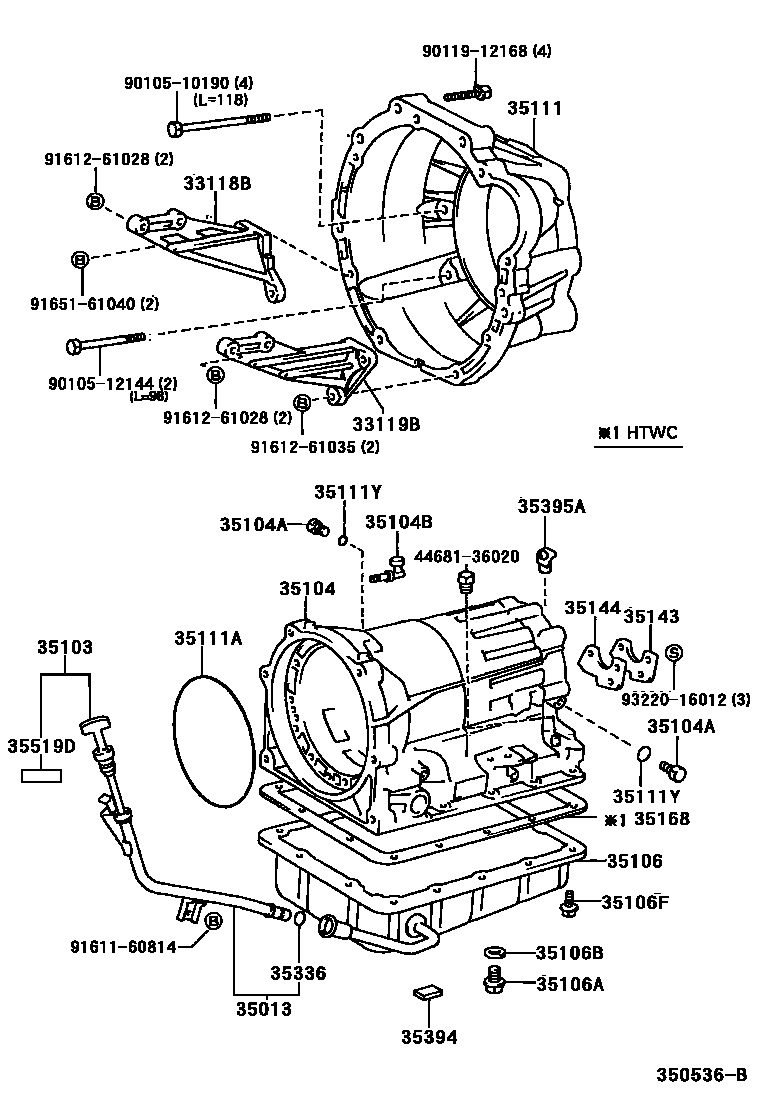

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A42DL,A42DE,A43D 0002 1A340E 0003 1A340E 0004 1A340E,A340H 0006 1A350E 0007 1A341E 0008 1A341E,A341H 0010 1A340H 0011 1A650E 0012 1A42DE 0013 1A43D

33118BPLATE, STIFFENER, RH(ATM)

main33118-22051iGS151..4FC199508

main33118-35031iLS151199508-199909

sub33118-35060

33119BPLATE, STIFFENER, LH(ATM)

main33119-22042iGS151..4FC199508

main33119-25020iLS151199508-199909

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-22340iJZS155..ROY,ROYG,ROYT199508

main35013-22350iJZS151199508

main35013-22390iLS151199508-199512

main35013-22450iJZS153199512-199605

main35013-22530iGS151..4FC..HTWC199808

main35013-30260iUZS151,157199508-199707

main35013-30270iUZS155199511-199707

main35013-30360iGS151..4FC..HTWC199508-199808

main35013-30370iGS151..LPGTE199512-200102

main35013-30380iJZS155..A,E199508-199909

main35013-30440iJZS153199605

main35013-30460iUZS155199707-199909

main35013-30510iJZS157199808-199909

main35013-43030iLS151199512-199909

main35013-50060iUZS151,157199707-199909

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-22300iJZS151199508-199608

main35103-22311iJZS153199512-199609

main35103-22330iGS151..LPGTE199512-199601

main35103-22380iJZS151199608-199705

main35103-22381iJZS151199705

main35103-22420iGS151..4FC..HTWC199808

main35103-30370iUZS151,157199508-199707

main35103-30400iUZS155199511-199705

main35103-30401iUZS155199705-199707

main35103-30420iJZS155..A,E199508-199705

main35103-30421iJZS155..A,E199705-199707

main35103-30430iJZS155..ROY,ROYG,ROYT199508-199705

main35103-30431iJZS155..ROY,ROYG,ROYT199705-199707

main35103-30440iLS151199508-199512

main35103-30460iGS151..4FC..HTWC199508-199808

main35103-30480iLS151199512-199909

main35103-30510iGS151..LPGTE199601-200102

main35103-30520iJZS155..ROYT199707-199909

main35103-30540iJZS153199609-199705

main35103-30541iJZS153199705

main35103-30560iUZS155199707-199909

main35103-30610iJZS155..ROY,ROYG199707

main35103-30620iJZS155..A,E199707-199909

main35103-30630iJZS157199808-199909

main35103-50060iUZS151,157199707-199908

main35103-50061iUZS151,157199908-199909

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-22060iGS151..4FC..HTWC199808

main35104-22070iJZS155200008

main35104-26021iGS151..LPGTE199707-200102

main35104-30101iGS151..4FC..HTWC199707-199808

main35104-30133iJZS151,LS151199508-199609

main35104-30170iJZS155,UZS151,157..4FC199508-199609

main35104-30180iJZS155..ROYT199508-199707

main35104-30190iJZS153..HT..ROY199711-199808

2JZGE *(W)

sub35104-30191

main35104-30200iJZS155,UZS151,157..5FC199707-199909

main35104-35011iJZS153199512

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×3iJZS155,UZS151,157..5FC199707-199909

main90341-14011iJZS153,157199512

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03098iJZS153,155,LS151199508-199609

main90930-03099iJZS151,153200012

main90930-03108iGS151..4FC199707-199808

main90930-03149iGS151,UZS151,157..ATM..HTWC199808-200012

main90930-03155iUZS155199707-199909

main90930-03168iGS151,JZS155..HTWC,TWC200012

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-22070iGS151..LPGTE199512-200102

main35106-22081iJZS153,157199512

main35106-22100iGS151..4FC..HTWC199808-199812

sub35106-53010

main35106-22101iGS151..4FC..HTWC199812

main35106-28030iGS151..4FC..HTWC199508-199808

sub35106-30051

main35106-30130iJZS155..4FC199508

main35106-30140iJZS155..ROYT199508-199807

main35106-30161iUZS155199511-199909

main35106-30170iLS151199508-199909

main35106-30180iJZS151199508

sub35106-24020

main35106-30190iUZS151,157199508-199707

main35106-30200iUZS151,157199707-199806

main35106-30201iUZS151,157199806-199909

main35106-30210iJZS155..ROYT199807-199909

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iGS151,JZS151,LS151..4FC199508-199609

sub90341-10011

main90341-10012iJZS155,UZS151,157..C,F,ROYT199508-199707

sub90341-10011

main90341-10017iJZS15#,UZS155..4FC199609-199707

main90341-10018iJZS15#,UZS15#199707-199808

sub90341-10011

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iGS151,LS151..LPGTE,TDE199808-200102

main35178-50010iJZS15#,UZS15#199707-199808

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06117×14iGS151..4FC..HTWC199508

sub90119-06173

main90119-06410×14iGS151..LPGTE199512-200102

main90119-06513×19iJZS15#,LS151,UZS15#199508-199707

main90119-06866iJZS155,UZS151,157..5FC199707-199909

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-22081iJZS15#..4FC199807

main35111-22090iGS151..4FC..HTWC199808-199909

main35111-24010iGS151..LPGTE199808-200102

main35111-30150iJZS155..ROYT199807-199909

main35111-50010iUZS15#199508-199909

main35111-53010iGS151..HTWC199909

main35111-60062iLS151199508-199909

35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)

main90301-99054iGS151..4FC199508

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iGS151,JZS15#,LS151,UZS15#..ATM199508-199707

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iGS151..4FC199508

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-28010iGS151..4FC199508

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iGS151..4FC..HTWC199508-199909

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09011iUZS15#199508-199909

main90301-09173iGS151,JZS15#,LS151..ATM199508

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30010×6iJZS153199609-199707

main35394-30011×2iGS151..4FC..HTWC199508-199909

35395ASTRAINER, GOVERNOR OIL

main35395-40010iGS151..LPGTE199707-200102

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-20020iJZS153,155,UZS155199508-199608

main35519-20030iUZS151,157199908

main35519-24020iUZS151,157199508-199707

main35519-30010iGS151,JZS15#,UZS15#..ATM..(HTWC,TWC)199808-199908

4468136020PLUG, BOOSTER

main44681-36020

9010510190

main90105-10190

9010512144

main90105-12144

9011912168

main90119-12168

9161160814

main91611-60814

9161261028

main91612-61028

9161261035

main91612-61035

9165161040

main91651-61040

9322016012

main93220-16012

30 parts on this diagram · 11 diagrams in section
