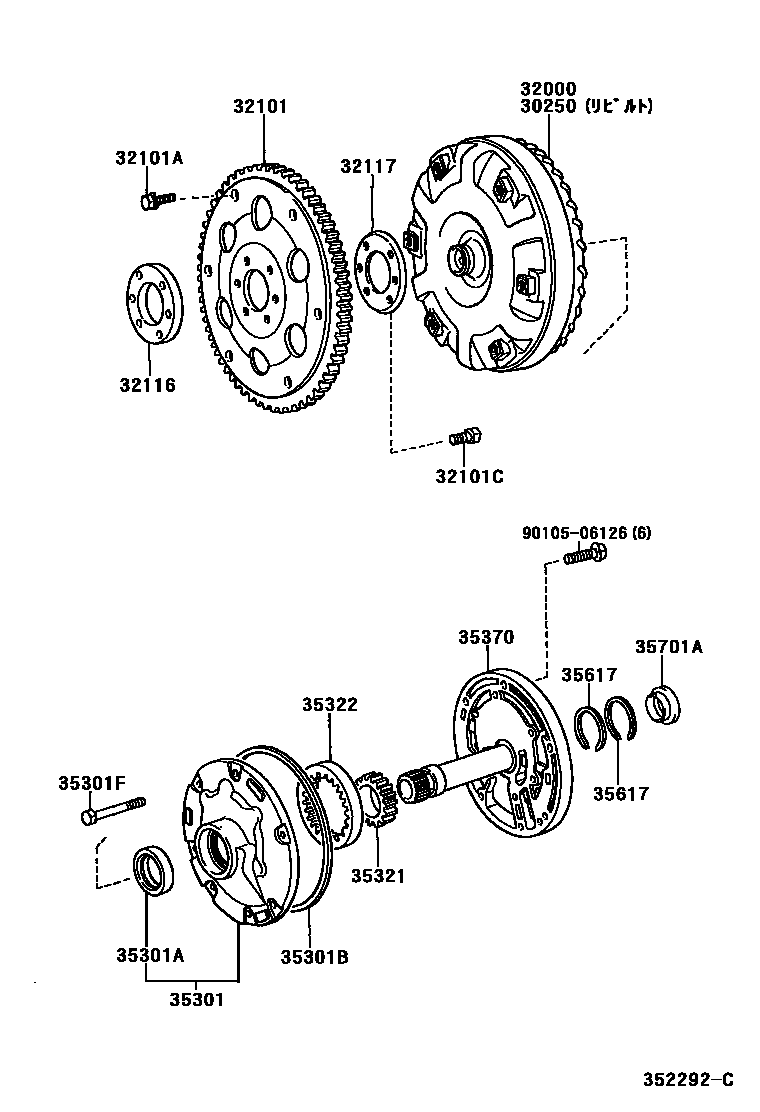

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1A42DL,A43D 0002 1A340E,A340H,A341E,A341H,A350E

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-22090iGS151..4FC..HTWC199707-199808

main30250-22160iJZS151199508-199609

main30250-22191iJZS153199512

main30250-22201iJZS151199707

main30250-22220iGS151..4FC..HTWC199808

main30250-30230iGS151..LPGTE199512-200102

main30250-30240iGS151..4FC..HTWC199508-199707

main30250-30311iJZS155,157199707

main30250-30331iUZS15#199508-199707

main30250-30340iLS151199508-199909

main30250-30350iUZS15#199707-199909

32000CONVERTER ASSY, TORQUE

main32000-22090iGS151..4FC..HTWC199707-199808

main32000-22160iJZS151199508-199609

main32000-22190iJZS153199512-199705

sub32000-22191

main32000-22191iJZS153199705

main32000-22200iJZS151199609-199707

sub32000-22201

main32000-22201iJZS151199707

main32000-22220iGS151..4FC..HTWC199808

main32000-30230iGS151..LPGTE199512-200102

main32000-30240iGS151..4FC..HTWC199508-199707

main32000-30310iJZS155199508-199707

sub32000-30311

main32000-30311iJZS153..HT..ROY199711-199808

2JZGE *(W)

main32000-30311iJZS155,157199707

main32000-30330iUZS15#199508-199705

sub32000-30331

main32000-30331iUZS15#199705-199707

main32000-30340iLS151199508-199909

main32000-30350iUZS15#199707-199909

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-22050iJZS15#199508

main32101-24012iGS151..4FC199508

main32101-35020iLS151199508-199909

main32101-50010iUZS15#199508-199909

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90119-09009iGS151,JZS15#,LS151,UZS15#..ATM199508-199707

main90119-09010iGS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)199508

main90119-09017iJZS155,UZS15#..A,C,E,F199508-199707

main90119-09026iJZS155,UZS15#..A,C,E,F199707-199909

main90119-09027iJZS155,UZS15#..A,C,E,F199707-199909

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10046iGS151..4FC199508

main90105-10226iUZS15#199508-199707

main90105-10294iJZS15#199508

main90105-12014iLS151199508-199909

main90910-02129iUZS15#199707-199909

32116SPACER, DRIVE PLATE, FRONT

main32116-14011iGS151..4FC199508

main32116-22020iJZS15#199508

main32116-35010iLS151199508-199909

main32116-50010iUZS15#199508-199909

32117SPACER, DRIVE PLATE, REAR

main32117-14011iGS151..4FC199508

main32117-22020iJZS15#199508

main32117-35010iLS151199508-199909

main32117-50010iUZS15#199508-199909

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-14010iGS151..4FC..HTWC199508-199808

main35301-22020iGS151..4FC..HTWC199808-199905

sub35301-22021

main35301-22021iGS151..4FC..HTWC199905

main35301-30040iJZS151,LS151199508

main35301-35010iJZS153,155,UZS15#199508-199707

main35301-43010iGS151..LPGTE199610-200102

main35301-50020iJZS155,UZS151,157..5FC199707-199909

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iGS151..4FC199508-199808

main90311-38029iJZS15#,LS151,UZS15#199508

sub90311-38020

main90311-38058iGS151..LPGTE199610-200102

main90311-38064iGS151..4FC..HTWC199808

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99010iGS151..4FC199508

main90301-99033iJZS15#,LS151,UZS15#199508

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iJZS15#,LS151,UZS15#199508

main90105-08137iGS151..4FC199508

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12020iJZS153,155,UZS155199508-199707

main35321-12030iJZS153,155,UZS15#199508-199707

main35321-12040iJZS153,155,157,UZS155..4FC199508-199707

main35321-12050iJZS153,155,UZS15#199508-199707

main35321-12060iJZS153,155,157,UZS155..4FC199508-199707

main35321-12070iJZS151,LS151199508

main35321-12080iJZS151,LS151199508

main35321-12090iJZS151,LS151199508

main35321-12100iJZS151,LS151199508

main35321-12110iJZS151,LS151199508

main35321-22020iGS151..4FC199508

main35321-22030iGS151..4FC199508

main35321-22040iGS151..4FC199508

main35321-22050iGS151..4FC199508

main35321-22060iGS151..4FC199508

main35321-30030iJZS153..HT..ROY199711-199808

main35321-30030iJZS155,UZS151,157..5FC199707-199909

main35321-30040iJZS155,UZS151,157..5FC199707-199909

main35321-30040iJZS153..HT..ROY199711-199808

main35321-30050iJZS155,UZS151,157..5FC199707-199909

main35321-30050iJZS153..HT..ROY199711-199808

main35321-30060iJZS155,UZS151,157..5FC199707-199909

main35321-30060iJZS153..HT..ROY199711-199808

main35321-30070iJZS153..HT..ROY199711-199808

main35321-30070iJZS155,UZS151,157..5FC199707-199909

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12010iJZS153,155,UZS155199508-199707

main35322-12020iJZS153,155,157,UZS155..4FC199508-199707

main35322-12030iJZS153,155,UZS15#199508-199707

main35322-12040iJZS155199508-199707

main35322-12050iJZS153,155,UZS15#199508-199707

main35322-12060iJZS151,LS151199508

main35322-12070iJZS151,LS151199508

main35322-12080iJZS151,LS151199508

main35322-12090iJZS151,LS151199508

main35322-12100iJZS151,LS151199508

main35322-22020iGS151..4FC199508

main35322-22030iGS151..4FC199508

main35322-22040iGS151..4FC199508

main35322-22050iGS151..4FC199508

main35322-22060iGS151..4FC199508

main35322-30020iJZS153..HT..ROY199711-199808

main35322-30020iJZS155,UZS151,157..5FC199707-199909

main35322-30030iJZS153..HT..ROY199711-199808

main35322-30030iJZS155,UZS151,157..5FC199707-199909

main35322-30040iJZS155,UZS151,157..5FC199707-199909

main35322-30040iJZS153..HT..ROY199711-199808

main35322-30050iJZS155,UZS151,157..5FC199707-199909

main35322-30050iJZS153..HT..ROY199711-199808

main35322-30060iJZS153..HT..ROY199711-199808

main35322-30060iJZS155,UZS151,157..5FC199707-199909

35370SHAFT ASSY, STATOR

main35370-14012iGS151..4FC..HTWC199508-199808

main35370-22050iGS151..LPGTE199512-200102

main35370-22060iGS151..4FC..HTWC199808

main35370-30031iJZS15#,LS151199508-199707

main35370-30060iJZS155..ROYT199707-199909

main35370-50010iUZS15#..4FC199508-199909

main35370-50020iUZS151,157199707-199909

35617RING, CLUTCH DRUM OIL SEAL

main35617-30020iJZS15#,LS151,UZS15#199508

main35617-32010iGS151..4FC199508

35701ABEARING, THRUST (FOR INPUT SHAFT FRONT)

main90374-25003iGS151..4FC199508

9010506126

main90105-06126

17 parts on this diagram · 2 diagrams in section
