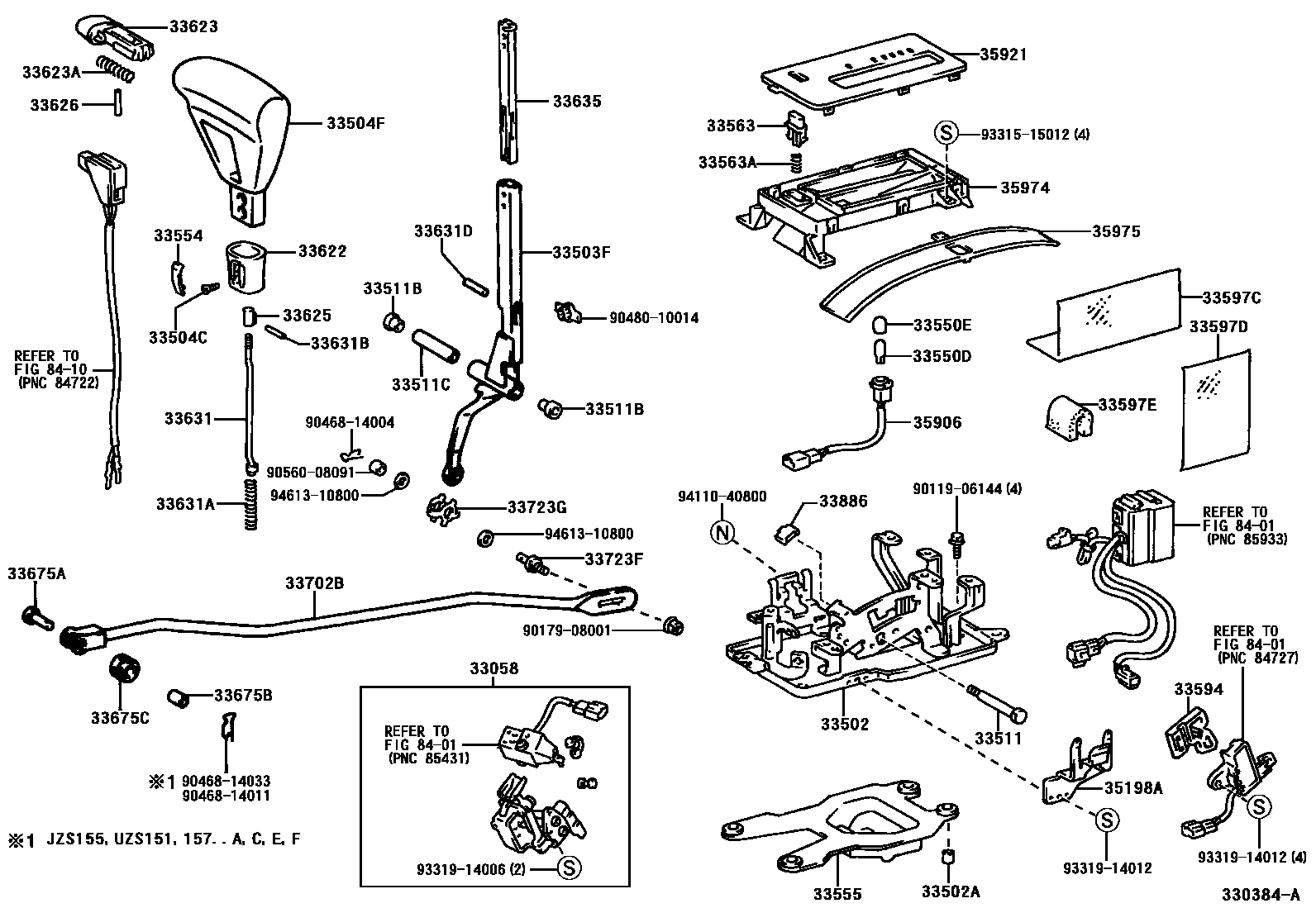

SHIFT LEVER & RETAINER

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1

33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID

main33058-30080iGS151,JZS15#,LS151,UZS151,157..ATM¥5,300199508-199707

main33058-30090iUZS155¥5,300199511-199909

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-30380iGS151,JZS151,155,LS151..4FC..(ROY,ROYEX,ROYG,SALEX,SPDLX)¥9,100199508-199707

main33502-30390iJZS153,157¥9,100199512-200108

main33502-30400iJZS155,UZS151,157..4FC..(A,C,E,F)¥9,100199508-199909

main33502-30410iUZS155¥9,900199511-199909

main33521-30270iJZS151,155,UZS151,157..C,F,ROYT¥6,700199707

33502ACOLLAR (FOR FLOOR SHIFT SETTING)

main90387-06061iGS151,JZS15#,LS151,UZS15#..ATM¥180199508-199707

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-30090iGS151,JZS151,155,LS151..4FC..(ROY,ROYEX,ROYG,SALEX,SPDLX)¥5,900199508-199707

main33055-30100iJZS153,157¥5,900199512

main33055-30110iJZS155,UZS151,157..4FC..(A,C,E,F)¥5,900199508-199909

main33055-30120iUZS155¥5,900199511-199909

main33055-30140iUZS151¥3,090199707-199909

main33055-30150iJZS151,155,UZS157..F,ROYT¥1,960199707-199909

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40109iGS151,JZS15#,LS151,UZS151,155..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX)¥80199508-199707

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-24010-B1iGS151..5F199808-199909

SHADOW GRAY,TRIM1#

sub33504-24010¥1,710

main33504-24010-B6iGS151..5F199512-199808

DK.BLUE GRAY,TRIM1#

sub33504-24010¥1,710

main33504-24010-E6iGS151..5F199512-199808

ANTELOPE,TRIM4#

sub33504-24010¥1,710

main33504-24010-E9iGS151..5F199808-199909

ORCHID BROWN,TRIM4#

sub33504-24010¥1,710

main33542-30270-B1iGS151,JZS15#,LS151..4FC..(ROY,ROYEX,SALEX,SPDLX)199508-199808

DK.BLUE GRAY,TRIM1#

sub33542-30270¥5,400

main33542-30270-B2iGS151,JZS151,153,155,LS151..4FC..(ROY,ROYEX,SALEX,SPDLX)199808-200108

SHADOW GRAY,TRIM1#

sub33542-30270¥5,400

main33542-30270-E1iGS151,JZS15#,LS151..4FC..(ROY,ROYEX,SALEX,SPDLX)199508-199808

ANTELOPE,TRIM4#

sub33542-30270¥5,400

main33542-30270-E2iGS151,JZS151,153,155,LS151..4FC..(ROY,ROYEX,SALEX,SPDLX)199808-200108

ORCHID BROWN,TRIM4#

sub33542-30270¥5,400

main33542-30280-B0iJZS153..SED..ROY;JZS155,UZS151,155..A,C,E,ROYG199707-199808

sub33542-30280¥9,300

main33542-30280-B0iJZS151,155..ROY;JZS153..HT..ROY199508-199808

sub33542-30280¥9,300

main33542-30280-B0iJZS151,155,UZS15#..A,C,E,F,ROYG,ROYT199508-199707

DK. BLUE GRAY,TRIM1#

sub33542-30280¥9,300

main33542-30280-B2iJZS153..SED..ROY;JZS155,UZS151,155..A,C,E,ROYG199808-200108

sub33542-30280¥9,300

main33542-30280-B2iJZS151,155..ROY;JZS153..HT..ROY199808-200108

sub33542-30280¥9,300

main33542-30280-B2iJZS157199808-199909

SHADOW GRAY,TRIM1#

sub33542-30280¥9,300

main33542-30280-B2iJZS155..HT..ROY199904-199909

sub33542-30280¥9,300

main33542-30280-E0iJZS15#..ROY;UZS151..5FC199508-199808

sub33542-30280¥9,300

main33542-30280-E0iJZS151,155,UZS15#..A,C,E,F,ROYG,ROYT199508-199808

ANTELOPE,TRIM4#

sub33542-30280¥9,300

main33542-30280-E2iJZS153..SED..ROY;JZS155,UZS151,155..A,C,E,ROYG199808-200108

sub33542-30280¥9,300

main33542-30280-E2iJZS157199808-199909

ORCHID BROWN,TRIM4#

sub33542-30280¥9,300

main33542-30280-E2iJZS153..SED..ROY;JZS155,UZS151,155..A,C,E,ROYG199808-200108

sub33542-30280¥9,300

main33542-50040-B0iJZS151,155,UZS157..F,ROYT199707-199808

DK. BLUE GRAY,TRIM1#

sub33542-50040¥7,200

main33542-50040-B1iJZS151,155,UZS157..F,ROYT199808-199909

SHADOW GRAY,TRIM1#

sub33542-50040¥7,200

main33542-50040-E1iJZS151,155,UZS157..F,ROYT199808-199909

ORCHID BROWN,TRIM4#

sub33542-50040¥7,200

main33542-50040-E3iJZS151,155,UZS157..F,ROYT199707-199808

ANTELOPE,TRIM4#

sub33542-50040¥7,200

main33542-50050-E2iUZS157199810-199903

sub33542-50050¥22,400

33511SHAFT, CONTROL (FOR FLOOR SHIFT)

main33501-30580iJZS151,155..ROYT¥1,980199707-199909

main33501-30590iUZS157¥1,980199707-199909

main33511-22170iGS151,JZS15#,LS151,UZS151,157..ATM¥410199508-199707

main33511-30400iUZS151¥300199707-199909

main33511-50010iUZS155¥400199511-199909

33511BBUSH (FOR CONTROL SHAFT)

main90386-11019iGS151,JZS15#,LS151,UZS151,155..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX)¥130199508-199707

33511CCOLLAR (FOR CONTROL SHAFT)

main90387-08098iUZS155¥440199511-199909

main90387-08134iGS151..5F¥200199512-199909

main90387-08139iGS151,JZS15#,LS151..4FC..(A,E,ROY,ROYEX,ROYG,SALEX,SPDLX)¥330199508-199707

main90560-05015iUZS151¥180199707-199909

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iJZS151,155,UZS151,157..C,F,ROYT¥140199707-199909

main90981-11036iGS151,JZS15#,LS151,UZS15#..ATM¥230199508-199707

33550ECAP, POSITION INDICATOR LAMP

main90339-04049iJZS151,155,UZS151,157..C,F,ROYT¥100199707-199909

main90339-09001iGS151,JZS15#,LS151,UZS15#..ATM¥120199508-199707

33554CAP, SHIFT LEVER

main33554-30040iGS151,JZS15#,LS151,UZS15#..ATM¥120199508-199707

33555BOOT, SHIFT LEVER

main33555-30240iGS151,JZS151,155,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)¥1,020199508-199707

main33555-30250iJZS153,157¥920199512

main33555-30260iJZS155,UZS151,157..4FC..(A,C,E,F)¥1,480199508-199909

main33555-30270iUZS155¥1,020199511-199909

main33555-30310iJZS151,155..ROYT¥440199707-199909

main33555-30320iUZS151,157¥440199707-199909

33563BUTTON, SHIFT LOCK RELEASE

main33563-30070iGS151,JZS15#,LS151,UZS15#..ATM¥300199508-199707

main33563-30080iJZS151,155,UZS157..F,ROYT¥300199707-199909

main33563-30110iUZS151¥300199707-199909

33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)

main90501-06086iJZS151,155,UZS157..F,ROYT¥140199707-199909

main90501-07105iGS151,JZS15#,LS151,UZS15#..ATM¥160199508-199707

33594PLATE, SHIFT LOCK (FOR FLOOR SHIFT)

main33594-22030iGS151,JZS151,155,LS151,UZS15#..ATM¥380199508-199707

main33594-30020iJZS153,157¥380199512

33597CSEAT, SHIFT LEVER NO.2 (FOR FLOOR SHIFT)

main33597-30040iGS151,JZS15#,LS151..4FC..(A,E,ROY,ROYEX,ROYG,SALEX,SPDLX)¥910199711

main33597-30060iUZS155¥910199711-199909

33597DSEAT, SHIFT LEVER, NO.3 (FOR FLOOR SHIFT)

main33597-30050iGS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX)¥230199711

33597ESEAT, SHIFT LEVER, NO.4 (FOR FLOOR SHIFT)

main33597-30070iGS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX)¥480199711

33622COVER, SHIFT LEVER KNOB, NO.1

main33622-30120iGS151,JZS15#,LS151,UZS15#..ATM¥610199508-199707

main33622-50060iJZS151,155,UZS157..F,ROYT¥600199707-199909

33623BUTTON, SHIFT LEVER KNOB

main33623-30130-B1iGS151,JZS15#,LS151,UZS15#..ATM199508-200108

DK.BLUE GRAY,TRIM1#

sub33623-30130¥1,340

main33623-30130-E1iGS151,JZS15#,LS151,UZS15#..ATM199508-199707

ANTELOPE,TRIM40

sub33623-30130¥1,340

main33623-30130-E1iJZS151,155..ROYT199508-200108

ANTELOPE,TRIM4#

sub33623-30130¥1,340

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-07009iGS151,JZS15#,LS151,UZS15#..ATM¥350199508-199707

33625SLEEVE, SHIFT LEVER KNOB

main33625-30050iGS151,JZS15#,LS151,UZS15#..ATM¥370199508-199707

33626STOPPER, SHIFT LEVER BUTTON

main90256-02004iGS151,JZS15#,LS151,UZS15#..ATM¥160199508-199707

33631ROD, DETENT

main33631-30150iGS151,JZS15#,LS151,UZS151,157..ATM¥1,130199508-199707

main33631-30160iUZS155¥1,200199511-199909

33631ASPRING, COMPRESSION (FOR DETENT ROD)

main90501-08152iGS151,JZS15#,LS151,UZS15#..ATM¥140199508-199707

33631BPIN, SLOTTED SPRING (FOR DETENT ROD)

main90256-02001iJZS151,155,UZS157..F,ROYT¥120199707-199909

main90256-02003iGS151,JZS15#,LS151,UZS15#..ATM¥160199508-199707

33631DPIN, GROOVED (FOR DETENT ROD)

main90256-04003iGS151,JZS15#,LS151,UZS15#..ATM¥210199508-199707

main90256-04012iUZS151¥350199707-199909

33635GUIDE, WIRE (FOR SHIFT LEVER)

main33635-30120iGS151,JZS15#,LS151,UZS151..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX)¥910199508-199707

main33635-30140iUZS155¥910199511-199909

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main33726-35010iGS151,JZS15#,LS151,UZS15#..ATM¥190199508

33675BBUSH (FOR TRANSMISSION CONTROL ROD)

main90389-08005iJZS153,157,UZS155¥140199511

main90560-08091iGS151,JZS151,155,LS151,UZS151,157..ATM¥70199508

33675CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17013iGS151,JZS151,155,LS151,UZS151,157..ATM¥230199508

main90480-17023iJZS153,157,UZS155¥240199511

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-22070iJZS153,157¥2,060199512

main33702-30350iJZS155..A,E¥1,270199602-199909

main33702-30380iJZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX¥1,270199508-199707

main33702-30381iJZS151,155..ROY,ROYEX,ROYG,SALEX¥1,270199707

main33702-30390iGS151..4FC¥1,530199508-199707

main33702-30391iGS151..4FC¥1,530199707

main33702-30400iLS151¥1,480199508-199909

main33702-30410iUZS151,157¥2,290199508-199707

sub33702-30412¥2,320

main33702-30412iUZS151¥2,320199707-199909

main33702-30420iJZS155..A,E¥1,270199508-199602

sub33702-30350¥1,270

main33702-30430iUZS155¥1,320199511-199909

main33702-30450iJZS151,155..ROYT¥1,270199707-199909

main33702-30460iUZS157¥2,290199707-199909

33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)

main33723-22020iGS151,JZS151,155..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)¥520199706-199707

main33723-30080iGS151,JZS15#,LS151,UZS15#..4FC..(A,C,E,F,ROY,ROYEX,SALEX,SPDLX)¥780199706-199707

main33723-30080iGS151,JZS15#,LS151,UZS15#..ATM¥780199508-199909

33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main33572-30050iGS151,JZS15#,LS151,UZS15#..ATM¥210199508

33886STOPPER, SHIFT LEVER

main33886-22010iGS151,JZS15#,LS151,UZS15#..ATM¥160199508-199707

35198ABRACKET, WIRE HARNESS CLAMP, NO.4

main35198-30110iGS151,JZS15#,LS151,UZS151,157..ATM¥480199508

main35198-30120iUZS155¥540199511-199909

main35198-30130iUZS157¥300199707-199909

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-12130iGS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX)¥1,180199508-199707

sub35906-12140¥1,260

main35906-30060iJZS151,155,UZS157..F,ROYT¥500199707-199909

main35906-30080iUZS151¥610199707-199909

sub35906-35100¥930

35921PLATE, CONTROL POSITION INDICATOR

main35921-30370iGS151,JZS151,155,LS151..4FC..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)¥10,700199508-199707

main35921-30380iJZS155..ROYT¥10,700199508-199707

main35921-30390iJZS153,157¥10,700199512

main35921-30400iJZS155,UZS151,157..4FC..(A,C,E,F)¥10,700199508-199909

main35921-30410iUZS155¥10,700199511-199909

main35921-30440iUZS151¥4,020199707-199909

main35921-30450iJZS155,UZS157..5FC¥6,500199707-199909

main35921-30460iJZS151..ROYT¥6,500199707-199909

35974HOUSING, POSITION INDICATOR, LOWER

main35974-30090iGS151,JZS15#,LS151,UZS15#..ATM¥1,920199508-199707

main35974-30110iUZS151¥2,240199707-199909

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-30210iGS151,JZS15#,LS151,UZS15#..ATM¥860199508-199707

main35975-30220iUZS151¥1,750199707-199909

main35975-30230iJZS151,155,UZS157..F,ROYT¥1,780199707-199909

8401

8410

9011906144

main90119-06144¥80

9017908001

main90179-08001¥140

9046814004

main90468-14004¥80

9046814011

main90468-14011¥60

9046814033

main90468-14033¥90

9048010014

main90480-10014¥200

9056008091

main90560-08091¥70

9331515012

main93315-15012¥80

9331914006

main93319-14006¥70

9331914012

main93319-14012¥70

9411040800

main94110-40800¥120

9461310800

main94613-10800¥90

55 parts on this diagram · 6 diagrams in section
