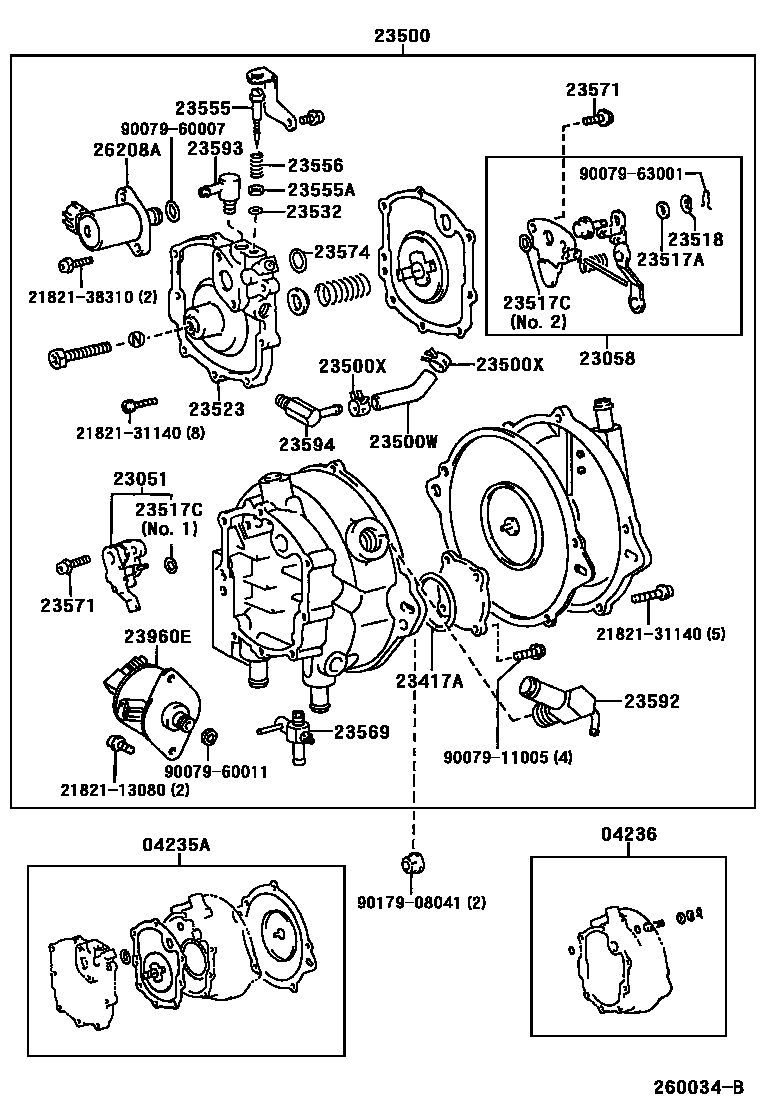

LPG OR CNG REGULATOR
04235ADIAPHRAGM KIT, LPG REGULATOR, W/O VALVE
23051VALVE SUB-ASSY, 1ST
23058VALVE SUB-ASSY, 2ND
23417ARING, O
23500REGULATOR ASSY, LPG(CNG)
23500XCLIP(FOR LPG REGULATOR FUEL HOSE)
sub96132-51000
23517AWASHER(FOR ELASTIC FACE VALVE SET)
23517CGASKET(FOR ELASTIC FACE VALVE)
23518WASHER, WAVE(FOR ELASTIC FACE VALVE SET)
23523COVER, 1ST REGULATOR
23532RING, O, NO.2(FOR BULB)
23555AWASHER, IDLE ADJUST SCREW
23556SPRING, IDLE ADJUST SCREW
23569COCK, DRAIN
23571SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET)
23574RING, O, NO.1(FOR BULB)
23592UNION, NO.2, FUEL HOSE
23593UNION, NO.3
23594UNION, NO.4, WATER HOSE
2182113080SCREW, 2ND THROTTLE VALVE SET
main21821-13080
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2182138310SCREW, 2ND THROTTLE VALVE SET
main21821-38310
9007911005
main90079-11005
9007960007
main90079-60007
9007960011
main90079-60011
9007963001
main90079-63001
9017908041
main90179-08041
32 parts on this diagram · 2 diagrams in section
