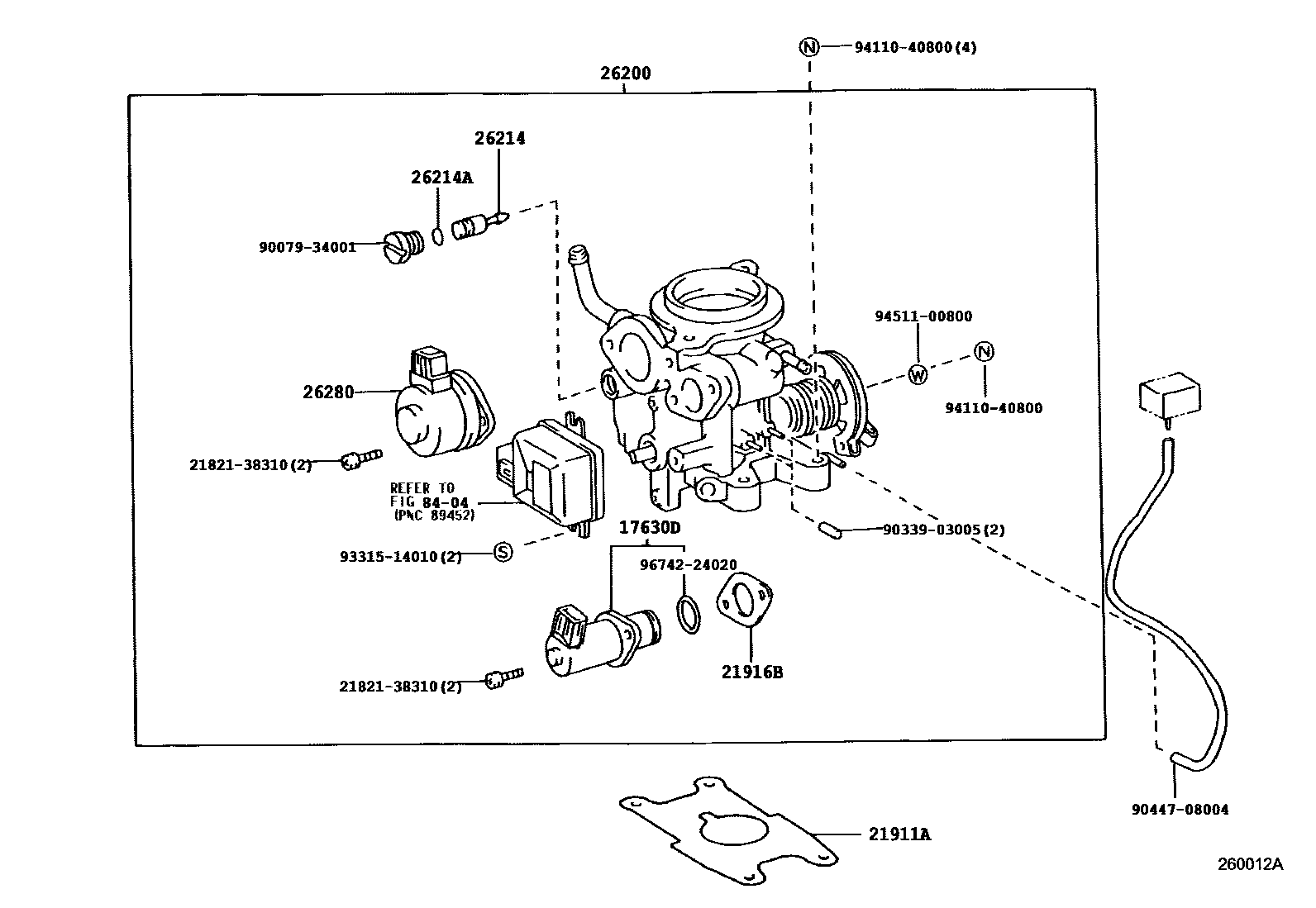

LPG CARBURETOR

17630DVALVE ASSY, AIR CONTROL

main17630-70040i1GGPE..GS151¥7,900199512-199705

sub17630-70041¥7,800

main17630-70041i1GGPE..GS151¥7,800199705-200102

21911AGASKET, CARBURETOR, NO.1

main21916-72012i1GGPE..GS151¥550199512-200102

21916BGASKET, LPG FUEL HOSE UNION

main21916-73010i1GGPE..GS151¥380199512-200102

26200CARBURETOR ASSY, LPG

main26200-70050i1GGPE..GS151¥97,300199512-200102

26214SCREW, POWER ADJUST

main26214-73130i1GGPE..GS151¥230199512-200102

26214ARING, O(FOR POWER ADJUST)

main90079-60005i1GGPE..GS151¥160199512-200102

26280MOTOR ASSY, AIR FUEL RATIO CONTROL

main26280-70010i1GGPE..GS151¥27,800199512-200102

8404

2182138310SCREW, 2ND THROTTLE VALVE SET

main21821-38310¥210

9007934001

main90079-34001¥180

9033903005

main90339-03005¥110

9044708004

main90447-08004¥1,210

9331514010

main93315-14010¥160

9411040800

main94110-40800¥120

9451100800

main94511-00800¥100

9674224020

main96742-24020¥240

16 parts on this diagram · 1 diagram in section
