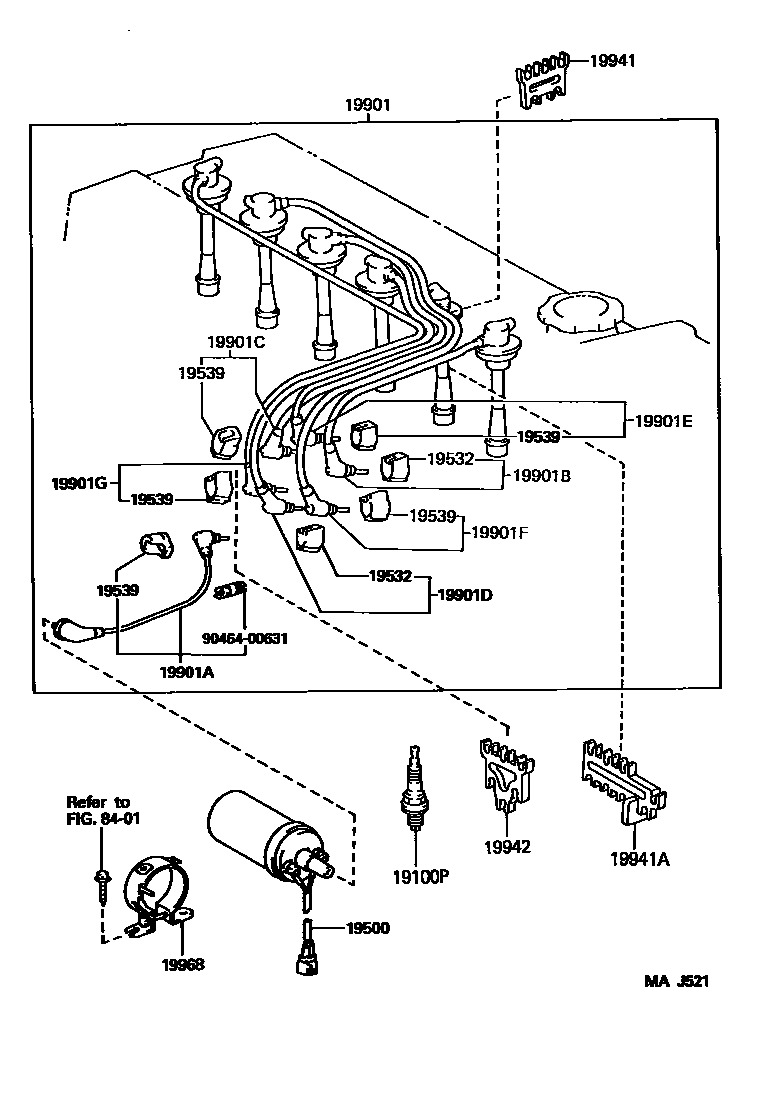

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1

19100PPLUG, SPARK

main90919-01164i1GFE..GS151199508-199808

main90919-01168i1JZGE..JZS151,153199508-199609

sub90919-01217

main90919-01169i1JZGE..JZS151,153199508-199609

main90919-01178i1UZFE..UZS15#199610-199707

sub90919-01210

main90919-01179i1UZFE..UZS15#199610-199707

main90919-01180i1GGPE..GS151199508-200102

sub90919-01231

main90919-01181i1UZFE..UZS15#199508-200102

main90919-01184i1GFE..GS151199808

main90919-01196i1JZGE,2JZGE..JZS15#199508-200007

main90919-01197i2JZGE..JZS155199508-200007

main90919-01210i1UZFE..UZS15#199707-199909

main90919-01211i1UZFE..UZS15#199707-199909

main90919-01219i1JZGE,2JZGE..JZS15#200007

19500COIL ASSY, IGNITION

main19500-70010i1G#..GS151199508-200102

main90919-02197i1JZGE..JZS151,153199508-199707

main90919-02216i1JZGE,2JZGE..JZS15#199508-199909

main90919-02228i1UZFE..UZS15#199707

main90919-02230i1GFE..GS151199808-199909

19532HOLDER, RESISTIVE CODE, NO.2

main19532-46010i1JZGE,2JZGE..JZS15#199508-199909

main19532-46010i1GFE..GS151199508-199808

main19532-50010i1GFE..GS151199508-199808

main19539-46010i1UZFE..UZS15#199508-199707

19539HOLDER, RESISTIVE CODE, NO.4

main19532-46010i1GGPE..GS151199512-200102

main19539-11010i1GGPE..GS151199512-200102

main19539-11010i1JZGE..JZS151,153199508-199609

CORD NO.1

main19539-16010i1GFE..GS151199508-199808

main19539-46010i1JZGE..JZS151,153199508-199609

CORD NO.5

main19539-46010i1G#..GS151199508-200102

main19539-50010i1UZFE..UZS15#199508-199707

main19539-50010i1JZGE..JZS151,153199508-199609

CORD NO.3

main19539-62010i1JZGE..JZS151,153199508-199609

CORD NO.2,4

main19539-62020i1G#..GS151199508-200102

main19539-74020i1GGPE..GS151199512-200102

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21593i1JZGE..JZS151,153199508-199609

main90919-21595i1GFE..GS151199508-199808

main90919-21596i1GGPE..GS151199512-200102

main90919-22379i1UZFE..UZS15#199508-199707

19901ACORD, COIL RESISTIVE

main90919-13334i1UZFE..UZS15#199508-199707

main90919-13462i1UZFE..UZS15#199508-199707

main90919-13465i1GFE..GS151199508-199808

main90919-13467i1JZGE..JZS151,153199508-199609

sub90919-13481

main90919-13468i1GGPE..GS151199512-200102

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15282i1GFE..GS151199508-199808

main90919-15311i1GGPE..GS151199512-200102

main90919-15325i1JZGE..JZS151,153199508-199609

main90919-15444i1UZFE..UZS15#199508-199707

main90919-15456i1JZGE,2JZGE..JZS15#199508-199909

sub90919-15568

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15283i1GFE..GS151199508-199808

main90919-15312i1GGPE..GS151199512-200102

main90919-15326i1JZGE..JZS151,153199508-199609

main90919-15445i1UZFE..UZS15#199508-199707

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15284i1GFE..GS151199508-199808

main90919-15313i1GGPE..GS151199512-200102

main90919-15317i2JZGE..JZS155199508-199909

sub90919-15570

main90919-15327i1JZGE..JZS151,153199508-199609

main90919-15446i1UZFE..UZS15#199508-199707

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-15273i1GGPE..GS151199512-200102

main90919-15285i1GFE..GS151199508-199808

main90919-15328i1JZGE..JZS151,153199508-199609

main90919-15447i1UZFE..UZS15#199508-199707

19901FCORD, SPARK PLUG RESISTIVE, NO.5

main90919-12946i1JZGE..JZS151,153199508-199609

main90919-15286i1GFE..GS151199508-199808

main90919-15314i1GGPE..GS151199512-200102

main90919-15448i1UZFE..UZS15#199508-199707

main90919-15457i1JZGE,2JZGE..JZS15#199508-199909

sub90919-15569

19901GCORD, SPARK PLUG RESISTIVE, NO.6

main90919-15287i1GFE..GS151199508-199808

main90919-15315i1GGPE..GS151199512-200102

main90919-15329i1JZGE..JZS151,153199508-199609

main90919-15449i1UZFE..UZS15#199508-199707

19941CLAMP, RESISTIVE CORD, NO.1

main19941-50020i1UZFE..UZS15#199508-199707

main90929-01277i1JZGE..JZS151,153199508-199609

main90929-01298i1GGPE..GS151199508-200102

main90929-01361i2JZGE..JZS155199508-199909

19941ACLAMP(FOR RESISTIVE CORD)

main90929-01301i1G#..GS151199508-200102

19942CLAMP, RESISTIVE CORD, NO.2

main19942-50020i1UZFE..UZS15#199508-199707

main90929-01278i1JZGE..JZS151,153199508-199609

main90929-01300i1GFE..GS151199508-199808

main90929-01360i1JZGE,2JZGE..JZS15#199508-199909

19968BRACKET, IGNITION COIL

main19968-46020i1JZGE..JZS151,153199508-199610

main19968-50011i1UZFE..UZS15#199508-199707

main19968-70030i1G#..GS151199508-200102

main19969-50011i1UZFE..UZS15#199508-199707

8401

9046400631

main90464-00631

18 parts on this diagram · 8 diagrams in section
