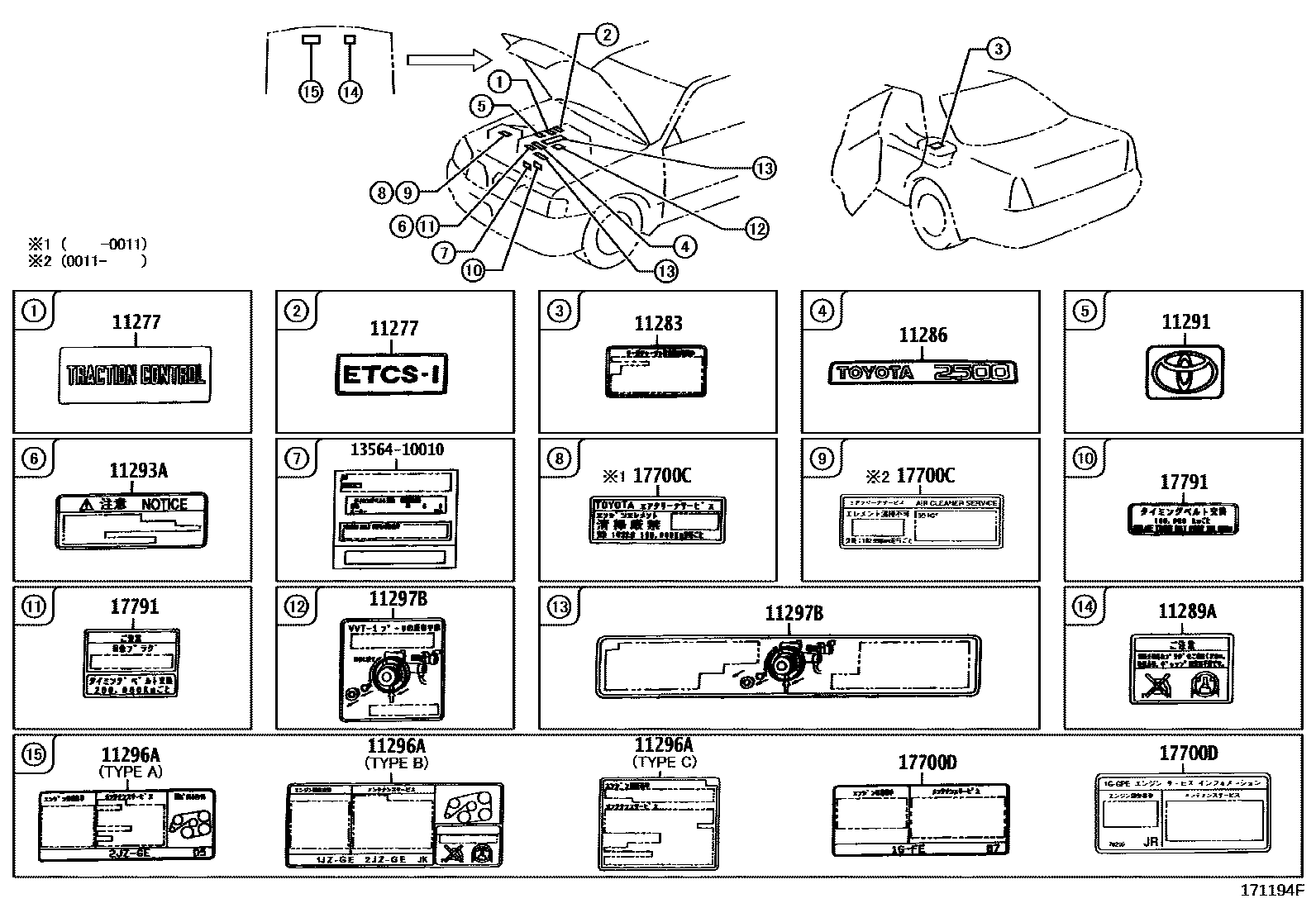

CAUTION PLATE & NAME PLATE (ENGINE)

11277PLATE, ENGINE SPECIFICATION, NO.2

main11277-46090i1JZGE..JZS151199508-199609

main11277-46100i2JZGE..JZS155..ROY,ROYG,ROYT199508-199707

main11277-46110i1JZGE..JZS151199609-199909

main11277-46120i1JZGE..JZS153..HT..ROY199711-199908

2JZGE *(W)

main11277-46120i2JZGE..JZS155,157199707-199909

11283PLATE, TURBOCHARGER CAUTION

main11294-55010i2LTE..LS151199508-199710

main11294-55020i2LTE..LS151199710

11286PLATE, ENGINE SPECIFICATION

main11286-46050i1JZGE..JZS151,153199508-199609

11289ALABEL, SPARK PLUG NOTICE

main11289-46020i2JZGE..JZS155199508-199609

11291PLATE, ENGINE NAME

main11291-50041i1UZFE..UZS15#199508-199707

main11291-50050i1UZFE..UZS15#199707

sub11291-50051

11293APLATE, ENGINE CAUTION

main11293-70150i1GFE..GS151199808-199909

11296ALABEL, ENGINE SERVICE INFORMATION

main11295-46040i1JZGE,2JZGE..JZS15#200007

main11296-46080i1JZGE..JZS151,153199508-199609

sub11296-46360

main11296-46230i2JZGE..JZS155199508-199609

main11296-46270i1JZGE,2JZGE..JZS15#199609-199706

sub11296-46300

main11296-46300i1JZGE,2JZGE..JZS151,153,155199706-200007

main11296-46320i2JZGE..JZS157199808-199909

main11296-50210i1UZFE..UZS15#199508-199707

main11296-50280i1UZFE..UZS15#199707-199909

main11296-54040i2LTE..LS151199508-199710

sub11296-54041

main11296-54041i2LTE..LS151199710-199909

11297BLABEL, ENGINE SERVICE INFORMATION, NO.2

main11297-46011i2JZGE..JZS155199508-199707

main11297-46020i1JZGE,2JZGE..JZS15#199707-199909

main11297-50010i1UZFE..UZS15#199707

17700CPLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)

main17791-73020i1GGPE..GS151200011-200102

main90917-07121i1GGPE..GS151199512-200011

sub17791-73020

17700DPLATE, ENGINE CAUTION

main11296-70160i1GGPE..GS151199512-199909

main11296-70170i1GFE..GS151199508-199808

main11296-70190i1GFE..GS151199808

main11296-70200i1GGPE..GS151199909-200102

sub11296-70210

17791LABEL, MAINTENANCE INFORMATION

main17791-15010i1UZFE..UZS15#199707-199909

main17791-55010i2LTE..LS151199508-199708

main17791-70010i1GGPE..GS151199512-200102

main17791-74040i1GFE,1JZGE,2JZGE..GS151,JZS15#199508-199909

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

12 parts on this diagram · 1 diagram in section
