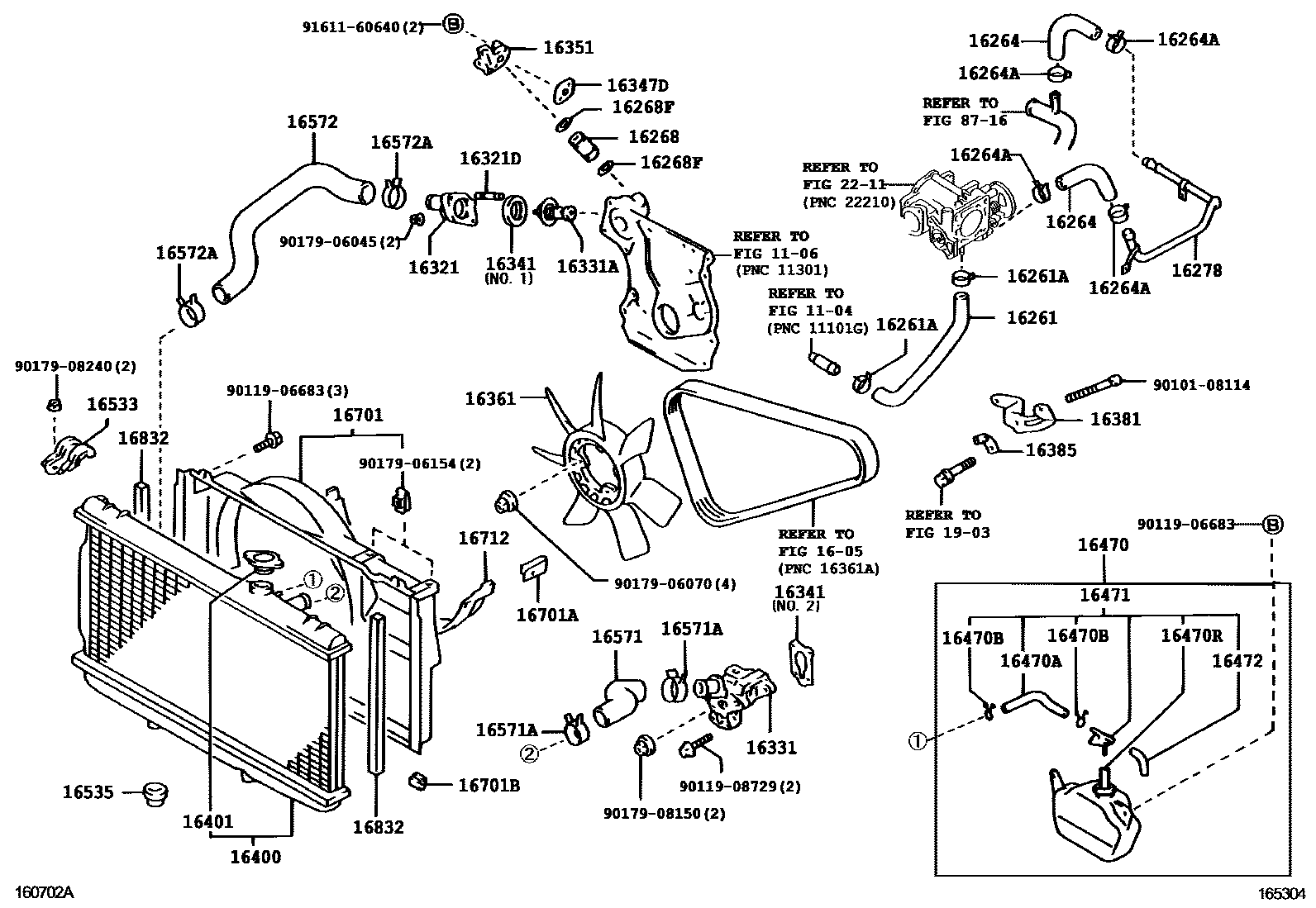

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0016 1

1104

1106

1605

16261HOSE, WATER BY-PASS

main16261-46020i1JZGE,2JZGE..JZS15#199508-199909

main16261-50090i1UZFE..UZS15#199707

main16261-70051i1GFE..GS151199508-199808

main16261-70070i1GGPE..GS151199512-200102

main16261-70090i1GFE..GS151199808-199909

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13001i1GFE..GS151199508-199909

sub96135-51300

main90467-13050i1JZGE,2JZGE..JZS15#199508-199909

sub96135-51300

main90467-20005i1GGPE..GS151199512-200102

sub96134-41900

16264HOSE, WATER BY-PASS, NO.2

main16264-46040i1JZGE,2JZGE..JZS15#199508-199707

sub16264-46041

main16264-46041i1JZGE,2JZGE..JZS15#199707-199909

main16264-70060i1GFE..GS151199508-199808

main16264-70080i1GGPE..GS151199512-200102

main16264-70100i1GFE..GS151199808-200101

sub99555-10200

main99555-10200i1GFE..GS151200101

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-13001i1GFE..GS151199508-199909

sub96135-51300

main90467-13050i1JZGE,2JZGE..JZS15#199508-199909

sub96135-51300

main90467-20005i1GGPE..GS151199512-200102

sub96134-41900

main90467-22004i1GGPE..GS151199512-200102

sub90467-21010

16268PIPE, WATER BY-PASS, NO.1

main16261-50071i1UZFE..UZS15#199508-199707

main16268-46011i1JZGE,2JZGE..JZS15#199508-199909

main16268-70031i1GFE..GS151199508-199909

main16268-88302i1GGPE..GS151199512-200102

16268FRING, O(FOR WATER BY-PASS PIPE)

main90301-17009i1G#..GS151199508-199909

main96761-24019i1UZFE..UZS15#199508

main96761-24022i1JZGE,2JZGE..JZS15#199508-199909

16278PIPE, WATER BY-PASS, NO.2

main16278-46010i2JZGE..JZS155199508-199705

main16278-46040i1JZGE,2JZGE..JZS15#199609-199909

main16278-70061i1GFE..GS151199508-199808

main16278-70070i1GGPE..GS151199512-200102

16321INLET, WATER

main16321-46040i1JZGE,2JZGE..JZS15#199508-199909

main16321-50010i1UZFE..UZS15#199508-199707

main16321-50020i1UZFE..UZS15#199707

main16321-70030i1GFE..GS151199508-199909

main16321-88301i1GGPE..GS151199512-200102

16321DBOLT, STUD(FOR WATER INLET)

main16193-63010i1GFE..GS151199508-199909

16331OUTLET, WATER

main16304-70020i1GFE..GS151199808-199909

main16331-46021i1JZGE..JZS151,153199508-199603

sub16331-46022

main16331-46022i1JZGE..JZS151,153199603-199909

main16331-46041i2JZGE..JZS155,157199508-199909

main16331-46041i1JZGE..JZS153..HT..ROY199711-199808

2JZGE *(W)

main16331-54130i2LTE..LS151199508

main16331-70070i1GFE..GS151199508-199808

main16331-88300i1GGPE..GS151199512-200102

16331ATHERMOSTAT

main16340-54010i2LTE..LS151199508-199605

main16340-54010i2LTE..LS151199605-199707

main90916-03081i1GFE..GS151199508-199909

main90916-03084i1UZFE..UZS15#199508-199707

sub90916-03129

main90916-03093i1JZGE,2JZGE..JZS15#199508-199909

main90916-03095i1GGPE..GS151199512-200102

main90916-03100i1UZFE..UZS15#199707

16341GASKET, WATER OUTLET

main16341-35010i2LTE..LS151199508-199707

main16341-35010i1GFE..GS151199508-199909

main16341-70031i1GFE..GS151199508-199808

sub16341-70040

main16341-70040i1GFE..GS151199808-199909

16347DGASKET, WATER BY-PASS

main16347-70021i1GFE..GS151199508

16351OUTLET, WATER BY-PASS

main16351-46010i1JZGE..JZS151,153199508-199604

sub16351-46050

main16351-46021i2JZGE..JZS155199508-199707

sub16351-46022

main16351-46022i1JZGE..JZS153..HT..ROY199711-199808

2JZGE *(W)

main16351-46022i2JZGE..JZS155199707-199909

main16351-46050i1JZGE..JZS151,153199604-199909

main16351-70010i1GFE..GS151199508-199909

sub16351-70011

16361FAN

main16361-46040i1JZGE,2JZGE..JZS15#199508-199909

main16361-50020i1UZFE..UZS15#199508

main16361-54060i2LTE..LS151199508

main16361-70040i1GFE..GS151199508-199909

main16361-88300i1GGPE..GS151199512-200102

16381BAR, FAN BELT ADJUSTING

main16381-70050i1GFE..GS151199508-199808

main16381-70060i1GFE..GS151199808-199909

main16381-88301i1GGPE..GS151199512-200102

16385SLIDER, FAN BELT ADJUSTING

main16385-70020i1GFE..GS151199508-199808

main16385-70030i1GFE..GS151199808-199909

16400RADIATOR ASSY

main16400-46360i1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX199508-199604

sub16400-46361

main16400-46361i1JZGE,2JZGE..JZS15#..4FC..(ROY,ROYEX,ROYG,ROYT,SALEX)199604-199707

main16400-46600i2JZGE..JZS155..ROYT199707

main16400-50160i1UZFE..UZS15#199508-199707

sub16400-50180

main16400-50180i2JZGE..JZS155..A,E199707

main16400-5B360i2LTE..LS151199508-199707

main16400-5B650i2LTE..LS151199707

main16400-70520i1GFE..GS151..4FC199508-199808

main16400-70530i1GFE..GS151..5F199512-199808

main16400-70550i1GGPE..GS151199512-200102

main16400-70660i1GFE..GS151..4FC199808

main16400-70670i1GFE..GS151..5F199808-199909

sub16400-70660

16401CAP SUB-ASSY, RADIATOR

main16401-62100i2JZGE..JZS155..A,E199707

sub16401-31520

main16401-72090i1UZFE..UZS15#199508-199707

sub16401-20353

16470TANK ASSY, RADIATOR RESERVE

main16470-46060i1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX199508

main16470-50090i2JZGE..JZS155..A,E199508

main16470-54300i2LTE..LS151199508

main16470-70150i1G#..GS151199508

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16472-46060i1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX199508

main16472-70150i1G#..GS151199508

main16479-50090i1UZFE..UZS15#199508

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1G#..GS151199508

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078i1G#..GS151199511

main90445-12078i1GFE..GS151199508-199511

main90445-12078i2JZGE..JZS155..A,E199508

16471CAP SUB-ASSY, RESERVE TANK

main16405-46060i1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX199508

main16405-50010i1UZFE..UZS15#199508

main16405-54270i2LTE..LS151199508

main16405-70090i1G#..GS151199508

16472HOSE, BREATHER

main16479-50090i2JZGE..JZS155..A,E199508

main85338-74040i1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX199508

16533SUPPORT, RADIATOR, UPPER

main16505-46050i2LTE..LS151199508

main16505-50030i1UZFE..UZS15#199508

16535SUPPORT, RADIATOR, LOWER

main90480-40010i1G#..GS151199508-199912

main90480-40016i1UZFE..UZS15#199607-199909

main90480-40020i1UZFE..UZS15#199508-199607

sub90480-40016

main90480-40022i1JZGE,2JZGE..JZS15#199912

16571HOSE, RADIATOR, INLET

main16571-46100i2JZGE..JZS155..A,E199508

main16571-46160i1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX199508

main16571-54430i2LTE..LS151199508

main16571-70270i1GGPE..GS151199512-200102

main16571-70290i1GFE..GS151199508-199808

main16571-70330i1GFE..GS151199808

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37002i2LTE..LS151199508-199701

sub90467-37005

main90467-37006i1JZGE,2JZGE..JZS15#199508

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-46080i2JZGE..JZS155..A,E199508-199707

sub16572-46081

main16572-46081i2JZGE..JZS155..A,E199707

main16572-46180i1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX199508

main16572-54490i2LTE..LS151199508-199707

sub16572-54491

main16572-54491i2LTE..LS151199707

main16572-70210i1GFE..GS151199508

main16572-70220i1GGPE..GS151199512-199801

main16572-70221i1GGPE..GS151199801-200102

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-41003i1JZGE,2JZGE..JZS15#199911

main90467-37002i2LTE..LS151..WIB199508-199701

sub90467-37005

main90467-37006i1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX199508

sub90467-37005

main90467-41004i2LTE..LS151199508

sub90466-41003

main90467-41007i1JZGE,2JZGE..JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX199508-199911

sub90467-41002

main90467-41007i2JZGE..JZS155..A,E199508-199909

sub90467-41002

16701SHROUD SUB-ASSY, FAN

main16711-50070i1UZFE..UZS151,157199508

main16711-50080i1UZFE..UZS155199511

main16711-54540i2LTE..LS151199508

main16711-54550i2LTE..LS151199508

main16711-70140i1G#..GS151199508-200108

16701ACLIP(FOR FAN SHROUD)

main90468-05109i2JZGE..JZS155..A,E,ROYG;1JZGE,2JZGE..JZS151,155..SED..ROY199508

main90468-06013i1G#..GS151199508-200108

main90468-06073i1JZGE..JZS151..SALEX;1JZGE,2JZGE..JZS153,157;1JZGE,2JZGE..JZS151,155..HT..(ROY,ROYEX,ROYT)199508

16701BCUSHION, FAN SHROUD

main90541-11002i1G#..GS151199508-200108

16712SHROUD, FAN, NO.2

main16702-46010i2JZGE..JZS155..ROYG;1JZGE,2JZGE..JZS151,155..SED..ROY199508

main16702-46030i2JZGE..JZS155..A,E199508

main16702-46040i1JZGE..JZS151..SALEX;1JZGE,2JZGE..JZS153,157;1JZGE,2JZGE..JZS151,155..HT..(ROY,ROYEX,ROYT)199508

main16712-50030i1UZFE..UZS15#199508

main16712-70070i1G#..GS151199508-200108

main16712-75010i2LTE..LS151199508

16832SEAL, FAN SHROUD

main16832-70030i1G#..GS151199508-200108

1903

2211

8716

9010108114

main90101-08114

9011906683

main90119-06683

9011908729

main90119-08729

9017906045

main90179-06045

9017906070

main90179-06070

9017906154

main90179-06154

9017908150

main90179-08150

9017908240

main90179-08240

9161160640

main91611-60640

51 parts on this diagram · 15 diagrams in section
