WATER PUMP

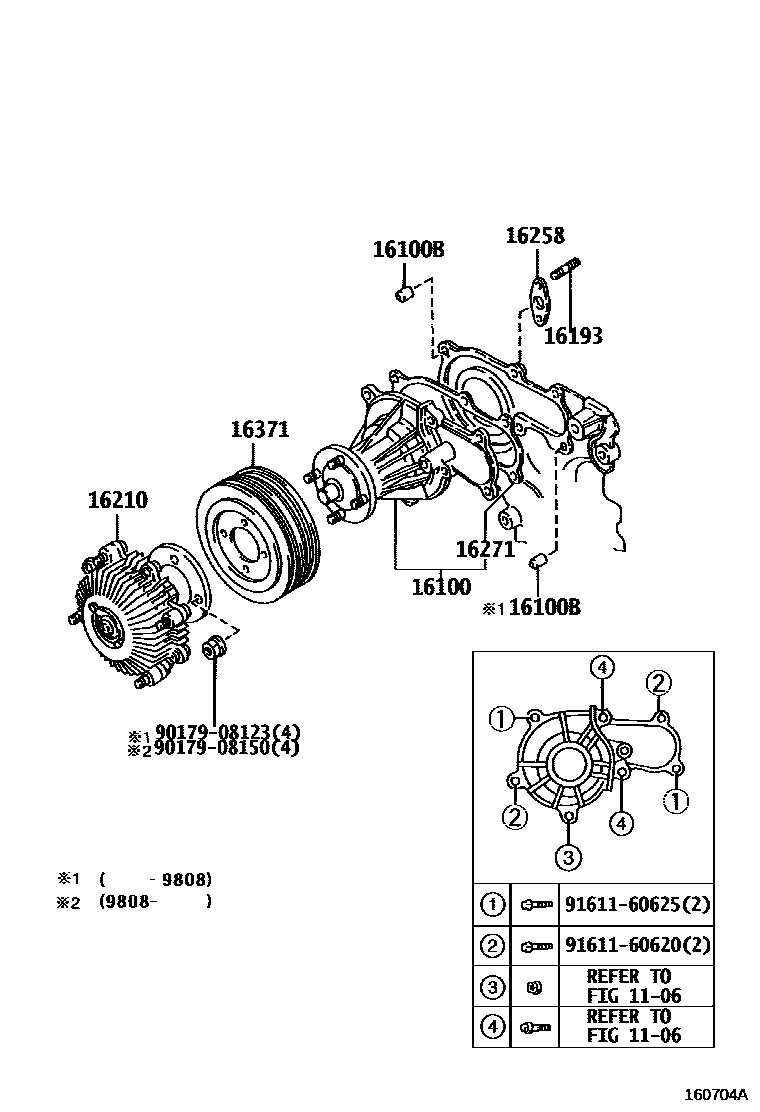

Parts diagram
1106
16100PUMP ASSY, ENGINE WATER
main16100-49816i199508-199609
sub16100-49837
main16100-49836i199508-199911
sub16100-49837
main16100-49836i199711-199808
2JZGE *(W)
sub16100-49837
main16100-49865i199609-199911
sub16100-49866
main16100-49866i199911-200006
sub16100-49867
main16100-49867i200006-200108
sub16100-49868
main16100-50022i199508-199707
sub16100-50023
main16100-59155i199508-199701
sub16100-59255
main16100-59255i199701
sub16100-59256
main16100-59275i199707
sub16100-59276
main16100-79116i199508-199803
sub16100-79117
sub90119-08B68
main16100-79117i199803-199808
main16100-79145i199512-200102
sub16100-79146
main16100-79285i199808-199909
16100BPIN, RING(FOR WATER PUMP SET)
main16159-70040i199508-200102
main90253-11021i199508
16193BOLT, STUD(FOR WATER PUMP COVER)
main16192-70010i199508-199909
main16193-46030i199508-199909
16210COUPLING ASSY, FLUID
main16210-46040i199508-199708
sub16210-46041
main16210-46041i199708-199909
sub16210-46042
main16210-46041i199711-199808
2JZGE *(W)
sub16210-46042
main16210-46050i199609-199707
sub16210-46051
main16210-46051i199707-199909
sub16210-46052
main16210-46052i199909
main16210-50020i199508-199810
sub16210-50021
main16210-50021i199810
main16210-54130i199508
main16210-70040i199508-199808
main16210-70080i199512-200102
main16210-70090i199808-199909
16258GASKET(FOR HEATER RETURN)
main16258-70020i199508-199909
16271GASKET, WATER PUMP
main16124-70041i199508-199909
main16271-50010i199707
main16271-54020i199508
sub16271-54030
16371PULLEY, FAN
main16371-46020i199508-199609
main16371-46020i199711-199808
2JZGE *(W)
main16371-46020i199609-199911
main16371-46030i199609-199911
main16371-50030i199508
main16371-54030i199508
main16371-70060i199508-199909
sub16371-70061
main16371-70070i199512-200102
9017908123
main90179-08123
9017908150
main90179-08150
9161160620
main91611-60620
9161160625
main91611-60625

12 parts on this diagram · 5 diagrams in section
