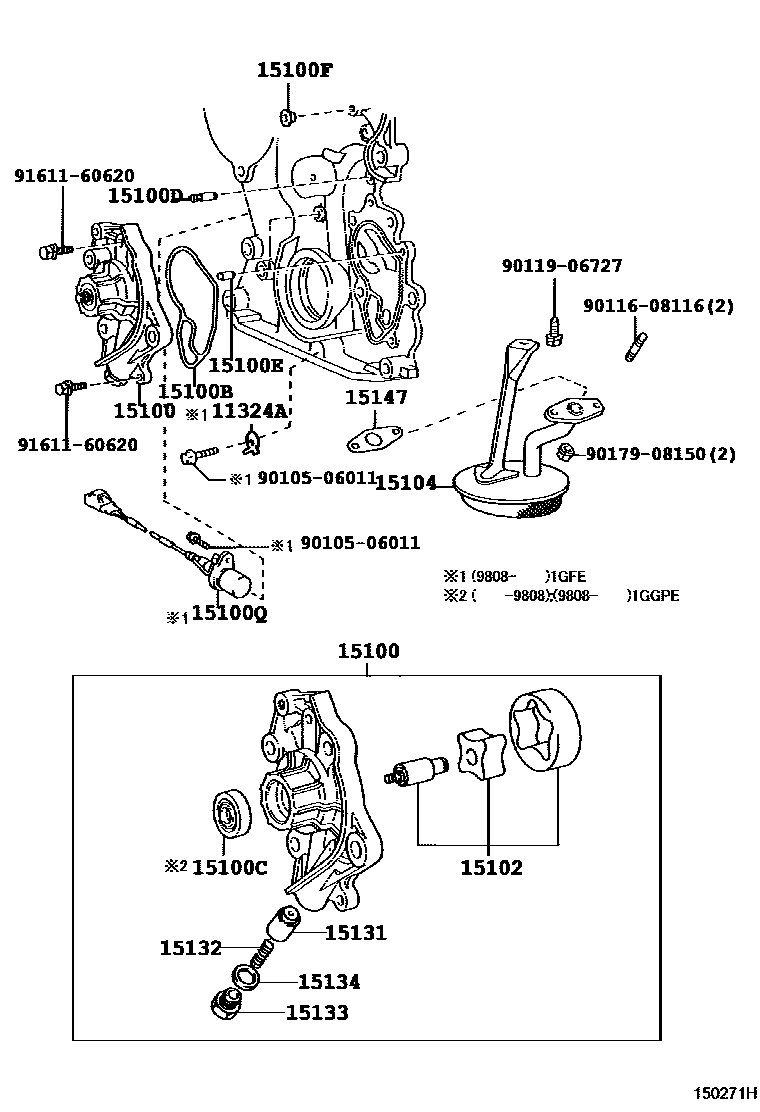

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

11324APLATE, TIMING BELT

main11324-46030i1JZGE,2JZGE..JZS15#199909

main11324-70020i1GFE..GS151199909

15100PUMP ASSY, OIL

main15100-46041i1JZGE..JZS151199508-199602

main15100-46042i1JZGE..JZS151199602-199609

main15100-46060i2JZGE..JZS155199508-199607

main15100-46070i1JZGE..JZS153199512-199609

sub11444-46010

sub91631-60616

main15100-46090i1JZGE,2JZGE..JZS151,155199909-200105

main15100-46091i1JZGE,2JZGE..JZS151,155200105

main15100-46100i1JZGE,2JZGE..JZS153,157199609-199909

main15100-50022i1UZFE..UZS15#199508-199707

main15100-50040i1UZFE..UZS15#199707

main15100-70030i1GFE..GS151199508-199808

main15100-70040i1GGPE..GS151199512-200102

main15100-70050i1GFE..GS151199909

15100BRING, O(FOR OIL PUMP)

main15188-70010i1GFE..GS151199508-199808

main15188-70050i1GGPE..GS151199512-200102

main15188-70060i1GFE..GS151199909

main96721-24022i1JZGE,2JZGE..JZS15#199508

N0.1

main96721-24025i1UZFE..UZS15#199508

main96721-24031i1JZGE,2JZGE..JZS15#199508

15100CSEAL(FOR OIL PUMP)

main15165-70040i1GGPE..GS151199512-200102

main90029-21005i1GFE..GS151199508-199808

main90311-43004i1UZFE..UZS15#199508-199712

main90311-43006i1UZFE..UZS15#199712

15100DPIN(FOR OIL PUMP SET)

main15182-70010i1GFE..GS151199508-199808

15100EPIN, STRAIGHT (FOR OIL PUMP SET)

main15181-70010×2i1G#..GS151199508-199909

15100FBUSH (FOR OIL PUMP)

main90029-38302i1G#..GS151199508-199808

15100QSENSOR, CRANK POSITION

main90919-05023i2JZGE..JZS155199508-199609

15102ROTOR SET, OIL PUMP

main15102-70011i1GFE..GS151199508-199808

main15102-70020i1GGPE..GS151199512-200102

main15102-70050i1GFE..GS151199808-199909

15104STRAINER SUB-ASSY, OIL

main15104-46050i1JZGE..JZS153199512-199710

main15104-46051i1JZGE..JZS153199909

main15104-46060i1JZGE,2JZGE..JZS151,155199909

main15104-50021i1UZFE..UZS151,157199508-199707

main15104-50090i1UZFE..UZS155199511-199707

main15104-50100i1UZFE..UZS151,157199707

main15104-50110i1UZFE..UZS155199707

main15104-54150i2LTE..LS151199508-199909

main15104-70040i1G#..GS151199909

15131VALVE, OIL PUMP RELIEF

main15131-17010i1JZGE..JZS151,153199508-199609

main15131-24010i1G#..GS151199508-199909

main15131-46060i1JZGE,2JZGE..JZS15#199609-199909

main15131-54010i2LTE..LS151199508

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i1G#..GS151199909

main15132-46020i1JZGE..JZS151,153199508-199609

main15132-46060i1JZGE,2JZGE..JZS15#199909

main15132-54010i2LTE..LS151199508

main15132-62010i1UZFE..UZS15#199508-199707

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1JZGE,2JZGE..JZS15#199909

main15133-20010i1G#..GS151199909

main15133-54010i2LTE..LS151199508

15134GASKET, OIL PUMP RELIEF VALVE

main15134-67010i1GFE..GS151199808-199909

main15134-67020i1JZGE,2JZGE..JZS15#199508-199909

main15134-70030i1G#..GS151199508-199808

15147GASKET, OIL STRAINER

main15147-46010i1JZGE,2JZGE..JZS151,155199508-199909

main15147-46030i1JZGE,2JZGE..JZS153,157199512-199909

main15147-50010i1UZFE..UZS15#199508-199707

main15147-50011i1UZFE..UZS15#199707

main15147-70021i1G#..GS151199508-199808

main15147-70030i1G#..GS151199909

9010506011

main90105-06011

9011608116

main90116-08116

9011906727

main90119-06727

9017908150

main90179-08150

9161160620

main91611-60620

20 parts on this diagram · 5 diagrams in section
