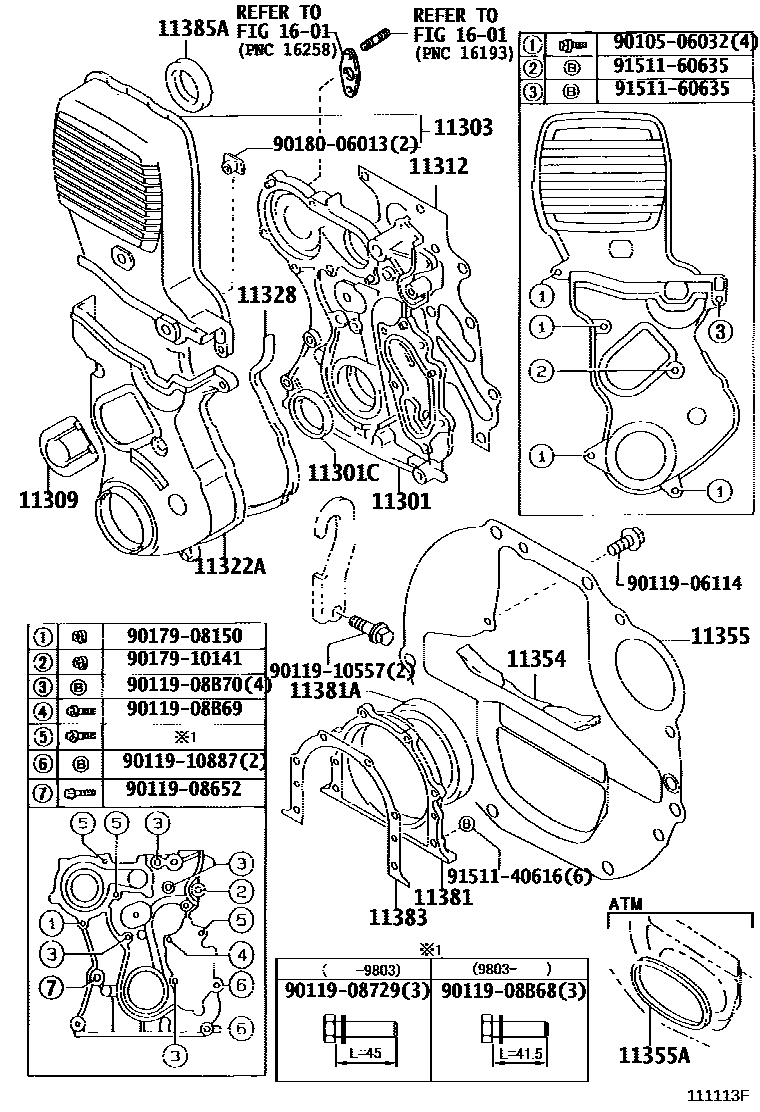

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0007 1 0008 1 0009 1

11301CASE SUB-ASSY, TIMING GEAR

main11311-54052i2LTE..LS151199508

main11311-70060i1GFE..GS151199808-199909

sub11311-70061

main11311-79035i1GFE..GS151199508-199808

main11311-79045i1GGPE..GS151199512-200102

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42030i2LTE..LS151199508-199605

sub90311-42031

main90311-42031i2LTE..LS151199605

main90311-45003i1GFE..GS151199508-199808

sub90311-45015

main90311-45010i1GGPE..GS151199512-200102

main90311-45015i1GFE..GS151199808

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-70020i1GFE..GS151199508-199808

main11303-70030i1GFE..GS151199808-199909

11309COVER SUB-ASSY, TIMING BELT, NO.4

main11325-70020i1GFE..GS151199808-199909

main11325-88300i1GFE..GS151199508-199808

11312GASKET, FRONT END PLATE

main11312-54021i2LTE..LS151199508

main11312-70014i1G#..GS151199508-199808

sub11312-70020

main11312-70020i1G#..GS151199808-199909

11322ACOVER, TIMING BELT, NO.1

main11302-46021i1JZGE..JZS151,153199508-199909

main11302-46031i1JZGE..JZS153..HT..ROY199711-199808

2JZGE *(W)

main11302-46031i2JZGE..JZS155,157199508-199909

main11302-50020i1UZFE..UZS15#199508-199707

main11302-50040i1UZFE..UZS15#199707

main11302-70030i1GFE..GS151199808-199909

main11302-70040i1GFE..GS151199508-199808

main11321-70040i1GGPE..GS151199512-200102

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-54021i2LTE..LS151199508

main11328-70030i1GFE..GS151199508-199808

main11328-70040i1GGPE..GS151199512-200102

main11328-70050i1GFE..GS151199808-199909

11354SEAL, FLYWHEEL HOUSING DUST

main11354-54010i2LTE..LS151199508

main11354-70010i1G#..GS151199508-199909

11355PLATE, REAR END

main11355-54040i2LTE..LS151199508

main11355-70010i1GFE..GS151..5F199512-199909

main11355-70020i1G#..GS151..4FC199508-199909

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01263i2LTE..LS151199508

main90950-01307i1G#..GS151199508

11381RETAINER, ENGINE REAR OIL SEAL

main11381-46010i1JZGE,2JZGE..JZS15#199508-199909

main11381-50020i1UZFE..UZS15#199508-199512

main11381-50021i1UZFE..UZS15#199512

main11381-54020i2LTE..LS151199508-199909

sub11381-54030

sub90116-08404

main11381-70010i1G#..GS151199508-199909

11381ASEAL, ENGINE REAR OIL

main90311-75007i1G#..GS151199508-199909

main90311-85007i2LTE..LS151199508-199703

main90311-85008i2LTE..LS151199703

main90311-90006i1JZGE,2JZGE..JZS15#199508-199909

main90311-95007i1UZFE..UZS15#199508-199712

sub90311-95012

main90311-95012i1UZFE..UZS15#199712

sub90311-95013

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-54030i2LTE..LS151199508

main11383-70011i1G#..GS151199508-199909

11385RETAINER, CAMSHAFT OIL SEAL

main11382-54020i2LTE..LS151199508

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-35013i1GFE..GS151199508-199707

sub90311-35022

main90311-35021i1GGPE..GS151199512-200102

main90311-35022i1GFE..GS151199508-199707

sub90311-35040

main90311-35035i1GFE..GS151199707-199808

main90311-40020i1JZGE,2JZGE..JZS15#199508-199909

1601

9010506032

main90105-06032

9011906114

main90119-06114

9011908652

main90119-08652

9011908729

main90119-08729

9011908B68

main90119-08B68

9011908B69

main90119-08B69

9011908B70

main90119-08B70

9011910557

main90119-10557

9011910887

main90119-10887

9017908150

main90179-08150

9017910141

main90179-10141

9018006013

main90180-06013

9151140616

main91511-40616

9151160635

main91511-60635

30 parts on this diagram · 8 diagrams in section
