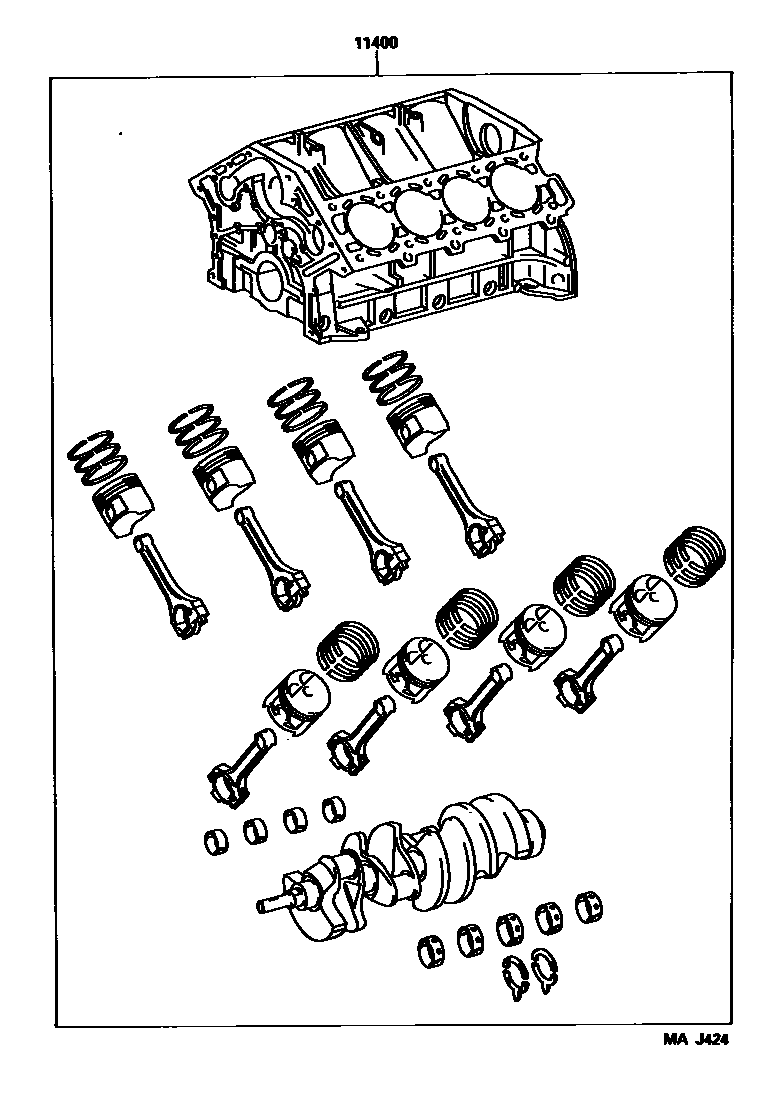

SHORT BLOCK ASSEMBLY

11400BLOCK ASSY, SHORT

main11400-49056i1JZGE..JZS151199508-199604

sub11400-49057

main11400-49057i1JZGE..JZS151199604-199609

sub11400-49058

main11400-49096i1JZGE..JZS153199512-199604

sub11400-49097

main11400-49097i1JZGE..JZS153199604-199609

main11400-49105i2JZGE..JZS155199508-199604

sub11400-49106

main11400-49106i2JZGE..JZS155199604-199707

main11400-49115i1JZGE..JZS151199609-200006

sub11400-49116

main11400-49116i1JZGE..JZS151200006-200108

main11400-49125i1JZGE..JZS153199609-200108

main11400-49145i2JZGE..JZS155199707-200108

main11400-49175i1JZGE..JZS153..HT..ROY199711-199808

2JZGE *(W)

main11400-49175i2JZGE..JZS157199808-199909

main11400-50050i1UZFE..UZS151,157199508-199707

main11400-50070i1UZFE..UZS155199511-199707

main11400-50090i1UZFE..UZS151,157199707-199909

main11400-50100i1UZFE..UZS155199707-199909

main11400-54151i2LTE..LS151199508-199909

main11400-70090i1GFE..GS151199508-199805

sub11400-70091

main11400-70091i1GFE..GS151199805-199808

main11400-70111i1GGPE..GS151199512-199805

sub11400-70112

main11400-70112i1GGPE..GS151199805-199810

main11400-70120i1GFE..GS151199808-200108

main11400-70160i1GGPE..GS151199810-200102

1 parts on this diagram · 1 diagram in section
