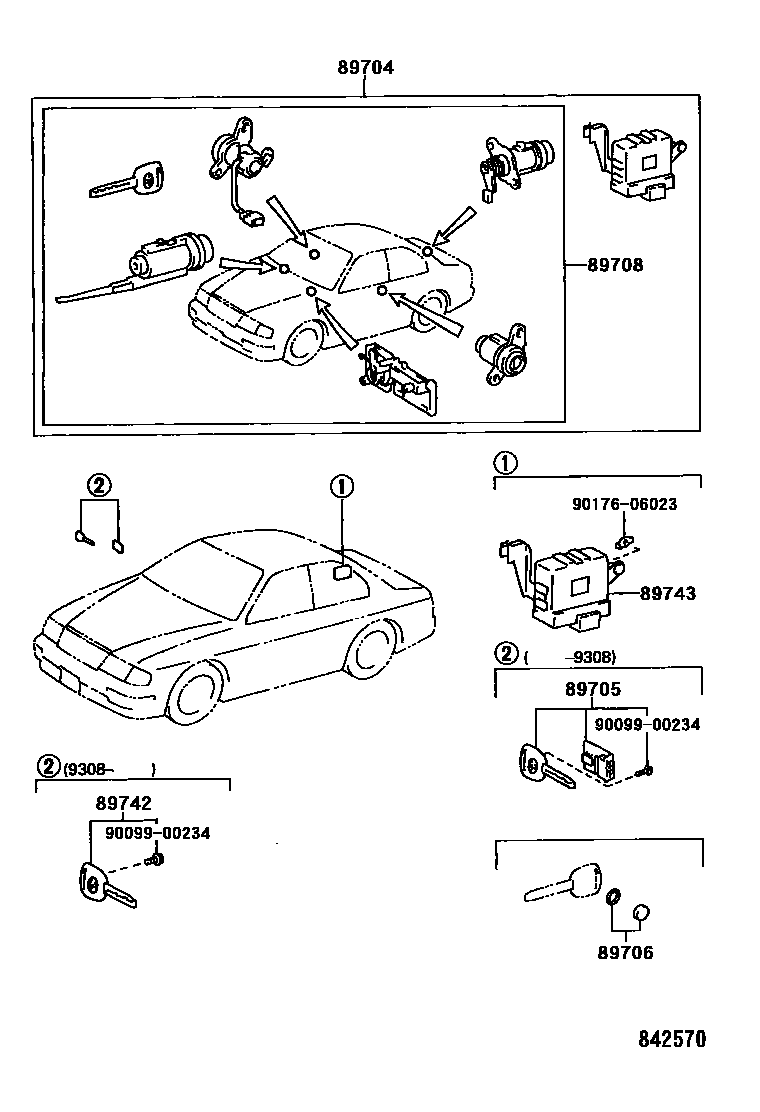

WIRELESS DOOR LOCK

0001 1 0002 1

89704CONTROL SET, WIRELESS DOOR LOCK

main89704-30050iJZS149,UZS141199110-199210

sub89704-30051

main89704-30051iJZS147,149,UZS141,143,147199210-199503

sub89708-30020

main89704-30070iJZS141..SSL199305-199307

sub89708-30150

main89704-30070iJZS141,143,145..ROY,ROYG,ROYT199110-199308

sub89708-30150

main89704-30100iUZS145199210-199503

sub89708-30020

main89704-30130iGS141,JZS143,145;JZS141..ROY,ROYT199308-199503

sub89708-30030

main89704-30130iJZS141..ROYT199501

sub89708-30030

89705TRANSMITTER, DOOR CONTROL

main89705-30030iJZS149,UZS141199110-199210

sub89705-30031

main89705-30031iJZS147,149,UZS14#199210-199508

main89705-30050iJZS141..SSL199305-199307

main89705-30050iJZS141,143,145..ROY,ROYG,ROYT199110-199308

89706BATTERY SET, TRANSMITTER

main89706-50010iJZS141..ROYT199501

sub89745-48020

sub90151-20002

sub90301-14005

main89706-50010iJZS141..SSL199305-199307

sub89745-48020

sub90151-20002

sub90301-14005

main89706-50010iJZS14#,UZS14#..A,B,C,ROY,ROYG,ROYT199110-199508

sub89745-48020

sub90151-20002

sub90301-14005

89708CYLINDER SET, WIRELESS DOOR LOCK

main89708-30020iJZS147,149,UZS14#199503-199508

main89708-30030iGS141,JZS143,145;JZS141..ROY,ROYT199503-199508

89742TRANSMITTER, DOOR CONTROL

main89742-30080iJZS141,143,145..ROY,ROYG,ROYT199308-199508

main89742-30080iJZS141..ROYT199501

89743RECEIVER, DOOR CONTROL

main89741-30100iGS141199501

main89741-30100iJZS141,143,145..ROY,ROYG,ROYT199308-199508

main89743-30020iJZS147,149,UZS141,143,147199110-199508

main89743-30040iJZS141,143,145..ROY,ROYG,ROYT199110-199308

main89743-30040iJZS141..SSL199305-199307

main89743-30070iUZS145199210-199508

9009900234

main90099-00234

9017606023

main90176-06023

8 parts on this diagram · 2 diagrams in section
