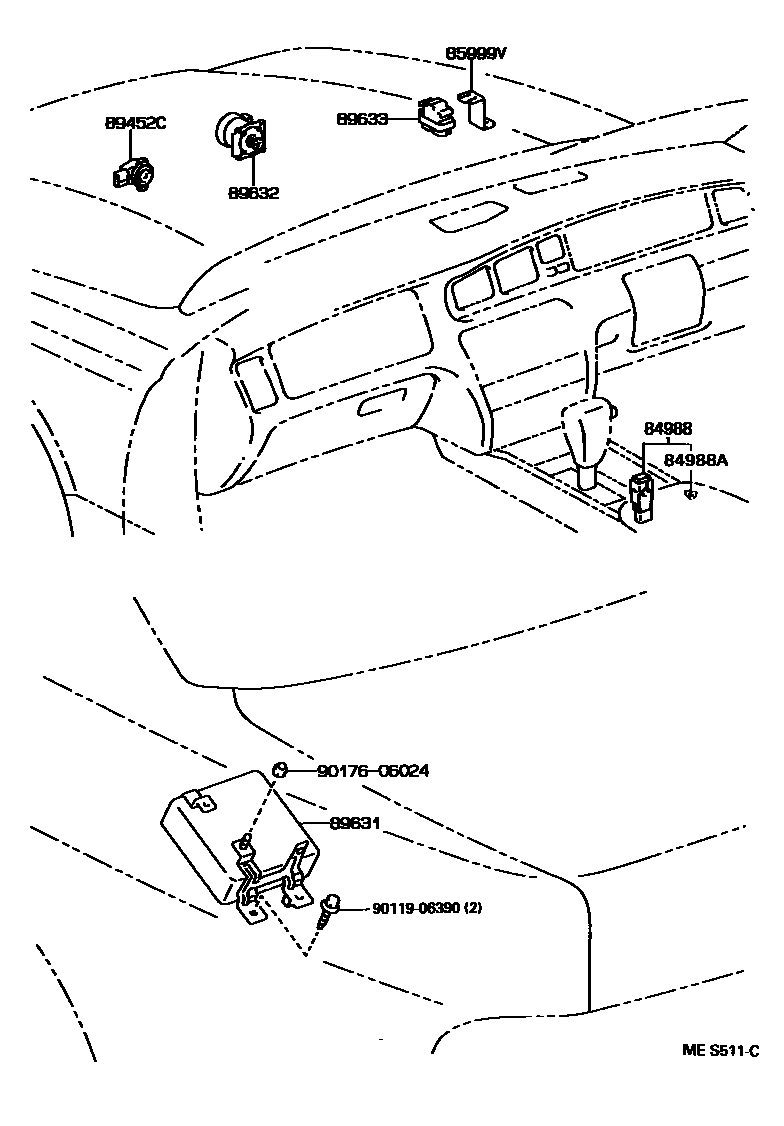

TRACTION CONTROL

0001 1 0002 1 0003 1

84988SWITCH, TRACTION CONTROL

main84988-30030iJZS14#,LS141,UZS141,147199110-199508

84988ABULB, TRACTION CONTROL SWITCH

main84999-10640iJZS14#,LS141,UZS141,147199110-199508

85999VBRACKET, RELAY

main85999-30340iJZS141,143,145199110-199508

89452CSENSOR, THROTTLE POSITION

main89452-22090iJZS141199110-199508

main89452-33010iJZS143,145,147,149199110-199408

sub89452-22090

sub89452-32060

main89452-50010iUZS141199110-199210

sub89452-50020

main89452-50020iUZS141199210-199508

89631COMPUTER, TRACTION CONTROL

main89631-30040iJZS141,143,145199110-199508

main89631-30060iLS141199110-199508

main89631-30080iJZS147,149,UZS141,147199110-199508

89632MOTOR, TRACTION THROTTLE VALVE

main89632-22020iJZS141199110-199508

main89632-24010iJZS143,145,147,149199110-199508

main89632-50010iUZS141199110-199210

sub89632-50020

main89632-50020iUZS141,147199210-199508

89633RELAY, TRACTION CONTROL

main89633-24010iJZS147,149,UZS14#199110-199508

main89633-30020iJZS141,143,145199110-199508

9011906390

main90119-06390

9017606024

main90176-06024

9 parts on this diagram · 3 diagrams in section
