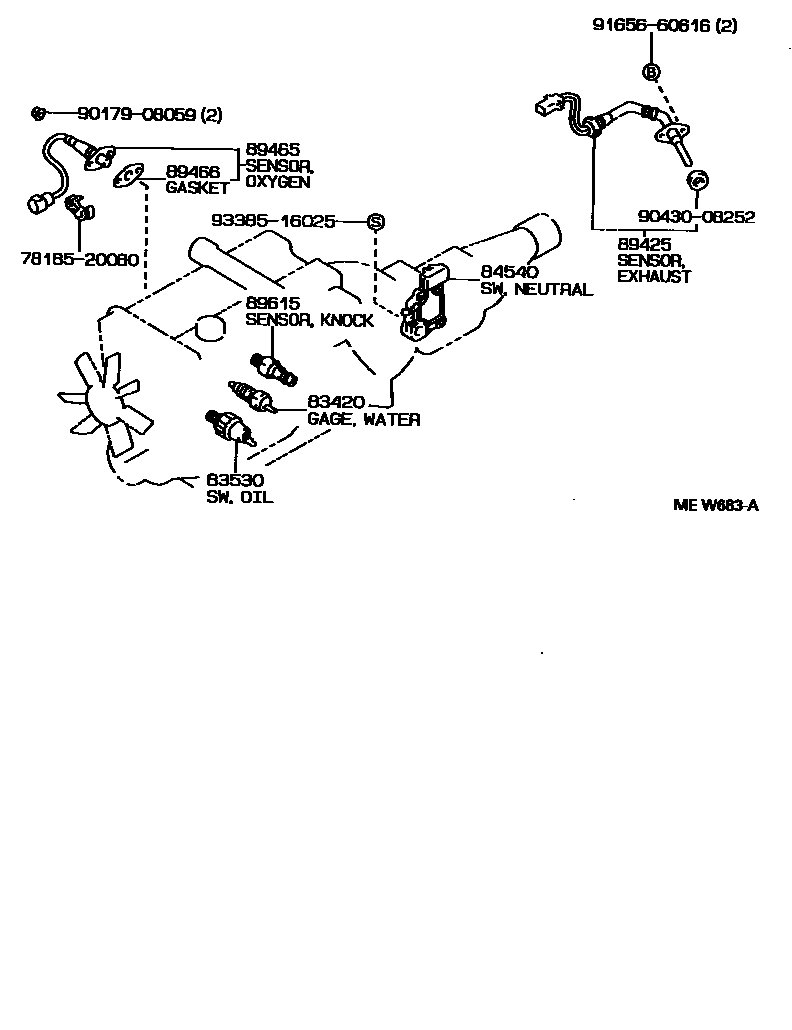

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 0006 1ENGINE ROOM 0007 1INSTRUMENT PANEL SWITCH 0008 1INSTRUMENT PANEL SWITCH 0009 1COWL RH 0010 1COWL RH 0011 1COWL LH 0012 1COWL LH 0013 1JUNCTION BLOCK 0014 1COMBINATION SWITCH 0015 1COMBINATION SWITCH 0016 1ROOF,FRONT DOOR,FRONT SEAT & 0017 1ROOF,FRONT DOOR,FRONT SEAT & 0018 1REAR DOOR,REAR SEAT & LUGGAGE0019 1REAR DOOR,REAR SEAT & LUGGAGE

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iUZS141199110-199210

main83420-16040iGS141,JZS14#,LS141199208-199508

main83420-16040iGS141,JZS14#,LS141199308-199508

main83420-20020iJZS143;JZS141,145,149..A,B,ROY,ROYG,SALEX,SSL199110-199211

main83420-20030iLS141;JZS141,147..A,ROYT199208-199308

sub83420-16040

main83420-20040iUZS14#199210-199508

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-30060iLS141199110-199508

sub83530-60030

main83530-30080iJZS14#199110-199211

sub83530-60040

main83530-30090iJZS14#199211-199308

sub83530-60020

main83530-30090iGS141,JZS14#199211-199508

sub83530-60020

main83530-30090iGS141,JZS14#,UZS14#199208-199508

sub83530-60020

84540SWITCH ASSY, NEUTRAL START

main84540-30270iJZS14#,LS141,UZS14#199308-199508

main84540-30270iJZS14#,LS141,UZS14#199110-199308

main84540-30280iJZS14#,LS141,UZS14#199110-199308

sub84540-30270

main84540-30290iGS141199308-199508

main84540-30290iGS141199409-199508

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-39375iUZS141,147199110-199508

main89425-39385iUZS141,147199110-199508

main89425-39395iJZS147,149199110-199508

main89425-39405iJZS141,143,145199110-199308

main89425-39425iUZS143,145199210-199508

NO.1 L=1180

main89425-39435iUZS143,145199210-199508

NO.2 L=1240

main89425-39445iGS141,JZS141,143,145199308-199508

89465SENSOR, OXYGEN

main89465-24040iUZS141199110-199308

sub89465-28200

main89465-29445iJZS141199110-199508

main89465-39555iJZS143,145,147,149199110-199508

REAR

main89465-39565iJZS143,145,147,149199110-199508

FRONT

main89465-39575iGS141199308

main89465-50040iUZS14#199210-199508

89466GASKET, OXYGEN SENSOR

main89466-20020iJZS141199110-199508

main89466-30030iGS141199308

89615SENSOR, KNOCK CONTROL

main89615-20030iGS141199308

sub89615-32040

main89615-22040iJZS14#199308-199508

main89615-22040iJZS14#199110-199508

main89615-50010iUZS14#199110-199508

7818520080SHAFT, ACCELERATOR PEDAL SUPPORT

main78185-20080

9017908059

main90179-08059

9043008252

main90430-08252

9165660616

main91656-60616

9338516025

main93385-16025

12 parts on this diagram · 19 diagrams in section
