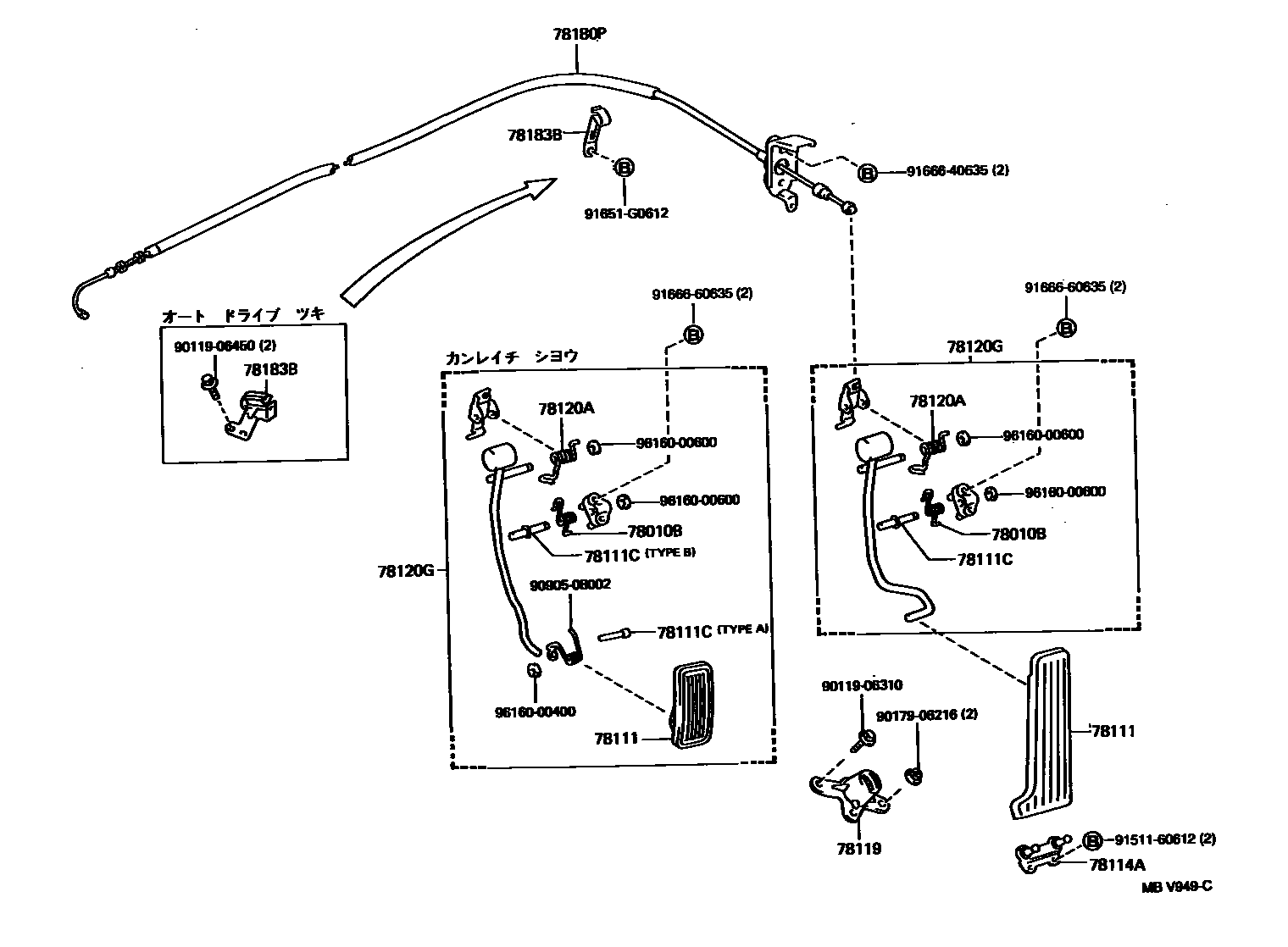

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78010BSPRING, TORSION (FOR ACCELERATOR LINK)

main90508-18016iJZS143..ROYT199110-199508

main90508-18103iJZS147,149,UZS14#199110-199508

78111PEDAL, ACCELERATOR

main78111-30080iGS141,JZS141,143,145,LS141..4FC199110-199508

sub78111-30081

main78111-30090iGS141,JZS141,143,145,LS141..4FC199110-199508

main78111-30100iJZS143..ROYT199110-199508

main78111-30110iJZS147,149,UZS14#199110-199508

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05043iJZS143..ROYT199110-199508

main90249-08116iJZS147,149,UZS14#199110-199308

main90249-08116iJZS147,149,UZS14#199308-199508

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78114-30050iGS141,JZS141,143,145,LS141..4FC199110-199508

main78114-30060iJZS147,149,UZS14#199110-199508

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-30070iJZS147,149199110-199508

78120ASPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)

main90508-18016iGS141,JZS141,143,145,LS141..4FC199110-199508

main90508-23026iGS141,JZS141,143,145,LS141..4FC..(HTWC,TDE,TWC)199110-199508

main90508-29022iJZS143,147,149,UZS14#..A,B,C,ROYT199110-199508

78120GROD ASSY, ACCELERATOR PEDAL

main78120-30541iGS141,JZS141,143,145,LS141..4FC..(HTWC,TDE,TWC)199110-199508

main78120-30551iGS141,JZS141,143,145,LS141..4FC199110-199508

main78120-30730iLS141199110-199308

main78120-30750iJZS147,149,UZS14#199110-199508

main78120-30760iJZS147,149,UZS14#199110-199508

main78120-30770iJZS143..ROYT199110-199508

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-3A310iUZS14#199110-199508

main78180-3A320iJZS147,149199110-199508

main78180-3A370iLS141199110-199508

main78180-3A380iGS141199308-199508

main78180-3A390iJZS143..ROYT199110-199508

main78180-3A460iJZS141,143,145..4FC199110-199508

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-30100iJZS149..A199110-199508

main78183-30110iJZS149..A199110-199508

9011906310

main90119-06310

9011906450

main90119-06450

9017906216

main90179-06216

9090508002

main90905-08002

9151160612

main91511-60612

91651G0612

main91651-G0612

9166640635

main91666-40635

9166660635

main91666-60635

9616000400

main96160-00400

9616000600

main96160-00600

19 parts on this diagram · 4 diagrams in section
