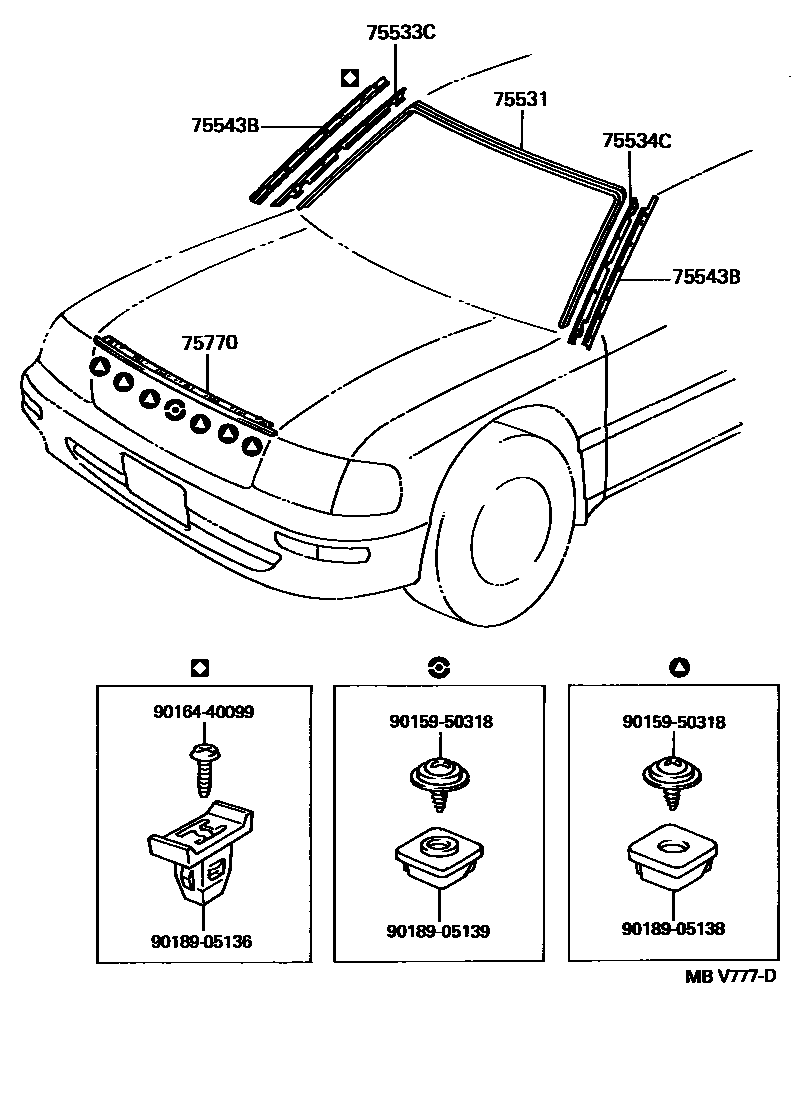

FRONT MOULDING

0001 1 0002 1

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-30220iJZS147,149,UZS14#199110-199508

sub75531-30320

main75531-30251iGS141,JZS141,143,145,LS141199110-199508

sub75531-30310

75533CGARNISH, FRONT PILLAR, OUTER RH

main75533-30280iJZS147,149,UZS14#199110-199508

main75533-30290iGS141,JZS141,143,145,LS141199110-199508

main75549-30110iJZS149,UZS141199110-199508

main75549-30120iJZS141,143,145,LS141199110-199508

75534CGARNISH, FRONT PILLAR, OUTER LH

main75534-30250iJZS147,149,UZS14#199110-199508

main75534-30260iGS141,JZS141,143,145,LS141199110-199508

75543BCOVER, WINDSHIELD MOULDING JOINT, LOWER

main75543-30020iJZS147,149,UZS14#199110-199508

main75543-30030iGS141,JZS141,143,145,LS141199110-199508

main75544-30020iJZS147,149,UZS14#199110-199508

main75544-30030iGS141,JZS141,143,145,LS141199110-199508

75770MOULDING ASSY, HOOD, FRONT

main75770-30240iJZS141,143,145,LS141199110-199308

main75770-30280iGS141,JZS141,143,145,LS141199308-199508

9015950318

main90159-50318

9016440099

main90164-40099

9018905136

main90189-05136

9018905138

main90189-05138

9018905139

main90189-05139

10 parts on this diagram · 2 diagrams in section
