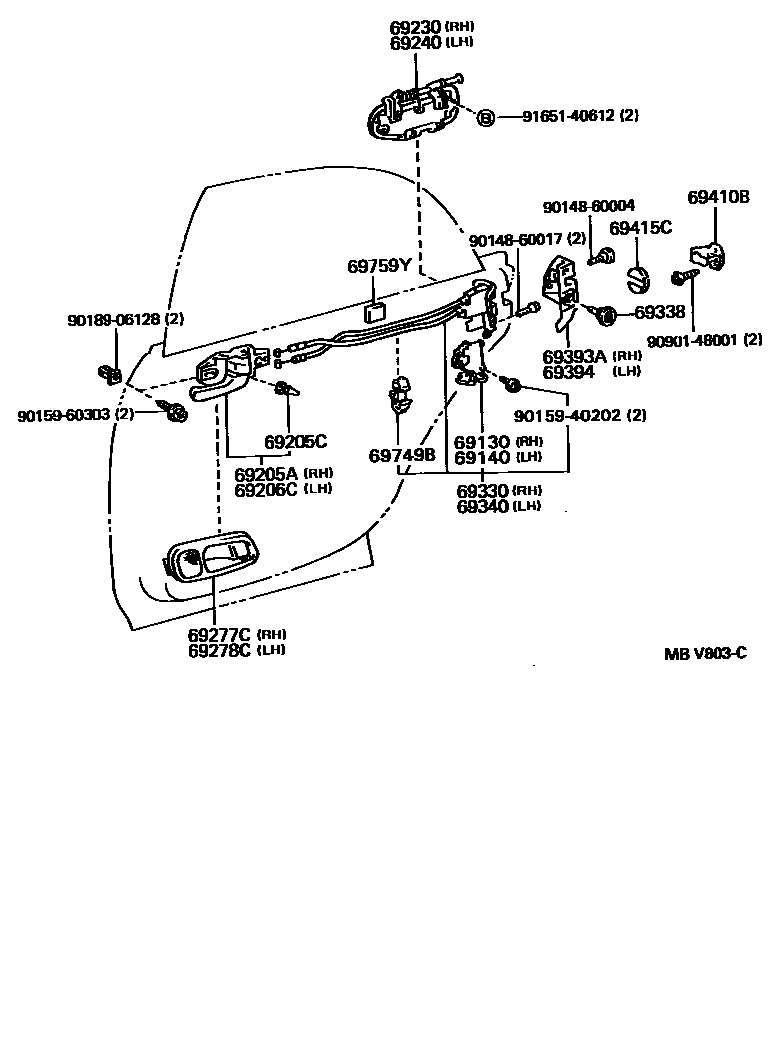

REAR DOOR LOCK & HANDLE

0001 1 0002 1

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-30080iJZS147,149,UZS14#199110-199508

main69130-30090iGS141,JZS141,143,145,LS141199110-199508

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-30080iJZS147,149,UZS14#199110-199508

main69140-30090iGS141,JZS141,143,145,LS141199110-199508

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-30060-B0iJZS141,143,145,LS141199110-199308

SHADOW GRAY,TRIM1#

sub69205-30060

main69205-30060-E0iJZS14#,LS141,UZS141..4FC199110-199308

QUARTZ,TRIM4#

sub69205-30060

main69205-30060-J0iJZS141,143,145,149,LS141,UZS14#..A,B,C,ROY,ROYG,SALEX,SSL199110-199308

DK.BLUE,TRIM8#

sub69205-30060

main69205-30080-B0iGS141,JZS141,143,145,LS141199308-199508

SHADOW GRAY,TRIM1#

sub69205-30080

main69205-30080-E0iGS141,JZS141,143,145,LS141199308-199508

DK.ROSE,TRIM4#

sub69205-30080

main69205-30080-J0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199308-199508

DK.BLUE,TRIM8#

sub69205-30080

main69205-30090-B0iJZS147,149,UZS14#199307-199308

SHADOW GRAY,TRIM1#

main69205-30090-E0iJZS147,149,UZS14#199307-199308

QUARTZ,TRIM4#

main69205-30090-J0iJZS149,UZS14#199307-199308

DK.BLUE,TRIM8#

main69205-30100-B0iJZS147,149,UZS14#199308-199508

SHADOW GRAY,TRIM1#

main69205-30100-E0iJZS147,149,UZS14#199308-199508

DK.ROSE,TRIM4#

main69205-30100-J0iJZS149,UZS141,143,145199308-199508

BLUE,TRIM8#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04018iJZS14#,LS141,UZS14#199110-199508

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-30060-B0iJZS141,143,145,LS141199110-199308

SHADOW GRAY,TRIM1#

sub69206-30060

main69206-30060-E0iJZS141,143,145,LS141199110-199308

QUARTZ,TRIM4#

sub69206-30060

main69206-30060-J0iJZS141,143,145,149,LS141,UZS14#..A,B,C,ROY,ROYG,SALEX,SSL199110-199308

DK.BLUE,TRIM8#

sub69206-30060

main69206-30080-B0iGS141,JZS141,143,145,LS141199308-199508

SHADOW GRAY,TRIM1#

sub69206-30080

main69206-30080-E0iGS141,JZS141,143,145,LS141199308-199508

DK.ROSE,TRIM4#

sub69206-30080

main69206-30080-J0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199308-199508

DK.BLUE,TRIM8#

sub69206-30080

main69206-30090-B0iJZS147,149,UZS14#199307-199308

SHADOW GRAY,TRIM1#

main69206-30090-E0iJZS147,149,UZS14#199307-199308

QUARTZ,TRIM4#

main69206-30090-J0iJZS149,UZS14#199307-199308

DK.BLUE,TRIM8#

main69206-30100-B0iJZS147,149,UZS14#199308-199508

SHADOW GRAY,TRIM1#

main69206-30100-E0iJZS147,149,UZS14#199308-199508

DK.ROSE,TRIM4#

main69206-30100-J0iJZS149,UZS141,143,145199308-199508

DK.BLUE,TRIM8#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-30110-A0iJZS147,149,UZS14#199110-199308

WARM GRAY PEARL MICA,046

main69230-30110-A1iUZS141199205-199209

main69230-30110-B0iJZS147,149,UZS14#199110-199308

DK.BL.GRAY ME,183

main69230-30110-C0iJZS147,149,UZS14#199110-199308

BLACK,202

main69230-30110-D0iJZS147,149,UZS14#199110-199308

DK.MAUVE M.I.0,3K8

main69230-30110-G0iJZS147,149,UZS14#199110-199308

DK GREEN M,6K2

main69230-30110-J0iJZS147,149,UZS14#199110-199308

DK.BLUE MICA FP,8J5

main69230-30130-A0iJZS141,143,145..ROY,ROYG199110-199204

WARM GRAY PEARL MICA,046

main69230-30130-A0iJZS143..ROY199205-199209

main69230-30130-A0iJZS141,143,145..ROY,ROYG199204-199210

WARM GRAY PEARL MICA,046 ,29T

main69230-30130-A0iJZS141,143,LS141..ROYT,SSL199204-199210

WARM GRAY PEARL MICA,29T

main69230-30130-A1iJZS141,143,145,LS141..4FC199110-199210

SUPER WHITE 4,050

main69230-30130-B0iJZS141,143,145,LS141199110-199210

BL.GRAY ME,182

main69230-30130-C0iJZS141,143,145,LS141..4FC199110-199210

BLACK,202

main69230-30130-G0iJZS141,143,145,LS141..4FC199110-199210

DK GREEN M,6K2

main69230-30130-H0iJZS141,143,145,LS141199110-199210

DK.T0RQU0ISE.MC,742

main69230-30130-H0iJZS143..ROY199205-199209

main69230-30130-J0iJZS141,143,145..ROY,ROYG199110-199210

DK.BLUE MICA FP,8J5

main69230-30140iGS141,JZS141,143,145,LS141199210-199508

main69230-30150iJZS147,149,UZS14#199308-199508

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-30110-A0iJZS147,149,UZS14#199110-199308

WARM GRAY PEARL MICA,046

main69240-30110-A1iUZS141199205-199209

main69240-30110-B0iJZS147,149,UZS14#199110-199308

DK.BL.GRAY ME,183

main69240-30110-C0iJZS147,149,UZS14#199110-199308

BLACK,202

main69240-30110-D0iJZS147,149,UZS14#199110-199308

DK.MAUVE M.I.0,3K8

main69240-30110-G0iJZS147,149,UZS14#199110-199308

DK GREEN M,6K2

main69240-30110-J0iJZS147,149,UZS14#199110-199308

DK.BLUE MICA FP,8J5

main69240-30130-A0iJZS141,143,145..ROY,ROYG199204-199210

WARM GRAY PEARL MICA,046 ,29T

main69240-30130-A0iJZS141,143,145..ROY,ROYG199110-199204

WARM GRAY PEARL MICA,046

main69240-30130-A0iJZS143..ROYT199204-199210

WARM GRAY PEARL MICA,29T

main69240-30130-A0iJZS143..ROY199205-199209

main69240-30130-A1iJZS141,143,145,LS141..4FC199110-199210

SUPER WHITE 4,050

main69240-30130-B0iJZS141,143,145,LS141199110-199210

BL.GRAY ME,182

main69240-30130-C0iJZS141,143,145,LS141..4FC199110-199210

BLACK,202

main69240-30130-G0iJZS141,143,145,LS141..4FC199110-199210

DK GREEN M,6K2

main69240-30130-H0iJZS141,143,145,LS141199110-199210

DK.T0RQU0ISE.MC,742

main69240-30130-H0iJZS143..ROY199205-199209

main69240-30130-J0iJZS141,143,145..ROY,ROYG199110-199210

DK.BLUE MICA FP,8J5

main69240-30140iGS141,JZS141,143,145,LS141199210-199508

main69240-30150iJZS147,149,UZS14#199308-199508

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69297-30010-B0iJZS147,149,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main69297-30010-E0iJZS147,149,UZS14#199110-199508

QUARTZ,TRIM4#

main69297-30010-J0iJZS149,UZS141,143,145199110-199508

DK.BLUE,TRIM8#

main69297-30020-B0iGS141,JZS141,143,145,LS141199110-199508

SHADOW GRAY,TRIM1#

main69297-30020-E0iGS141,JZS141,143,145,LS141199110-199508

QUARTZ,TRIM4#

main69297-30020-J0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199110-199508

DK.BLUE,TRIM8#

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69298-30010-B0iJZS147,149,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main69298-30010-E0iJZS147,149,UZS14#199110-199508

QUARTZ,TRIM4#

main69298-30010-J0iJZS149,UZS141,143,145199110-199508

DK.BLUE,TRIM8#

main69298-30020-B0iGS141,JZS141,143,145,LS141199110-199508

SHADOW GRAY,TRIM1#

main69298-30020-E0iGS141,JZS141,143,145,LS141199110-199508

QUARTZ,TRIM4#

main69298-30020-J0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199110-199508

DK.BLUE,TRIM8#

69330LOCK ASSY, REAR DOOR, RH

main69050-30340iJZS147,149,UZS14#199110-199508

main69050-30360iGS141,JZS141,143,145,LS141199110-199508

69338KNOB, CHILD PROTECTOR LOCK LEVER

main69338-30010iGS141,JZS14#,LS141,UZS14#199110-199508

69340LOCK ASSY, REAR DOOR, LH

main69060-30360iJZS147,149,UZS14#199110-199508

main69060-30380iGS141,JZS141,143,145,LS141199110-199508

69393ACOVER, REAR DOOR LOCK, OUTER RH

main69393-30010iJZS147,149,UZS14#199110-199508

main69393-30020iGS141,JZS141,143,145,LS141199110-199508

69394COVER, REAR DOOR LOCK, OUTER LH

main69394-30010iJZS147,149,UZS14#199110-199508

main69394-30020iGS141,JZS141,143,145,LS141199110-199508

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-30030iGS141,JZS14#,LS141,UZS14#199110-199508

69415CCOVER, DOOR LOCK STRIKER, REAR

main69415-30010iGS141,JZS14#,LS141,UZS14#199110-199508

69749BCLAMP, REAR DOOR LOCK LINK

main69749-30040iJZS147,149,UZS14#199110-199508

main69749-30050iJZS141,143,145,LS141199110-199508

69759YSILENCER, REAR DOOR LOCK LINK

main69759-30090iGS141,JZS14#,LS141,UZS14#199110-199508

9014860004

main90148-60004

9014860017

main90148-60017

9015940202

main90159-40202

9015960303

main90159-60303

9018906128

main90189-06128

9090148001

main90901-48001

9165140612

main91651-40612
