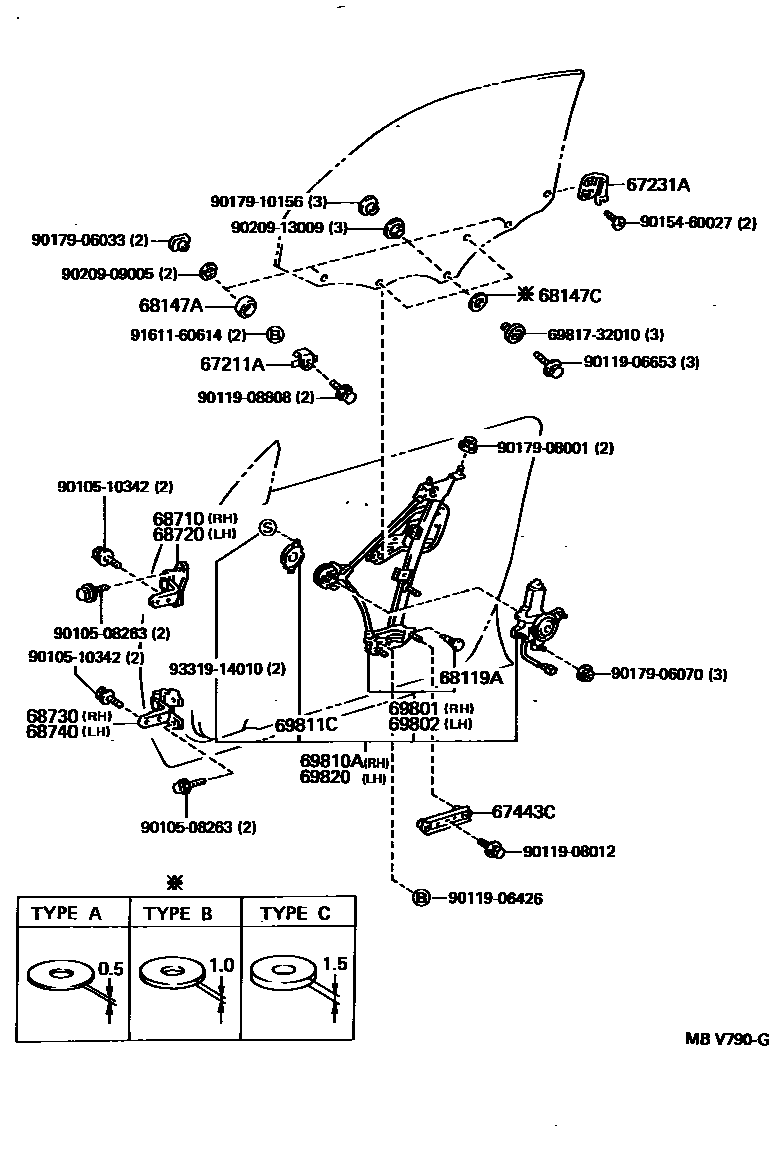

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67211-30070iGS141,JZS14#,LS141,UZS14#199110-199508

67231ASUPPORT, FRONT DOOR TRIM

main67235-30060iGS141,JZS14#,LS141,UZS14#199110-199508

main67236-30050iGS141,JZS14#,LS141,UZS14#199110-199508

67443CPLATE, FRONT DOOR WINDOW GUIDE, LOWER

main67443-30020iGS141,JZS14#,LS141,UZS14#199110-199508

68119ACUSHION, WINDOW REGULATOR DOOR GLASS BRACKET, NO.1

main90905-41003iGS141,JZS14#,LS141,UZS14#199206-199508

68147ASTOP, FRONT DOOR GLASS, UPPER

main68147-30020iGS141,JZS14#,LS141,UZS14#199110-199508

68147CWASHER, FRONT DOOR GLASS STOP

main90202-10024iGS141,JZS14#,LS141,UZS14#199110-199508

main90202-10025iGS141,JZS14#,LS141,UZS14#199110-199508

main90202-10026iGS141,JZS14#,LS141,UZS14#199110-199508

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-30130iJZS147,149,UZS14#199110-199508

main68710-30150iGS141,JZS141,143,145,LS141199110-199508

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-30050iJZS147,149,UZS14#199110-199508

main68720-30070iGS141,JZS141,143,145,LS141199110-199508

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-30100iJZS147,149,UZS14#199110-199508

main68730-30120iGS141,JZS141,143,145,LS141199110-199508

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68730-30100iJZS147,149,UZS14#199110-199508

main68730-30120iGS141,JZS141,143,145,LS141199110-199508

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-30200iJZS147,149,UZS14#199110-199508

main69801-30210iGS141,JZS141,143,145,LS141199110-199508

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-30200iJZS147,149,UZS14#199110-199508

main69802-30210iGS141,JZS141,143,145,LS141199110-199508

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-30340iJZS147,149,UZS14#199110-199508

main69810-30350iGS141,JZS141,143,145,LS141199110-199508

69811CPLATE, FRONT DOOR POWER WINDOW REGULATOR BASE

main69811-32050iGS141,JZS14#,LS141,UZS14#199110-199508

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-30270iJZS147,149,UZS14#199110-199508

main69820-30280iGS141,JZS141,143,145,LS141199110-199508

6981732010PLATE, QUARTER WINDOW REGULATOR BASE, RH

main69817-32010

9010508263

main90105-08263

9010510342

main90105-10342

9011906426

main90119-06426

9011906653

main90119-06653

9011908012

main90119-08012

9011908808

main90119-08808

9015460027

main90154-60027

9017906033

main90179-06033

9017906070

main90179-06070

9017908001

main90179-08001

9017910156

main90179-10156

9020909005

main90209-09005

9020913009

main90209-13009

9161160614

main91611-60614

9331914010

main93319-14010

31 parts on this diagram · 2 diagrams in section
