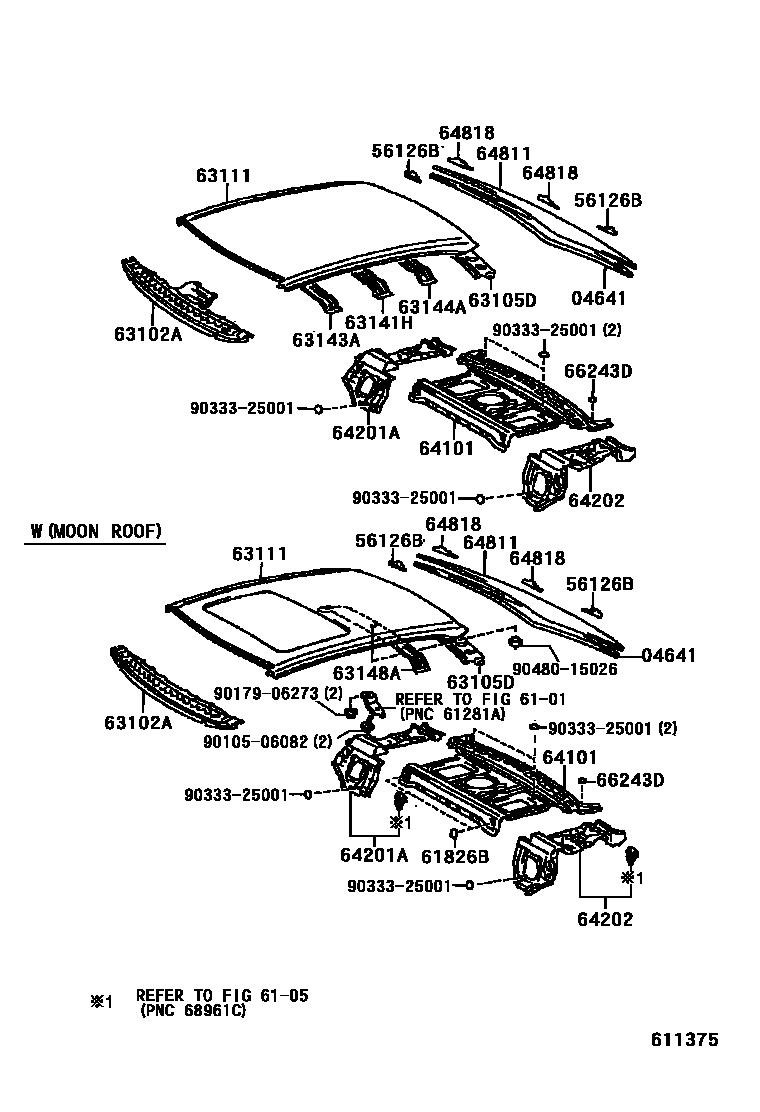

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1

04641DAM KIT, BACK WINDOW GLASS

main56117-30150iGS141,JZS141,143,145,LS141199308-199508

main56117-50020iJZS147,149,UZS14#199308-199508

56126BSPACER, WINDSHIELD GLASS, NO.2

main56126-30010×2iGS141,JZS14#,LS141,UZS14#199110-199508

6101

6105

61826BPLATE, NOISE CONTROL, NO.3

main61826-22020×2iJZS147,149,UZS14#199110-199508

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-30020iJZS147,149,UZS14#199110-199508

main63102-30030iJZS147,149,UZS14#199308-199508

main63102-30040iGS141,JZS141,143,145,LS141199110-199508

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-30010iJZS147,149,UZS14#199110-199508

main63105-30030iGS141,JZS141,143,145,LS141199110-199508

63111PANEL, ROOF

main63111-30230iJZS147,149,UZS14#199110-199508

main63111-30250iGS141,JZS141,143,145,LS141199110-199508

main63111-30901iJZS149,UZS14#199110-199308

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-30090iJZS147,149,UZS14#199110-199508

main63141-30100iGS141,JZS141,143,145,LS141199110-199508

63143AREINFORCEMENT, ROOF PANEL

main63143-30090iJZS147,149,UZS14#199110-199508

main63143-30100iGS141,JZS141,143,145,LS141199110-199508

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-30020iJZS147,149,UZS14#199110-199508

main63144-30030iGS141,JZS141,143,145,LS141199110-199508

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-30010iJZS149,UZS14#199110-199308

64101PANEL SUB-ASSY, UPPER BACK

main64101-30200iJZS147,UZS147199308-199508

main64101-30210iGS141,JZS141,143,LS141199110-199508

main64101-30220iJZS141..ROY199110-199308

main64101-30300iJZS147,UZS147199308-199508

64201AEXTENSION SUB-ASSY, PACKAGE TRAY, RH

main64201-30030iJZS147,UZS147199308-199508

main64201-30040iGS141,JZS141,143,145,LS141199110-199508

main64201-30060iJZS147,UZS147199308-199508

64202EXTENSION SUB-ASSY, PACKAGE TRAY, LH

main64202-30020iJZS147,149,UZS14#199110-199308

main64202-30030iGS141,JZS141,143,145,LS141199110-199508

main64202-30050iJZS147,UZS147199308-199508

64811GLASS, BACK WINDOW

main64801-30520iJZS147,UZS147199408-199508

main64801-30730iJZS149,UZS143,145199210-199408

main64801-30740iUZS143,145199408-199508

main64801-30750iUZS141199110-199210

main64801-30760iJZS149,UZS143,145..B,C199210-199308

main64801-30770iJZS141,143,LS141..ROY,SALEX,SSL199110-199308

main64801-30780iJZS141,LS141..SSL199110-199308

main64801-30810iJZS145199110-199308

main64801-30820iJZS145199110-199308

main64801-30830iJZS141,143..ROYT199110-199308

main64801-30840iJZS145199210-199308

main64801-30850iJZS141,LS141..ROYT,SSL199305-199307

main64801-3A030iJZS147,UZS147199210-199408

main64801-3A060iGS141,JZS141,143,LS141..ROY,SALEX,SSL199308-199508

main64801-3A070iJZS141,143,LS141..ROY,SALEX199308-199508

main64801-3A080iJZS141..ROY199308-199508

main64801-3A090iJZS141..ROY199308-199508

main64801-3A100iJZS141,143..ROYT199308-199508

main64801-3A110iJZS145199308-199508

main64801-3A120iJZS145199308-199508

main64801-3A130iJZS149,UZS141199408-199508

main64801-3A140iJZS149,UZS141199408-199508

64818SPACER, BACK WINDOW GLASS

main56115-30070iJZS14#,LS141,UZS141199110-199210

main56115-30090iGS141,JZS14#,LS141,UZS14#199310-199508

66243DPROTECTOR, REAR BODY, NO.1

main66243-20010×2iJZS147,149,UZS14#199110-199401

9010506082

main90105-06082

9017906273

main90179-06273

9033325001

main90333-25001

9048015026

main90480-15026

22 parts on this diagram · 3 diagrams in section
