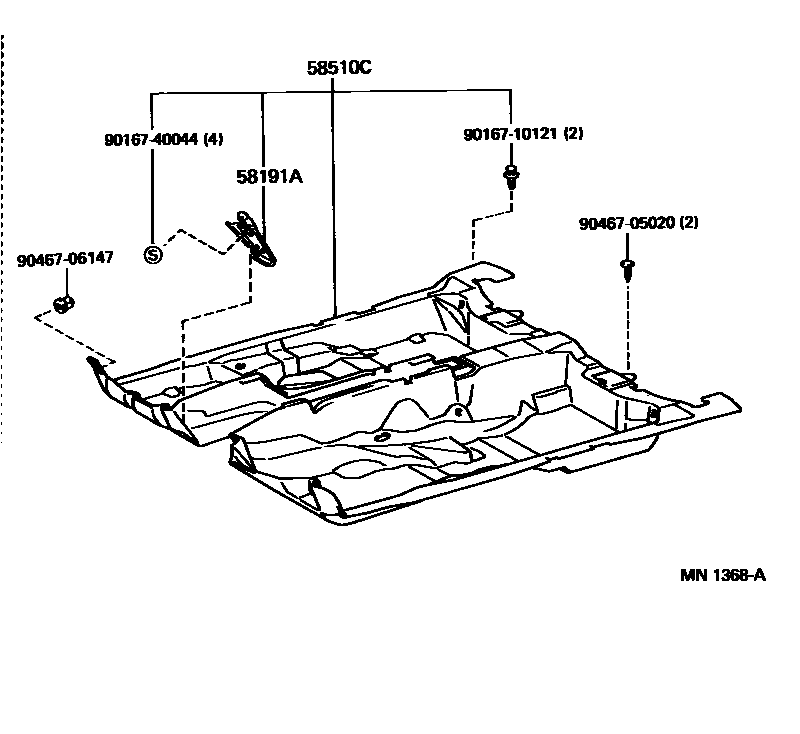

MAT & CARPET

0001 1 0002 1

58191AFOOTREST, FRONT FLOOR, RH

main58191-30030iJZS147,149,UZS14#199110-199508

main58191-30040iGS141,JZS141,143,145,LS141199110-199508

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-3F210-B0iJZS149..B199408-199508

sub58510-3F230

main58510-3F210-B0iUZS141199110-199210

sub58510-3F230

main58510-3F210-B0iUZS141199110-199308

sub58510-3F230

main58510-3F210-B0iJZS149..B199308-199408

sub58510-3F230

main58510-3F210-B0iUZS141199210-199508

SHADOW GRAY,TRIM1#

sub58510-3F230

main58510-3F210-E0iJZS149..B199110-199308

sub58510-3F230

main58510-3F210-E0iJZS149..B199408-199508

sub58510-3F230

main58510-3F210-E0iUZS141199210-199508

QUARTZ,TRIM4#

sub58510-3F230

main58510-3F210-E0iUZS141199110-199210

sub58510-3F230

main58510-3F210-E0iJZS149..B199308-199408

sub58510-3F230

main58510-3F210-J0iJZS149..B199308-199408

sub58510-3F230

main58510-3F210-J0iUZS141199110-199210

sub58510-3F230

main58510-3F210-J0iUZS141199110-199308

sub58510-3F230

main58510-3F210-J0iUZS141199210-199508

DK.BLUE,TRIM8#

sub58510-3F230

main58510-3F230-B0iJZS147,149199110-199508

SHADOW GRAY,TRIM1#

main58510-3F230-B0iJZS147,UZS147199308-199508

main58510-3F230-B0iUZS141199210-199308

main58510-3F230-E0iJZS147,UZS147199110-199508

QUARTZ,TRIM4#

main58510-3F230-E0iUZS141199210-199308

main58510-3F230-E0iJZS147,UZS147199308-199508

main58510-3F230-J0iJZS149199110-199508

DK.BLUE,TRIM8#

main58510-3F230-J0iJZS147,UZS147199408-199508

main58510-3F250-B0iJZS145199110-199508

sub58510-3F260

main58510-3F250-E0iJZS145199110-199508

sub58510-3F260

main58510-3F250-J0iJZS145199110-199508

sub58510-3F260

main58510-3F260-B0iJZS141..ROY199110-199308

main58510-3F260-B0iJZS141..ROY199110-199308

main58510-3F260-B0iJZS145199110-199508

SHADOW GRAY,TRIM1#

main58510-3F260-E0iJZS143..ROY199110-199308

main58510-3F260-E0iJZS141..ROY199110-199308

main58510-3F260-E0iJZS145199110-199508

QUARTZ,TRIM4#

main58510-3F260-J0iJZS143..ROY199110-199308

main58510-3F260-J0iJZS141..ROY199110-199308

main58510-3F260-J0iJZS145199110-199508

DK.BLUE,TRIM8#

main58510-3F270-B0iGS141,JZS141,LS141..SALEX,SSL199206-199508

main58510-3F270-B0iJZS141,143..4FC..(ROY,ROYT)199110-199508

SHADOW GRAY,TRIM1#

main58510-3F270-E0iJZS141,LS141..SSL199206-199508

main58510-3F270-E0iJZS141,143..4FC..(ROY,ROYT)199110-199508

QUARTZ,TRIM4#

main58510-3F270-E0iJZS141,LS141..SSL199305-199307

main58510-3F270-J0iGS141,JZS141,LS141..SALEX,SSL199206-199508

main58510-3F270-J0iJZS141,143..ROY199110-199508

DK.BLUE,TRIM8#

main58510-3F280-B0iGS141,JZS141,LS141..SALEX,SSL199110-199508

SHADOW GRAY,TRIM1#

sub58510-3F280

main58510-3F280-E0iGS141,JZS141,LS141..SALEX,SSL199110-199508

QUARTZ,TRIM4#

sub58510-3F280

main58510-3F280-J0iGS141,JZS141,LS141..SALEX,SSL199110-199508

DK.BLUE,TRIM8#

sub58510-3F280

main58510-3F290-B0iJZS143..ROYT199110-199508

SHADOW GRAY,TRIM1#

main58510-3F290-E0iJZS143..ROYT199210-199508

QUARTZ,TRIM4#

main58510-3F660-B0iJZS145199110-199508

sub58510-3F250

main58510-3F660-E0iJZS145199110-199508

sub58510-3F250

main58510-3F660-J0iJZS145199110-199508

sub58510-3F250

main58510-3F670-B0iGS141,JZS141,LS141..SALEX,SSL199110-199508

sub58510-3F280

main58510-3F670-E0iGS141,JZS141,LS141..SALEX,SSL199110-199508

sub58510-3F280

main58510-3F670-J0iGS141,JZS141,LS141..SALEX,SSL199110-199508

sub58510-3F280

main58510-3F680-B0iJZS143..ROY199110-199308

sub58510-3F260

main58510-3F680-B0iJZS145199110-199508

sub58510-3F260

main58510-3F680-E0iJZS143..ROY199110-199308

sub58510-3F260

main58510-3F680-E0iJZS145199110-199508

sub58510-3F260

main58510-3F680-J0iJZS141..ROY199110-199308

sub58510-3F260

main58510-3F680-J0iJZS145199110-199508

sub58510-3F260

main58510-3F690-B0iJZS141,143..4FC..(ROY,ROYT)199110-199508

sub58510-3F270

main58510-3F690-B0iJZS141,LS141..SSL199206-199508

sub58510-3F270

main58510-3F690-E0iJZS141,LS141..SSL199206-199508

sub58510-3F270

main58510-3F690-E0iJZS141,143..4FC..(ROY,ROYT)199110-199508

sub58510-3F270

main58510-3F690-E0iJZS141,LS141..SSL199305-199307

sub58510-3F270

main58510-3F690-J0iJZS141,143..ROY199110-199508

sub58510-3F270

main58510-3F690-J0iGS141,JZS141,LS141..SALEX,SSL199206-199508

sub58510-3F270

main58510-3F730-B0iJZS149..B199210-199408

sub58510-3F210

main58510-3F730-B0iUZS141199210-199508

sub58510-3F210

main58510-3F730-B0iJZS149,UZS141..B,C199110-199508

sub58510-3F210

main58510-3F730-E0iJZS149,UZS141..B,C199110-199508

sub58510-3F210

main58510-3F730-E0iJZS149..B199210-199408

sub58510-3F210

main58510-3F730-E0iUZS141199210-199508

sub58510-3F210

main58510-3F730-J0iUZS141199210-199508

sub58510-3F210

main58510-3F730-J0iJZS149..B199210-199408

sub58510-3F210

main58510-3F740-B0iJZS149199110-199508

sub58510-3F230

main58510-3F740-B0iJZS147,UZS147199308-199508

sub58510-3F230

main58510-3F740-E0iJZS149199110-199508

sub58510-3F230

main58510-3F740-E0iJZS147,UZS147199308-199508

sub58510-3F230

main58510-3F740-J0iJZS147,UZS147199408-199508

sub58510-3F230

main58510-3F740-J0iJZS149,UZS141199110-199508

sub58510-3F230

main58510-3F770-B0iUZS143,145199210-199508

sub58510-3F780

main58510-3F770-E0iUZS143,145199210-199508

sub58510-3F780

main58510-3F770-J0iUZS143,145199210-199508

sub58510-3F780

main58510-3F780-B1iUZS143,145199210-199508

SHADOW GRAY,TRIM1#

main58510-3F780-E1iUZS143,145199210-199508

QUARTZ,TRIM4#

main58510-3F780-J0iUZS143,145199210-199508

DK.BLUE,TRIM8#

main58510-3F790-B0iUZS143,145199210-199508

sub58510-3F770

main58510-3F790-E0iUZS143,145199210-199508

sub58510-3F770

main58510-3F790-J0iUZS143,145199210-199508

sub58510-3F770

main58510-3F800-B0iUZS143,145199210-199508

sub58510-3F780

main58510-3F800-E0iUZS143,145199210-199508

sub58510-3F780

main58510-3F800-J0iUZS143,145199210-199508

sub58510-3F780

main58510-3K030-B0iJZS147,UZS147199308-199508

SHADOW GRAY,TRIM1#

main58510-3K030-E0iJZS147,UZS147199308-199508

QUARTZ,TRIM4#

main58510-3K040-B0iJZS147,UZS147199308-199508

sub58510-3K030

main58510-3K040-E0iJZS147,UZS147199308-199508

sub58510-3K030

9016710121

main90167-10121

9016740044

main90167-40044

9046705020

main90467-05020

9046706147

main90467-06147

6 parts on this diagram · 2 diagrams in section
