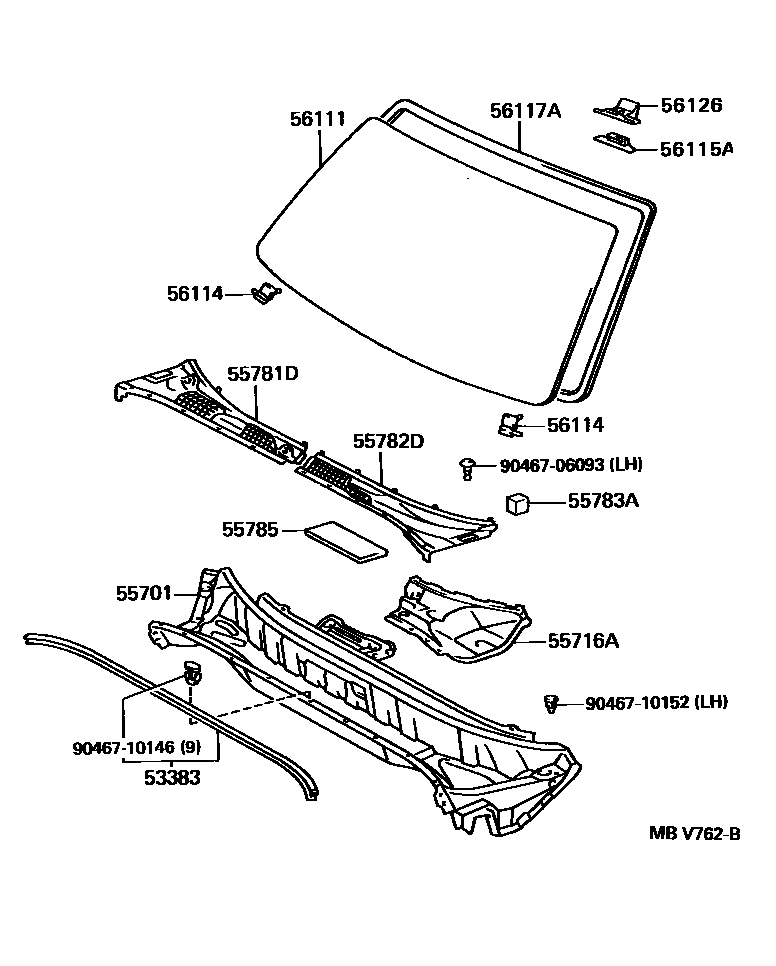

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383SEAL, HOOD TO COWL TOP

main53383-30090iJZS147,149,UZS14#199110-199508

main53383-30100iGS141,JZS141,143,145,LS141199110-199508

55701PANEL SUB-ASSY, COWL

main55700-30540iJZS147,149,UZS14#199110-199508

sub55700-30570

sub90333-01004

main55700-30570iJZS147,149,UZS14#199110-199508

main55700-30590iJZS141,143,LS141..4FC199110-199508

sub55700-30630

sub90333-01004

main55700-30600iGS141,JZS141,143,LS141199110-199508

sub55700-30640

sub90333-01004

main55700-30630iJZS141,143,LS141..4FC199110-199508

main55700-30640iJZS145199110-199508

main55700-30640iJZS143,145..ROYG,ROYT199110-199508

55716ABRACE, COWL TOP TO APRON, LH

main55716-30020iJZS147,149,UZS14#199110-199508

main55716-30030iGS141,JZS141,143,145,LS141199110-199508

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-30110iJZS147,149,UZS14#199110-199508

main55781-30120iJZS147,149,UZS14#199110-199508

main55781-30130iGS141,JZS141,143,145,LS141199110-199508

main55781-30140iGS141,JZS141,143,145,LS141199110-199508

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-30070iJZS147,149,UZS14#199110-199508

main55782-30080iJZS147,149,UZS14#199110-199508

main55782-30090iGS141,JZS141,143,145,LS141199110-199508

main55782-30100iGS141,JZS141,143,145,LS141199110-199508

55783APAD, COWL TOP SILENCER

main55783-30020iGS141,JZS141,143,145,LS141199110-199508

sub61824-12090

main55783-30030iJZS149,UZS141199110-199209

sub55783-30050

main55783-30050iJZS147,149,UZS14#199209-199508

55785PAD, COWL OUTER PANEL, NO.2

main55785-30010iGS141,JZS141,143,145,LS141199110-199508

56111GLASS, WINDSHIELD

main56101-30080iJZS141,LS141..ROYT,SSL199305-199307

main56101-30080iJZS141,143,145,LS141..ROY,ROYG,SALEX199110-199508

main56101-30090iJZS141,143,145,LS141..ROY,ROYG,SALEX199110-199508

sub56101-30080

main56101-30090iJZS141,LS141..ROYT,SSL199305-199307

sub56101-30080

main56101-30100iGS141,JZS141,LS141..SSL199110-199508

main56101-30110iGS141,JZS141,LS141..SSL199110-199508

sub56101-30100

main56101-30120iJZS141,143..ROYT199110-199508

main56101-30130iJZS145199110-199508

main56101-30140iJZS145199110-199508

sub56101-30130

main56101-30150iJZS141,143..ROYT199110-199508

sub56101-30151

main56101-30150iJZS141,LS141..ROYT,SSL199305-199307

sub56101-30151

main56101-30160iJZS141,LS141..ROYT,SSL199305-199307

sub56101-30161

main56101-30160iJZS141,143,145,LS141..ROY,ROYG,SALEX199110-199508

sub56101-30161

main56101-30170iGS141,JZS141,LS141..SSL199110-199508

sub56101-30171

main56101-30180iGS141,JZS141,LS141..SSL199110-199508

sub56101-30181

main56101-30190iJZS141,143..ROYT199110-199508

sub56101-30191

main56101-30200iJZS145199110-199508

sub56101-30201

main56101-30210iJZS145199110-199508

sub56101-30211

main56101-30260iJZS149,UZS141,143,145199110-199508

main56101-30270iJZS149,UZS141,143,145199110-199508

sub56101-30260

main56101-30280iJZS149,UZS143,145..B,C199110-199508

main56101-30290iUZS143,145199110-199508

sub56101-30260

main56101-30300iJZS149,UZS141,143,145199110-199508

sub56101-30301

main56101-30310iJZS149,UZS141,143,145199110-199508

sub56101-30311

main56101-30320iJZS149,UZS143,145..B,C199110-199508

sub56101-30321

main56101-30330iJZS149,UZS143,145..B,C199110-199508

sub56101-30331

main56101-30440iJZS147,UZS147199210-199508

main56101-30450iJZS147,UZS147199210-199508

sub56101-30451

56114RETAINER, WINDSHIELD GLASS

main56114-30090iJZS147,149,UZS14#199110-199508

sub56114-50020

main56114-30100iGS141,JZS141,143,145,LS141199110-199508

main56114-30110iGS141,JZS141,143,145,LS141199110-199508

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30070iGS141,JZS141,143,145,LS141199110-199310

sub56115-30090

main56115-30090iGS141,JZS14#,LS141,UZS14#199310-199508

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50020iGS141,JZS14#,LS141,UZS14#199110-199508

56126SPACER, WINDSHIELD GLASS, NO.2

main56126-30010iGS141,JZS14#,LS141,UZS14#199110-199508

9046706093

main90467-06093

9046710146

main90467-10146

9046710152

main90467-10152

15 parts on this diagram · 2 diagrams in section
