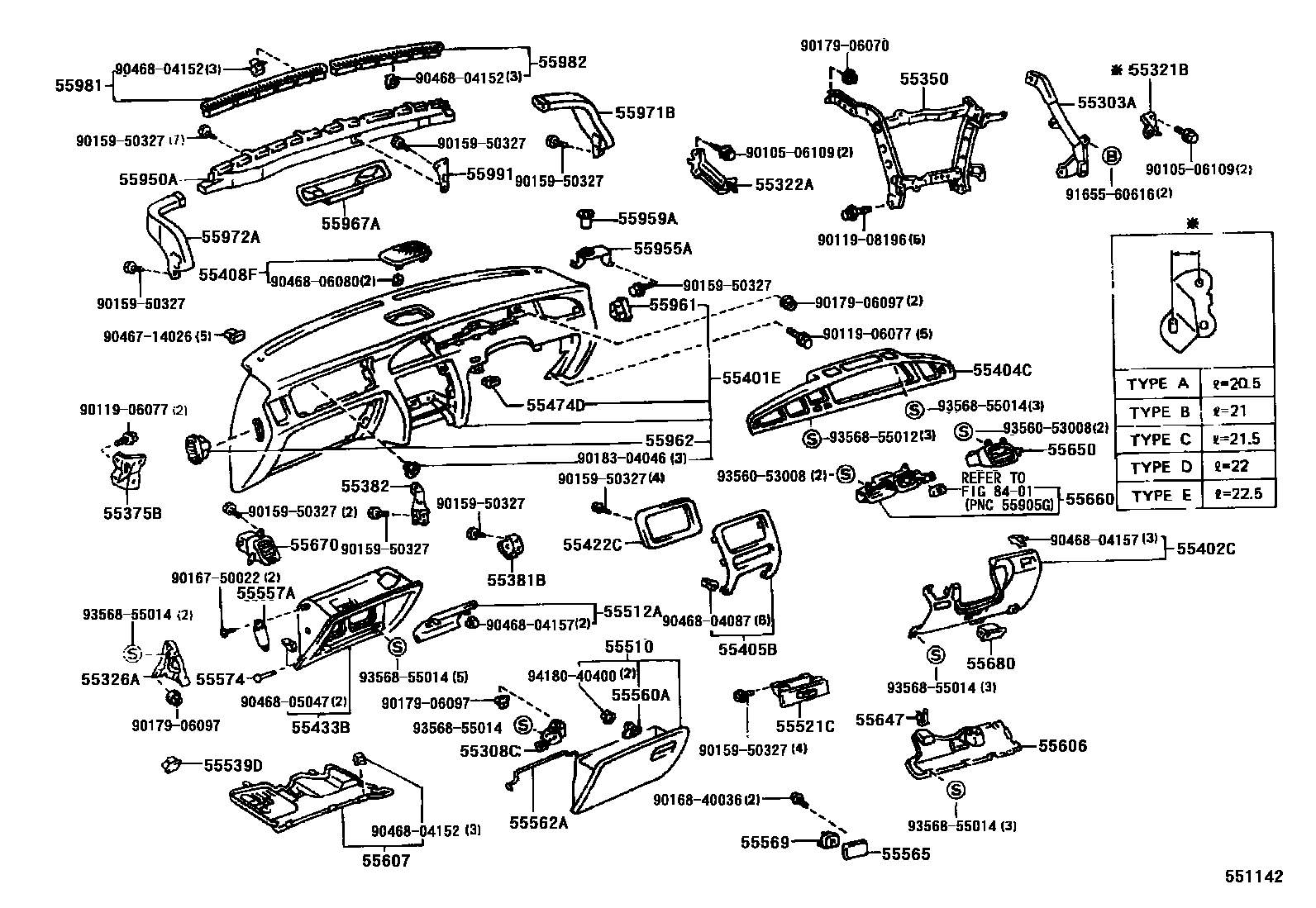

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1

55303ASTAY SUB-ASSY, INSTRUMENT PANEL

main55303-30130iGS141,JZS141,143,LS141199110-199508

main55303-30140iGS141,JZS141,143,LS141..4FC199110-199508

main55303-30140iJZS143,145..ROYG,ROYT199110-199210

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-30160iJZS147,149,UZS14#199110-199508

main55308-30180iGS141,JZS141,143,145,LS141199110-199508

main55308-30210iJZS147,149,UZS14#199308-199508

55321BBRACKET, INSTRUMENT PANEL, NO.1

main55321-30100iGS141,JZS141,143,145,LS141199110-199508

main55321-30110iGS141,JZS141,143,145,LS141199110-199508

main55321-30120iGS141,JZS141,143,145,LS141199110-199508

main55321-30130iGS141,JZS141,143,145,LS141199110-199508

main55321-30140iGS141,JZS141,143,145,LS141199110-199508

55322ABRACKET, INSTRUMENT PANEL, NO.2

main55322-30050iJZS141,143,145,LS141199110-199308

main55322-30060iGS141,JZS141,143,145,LS141199308-199508

55326ASTAY, INSTRUMENT PANEL, NO.1

main55326-30030iJZS14#,LS141,UZS14#199110-199508

main55326-30050iGS141,JZS141,143,145,LS141199308-199508

main55328-30040iJZS147,149,UZS14#199308-199508

55350BRACE ASSY, INSTRUMENT PANEL

main55350-30070iGS141,JZS141,143,145,LS141199110-199508

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-30040iJZS149,UZS141199110-199207

sub55375-30041

main55375-30041iJZS147,149,UZS14#199207-199508

main55375-30050iGS141,JZS141,143,145,LS141199110-199508

55381BBRACKET, FINISH PANEL MOUNTING, NO.1

main55381-30040iGS141,JZS14#,LS141,UZS14#199110-199508

55382BRACKET, FINISH PANEL MOUNTING, NO.2

main55382-30020iGS141,JZS14#,LS141,UZS14#199110-199508

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-30330-B0iJZS147,149,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main55401-30330-E0iJZS147,149,UZS14#199110-199508

QUARTZ,TRIM4#

main55401-30330-J0iJZS147,149,UZS14#199110-199508

DK.BLUE,TRIM8#

main55401-30340-B0iJZS143,145..4FC199110-199508

main55401-30340-E0iJZS143..ROYT;JZS141..ROY,ROYT199110-199508

main55401-30340-J0iJZS143,145..4FC199110-199508

main55401-30350-B0iGS141,JZS141,143,145,LS141199110-199508

SHADOW GRAY,TRIM1#

sub55401-30350

main55401-30350-E0iGS141,JZS141,143,145,LS141199110-199508

QUARTZ,TRIM4#

sub55401-30350

main55401-30350-J0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199110-199508

DK.BLUE,TRIM8#

sub55401-30350

main55401-30400-B0iJZS147,149,UZS14#199308-199508

main55401-30400-E0iJZS147,149,UZS14#199308-199508

main55401-30400-J0iJZS147,149,UZS14#199308-199508

55402CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH

main55402-30090-B0iJZS147,149,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main55402-30090-E0iJZS147,149,UZS14#199110-199508

QUARTZ,TRIM4#

main55402-30090-J0iJZS147,149,UZS14#199110-199508

DK.BLUE,TRIM8#

main55402-30100-B0iGS141,JZS141,143,145,LS141199110-199508

SHADOW GRAY,TRIM1#

sub55402-30100

main55402-30100-E0iJZS141,143,145,LS141..4FC199110-199508

QUARTZ,TRIM4#

sub55402-30100

main55402-30100-J0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199110-199508

DK.BLUE,TRIM8#

sub55402-30100

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55411-30700iJZS143..ROY199110-199508

main55411-30710iGS141,JZS141,143,LS141199110-199508

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-30270iJZS143,145,149,UZS141,143,145..4FC199110-199508

main55405-30280iJZS141,LS141..SALEX199110-199508

main55405-30280iJZS14#,UZS141..A,B,C,ROY,ROYG,ROYT199110-199508

main55405-30290iJZS141,LS141..SALEX,SSL199110-199210

main55405-30291iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199210-199508

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-30040-B0iJZS14#,UZS14#..A,B,C,ROY,ROYG,ROYT199110-199303

SHADOW GRAY,TRIM1#

sub55408-30040

main55408-30040-B1iJZS14#,UZS14#..A,B,C,ROY,ROYG,ROYT199303-199508

SHADOW GRAY,TRIM1#

sub55408-30040

main55408-30040-E0iJZS14#,UZS141..A,B,C,ROY,ROYG199110-199508

QUARTZ,TRIM4#

sub55408-30040

main55408-30040-J0iJZS141,143,145,149,UZS141,143,145..A,B,C,ROY,ROYG199110-199508

DK.BLUE,TRIM8#

sub55408-30040

55422CPANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER

main55422-30100iJZS141,LS141..SALEX,SSL199110-199508

55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-30070iJZS14#,LS141,UZS14#199110-199303

sub55433-30071

main55433-30071iGS141,JZS14#,LS141,UZS14#199303-199508

55474DGARNISH, INSTRUMENT PANEL SAFETY PAD

main55474-30170-B0iGS141,JZS14#,LS141,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main55474-30170-E0iGS141,JZS14#,LS141,UZS14#199110-199508

QUARTZ,TRIM4#

main55474-30170-J0iGS141,JZS14#,LS141,UZS14#..A,B,C,ROY,ROYG,SALEX,SSL199110-199508

DK.BLUE,TRIM8#

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-30110-B0iGS141,JZS14#,LS141,UZS14#199110-199508

SHADOW GRAY,TRIM1#

sub55501-30110

main55501-30110-E0iJZS14#,LS141,UZS141..4FC199110-199508

QUARTZ,TRIM4#

sub55501-30110

main55501-30110-J0iGS141,JZS141,143,145,149,LS141,UZS141,143,145..A,B,C,ROY,ROYG,SALEX,SSL199110-199508

DK.BLUE,TRIM8#

sub55501-30110

55512APLATE, GLOVE COMPARTMENT

main55512-30080iGS141,JZS14#,LS141,UZS14#199110-199508

55521CCOVER, STEREO OPENING

main55521-30130iJZS141,LS141..SALEX,SSL199110-199308

sub55521-32011

main55521-30140iGS141,JZS141,143,LS141..ROYT,SALEX,SSL199308-199508

sub55521-32011

55539DCOVER, SPARE SWITCH HOLE

main55546-30030iJZS141,143,147,LS141199110-199508

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-30020iGS141,JZS14#,LS141,UZS14#199110-199508

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-30010iGS141,JZS14#,LS141,UZS14#199110-199508

55562ALINK, GLOVE COMPARTMENT DOOR LOCK

main55562-30010iGS141,JZS14#,LS141,UZS14#199110-199508

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-50010-E4iJZS14#,LS141,UZS141..4FC199110-199508

DK.ROSE,TRIM4#

sub55565-50010

main55565-50010-P0iGS141,JZS14#,LS141,UZS14#199110-199508

SHADOW GRAY,TRIM1#

sub55565-50010

main55565-50010-W3iGS141,JZS141,143,145,149,LS141,UZS141,143,145..A,B,C,ROY,ROYG,SALEX,SSL199110-199508

DK.BLUE,TRIM8#

sub55565-50010

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-50010-E4iGS141,JZS14#,LS141,UZS14#199110-199508

DK.ROSE,TRIM4#

sub55569-50010

main55569-50010-P0iGS141,JZS14#,LS141,UZS14#199110-199508

SHADOW GRAY,TRIM1#

sub55569-50010

main55569-50010-W3iGS141,JZS141,143,145,149,LS141,UZS141,143,145..A,B,C,ROY,ROYG,SALEX,SSL199110-199508

DK.BLUE,TRIM8#

sub55569-50010

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010iGS141,JZS14#,LS141,UZS14#199110-199508

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-30140iJZS147,149,UZS14#199110-199508

main55606-30150iGS141,JZS141,143,145,LS141199110-199508

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-30100-B0iJZS147,149,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main55607-30100-E0iJZS147,149,UZS14#199110-199508

QUARTZ,TRIM4#

main55607-30100-J0iJZS147,149,UZS14#199110-199508

DK.BLUE,TRIM8#

main55607-30110-B0iGS141,JZS141,143,145,LS141199110-199508

SHADOW GRAY,TRIM1#

main55607-30110-E0iGS141,JZS141,143,145,LS141199110-199508

QUARTZ,TRIM4#

main55607-30110-J0iGS141,JZS141,143,145,LS141..ROY,ROYG,SALEX,SSL199110-199508

DK.BLUE,TRIM8#

55647CLAMP, INSTRUMENT PANEL UNDER COVER

main55647-22010iGS141,JZS141,143,145,LS141199110-199508

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-30160iGS141,JZS14#,LS141,UZS14#199110-199508

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-30250iGS141,JZS14#,LS141,UZS14#199110-199508

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-30190-B0iGS141,JZS14#,LS141,UZS14#199110-199508

SHADOW GRAY,TRIM1#

sub55670-30190

main55670-30190-E0iGS141,JZS14#,LS141,UZS14#199110-199508

QUARTZ,TRIM4#

sub55670-30190

main55670-30190-J0iGS141,JZS141,143,145,149,LS141,UZS141,143,145..A,B,C,ROY,ROYG,SALEX,SSL199110-199508

DK.BLUE,TRIM8#

sub55670-30190

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-89101iGS141,JZS14#,LS141,UZS14#199110-199508

sub55680-17050

55950ANOZZLE ASSY, DEFROSTER

main55950-30080iJZS147,149,UZS14#199110-199508

main55950-30090iGS141,JZS141,143,145,LS141199110-199508

55955APLATE, DEFROSTER NOZZLE OPENING, NO.1

main55955-30030iJZS141,LS141..SSL199110-199508

55959ACOVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-30050iJZS141,LS141..SSL199110-199508

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-30080-B0iGS141,JZS14#,LS141,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main55961-30080-E0iJZS14#,LS141,UZS141..4FC199110-199508

QUARTZ,TRIM4#

main55961-30080-J0iGS141,JZS141,143,145,149,LS141,UZS141,143,145..A,B,C,ROY,ROYG,SALEX,SSL199110-199508

DK.BLUE,TRIM8#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-30060-B0iGS141,JZS14#,LS141,UZS14#199110-199508

SHADOW GRAY,TRIM1#

main55962-30060-E0iJZS14#,LS141,UZS141..4FC199110-199508

QUARTZ,TRIM4#

main55962-30060-J0iGS141,JZS141,143,145,149,LS141,UZS141,143,145..A,B,C,ROY,ROYG,SALEX,SSL199110-199508

DK.BLUE,TRIM8#

55967ANOZZLE, DEFROSTER, LOWER

main55967-30030iJZS147,149,UZS14#199110-199508

main55967-30040iGS141,JZS141,143,145,LS141199110-199508

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-30060iJZS147,149,UZS14#199110-199508

main55971-30080iJZS141,143,145,LS141199110-199508

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-30060iJZS147,149,UZS14#199110-199508

main55972-30080iJZS141,143,145,LS141199110-199508

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-30040iJZS147,149,UZS14#199110-199508

main55981-30050iGS141,JZS141,143,145,LS141199110-199508

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-30040iJZS147,149,UZS14#199110-199508

main55982-30050iGS141,JZS141,143,145,LS141199110-199508

55991BRACKET, DEFROSTER DUCT, NO.1

main55991-30020iJZS147,149,UZS14#199110-199508

main55991-30030iGS141,JZS141,143,145,LS141199110-199508

8401

9010506109

main90105-06109

9011906077

main90119-06077

9011908196

main90119-08196

9015950327

main90159-50327

9016750022

main90167-50022

9016840036

main90168-40036

9017906070

main90179-06070

9017906097

main90179-06097

9018304046

main90183-04046

9046714026

main90467-14026

9046804087

main90468-04087

9046804152

main90468-04152

9046804157

main90468-04157

9046805047

main90468-05047

9046806080

main90468-06080

9165560616

main91655-60616

9356053008

main93560-53008

9356855012

main93568-55012

9356855014

main93568-55014

9418040400

main94180-40400

66 parts on this diagram · 3 diagrams in section
